• SMATO 109-7641 Woodworking Drill Mortise Chisel Bit
1 1

SMATO 109-7641 Woodworking Drill Mortise Chisel Bit

SMATO 109-7641 Woodworking Drill Mortise Chisel Bit

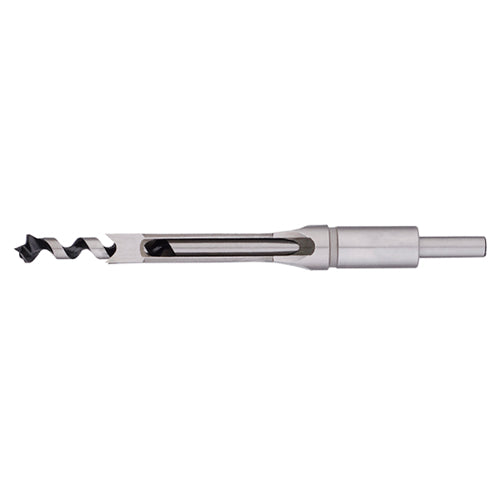

The Smato 109-7641 Woodworking Drill Mortise Chisel Bit is a specialized woodworking cutting tool designed to bore clean, square-cornered mortise holes in timber, sourced direct from Korea.

Key features

  • Mortise chisel bits are commonly used by furniture makers, cabinet builders, and carpenters when cutting mortise-and-tenon joinery, allowing the drill press to remove material while the chisel sleeve squares off the corners in a single pass

Specifications

Shank Diameter 3/4'
Chisel Spec-Shank d 19
109-7641 6.4MM(135X210) | Spec: 6.4 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 6.4 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 6.4 | Drill Spec-Cutting Length: 70 | Drill Spec-Overall Length L: 210
109-7650 8.0MM(140X210) | Spec: 8.0 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 8.0 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 8.0 | Drill Spec-Cutting Length: 70 | Drill Spec-Overall Length L: 210
109-7669 9.5MM(140X210) | Spec: 9.5 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 9.5 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 9.5 | Drill Spec-Cutting Length: 80 | Drill Spec-Overall Length L: 210
109-7678 12.7MM(140X210) | Spec: 12.7 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 12.7 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 12.7 | Drill Spec-Cutting Length: 80 | Drill Spec-Overall Length L: 210
109-7687 16MM(160X218) | Spec: 16 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 16 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 16 | Drill Spec-Cutting Length: 100 | Drill Spec-Overall Length L: 218
109-7696 19MM(160X225) | Spec: 19 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 19 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 19 | Drill Spec-Cutting Length: 105 | Drill Spec-Overall Length L: 225
109-7702 22MM(160X225) | Spec: 22 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 22 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 22 | Drill Spec-Cutting Length: 105 | Drill Spec-Overall Length L: 225
Woodworking BitsSMATO
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMATO 109-7641 Woodworking Drill Mortise Chisel Bit

Brand SMATO·Woodworking Bits

Available part numbers (7)

109-7641, 109-7650, 109-7669, 109-7678, 109-7687, 109-7696, 109-7702

How to order

Send the SMATO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
109-76416.4MM(135X210) | Spec: 6.4 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 6.4 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 6.4 | Drill Spec-Cutting Length: 70 | Drill Spec-Overall Length L: 210
109-76508.0MM(140X210) | Spec: 8.0 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 8.0 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 8.0 | Drill Spec-Cutting Length: 70 | Drill Spec-Overall Length L: 210
109-76699.5MM(140X210) | Spec: 9.5 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 9.5 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 9.5 | Drill Spec-Cutting Length: 80 | Drill Spec-Overall Length L: 210
109-767812.7MM(140X210) | Spec: 12.7 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 12.7 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 135 | Drill Spec-Outer Diameter D: 12.7 | Drill Spec-Cutting Length: 80 | Drill Spec-Overall Length L: 210
109-768716MM(160X218) | Spec: 16 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 16 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 16 | Drill Spec-Cutting Length: 100 | Drill Spec-Overall Length L: 218
109-769619MM(160X225) | Spec: 19 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 19 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 19 | Drill Spec-Cutting Length: 105 | Drill Spec-Overall Length L: 225
109-770222MM(160X225) | Spec: 22 | Shank Diameter: 3/4' | Chisel Spec-Outer Diameter D: 22 | Chisel Spec-Shank d: 19 | Chisel Spec-Overall Length L: 160 | Drill Spec-Outer Diameter D: 22 | Drill Spec-Cutting Length: 105 | Drill Spec-Overall Length L: 225
