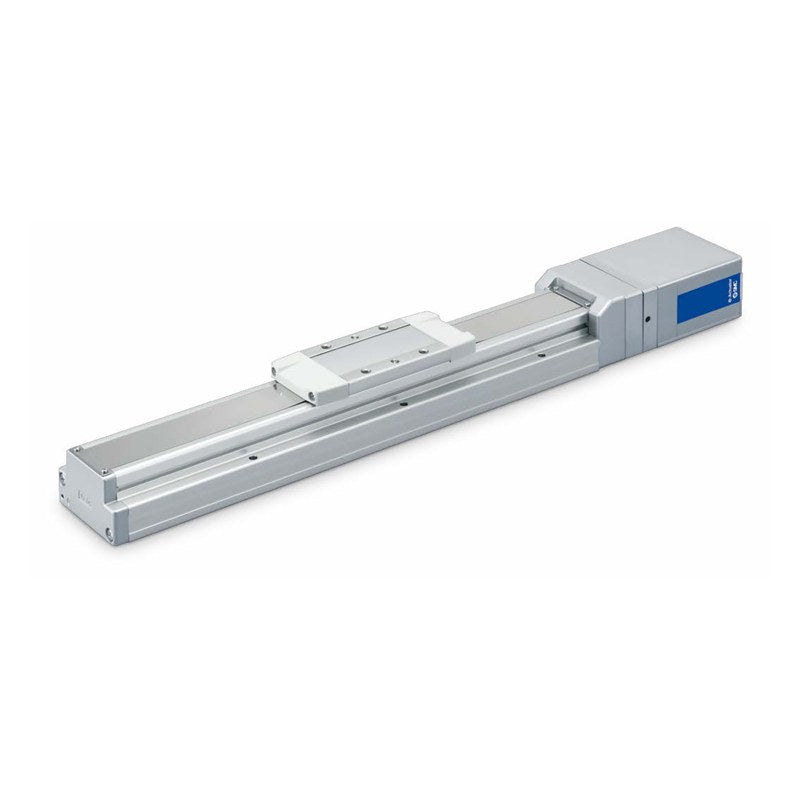

SMC EQFS Electric Slider, Controller Integrated (Size 16, 25)

SMC EQFS e-Actuator slider-type electric actuator with integrated controller and battery-less absolute step motor (DC24V), sizes 16 and 25.

Key features

Controller-integrated slider: 2-point and 3-point (closed center) stopping set without programming
Operating modes: single solenoid, double solenoid and closed center, plus cycle-time setting
Battery-less absolute encoder; one-touch latching metal connectors with LED status display
Interface (last symbol) listed as 5 = Parallel input NPN (power connector A-code); replace with 6 (Parallel PNP), LA (IO-Link, A-code power) or LB (IO-Link, L-code power)
Seal band grease (N = without grease, roller specification) and auto switches (D-M9 series) not expanded; power cable, parallel i/o cable and io-link cable are ordered separately

Specifications

Motor	Battery-less absolute step motor DC24V
Controller	Integrated (controller-integrated type, symbol B)
Drive	Ball screw (straight); ball screw + belt (parallel)
Guide	Linear guide
Repeatability	±0.02 mm
Lost motion	0.1 mm or less
Max. acceleration/deceleration	Horizontal 10000 mm/s², vertical 5000 mm/s²
Enclosure	IP30
Operating temperature	5 to 40°C
Power supply	DC24V ±10%
Horizontal payload (by lead)	EQFS16: 10/15/18 kg; EQFS25: 15/26/40/40 kg
Pushing force	EQFS16 23 to 154 N; EQFS25 41 to 511 N
Stroke range	EQFS16 50-500 mm; EQFS25 50-800 mm
Source	SMC Korea catalog CAT.KS100-154D (SMCKR_EQF_EQY.pdf), p. 24-25 (PDF p. 25-26)

EQFS16D1HA-50-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D1HA-50B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D1HA-100-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D1HA-100B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D1HA-150-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D1HA-150B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D1HA-200-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D1HA-200B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D1HA-250-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D1HA-250B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D1HA-300-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D1HA-300B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D1HA-350-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D1HA-350B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D1HA-400-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D1HA-400B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D1HA-450-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D1HA-450B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D1HA-500-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D1HA-500B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D1HB-50-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D1HB-50B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D1HB-100-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D1HB-100B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D1HB-150-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D1HB-150B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D1HB-200-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D1HB-200B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D1HB-250-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D1HB-250B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D1HB-300-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D1HB-300B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D1HB-350-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D1HB-350B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D1HB-400-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D1HB-400B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D1HB-450-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D1HB-450B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D1HB-500-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D1HB-500B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D1HC-50-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D1HC-50B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D1HC-100-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D1HC-100B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D1HC-150-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D1HC-150B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D1HC-200-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D1HC-200B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D1HC-250-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D1HC-250B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D1HC-300-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D1HC-300B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D1HC-350-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D1HC-350B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D1HC-400-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D1HC-400B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D1HC-450-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D1HC-450B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D1HC-500-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D1HC-500B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D2HA-50-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D2HA-50B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D2HA-100-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D2HA-100B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D2HA-150-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D2HA-150B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D2HA-200-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D2HA-200B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D2HA-250-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D2HA-250B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D2HA-300-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D2HA-300B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D2HA-350-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D2HA-350B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D2HA-400-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D2HA-400B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D2HA-450-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D2HA-450B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D2HA-500-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D2HA-500B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D2HB-50-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D2HB-50B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D2HB-100-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D2HB-100B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D2HB-150-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D2HB-150B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D2HB-200-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D2HB-200B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D2HB-250-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D2HB-250B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D2HB-300-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D2HB-300B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D2HB-350-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D2HB-350B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D2HB-400-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D2HB-400B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D2HB-450-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D2HB-450B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D2HB-500-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D2HB-500B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D2HC-50-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D2HC-50B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D2HC-100-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D2HC-100B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D2HC-150-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D2HC-150B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D2HC-200-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D2HC-200B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D2HC-250-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D2HC-250B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D2HC-300-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D2HC-300B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D2HC-350-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D2HC-350B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D2HC-400-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D2HC-400B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D2HC-450-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D2HC-450B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D2HC-500-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D2HC-500B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D3HA-50-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D3HA-50B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D3HA-100-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D3HA-100B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D3HA-150-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D3HA-150B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D3HA-200-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D3HA-200B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D3HA-250-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D3HA-250B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D3HA-300-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D3HA-300B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D3HA-350-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D3HA-350B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D3HA-400-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D3HA-400B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D3HA-450-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D3HA-450B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D3HA-500-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D3HA-500B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D3HB-50-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D3HB-50B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D3HB-100-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D3HB-100B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D3HB-150-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D3HB-150B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D3HB-200-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D3HB-200B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D3HB-250-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D3HB-250B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D3HB-300-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D3HB-300B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D3HB-350-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D3HB-350B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D3HB-400-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D3HB-400B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D3HB-450-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D3HB-450B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D3HB-500-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D3HB-500B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D3HC-50-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D3HC-50B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D3HC-100-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D3HC-100B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D3HC-150-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D3HC-150B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D3HC-200-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D3HC-200B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D3HC-250-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D3HC-250B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D3HC-300-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D3HC-300B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D3HC-350-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D3HC-350B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D3HC-400-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D3HC-400B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D3HC-450-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D3HC-450B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D3HC-500-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D3HC-500B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D4HA-50-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D4HA-50B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D4HA-100-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D4HA-100B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D4HA-150-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D4HA-150B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D4HA-200-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D4HA-200B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D4HA-250-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D4HA-250B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D4HA-300-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D4HA-300B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D4HA-350-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D4HA-350B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D4HA-400-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D4HA-400B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D4HA-450-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D4HA-450B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D4HA-500-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D4HA-500B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D4HB-50-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D4HB-50B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D4HB-100-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D4HB-100B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D4HB-150-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D4HB-150B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D4HB-200-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D4HB-200B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D4HB-250-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D4HB-250B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D4HB-300-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D4HB-300B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D4HB-350-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D4HB-350B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D4HB-400-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D4HB-400B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D4HB-450-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D4HB-450B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D4HB-500-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D4HB-500B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16D4HC-50-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16D4HC-50B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16D4HC-100-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16D4HC-100B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16D4HC-150-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16D4HC-150B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16D4HC-200-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16D4HC-200B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16D4HC-250-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16D4HC-250B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16D4HC-300-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16D4HC-300B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16D4HC-350-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16D4HC-350B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16D4HC-400-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16D4HC-400B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16D4HC-450-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16D4HC-450B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16D4HC-500-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16D4HC-500B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16RHA-50-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16RHA-50B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16RHA-100-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16RHA-100B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16RHA-150-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16RHA-150B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16RHA-200-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16RHA-200B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16RHA-250-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16RHA-250B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16RHA-300-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16RHA-300B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16RHA-350-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16RHA-350B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16RHA-400-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16RHA-400B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16RHA-450-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16RHA-450B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16RHA-500-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16RHA-500B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16RHB-50-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16RHB-50B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16RHB-100-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16RHB-100B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16RHB-150-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16RHB-150B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16RHB-200-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16RHB-200B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16RHB-250-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16RHB-250B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16RHB-300-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16RHB-300B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16RHB-350-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16RHB-350B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16RHB-400-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16RHB-400B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16RHB-450-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16RHB-450B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16RHB-500-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16RHB-500B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16RHC-50-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16RHC-50B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16RHC-100-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16RHC-100B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16RHC-150-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16RHC-150B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16RHC-200-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16RHC-200B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16RHC-250-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16RHC-250B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16RHC-300-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16RHC-300B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16RHC-350-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16RHC-350B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16RHC-400-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16RHC-400B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16RHC-450-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16RHC-450B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16RHC-500-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16RHC-500B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16LHA-50-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16LHA-50B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16LHA-100-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16LHA-100B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16LHA-150-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16LHA-150B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16LHA-200-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16LHA-200B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16LHA-250-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16LHA-250B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16LHA-300-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16LHA-300B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16LHA-350-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16LHA-350B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16LHA-400-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16LHA-400B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16LHA-450-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16LHA-450B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16LHA-500-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16LHA-500B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16LHB-50-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16LHB-50B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16LHB-100-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16LHB-100B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16LHB-150-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16LHB-150B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16LHB-200-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16LHB-200B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16LHB-250-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16LHB-250B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16LHB-300-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16LHB-300B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16LHB-350-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16LHB-350B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16LHB-400-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16LHB-400B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16LHB-450-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16LHB-450B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16LHB-500-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16LHB-500B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS16LHC-50-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS16LHC-50B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQFS16LHC-100-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS16LHC-100B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQFS16LHC-150-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS16LHC-150B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS16LHC-200-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS16LHC-200B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS16LHC-250-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS16LHC-250B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS16LHC-300-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS16LHC-300B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS16LHC-350-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS16LHC-350B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS16LHC-400-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS16LHC-400B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS16LHC-450-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS16LHC-450B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS16LHC-500-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS16LHC-500B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25HH-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25HH-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25HH-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25HH-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25HH-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25HH-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25HH-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25HH-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25HH-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25HH-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25HH-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25HH-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25HH-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25HH-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25HH-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25HH-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25HH-450-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25HH-450B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25HH-500-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25HH-500B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25HH-550-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25HH-550B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25HH-600-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25HH-600B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25HH-650-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25HH-650B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25HH-700-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25HH-700B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25HH-750-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25HH-750B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25HH-800-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25HH-800B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25HA-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25HA-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25HA-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25HA-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25HA-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25HA-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25HA-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25HA-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25HA-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25HA-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25HA-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25HA-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25HA-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25HA-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25HA-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25HA-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25HA-450-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25HA-450B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25HA-500-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25HA-500B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25HA-550-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25HA-550B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25HA-600-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25HA-600B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25HA-650-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25HA-650B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25HA-700-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25HA-700B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25HA-750-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25HA-750B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25HA-800-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25HA-800B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25HB-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25HB-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25HB-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25HB-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25HB-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25HB-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25HB-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25HB-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25HB-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25HB-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25HB-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25HB-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25HB-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25HB-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25HB-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25HB-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25HB-450-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25HB-450B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25HB-500-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25HB-500B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25HB-550-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25HB-550B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25HB-600-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25HB-600B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25HB-650-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25HB-650B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25HB-700-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25HB-700B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25HB-750-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25HB-750B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25HB-800-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25HB-800B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25HC-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25HC-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25HC-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25HC-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25HC-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25HC-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25HC-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25HC-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25HC-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25HC-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25HC-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25HC-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25HC-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25HC-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25HC-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25HC-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25HC-450-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25HC-450B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25HC-500-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25HC-500B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25HC-550-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25HC-550B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25HC-600-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25HC-600B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25HC-650-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25HC-650B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25HC-700-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25HC-700B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25HC-750-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25HC-750B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25HC-800-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25HC-800B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25RHH-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25RHH-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25RHH-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25RHH-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25RHH-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25RHH-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25RHH-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25RHH-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25RHH-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25RHH-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25RHH-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25RHH-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25RHH-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25RHH-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25RHH-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25RHH-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25RHH-450-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25RHH-450B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25RHH-500-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25RHH-500B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25RHH-550-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25RHH-550B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25RHH-600-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25RHH-600B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25RHH-650-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25RHH-650B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25RHH-700-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25RHH-700B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25RHH-750-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25RHH-750B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25RHH-800-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25RHH-800B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25RHA-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25RHA-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25RHA-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25RHA-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25RHA-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25RHA-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25RHA-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25RHA-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25RHA-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25RHA-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25RHA-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25RHA-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25RHA-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25RHA-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25RHA-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25RHA-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25RHA-450-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25RHA-450B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25RHA-500-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25RHA-500B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25RHA-550-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25RHA-550B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25RHA-600-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25RHA-600B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25RHA-650-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25RHA-650B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25RHA-700-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25RHA-700B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25RHA-750-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25RHA-750B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25RHA-800-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25RHA-800B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25RHB-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25RHB-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25RHB-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25RHB-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25RHB-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25RHB-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25RHB-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25RHB-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25RHB-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25RHB-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25RHB-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25RHB-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25RHB-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25RHB-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25RHB-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25RHB-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25RHB-450-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25RHB-450B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25RHB-500-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25RHB-500B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25RHB-550-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25RHB-550B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25RHB-600-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25RHB-600B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25RHB-650-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25RHB-650B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25RHB-700-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25RHB-700B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25RHB-750-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25RHB-750B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25RHB-800-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25RHB-800B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25RHC-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25RHC-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25RHC-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25RHC-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25RHC-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25RHC-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25RHC-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25RHC-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25RHC-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25RHC-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25RHC-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25RHC-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25RHC-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25RHC-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25RHC-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25RHC-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25RHC-450-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25RHC-450B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25RHC-500-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25RHC-500B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25RHC-550-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25RHC-550B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25RHC-600-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25RHC-600B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25RHC-650-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25RHC-650B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25RHC-700-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25RHC-700B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25RHC-750-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25RHC-750B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25RHC-800-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25RHC-800B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25LHH-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25LHH-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25LHH-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25LHH-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25LHH-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25LHH-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25LHH-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25LHH-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25LHH-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25LHH-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25LHH-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25LHH-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25LHH-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25LHH-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25LHH-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25LHH-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25LHH-450-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25LHH-450B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25LHH-500-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25LHH-500B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25LHH-550-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25LHH-550B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25LHH-600-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25LHH-600B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25LHH-650-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25LHH-650B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25LHH-700-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25LHH-700B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25LHH-750-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25LHH-750B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25LHH-800-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25LHH-800B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25LHA-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25LHA-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25LHA-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25LHA-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25LHA-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25LHA-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25LHA-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25LHA-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25LHA-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25LHA-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25LHA-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25LHA-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25LHA-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25LHA-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25LHA-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25LHA-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25LHA-450-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25LHA-450B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25LHA-500-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25LHA-500B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25LHA-550-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25LHA-550B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25LHA-600-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25LHA-600B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25LHA-650-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25LHA-650B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25LHA-700-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25LHA-700B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25LHA-750-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25LHA-750B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25LHA-800-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25LHA-800B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25LHB-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25LHB-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25LHB-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25LHB-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25LHB-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25LHB-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25LHB-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25LHB-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25LHB-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25LHB-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25LHB-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25LHB-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25LHB-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25LHB-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25LHB-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25LHB-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25LHB-450-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25LHB-450B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25LHB-500-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25LHB-500B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25LHB-550-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25LHB-550B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25LHB-600-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25LHB-600B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25LHB-650-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25LHB-650B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25LHB-700-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25LHB-700B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25LHB-750-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25LHB-750B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25LHB-800-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25LHB-800B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: With lock
EQFS25LHC-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS25LHC-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQFS25LHC-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS25LHC-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQFS25LHC-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS25LHC-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQFS25LHC-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS25LHC-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQFS25LHC-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS25LHC-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQFS25LHC-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS25LHC-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQFS25LHC-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS25LHC-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQFS25LHC-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS25LHC-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQFS25LHC-450-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS25LHC-450B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: With lock
EQFS25LHC-500-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS25LHC-500B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: With lock
EQFS25LHC-550-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS25LHC-550B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: With lock
EQFS25LHC-600-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS25LHC-600B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: With lock
EQFS25LHC-650-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS25LHC-650B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: With lock
EQFS25LHC-700-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS25LHC-700B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: With lock
EQFS25LHC-750-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS25LHC-750B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: With lock
EQFS25LHC-800-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS25LHC-800B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: With lock

Electric ActuatorsSMC

744 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC EQFS Electric Slider, Controller Integrated (Size 16, 25)

Brand SMC·Electric Actuators

Available part numbers (744)

EQFS16D1HA-50-B5, EQFS16D1HA-50B-B5, EQFS16D1HA-100-B5, EQFS16D1HA-100B-B5, EQFS16D1HA-150-B5, EQFS16D1HA-150B-B5, EQFS16D1HA-200-B5, EQFS16D1HA-200B-B5, EQFS16D1HA-250-B5, EQFS16D1HA-250B-B5 + 734 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EQFS16D1HA-50-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D1HA-50B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D1HA-100-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D1HA-100B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D1HA-150-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D1HA-150B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D1HA-200-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D1HA-200B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D1HA-250-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D1HA-250B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D1HA-300-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D1HA-300B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D1HA-350-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D1HA-350B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D1HA-400-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D1HA-400B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D1HA-450-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D1HA-450B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D1HA-500-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D1HA-500B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D1HB-50-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D1HB-50B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D1HB-100-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D1HB-100B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D1HB-150-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D1HB-150B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D1HB-200-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D1HB-200B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D1HB-250-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D1HB-250B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D1HB-300-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D1HB-300B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D1HB-350-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D1HB-350B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D1HB-400-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D1HB-400B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D1HB-450-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D1HB-450B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D1HB-500-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D1HB-500B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D1HC-50-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D1HC-50B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D1HC-100-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D1HC-100B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D1HC-150-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D1HC-150B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D1HC-200-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D1HC-200B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D1HC-250-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D1HC-250B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D1HC-300-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D1HC-300B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D1HC-350-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D1HC-350B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D1HC-400-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D1HC-400B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D1HC-450-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D1HC-450B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D1HC-500-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D1HC-500B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D2HA-50-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D2HA-50B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D2HA-100-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D2HA-100B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D2HA-150-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D2HA-150B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D2HA-200-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D2HA-200B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D2HA-250-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D2HA-250B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D2HA-300-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D2HA-300B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D2HA-350-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D2HA-350B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D2HA-400-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D2HA-400B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D2HA-450-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D2HA-450B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D2HA-500-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D2HA-500B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D2HB-50-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D2HB-50B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D2HB-100-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D2HB-100B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D2HB-150-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D2HB-150B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D2HB-200-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D2HB-200B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D2HB-250-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D2HB-250B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D2HB-300-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D2HB-300B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D2HB-350-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D2HB-350B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D2HB-400-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D2HB-400B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D2HB-450-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D2HB-450B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D2HB-500-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D2HB-500B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D2HC-50-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D2HC-50B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D2HC-100-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D2HC-100B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D2HC-150-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D2HC-150B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D2HC-200-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D2HC-200B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D2HC-250-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D2HC-250B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D2HC-300-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D2HC-300B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D2HC-350-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D2HC-350B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D2HC-400-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D2HC-400B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D2HC-450-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D2HC-450B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D2HC-500-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D2HC-500B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D3HA-50-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D3HA-50B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D3HA-100-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D3HA-100B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D3HA-150-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D3HA-150B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D3HA-200-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D3HA-200B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D3HA-250-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D3HA-250B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D3HA-300-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D3HA-300B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D3HA-350-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D3HA-350B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D3HA-400-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D3HA-400B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D3HA-450-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D3HA-450B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D3HA-500-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D3HA-500B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D3HB-50-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D3HB-50B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D3HB-100-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D3HB-100B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D3HB-150-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D3HB-150B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D3HB-200-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D3HB-200B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D3HB-250-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D3HB-250B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D3HB-300-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D3HB-300B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D3HB-350-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D3HB-350B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D3HB-400-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D3HB-400B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D3HB-450-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D3HB-450B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D3HB-500-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D3HB-500B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D3HC-50-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D3HC-50B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D3HC-100-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D3HC-100B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D3HC-150-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D3HC-150B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D3HC-200-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D3HC-200B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D3HC-250-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D3HC-250B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D3HC-300-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D3HC-300B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D3HC-350-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D3HC-350B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D3HC-400-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D3HC-400B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D3HC-450-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D3HC-450B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D3HC-500-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D3HC-500B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D4HA-50-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D4HA-50B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D4HA-100-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D4HA-100B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D4HA-150-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D4HA-150B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D4HA-200-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D4HA-200B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D4HA-250-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D4HA-250B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D4HA-300-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D4HA-300B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D4HA-350-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D4HA-350B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D4HA-400-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D4HA-400B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D4HA-450-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D4HA-450B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D4HA-500-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D4HA-500B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D4HB-50-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D4HB-50B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D4HB-100-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D4HB-100B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D4HB-150-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D4HB-150B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D4HB-200-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D4HB-200B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D4HB-250-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D4HB-250B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D4HB-300-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D4HB-300B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D4HB-350-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D4HB-350B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D4HB-400-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D4HB-400B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D4HB-450-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D4HB-450B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D4HB-500-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D4HB-500B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16D4HC-50-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16D4HC-50B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16D4HC-100-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16D4HC-100B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16D4HC-150-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16D4HC-150B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16D4HC-200-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16D4HC-200B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16D4HC-250-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16D4HC-250B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16D4HC-300-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16D4HC-300B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16D4HC-350-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16D4HC-350B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16D4HC-400-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16D4HC-400B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16D4HC-450-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16D4HC-450B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16D4HC-500-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16D4HC-500B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16RHA-50-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16RHA-50B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16RHA-100-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16RHA-100B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16RHA-150-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16RHA-150B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16RHA-200-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16RHA-200B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16RHA-250-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16RHA-250B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16RHA-300-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16RHA-300B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16RHA-350-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16RHA-350B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16RHA-400-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16RHA-400B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16RHA-450-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16RHA-450B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16RHA-500-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16RHA-500B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16RHB-50-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16RHB-50B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16RHB-100-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16RHB-100B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16RHB-150-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16RHB-150B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16RHB-200-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16RHB-200B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16RHB-250-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16RHB-250B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16RHB-300-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16RHB-300B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16RHB-350-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16RHB-350B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16RHB-400-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16RHB-400B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16RHB-450-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16RHB-450B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16RHB-500-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16RHB-500B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16RHC-50-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16RHC-50B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16RHC-100-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16RHC-100B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16RHC-150-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16RHC-150B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16RHC-200-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16RHC-200B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16RHC-250-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16RHC-250B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16RHC-300-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16RHC-300B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16RHC-350-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16RHC-350B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16RHC-400-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16RHC-400B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16RHC-450-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16RHC-450B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16RHC-500-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16RHC-500B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16LHA-50-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16LHA-50B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16LHA-100-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16LHA-100B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16LHA-150-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16LHA-150B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16LHA-200-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16LHA-200B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16LHA-250-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16LHA-250B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16LHA-300-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16LHA-300B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16LHA-350-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16LHA-350B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16LHA-400-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16LHA-400B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16LHA-450-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16LHA-450B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16LHA-500-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16LHA-500B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16LHB-50-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16LHB-50B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16LHB-100-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16LHB-100B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16LHB-150-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16LHB-150B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16LHB-200-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16LHB-200B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16LHB-250-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16LHB-250B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16LHB-300-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16LHB-300B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16LHB-350-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16LHB-350B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16LHB-400-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16LHB-400B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16LHB-450-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16LHB-450B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16LHB-500-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16LHB-500B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS16LHC-50-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS16LHC-50B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS16LHC-100-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS16LHC-100B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS16LHC-150-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS16LHC-150B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS16LHC-200-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS16LHC-200B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS16LHC-250-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS16LHC-250B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS16LHC-300-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS16LHC-300B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS16LHC-350-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS16LHC-350B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS16LHC-400-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS16LHC-400B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS16LHC-450-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS16LHC-450B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS16LHC-500-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS16LHC-500B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25HH-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25HH-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25HH-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25HH-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25HH-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25HH-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25HH-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25HH-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25HH-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25HH-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25HH-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25HH-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25HH-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25HH-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25HH-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25HH-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25HH-450-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25HH-450B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25HH-500-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25HH-500B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25HH-550-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25HH-550B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25HH-600-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25HH-600B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25HH-650-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25HH-650B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25HH-700-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25HH-700B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25HH-750-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25HH-750B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25HH-800-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25HH-800B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25HA-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25HA-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25HA-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25HA-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25HA-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25HA-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25HA-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25HA-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25HA-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25HA-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25HA-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25HA-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25HA-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25HA-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25HA-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25HA-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25HA-450-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25HA-450B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25HA-500-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25HA-500B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25HA-550-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25HA-550B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25HA-600-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25HA-600B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25HA-650-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25HA-650B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25HA-700-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25HA-700B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25HA-750-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25HA-750B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25HA-800-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25HA-800B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25HB-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25HB-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25HB-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25HB-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25HB-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25HB-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25HB-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25HB-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25HB-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25HB-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25HB-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25HB-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25HB-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25HB-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25HB-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25HB-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25HB-450-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25HB-450B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25HB-500-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25HB-500B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25HB-550-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25HB-550B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25HB-600-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25HB-600B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25HB-650-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25HB-650B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25HB-700-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25HB-700B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25HB-750-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25HB-750B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25HB-800-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25HB-800B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25HC-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25HC-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25HC-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25HC-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25HC-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25HC-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25HC-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25HC-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25HC-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25HC-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25HC-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25HC-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25HC-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25HC-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25HC-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25HC-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25HC-450-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25HC-450B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25HC-500-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25HC-500B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25HC-550-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25HC-550B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25HC-600-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25HC-600B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25HC-650-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25HC-650B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25HC-700-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25HC-700B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25HC-750-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25HC-750B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25HC-800-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25HC-800B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25RHH-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25RHH-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25RHH-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25RHH-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25RHH-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25RHH-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25RHH-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25RHH-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25RHH-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25RHH-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25RHH-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25RHH-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25RHH-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25RHH-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25RHH-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25RHH-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25RHH-450-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25RHH-450B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25RHH-500-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25RHH-500B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25RHH-550-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25RHH-550B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25RHH-600-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25RHH-600B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25RHH-650-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25RHH-650B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25RHH-700-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25RHH-700B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25RHH-750-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25RHH-750B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25RHH-800-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25RHH-800B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25RHA-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25RHA-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25RHA-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25RHA-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25RHA-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25RHA-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25RHA-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25RHA-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25RHA-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25RHA-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25RHA-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25RHA-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25RHA-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25RHA-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25RHA-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25RHA-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25RHA-450-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25RHA-450B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25RHA-500-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25RHA-500B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25RHA-550-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25RHA-550B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25RHA-600-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25RHA-600B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25RHA-650-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25RHA-650B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25RHA-700-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25RHA-700B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25RHA-750-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25RHA-750B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25RHA-800-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25RHA-800B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25RHB-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25RHB-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25RHB-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25RHB-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25RHB-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25RHB-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25RHB-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25RHB-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25RHB-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25RHB-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25RHB-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25RHB-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25RHB-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25RHB-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25RHB-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25RHB-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25RHB-450-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25RHB-450B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25RHB-500-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25RHB-500B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25RHB-550-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25RHB-550B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25RHB-600-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25RHB-600B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25RHB-650-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25RHB-650B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25RHB-700-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25RHB-700B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25RHB-750-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25RHB-750B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25RHB-800-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25RHB-800B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25RHC-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25RHC-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25RHC-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25RHC-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25RHC-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25RHC-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25RHC-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25RHC-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25RHC-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25RHC-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25RHC-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25RHC-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25RHC-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25RHC-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25RHC-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25RHC-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25RHC-450-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25RHC-450B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25RHC-500-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25RHC-500B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25RHC-550-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25RHC-550B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25RHC-600-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25RHC-600B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25RHC-650-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25RHC-650B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25RHC-700-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25RHC-700B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25RHC-750-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25RHC-750B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25RHC-800-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25RHC-800B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25LHH-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25LHH-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25LHH-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25LHH-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25LHH-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25LHH-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25LHH-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25LHH-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25LHH-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25LHH-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25LHH-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25LHH-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25LHH-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25LHH-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25LHH-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25LHH-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25LHH-450-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25LHH-450B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25LHH-500-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25LHH-500B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25LHH-550-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25LHH-550B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25LHH-600-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25LHH-600B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25LHH-650-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25LHH-650B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25LHH-700-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25LHH-700B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25LHH-750-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25LHH-750B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25LHH-800-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25LHH-800B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25LHA-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25LHA-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25LHA-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25LHA-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25LHA-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25LHA-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25LHA-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25LHA-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25LHA-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25LHA-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25LHA-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25LHA-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25LHA-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25LHA-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25LHA-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25LHA-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25LHA-450-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25LHA-450B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25LHA-500-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25LHA-500B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25LHA-550-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25LHA-550B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25LHA-600-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25LHA-600B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25LHA-650-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25LHA-650B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25LHA-700-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25LHA-700B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25LHA-750-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25LHA-750B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25LHA-800-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25LHA-800B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25LHB-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25LHB-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25LHB-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25LHB-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25LHB-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25LHB-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25LHB-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25LHB-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25LHB-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25LHB-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25LHB-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25LHB-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25LHB-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25LHB-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25LHB-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25LHB-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25LHB-450-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25LHB-450B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25LHB-500-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25LHB-500B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25LHB-550-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25LHB-550B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25LHB-600-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25LHB-600B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25LHB-650-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25LHB-650B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25LHB-700-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25LHB-700B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25LHB-750-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25LHB-750B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25LHB-800-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25LHB-800B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS25LHC-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS25LHC-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS25LHC-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS25LHC-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS25LHC-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS25LHC-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS25LHC-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS25LHC-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS25LHC-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS25LHC-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS25LHC-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS25LHC-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS25LHC-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS25LHC-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS25LHC-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS25LHC-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS25LHC-450-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS25LHC-450B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS25LHC-500-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS25LHC-500B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS25LHC-550-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS25LHC-550B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS25LHC-600-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS25LHC-600B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS25LHC-650-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS25LHC-650B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS25LHC-700-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS25LHC-700B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS25LHC-750-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS25LHC-750B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS25LHC-800-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS25LHC-800B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 800 mm \| Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC EQFS Electric Slider, Controller Integrated (Size 16, 25)
