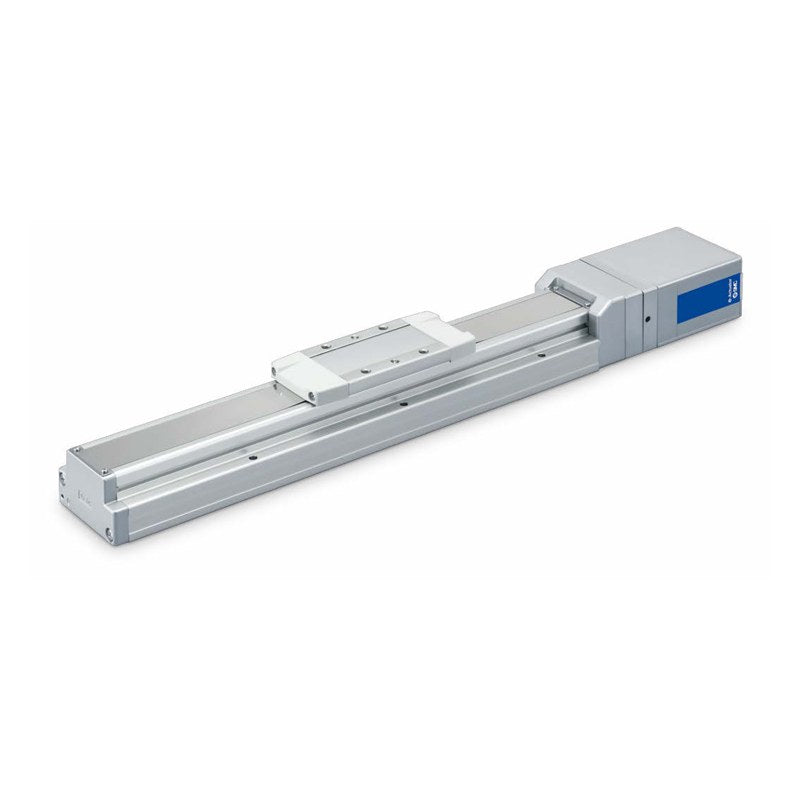

SMC EQFS Electric Slider, Controller Integrated (Size 32, 40)

SMC EQFS e-Actuator slider-type electric actuator with integrated controller and battery-less absolute step motor (DC24V), sizes 32 and 40.

Key features

Controller-integrated slider: 2-point and 3-point (closed center) stopping set without programming
Operating modes: single solenoid, double solenoid and closed center, plus cycle-time setting
Battery-less absolute encoder; one-touch latching metal connectors with LED status display
Interface (last symbol) listed as 5 = Parallel input NPN (power connector A-code); replace with 6 (Parallel PNP), LA (IO-Link, A-code power) or LB (IO-Link, L-code power)
Seal band grease (N = without grease, roller specification) and auto switches (D-M9 series) not expanded; power cable, parallel i/o cable and io-link cable are ordered separately

Specifications

Motor	Battery-less absolute step motor DC24V
Controller	Integrated (controller-integrated type, symbol B)
Drive	Ball screw (straight); ball screw + belt (parallel)
Guide	Linear guide
Repeatability	±0.02 mm
Lost motion	0.1 mm or less
Max. acceleration/deceleration	Horizontal 10000 mm/s², vertical 5000 mm/s²
Enclosure	IP30
Operating temperature	5 to 40°C
Power supply	DC24V ±10%
Horizontal payload (by lead)	EQFS32: 39.5/50/68/68 kg; EQFS40: 26/60/75/80 kg
Pushing force	EQFS32 60 to 796 N; EQFS40 48 to 637 N
Stroke range	EQFS32 50-1000 mm; EQFS40 150-1200 mm
Source	SMC Korea catalog CAT.KS100-154D (SMCKR_EQF_EQY.pdf), p. 24-25 (PDF p. 25-26)

EQFS32HH-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32HH-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32HH-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32HH-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32HH-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32HH-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32HH-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32HH-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32HH-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32HH-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32HH-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32HH-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32HH-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32HH-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32HH-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32HH-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32HH-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32HH-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32HH-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32HH-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32HH-550-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32HH-550B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32HH-600-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32HH-600B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32HH-650-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32HH-650B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32HH-700-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32HH-700B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32HH-750-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32HH-750B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32HH-800-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32HH-800B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32HH-850-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32HH-850B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32HH-900-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32HH-900B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32HH-950-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32HH-950B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32HH-1000-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32HH-1000B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32HA-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32HA-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32HA-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32HA-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32HA-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32HA-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32HA-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32HA-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32HA-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32HA-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32HA-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32HA-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32HA-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32HA-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32HA-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32HA-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32HA-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32HA-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32HA-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32HA-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32HA-550-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32HA-550B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32HA-600-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32HA-600B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32HA-650-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32HA-650B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32HA-700-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32HA-700B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32HA-750-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32HA-750B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32HA-800-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32HA-800B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32HA-850-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32HA-850B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32HA-900-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32HA-900B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32HA-950-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32HA-950B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32HA-1000-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32HA-1000B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32HB-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32HB-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32HB-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32HB-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32HB-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32HB-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32HB-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32HB-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32HB-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32HB-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32HB-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32HB-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32HB-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32HB-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32HB-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32HB-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32HB-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32HB-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32HB-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32HB-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32HB-550-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32HB-550B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32HB-600-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32HB-600B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32HB-650-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32HB-650B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32HB-700-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32HB-700B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32HB-750-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32HB-750B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32HB-800-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32HB-800B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32HB-850-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32HB-850B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32HB-900-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32HB-900B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32HB-950-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32HB-950B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32HB-1000-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32HB-1000B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32HC-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32HC-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32HC-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32HC-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32HC-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32HC-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32HC-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32HC-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32HC-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32HC-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32HC-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32HC-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32HC-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32HC-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32HC-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32HC-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32HC-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32HC-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32HC-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32HC-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32HC-550-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32HC-550B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32HC-600-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32HC-600B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32HC-650-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32HC-650B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32HC-700-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32HC-700B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32HC-750-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32HC-750B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32HC-800-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32HC-800B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32HC-850-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32HC-850B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32HC-900-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32HC-900B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32HC-950-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32HC-950B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32HC-1000-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32HC-1000B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32RHH-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32RHH-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32RHH-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32RHH-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32RHH-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32RHH-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32RHH-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32RHH-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32RHH-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32RHH-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32RHH-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32RHH-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32RHH-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32RHH-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32RHH-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32RHH-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32RHH-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32RHH-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32RHH-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32RHH-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32RHH-550-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32RHH-550B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32RHH-600-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32RHH-600B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32RHH-650-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32RHH-650B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32RHH-700-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32RHH-700B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32RHH-750-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32RHH-750B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32RHH-800-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32RHH-800B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32RHH-850-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32RHH-850B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32RHH-900-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32RHH-900B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32RHH-950-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32RHH-950B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32RHH-1000-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32RHH-1000B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32RHA-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32RHA-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32RHA-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32RHA-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32RHA-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32RHA-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32RHA-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32RHA-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32RHA-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32RHA-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32RHA-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32RHA-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32RHA-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32RHA-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32RHA-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32RHA-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32RHA-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32RHA-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32RHA-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32RHA-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32RHA-550-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32RHA-550B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32RHA-600-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32RHA-600B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32RHA-650-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32RHA-650B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32RHA-700-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32RHA-700B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32RHA-750-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32RHA-750B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32RHA-800-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32RHA-800B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32RHA-850-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32RHA-850B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32RHA-900-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32RHA-900B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32RHA-950-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32RHA-950B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32RHA-1000-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32RHA-1000B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32RHB-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32RHB-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32RHB-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32RHB-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32RHB-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32RHB-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32RHB-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32RHB-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32RHB-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32RHB-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32RHB-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32RHB-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32RHB-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32RHB-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32RHB-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32RHB-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32RHB-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32RHB-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32RHB-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32RHB-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32RHB-550-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32RHB-550B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32RHB-600-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32RHB-600B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32RHB-650-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32RHB-650B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32RHB-700-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32RHB-700B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32RHB-750-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32RHB-750B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32RHB-800-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32RHB-800B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32RHB-850-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32RHB-850B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32RHB-900-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32RHB-900B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32RHB-950-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32RHB-950B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32RHB-1000-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32RHB-1000B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32RHC-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32RHC-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32RHC-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32RHC-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32RHC-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32RHC-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32RHC-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32RHC-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32RHC-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32RHC-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32RHC-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32RHC-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32RHC-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32RHC-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32RHC-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32RHC-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32RHC-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32RHC-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32RHC-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32RHC-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32RHC-550-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32RHC-550B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32RHC-600-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32RHC-600B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32RHC-650-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32RHC-650B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32RHC-700-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32RHC-700B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32RHC-750-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32RHC-750B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32RHC-800-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32RHC-800B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32RHC-850-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32RHC-850B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32RHC-900-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32RHC-900B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32RHC-950-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32RHC-950B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32RHC-1000-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32RHC-1000B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32LHH-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32LHH-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32LHH-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32LHH-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32LHH-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32LHH-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32LHH-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32LHH-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32LHH-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32LHH-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32LHH-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32LHH-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32LHH-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32LHH-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32LHH-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32LHH-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32LHH-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32LHH-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32LHH-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32LHH-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32LHH-550-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32LHH-550B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32LHH-600-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32LHH-600B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32LHH-650-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32LHH-650B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32LHH-700-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32LHH-700B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32LHH-750-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32LHH-750B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32LHH-800-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32LHH-800B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32LHH-850-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32LHH-850B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32LHH-900-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32LHH-900B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32LHH-950-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32LHH-950B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32LHH-1000-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32LHH-1000B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32LHA-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32LHA-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32LHA-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32LHA-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32LHA-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32LHA-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32LHA-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32LHA-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32LHA-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32LHA-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32LHA-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32LHA-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32LHA-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32LHA-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32LHA-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32LHA-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32LHA-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32LHA-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32LHA-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32LHA-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32LHA-550-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32LHA-550B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32LHA-600-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32LHA-600B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32LHA-650-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32LHA-650B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32LHA-700-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32LHA-700B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32LHA-750-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32LHA-750B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32LHA-800-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32LHA-800B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32LHA-850-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32LHA-850B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32LHA-900-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32LHA-900B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32LHA-950-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32LHA-950B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32LHA-1000-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32LHA-1000B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32LHB-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32LHB-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32LHB-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32LHB-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32LHB-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32LHB-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32LHB-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32LHB-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32LHB-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32LHB-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32LHB-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32LHB-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32LHB-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32LHB-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32LHB-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32LHB-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32LHB-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32LHB-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32LHB-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32LHB-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32LHB-550-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32LHB-550B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32LHB-600-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32LHB-600B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32LHB-650-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32LHB-650B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32LHB-700-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32LHB-700B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32LHB-750-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32LHB-750B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32LHB-800-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32LHB-800B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32LHB-850-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32LHB-850B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32LHB-900-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32LHB-900B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32LHB-950-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32LHB-950B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32LHB-1000-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32LHB-1000B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS32LHC-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQFS32LHC-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQFS32LHC-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQFS32LHC-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQFS32LHC-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS32LHC-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQFS32LHC-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS32LHC-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQFS32LHC-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS32LHC-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQFS32LHC-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS32LHC-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQFS32LHC-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS32LHC-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQFS32LHC-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS32LHC-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQFS32LHC-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS32LHC-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQFS32LHC-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS32LHC-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
EQFS32LHC-550-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS32LHC-550B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: With lock
EQFS32LHC-600-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS32LHC-600B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: With lock
EQFS32LHC-650-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS32LHC-650B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: With lock
EQFS32LHC-700-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS32LHC-700B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: With lock
EQFS32LHC-750-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS32LHC-750B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: With lock
EQFS32LHC-800-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS32LHC-800B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: With lock
EQFS32LHC-850-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS32LHC-850B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: With lock
EQFS32LHC-900-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS32LHC-900B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: With lock
EQFS32LHC-950-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS32LHC-950B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: With lock
EQFS32LHC-1000-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS32LHC-1000B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40HH-150-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40HH-150B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40HH-200-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40HH-200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40HH-250-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40HH-250B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40HH-300-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40HH-300B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40HH-350-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40HH-350B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40HH-400-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40HH-400B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40HH-450-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40HH-450B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40HH-500-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40HH-500B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40HH-550-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40HH-550B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40HH-600-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40HH-600B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40HH-650-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40HH-650B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40HH-700-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40HH-700B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40HH-750-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40HH-750B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40HH-800-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40HH-800B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40HH-850-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40HH-850B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40HH-900-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40HH-900B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40HH-950-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40HH-950B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40HH-1000-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40HH-1000B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40HH-1100-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40HH-1100B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40HH-1200-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40HH-1200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40HA-150-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40HA-150B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40HA-200-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40HA-200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40HA-250-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40HA-250B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40HA-300-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40HA-300B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40HA-350-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40HA-350B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40HA-400-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40HA-400B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40HA-450-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40HA-450B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40HA-500-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40HA-500B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40HA-550-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40HA-550B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40HA-600-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40HA-600B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40HA-650-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40HA-650B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40HA-700-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40HA-700B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40HA-750-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40HA-750B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40HA-800-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40HA-800B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40HA-850-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40HA-850B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40HA-900-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40HA-900B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40HA-950-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40HA-950B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40HA-1000-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40HA-1000B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40HA-1100-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40HA-1100B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40HA-1200-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40HA-1200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40HB-150-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40HB-150B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40HB-200-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40HB-200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40HB-250-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40HB-250B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40HB-300-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40HB-300B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40HB-350-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40HB-350B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40HB-400-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40HB-400B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40HB-450-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40HB-450B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40HB-500-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40HB-500B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40HB-550-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40HB-550B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40HB-600-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40HB-600B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40HB-650-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40HB-650B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40HB-700-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40HB-700B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40HB-750-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40HB-750B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40HB-800-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40HB-800B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40HB-850-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40HB-850B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40HB-900-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40HB-900B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40HB-950-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40HB-950B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40HB-1000-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40HB-1000B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40HB-1100-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40HB-1100B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40HB-1200-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40HB-1200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40HC-150-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40HC-150B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40HC-200-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40HC-200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40HC-250-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40HC-250B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40HC-300-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40HC-300B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40HC-350-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40HC-350B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40HC-400-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40HC-400B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40HC-450-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40HC-450B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40HC-500-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40HC-500B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40HC-550-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40HC-550B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40HC-600-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40HC-600B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40HC-650-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40HC-650B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40HC-700-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40HC-700B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40HC-750-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40HC-750B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40HC-800-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40HC-800B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40HC-850-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40HC-850B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40HC-900-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40HC-900B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40HC-950-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40HC-950B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40HC-1000-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40HC-1000B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40HC-1100-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40HC-1100B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40HC-1200-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40HC-1200B-B5		Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40RHH-150-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40RHH-150B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40RHH-200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40RHH-200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40RHH-250-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40RHH-250B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40RHH-300-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40RHH-300B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40RHH-350-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40RHH-350B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40RHH-400-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40RHH-400B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40RHH-450-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40RHH-450B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40RHH-500-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40RHH-500B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40RHH-550-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40RHH-550B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40RHH-600-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40RHH-600B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40RHH-650-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40RHH-650B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40RHH-700-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40RHH-700B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40RHH-750-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40RHH-750B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40RHH-800-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40RHH-800B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40RHH-850-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40RHH-850B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40RHH-900-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40RHH-900B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40RHH-950-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40RHH-950B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40RHH-1000-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40RHH-1000B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40RHH-1100-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40RHH-1100B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40RHH-1200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40RHH-1200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40RHA-150-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40RHA-150B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40RHA-200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40RHA-200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40RHA-250-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40RHA-250B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40RHA-300-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40RHA-300B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40RHA-350-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40RHA-350B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40RHA-400-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40RHA-400B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40RHA-450-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40RHA-450B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40RHA-500-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40RHA-500B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40RHA-550-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40RHA-550B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40RHA-600-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40RHA-600B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40RHA-650-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40RHA-650B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40RHA-700-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40RHA-700B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40RHA-750-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40RHA-750B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40RHA-800-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40RHA-800B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40RHA-850-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40RHA-850B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40RHA-900-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40RHA-900B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40RHA-950-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40RHA-950B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40RHA-1000-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40RHA-1000B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40RHA-1100-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40RHA-1100B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40RHA-1200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40RHA-1200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40RHB-150-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40RHB-150B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40RHB-200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40RHB-200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40RHB-250-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40RHB-250B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40RHB-300-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40RHB-300B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40RHB-350-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40RHB-350B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40RHB-400-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40RHB-400B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40RHB-450-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40RHB-450B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40RHB-500-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40RHB-500B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40RHB-550-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40RHB-550B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40RHB-600-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40RHB-600B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40RHB-650-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40RHB-650B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40RHB-700-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40RHB-700B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40RHB-750-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40RHB-750B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40RHB-800-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40RHB-800B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40RHB-850-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40RHB-850B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40RHB-900-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40RHB-900B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40RHB-950-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40RHB-950B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40RHB-1000-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40RHB-1000B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40RHB-1100-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40RHB-1100B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40RHB-1200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40RHB-1200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40RHC-150-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40RHC-150B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40RHC-200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40RHC-200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40RHC-250-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40RHC-250B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40RHC-300-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40RHC-300B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40RHC-350-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40RHC-350B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40RHC-400-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40RHC-400B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40RHC-450-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40RHC-450B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40RHC-500-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40RHC-500B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40RHC-550-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40RHC-550B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40RHC-600-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40RHC-600B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40RHC-650-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40RHC-650B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40RHC-700-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40RHC-700B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40RHC-750-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40RHC-750B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40RHC-800-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40RHC-800B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40RHC-850-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40RHC-850B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40RHC-900-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40RHC-900B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40RHC-950-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40RHC-950B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40RHC-1000-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40RHC-1000B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40RHC-1100-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40RHC-1100B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40RHC-1200-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40RHC-1200B-B5		Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40LHH-150-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40LHH-150B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40LHH-200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40LHH-200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40LHH-250-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40LHH-250B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40LHH-300-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40LHH-300B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40LHH-350-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40LHH-350B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40LHH-400-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40LHH-400B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40LHH-450-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40LHH-450B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40LHH-500-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40LHH-500B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40LHH-550-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40LHH-550B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40LHH-600-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40LHH-600B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40LHH-650-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40LHH-650B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40LHH-700-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40LHH-700B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40LHH-750-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40LHH-750B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40LHH-800-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40LHH-800B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40LHH-850-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40LHH-850B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40LHH-900-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40LHH-900B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40LHH-950-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40LHH-950B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40LHH-1000-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40LHH-1000B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40LHH-1100-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40LHH-1100B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40LHH-1200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40LHH-1200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40LHA-150-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40LHA-150B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40LHA-200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40LHA-200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40LHA-250-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40LHA-250B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40LHA-300-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40LHA-300B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40LHA-350-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40LHA-350B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40LHA-400-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40LHA-400B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40LHA-450-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40LHA-450B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40LHA-500-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40LHA-500B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40LHA-550-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40LHA-550B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40LHA-600-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40LHA-600B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40LHA-650-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40LHA-650B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40LHA-700-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40LHA-700B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40LHA-750-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40LHA-750B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40LHA-800-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40LHA-800B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40LHA-850-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40LHA-850B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40LHA-900-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40LHA-900B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40LHA-950-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40LHA-950B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40LHA-1000-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40LHA-1000B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40LHA-1100-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40LHA-1100B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40LHA-1200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40LHA-1200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40LHB-150-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40LHB-150B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40LHB-200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40LHB-200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40LHB-250-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40LHB-250B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40LHB-300-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40LHB-300B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40LHB-350-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40LHB-350B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40LHB-400-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40LHB-400B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40LHB-450-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40LHB-450B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40LHB-500-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40LHB-500B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40LHB-550-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40LHB-550B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40LHB-600-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40LHB-600B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40LHB-650-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40LHB-650B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40LHB-700-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40LHB-700B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40LHB-750-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40LHB-750B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40LHB-800-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40LHB-800B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40LHB-850-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40LHB-850B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40LHB-900-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40LHB-900B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40LHB-950-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40LHB-950B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40LHB-1000-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40LHB-1000B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40LHB-1100-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40LHB-1100B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40LHB-1200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40LHB-1200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: With lock
EQFS40LHC-150-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQFS40LHC-150B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQFS40LHC-200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQFS40LHC-200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQFS40LHC-250-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQFS40LHC-250B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQFS40LHC-300-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQFS40LHC-300B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQFS40LHC-350-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
EQFS40LHC-350B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
EQFS40LHC-400-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
EQFS40LHC-400B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
EQFS40LHC-450-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
EQFS40LHC-450B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
EQFS40LHC-500-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
EQFS40LHC-500B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
EQFS40LHC-550-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: Without lock
EQFS40LHC-550B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: With lock
EQFS40LHC-600-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: Without lock
EQFS40LHC-600B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: With lock
EQFS40LHC-650-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: Without lock
EQFS40LHC-650B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: With lock
EQFS40LHC-700-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: Without lock
EQFS40LHC-700B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: With lock
EQFS40LHC-750-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: Without lock
EQFS40LHC-750B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: With lock
EQFS40LHC-800-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: Without lock
EQFS40LHC-800B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: With lock
EQFS40LHC-850-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: Without lock
EQFS40LHC-850B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: With lock
EQFS40LHC-900-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: Without lock
EQFS40LHC-900B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: With lock
EQFS40LHC-950-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: Without lock
EQFS40LHC-950B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: With lock
EQFS40LHC-1000-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: Without lock
EQFS40LHC-1000B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: With lock
EQFS40LHC-1100-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: Without lock
EQFS40LHC-1100B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: With lock
EQFS40LHC-1200-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: Without lock
EQFS40LHC-1200B-B5		Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: With lock

Electric ActuatorsSMC

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC EQFS Electric Slider, Controller Integrated (Size 32, 40)

Brand SMC·Electric Actuators

Available part numbers (960)

EQFS32HH-50-B5, EQFS32HH-50B-B5, EQFS32HH-100-B5, EQFS32HH-100B-B5, EQFS32HH-150-B5, EQFS32HH-150B-B5, EQFS32HH-200-B5, EQFS32HH-200B-B5, EQFS32HH-250-B5, EQFS32HH-250B-B5 + 950 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EQFS32HH-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32HH-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32HH-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32HH-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32HH-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32HH-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32HH-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32HH-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32HH-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32HH-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32HH-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32HH-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32HH-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32HH-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32HH-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32HH-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32HH-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32HH-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32HH-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32HH-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32HH-550-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32HH-550B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32HH-600-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32HH-600B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32HH-650-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32HH-650B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32HH-700-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32HH-700B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32HH-750-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32HH-750B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32HH-800-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32HH-800B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32HH-850-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32HH-850B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32HH-900-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32HH-900B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32HH-950-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32HH-950B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32HH-1000-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32HH-1000B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32HA-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32HA-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32HA-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32HA-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32HA-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32HA-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32HA-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32HA-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32HA-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32HA-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32HA-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32HA-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32HA-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32HA-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32HA-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32HA-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32HA-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32HA-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32HA-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32HA-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32HA-550-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32HA-550B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32HA-600-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32HA-600B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32HA-650-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32HA-650B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32HA-700-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32HA-700B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32HA-750-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32HA-750B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32HA-800-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32HA-800B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32HA-850-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32HA-850B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32HA-900-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32HA-900B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32HA-950-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32HA-950B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32HA-1000-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32HA-1000B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32HB-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32HB-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32HB-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32HB-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32HB-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32HB-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32HB-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32HB-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32HB-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32HB-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32HB-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32HB-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32HB-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32HB-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32HB-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32HB-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32HB-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32HB-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32HB-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32HB-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32HB-550-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32HB-550B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32HB-600-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32HB-600B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32HB-650-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32HB-650B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32HB-700-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32HB-700B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32HB-750-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32HB-750B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32HB-800-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32HB-800B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32HB-850-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32HB-850B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32HB-900-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32HB-900B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32HB-950-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32HB-950B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32HB-1000-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32HB-1000B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32HC-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32HC-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32HC-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32HC-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32HC-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32HC-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32HC-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32HC-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32HC-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32HC-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32HC-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32HC-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32HC-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32HC-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32HC-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32HC-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32HC-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32HC-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32HC-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32HC-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32HC-550-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32HC-550B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32HC-600-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32HC-600B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32HC-650-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32HC-650B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32HC-700-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32HC-700B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32HC-750-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32HC-750B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32HC-800-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32HC-800B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32HC-850-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32HC-850B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32HC-900-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32HC-900B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32HC-950-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32HC-950B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32HC-1000-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32HC-1000B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32RHH-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32RHH-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32RHH-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32RHH-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32RHH-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32RHH-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32RHH-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32RHH-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32RHH-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32RHH-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32RHH-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32RHH-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32RHH-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32RHH-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32RHH-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32RHH-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32RHH-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32RHH-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32RHH-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32RHH-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32RHH-550-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32RHH-550B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32RHH-600-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32RHH-600B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32RHH-650-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32RHH-650B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32RHH-700-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32RHH-700B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32RHH-750-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32RHH-750B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32RHH-800-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32RHH-800B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32RHH-850-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32RHH-850B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32RHH-900-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32RHH-900B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32RHH-950-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32RHH-950B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32RHH-1000-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32RHH-1000B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32RHA-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32RHA-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32RHA-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32RHA-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32RHA-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32RHA-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32RHA-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32RHA-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32RHA-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32RHA-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32RHA-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32RHA-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32RHA-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32RHA-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32RHA-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32RHA-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32RHA-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32RHA-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32RHA-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32RHA-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32RHA-550-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32RHA-550B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32RHA-600-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32RHA-600B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32RHA-650-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32RHA-650B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32RHA-700-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32RHA-700B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32RHA-750-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32RHA-750B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32RHA-800-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32RHA-800B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32RHA-850-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32RHA-850B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32RHA-900-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32RHA-900B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32RHA-950-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32RHA-950B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32RHA-1000-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32RHA-1000B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32RHB-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32RHB-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32RHB-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32RHB-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32RHB-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32RHB-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32RHB-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32RHB-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32RHB-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32RHB-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32RHB-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32RHB-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32RHB-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32RHB-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32RHB-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32RHB-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32RHB-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32RHB-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32RHB-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32RHB-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32RHB-550-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32RHB-550B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32RHB-600-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32RHB-600B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32RHB-650-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32RHB-650B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32RHB-700-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32RHB-700B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32RHB-750-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32RHB-750B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32RHB-800-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32RHB-800B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32RHB-850-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32RHB-850B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32RHB-900-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32RHB-900B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32RHB-950-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32RHB-950B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32RHB-1000-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32RHB-1000B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32RHC-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32RHC-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32RHC-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32RHC-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32RHC-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32RHC-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32RHC-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32RHC-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32RHC-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32RHC-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32RHC-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32RHC-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32RHC-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32RHC-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32RHC-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32RHC-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32RHC-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32RHC-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32RHC-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32RHC-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32RHC-550-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32RHC-550B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32RHC-600-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32RHC-600B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32RHC-650-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32RHC-650B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32RHC-700-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32RHC-700B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32RHC-750-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32RHC-750B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32RHC-800-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32RHC-800B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32RHC-850-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32RHC-850B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32RHC-900-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32RHC-900B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32RHC-950-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32RHC-950B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32RHC-1000-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32RHC-1000B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32LHH-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32LHH-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32LHH-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32LHH-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32LHH-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32LHH-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32LHH-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32LHH-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32LHH-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32LHH-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32LHH-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32LHH-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32LHH-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32LHH-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32LHH-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32LHH-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32LHH-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32LHH-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32LHH-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32LHH-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32LHH-550-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32LHH-550B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32LHH-600-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32LHH-600B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32LHH-650-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32LHH-650B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32LHH-700-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32LHH-700B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32LHH-750-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32LHH-750B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32LHH-800-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32LHH-800B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32LHH-850-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32LHH-850B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32LHH-900-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32LHH-900B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32LHH-950-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32LHH-950B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32LHH-1000-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32LHH-1000B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32LHA-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32LHA-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32LHA-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32LHA-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32LHA-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32LHA-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32LHA-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32LHA-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32LHA-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32LHA-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32LHA-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32LHA-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32LHA-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32LHA-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32LHA-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32LHA-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32LHA-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32LHA-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32LHA-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32LHA-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32LHA-550-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32LHA-550B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32LHA-600-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32LHA-600B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32LHA-650-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32LHA-650B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32LHA-700-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32LHA-700B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32LHA-750-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32LHA-750B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32LHA-800-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32LHA-800B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32LHA-850-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32LHA-850B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32LHA-900-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32LHA-900B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32LHA-950-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32LHA-950B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32LHA-1000-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32LHA-1000B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32LHB-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32LHB-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32LHB-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32LHB-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32LHB-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32LHB-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32LHB-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32LHB-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32LHB-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32LHB-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32LHB-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32LHB-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32LHB-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32LHB-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32LHB-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32LHB-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32LHB-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32LHB-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32LHB-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32LHB-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32LHB-550-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32LHB-550B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32LHB-600-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32LHB-600B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32LHB-650-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32LHB-650B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32LHB-700-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32LHB-700B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32LHB-750-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32LHB-750B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32LHB-800-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32LHB-800B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32LHB-850-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32LHB-850B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32LHB-900-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32LHB-900B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32LHB-950-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32LHB-950B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32LHB-1000-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32LHB-1000B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS32LHC-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQFS32LHC-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQFS32LHC-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQFS32LHC-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQFS32LHC-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS32LHC-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS32LHC-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS32LHC-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS32LHC-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS32LHC-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS32LHC-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS32LHC-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS32LHC-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS32LHC-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS32LHC-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS32LHC-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS32LHC-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS32LHC-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS32LHC-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS32LHC-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS32LHC-550-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS32LHC-550B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS32LHC-600-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS32LHC-600B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS32LHC-650-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS32LHC-650B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS32LHC-700-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS32LHC-700B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS32LHC-750-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS32LHC-750B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS32LHC-800-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS32LHC-800B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS32LHC-850-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS32LHC-850B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS32LHC-900-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS32LHC-900B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS32LHC-950-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS32LHC-950B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS32LHC-1000-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS32LHC-1000B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40HH-150-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40HH-150B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40HH-200-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40HH-200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40HH-250-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40HH-250B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40HH-300-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40HH-300B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40HH-350-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40HH-350B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40HH-400-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40HH-400B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40HH-450-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40HH-450B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40HH-500-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40HH-500B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40HH-550-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40HH-550B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40HH-600-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40HH-600B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40HH-650-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40HH-650B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40HH-700-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40HH-700B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40HH-750-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40HH-750B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40HH-800-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40HH-800B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40HH-850-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40HH-850B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40HH-900-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40HH-900B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40HH-950-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40HH-950B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40HH-1000-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40HH-1000B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40HH-1100-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40HH-1100B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40HH-1200-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40HH-1200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40HA-150-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40HA-150B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40HA-200-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40HA-200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40HA-250-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40HA-250B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40HA-300-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40HA-300B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40HA-350-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40HA-350B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40HA-400-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40HA-400B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40HA-450-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40HA-450B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40HA-500-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40HA-500B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40HA-550-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40HA-550B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40HA-600-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40HA-600B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40HA-650-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40HA-650B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40HA-700-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40HA-700B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40HA-750-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40HA-750B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40HA-800-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40HA-800B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40HA-850-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40HA-850B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40HA-900-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40HA-900B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40HA-950-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40HA-950B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40HA-1000-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40HA-1000B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40HA-1100-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40HA-1100B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40HA-1200-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40HA-1200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40HB-150-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40HB-150B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40HB-200-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40HB-200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40HB-250-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40HB-250B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40HB-300-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40HB-300B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40HB-350-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40HB-350B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40HB-400-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40HB-400B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40HB-450-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40HB-450B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40HB-500-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40HB-500B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40HB-550-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40HB-550B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40HB-600-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40HB-600B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40HB-650-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40HB-650B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40HB-700-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40HB-700B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40HB-750-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40HB-750B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40HB-800-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40HB-800B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40HB-850-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40HB-850B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40HB-900-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40HB-900B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40HB-950-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40HB-950B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40HB-1000-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40HB-1000B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40HB-1100-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40HB-1100B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40HB-1200-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40HB-1200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40HC-150-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40HC-150B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40HC-200-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40HC-200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40HC-250-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40HC-250B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40HC-300-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40HC-300B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40HC-350-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40HC-350B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40HC-400-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40HC-400B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40HC-450-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40HC-450B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40HC-500-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40HC-500B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40HC-550-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40HC-550B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40HC-600-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40HC-600B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40HC-650-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40HC-650B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40HC-700-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40HC-700B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40HC-750-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40HC-750B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40HC-800-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40HC-800B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40HC-850-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40HC-850B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40HC-900-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40HC-900B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40HC-950-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40HC-950B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40HC-1000-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40HC-1000B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40HC-1100-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40HC-1100B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40HC-1200-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40HC-1200B-B5	Size: 40 \| Motor layout: Straight \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40RHH-150-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40RHH-150B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40RHH-200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40RHH-200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40RHH-250-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40RHH-250B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40RHH-300-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40RHH-300B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40RHH-350-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40RHH-350B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40RHH-400-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40RHH-400B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40RHH-450-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40RHH-450B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40RHH-500-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40RHH-500B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40RHH-550-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40RHH-550B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40RHH-600-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40RHH-600B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40RHH-650-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40RHH-650B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40RHH-700-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40RHH-700B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40RHH-750-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40RHH-750B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40RHH-800-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40RHH-800B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40RHH-850-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40RHH-850B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40RHH-900-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40RHH-900B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40RHH-950-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40RHH-950B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40RHH-1000-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40RHH-1000B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40RHH-1100-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40RHH-1100B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40RHH-1200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40RHH-1200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40RHA-150-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40RHA-150B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40RHA-200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40RHA-200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40RHA-250-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40RHA-250B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40RHA-300-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40RHA-300B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40RHA-350-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40RHA-350B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40RHA-400-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40RHA-400B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40RHA-450-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40RHA-450B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40RHA-500-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40RHA-500B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40RHA-550-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40RHA-550B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40RHA-600-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40RHA-600B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40RHA-650-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40RHA-650B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40RHA-700-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40RHA-700B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40RHA-750-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40RHA-750B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40RHA-800-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40RHA-800B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40RHA-850-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40RHA-850B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40RHA-900-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40RHA-900B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40RHA-950-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40RHA-950B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40RHA-1000-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40RHA-1000B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40RHA-1100-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40RHA-1100B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40RHA-1200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40RHA-1200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40RHB-150-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40RHB-150B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40RHB-200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40RHB-200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40RHB-250-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40RHB-250B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40RHB-300-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40RHB-300B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40RHB-350-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40RHB-350B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40RHB-400-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40RHB-400B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40RHB-450-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40RHB-450B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40RHB-500-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40RHB-500B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40RHB-550-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40RHB-550B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40RHB-600-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40RHB-600B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40RHB-650-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40RHB-650B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40RHB-700-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40RHB-700B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40RHB-750-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40RHB-750B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40RHB-800-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40RHB-800B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40RHB-850-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40RHB-850B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40RHB-900-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40RHB-900B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40RHB-950-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40RHB-950B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40RHB-1000-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40RHB-1000B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40RHB-1100-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40RHB-1100B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40RHB-1200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40RHB-1200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40RHC-150-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40RHC-150B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40RHC-200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40RHC-200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40RHC-250-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40RHC-250B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40RHC-300-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40RHC-300B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40RHC-350-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40RHC-350B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40RHC-400-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40RHC-400B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40RHC-450-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40RHC-450B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40RHC-500-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40RHC-500B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40RHC-550-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40RHC-550B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40RHC-600-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40RHC-600B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40RHC-650-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40RHC-650B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40RHC-700-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40RHC-700B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40RHC-750-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40RHC-750B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40RHC-800-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40RHC-800B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40RHC-850-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40RHC-850B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40RHC-900-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40RHC-900B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40RHC-950-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40RHC-950B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40RHC-1000-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40RHC-1000B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40RHC-1100-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40RHC-1100B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40RHC-1200-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40RHC-1200B-B5	Size: 40 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40LHH-150-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40LHH-150B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40LHH-200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40LHH-200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40LHH-250-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40LHH-250B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40LHH-300-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40LHH-300B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40LHH-350-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40LHH-350B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40LHH-400-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40LHH-400B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40LHH-450-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40LHH-450B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40LHH-500-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40LHH-500B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40LHH-550-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40LHH-550B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40LHH-600-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40LHH-600B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40LHH-650-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40LHH-650B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40LHH-700-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40LHH-700B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40LHH-750-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40LHH-750B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40LHH-800-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40LHH-800B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40LHH-850-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40LHH-850B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40LHH-900-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40LHH-900B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40LHH-950-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40LHH-950B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40LHH-1000-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40LHH-1000B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40LHH-1100-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40LHH-1100B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40LHH-1200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40LHH-1200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 30 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40LHA-150-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40LHA-150B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40LHA-200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40LHA-200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40LHA-250-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40LHA-250B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40LHA-300-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40LHA-300B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40LHA-350-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40LHA-350B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40LHA-400-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40LHA-400B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40LHA-450-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40LHA-450B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40LHA-500-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40LHA-500B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40LHA-550-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40LHA-550B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40LHA-600-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40LHA-600B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40LHA-650-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40LHA-650B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40LHA-700-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40LHA-700B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40LHA-750-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40LHA-750B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40LHA-800-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40LHA-800B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40LHA-850-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40LHA-850B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40LHA-900-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40LHA-900B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40LHA-950-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40LHA-950B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40LHA-1000-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40LHA-1000B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40LHA-1100-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40LHA-1100B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40LHA-1200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40LHA-1200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40LHB-150-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40LHB-150B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40LHB-200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40LHB-200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40LHB-250-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40LHB-250B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40LHB-300-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40LHB-300B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40LHB-350-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40LHB-350B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40LHB-400-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40LHB-400B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40LHB-450-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40LHB-450B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40LHB-500-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40LHB-500B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40LHB-550-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40LHB-550B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40LHB-600-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40LHB-600B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40LHB-650-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40LHB-650B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40LHB-700-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40LHB-700B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40LHB-750-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40LHB-750B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40LHB-800-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40LHB-800B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40LHB-850-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40LHB-850B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40LHB-900-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40LHB-900B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40LHB-950-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40LHB-950B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40LHB-1000-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40LHB-1000B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40LHB-1100-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40LHB-1100B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40LHB-1200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40LHB-1200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1200 mm \| Lock: With lock
	EQFS40LHC-150-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQFS40LHC-150B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQFS40LHC-200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQFS40LHC-200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQFS40LHC-250-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQFS40LHC-250B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQFS40LHC-300-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQFS40LHC-300B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQFS40LHC-350-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: Without lock
	EQFS40LHC-350B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Lock: With lock
	EQFS40LHC-400-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: Without lock
	EQFS40LHC-400B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Lock: With lock
	EQFS40LHC-450-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: Without lock
	EQFS40LHC-450B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Lock: With lock
	EQFS40LHC-500-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: Without lock
	EQFS40LHC-500B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Lock: With lock
	EQFS40LHC-550-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: Without lock
	EQFS40LHC-550B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 550 mm \| Lock: With lock
	EQFS40LHC-600-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: Without lock
	EQFS40LHC-600B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Lock: With lock
	EQFS40LHC-650-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: Without lock
	EQFS40LHC-650B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 650 mm \| Lock: With lock
	EQFS40LHC-700-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: Without lock
	EQFS40LHC-700B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Lock: With lock
	EQFS40LHC-750-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: Without lock
	EQFS40LHC-750B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 750 mm \| Lock: With lock
	EQFS40LHC-800-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: Without lock
	EQFS40LHC-800B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Lock: With lock
	EQFS40LHC-850-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: Without lock
	EQFS40LHC-850B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 850 mm \| Lock: With lock
	EQFS40LHC-900-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: Without lock
	EQFS40LHC-900B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 900 mm \| Lock: With lock
	EQFS40LHC-950-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: Without lock
	EQFS40LHC-950B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 950 mm \| Lock: With lock
	EQFS40LHC-1000-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: Without lock
	EQFS40LHC-1000B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1000 mm \| Lock: With lock
	EQFS40LHC-1100-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: Without lock
	EQFS40LHC-1100B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1100 mm \| Lock: With lock
	EQFS40LHC-1200-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: Without lock
	EQFS40LHC-1200B-B5	Size: 40 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 1200 mm \| Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC EQFS Electric Slider, Controller Integrated (Size 32, 40)
