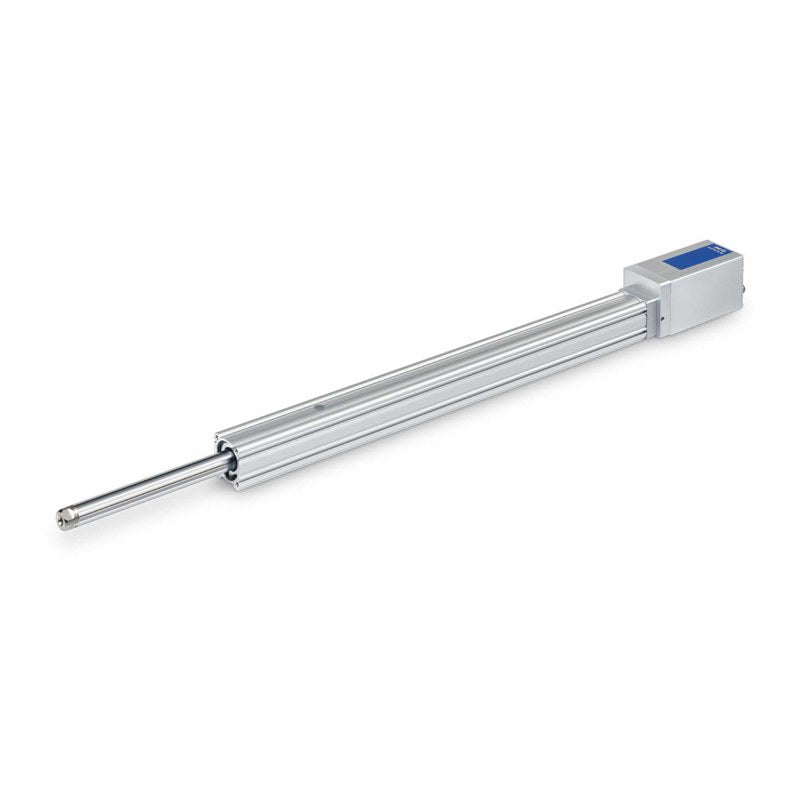

SMC EQY Electric Rod Actuator, Controller Integrated (16/25/32)

SMC EQY e-Actuator rod-type electric actuator with integrated controller and battery-less absolute step motor (DC24V), sizes 16, 25 and 32.

Key features

Controller-integrated rod actuator: 2-point and 3-point stopping set like an air cylinder, no programming
Operating modes: single solenoid, double solenoid and closed center, plus cycle-time setting
Mounting (blank end tap/body bottom tap, L foot, F rod flange, G head flange, D double clevis) ordered after the stroke/lock symbols; bracket shipped unassembled
Rod end thread: female standard, M = male thread with one rod end nut
Interface (last symbol) listed as 5 = Parallel input NPN (power connector A-code); replace with 6 (Parallel PNP), LA (IO-Link, A-code power) or LB (IO-Link, L-code power)
Power cable, Parallel I/O cable and IO-Link cable are ordered separately; auto switches (D-M9 series) ordered separately

Specifications

Motor	Battery-less absolute step motor DC24V
Controller	Integrated (symbol B)
Drive	Ball screw + belt (parallel); ball screw (straight)
Guide	Sliding bushing (piston rod)
Horizontal payload (by lead)	EQY16 17/25/40; EQY25 8/26/40/70; EQY32 30/50/90/100 kg
Vertical payload (by lead)	EQY16 3/6/10; EQY25 2/8/16/30; EQY32 3/13/26/46 kg
Pushing force	EQY16 23-154 N; EQY25 41-511 N; EQY32 60-796 N
Repeatability	±0.02 mm
Enclosure	IP40
Operating temperature	5 to 40°C
Power supply	DC24V ±10%
Source	SMC Korea catalog CAT.KS100-154D (SMCKR_EQF_EQY.pdf), p. 47-48 (PDF p. 48-49)

EQY16D1HA-30-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D1HA-30B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D1HA-50-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D1HA-50B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D1HA-100-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D1HA-100B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D1HA-150-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D1HA-150B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D1HA-200-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D1HA-200B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D1HA-250-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D1HA-250B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D1HA-300-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D1HA-300B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D1HB-30-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D1HB-30B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D1HB-50-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D1HB-50B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D1HB-100-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D1HB-100B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D1HB-150-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D1HB-150B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D1HB-200-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D1HB-200B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D1HB-250-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D1HB-250B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D1HB-300-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D1HB-300B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D1HC-30-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D1HC-30B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D1HC-50-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D1HC-50B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D1HC-100-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D1HC-100B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D1HC-150-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D1HC-150B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D1HC-200-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D1HC-200B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D1HC-250-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D1HC-250B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D1HC-300-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D1HC-300B-B5		Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D2HA-30-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D2HA-30B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D2HA-50-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D2HA-50B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D2HA-100-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D2HA-100B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D2HA-150-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D2HA-150B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D2HA-200-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D2HA-200B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D2HA-250-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D2HA-250B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D2HA-300-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D2HA-300B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D2HB-30-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D2HB-30B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D2HB-50-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D2HB-50B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D2HB-100-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D2HB-100B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D2HB-150-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D2HB-150B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D2HB-200-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D2HB-200B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D2HB-250-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D2HB-250B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D2HB-300-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D2HB-300B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D2HC-30-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D2HC-30B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D2HC-50-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D2HC-50B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D2HC-100-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D2HC-100B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D2HC-150-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D2HC-150B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D2HC-200-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D2HC-200B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D2HC-250-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D2HC-250B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D2HC-300-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D2HC-300B-B5		Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D3HA-30-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D3HA-30B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D3HA-50-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D3HA-50B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D3HA-100-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D3HA-100B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D3HA-150-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D3HA-150B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D3HA-200-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D3HA-200B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D3HA-250-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D3HA-250B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D3HA-300-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D3HA-300B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D3HB-30-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D3HB-30B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D3HB-50-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D3HB-50B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D3HB-100-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D3HB-100B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D3HB-150-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D3HB-150B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D3HB-200-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D3HB-200B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D3HB-250-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D3HB-250B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D3HB-300-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D3HB-300B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D3HC-30-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D3HC-30B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D3HC-50-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D3HC-50B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D3HC-100-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D3HC-100B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D3HC-150-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D3HC-150B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D3HC-200-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D3HC-200B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D3HC-250-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D3HC-250B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D3HC-300-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D3HC-300B-B5		Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D4HA-30-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D4HA-30B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D4HA-50-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D4HA-50B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D4HA-100-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D4HA-100B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D4HA-150-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D4HA-150B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D4HA-200-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D4HA-200B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D4HA-250-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D4HA-250B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D4HA-300-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D4HA-300B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D4HB-30-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D4HB-30B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D4HB-50-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D4HB-50B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D4HB-100-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D4HB-100B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D4HB-150-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D4HB-150B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D4HB-200-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D4HB-200B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D4HB-250-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D4HB-250B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D4HB-300-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D4HB-300B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16D4HC-30-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16D4HC-30B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16D4HC-50-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16D4HC-50B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16D4HC-100-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16D4HC-100B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16D4HC-150-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16D4HC-150B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16D4HC-200-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16D4HC-200B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16D4HC-250-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16D4HC-250B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16D4HC-300-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16D4HC-300B-B5		Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16HA-30-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16HA-30B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16HA-50-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16HA-50B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16HA-100-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16HA-100B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16HA-150-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16HA-150B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16HA-200-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16HA-200B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16HA-250-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16HA-250B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16HA-300-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16HA-300B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16HB-30-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16HB-30B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16HB-50-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16HB-50B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16HB-100-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16HB-100B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16HB-150-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16HB-150B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16HB-200-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16HB-200B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16HB-250-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16HB-250B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16HB-300-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16HB-300B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16HC-30-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16HC-30B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16HC-50-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16HC-50B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16HC-100-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16HC-100B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16HC-150-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16HC-150B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16HC-200-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16HC-200B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16HC-250-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16HC-250B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16HC-300-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16HC-300B-B5		Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16RHA-30-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16RHA-30B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16RHA-50-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16RHA-50B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16RHA-100-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16RHA-100B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16RHA-150-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16RHA-150B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16RHA-200-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16RHA-200B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16RHA-250-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16RHA-250B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16RHA-300-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16RHA-300B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16RHB-30-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16RHB-30B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16RHB-50-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16RHB-50B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16RHB-100-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16RHB-100B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16RHB-150-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16RHB-150B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16RHB-200-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16RHB-200B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16RHB-250-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16RHB-250B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16RHB-300-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16RHB-300B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16RHC-30-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16RHC-30B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16RHC-50-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16RHC-50B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16RHC-100-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16RHC-100B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16RHC-150-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16RHC-150B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16RHC-200-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16RHC-200B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16RHC-250-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16RHC-250B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16RHC-300-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16RHC-300B-B5		Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16LHA-30-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16LHA-30B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
EQY16LHA-50-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16LHA-50B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
EQY16LHA-100-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16LHA-100B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
EQY16LHA-150-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16LHA-150B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
EQY16LHA-200-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16LHA-200B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
EQY16LHA-250-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16LHA-250B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
EQY16LHA-300-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16LHA-300B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
EQY16LHB-30-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16LHB-30B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16LHB-50-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16LHB-50B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16LHB-100-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16LHB-100B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16LHB-150-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16LHB-150B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16LHB-200-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16LHB-200B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16LHB-250-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16LHB-250B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16LHB-300-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16LHB-300B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
EQY16LHC-30-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
EQY16LHC-30B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
EQY16LHC-50-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
EQY16LHC-50B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
EQY16LHC-100-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
EQY16LHC-100B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
EQY16LHC-150-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
EQY16LHC-150B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
EQY16LHC-200-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
EQY16LHC-200B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
EQY16LHC-250-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
EQY16LHC-250B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
EQY16LHC-300-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
EQY16LHC-300B-B5		Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
EQY25DHH-30-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25DHH-30B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQY25DHH-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25DHH-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQY25DHH-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25DHH-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQY25DHH-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25DHH-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQY25DHH-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25DHH-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQY25DHH-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25DHH-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQY25DHH-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25DHH-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQY25DHH-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25DHH-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQY25DHH-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25DHH-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQY25DHA-30-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25DHA-30B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQY25DHA-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25DHA-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQY25DHA-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25DHA-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQY25DHA-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25DHA-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQY25DHA-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25DHA-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQY25DHA-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25DHA-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQY25DHA-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25DHA-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQY25DHA-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25DHA-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQY25DHA-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25DHA-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQY25DHB-30-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25DHB-30B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQY25DHB-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25DHB-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQY25DHB-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25DHB-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQY25DHB-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25DHB-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQY25DHB-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25DHB-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQY25DHB-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25DHB-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQY25DHB-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25DHB-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQY25DHB-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25DHB-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQY25DHB-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25DHB-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQY25DHC-30-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25DHC-30B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQY25DHC-50-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25DHC-50B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQY25DHC-100-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25DHC-100B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQY25DHC-150-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25DHC-150B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQY25DHC-200-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25DHC-200B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQY25DHC-250-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25DHC-250B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQY25DHC-300-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25DHC-300B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQY25DHC-350-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25DHC-350B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQY25DHC-400-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25DHC-400B-B5		Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQY25HH-30-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25HH-30B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQY25HH-50-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25HH-50B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQY25HH-100-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25HH-100B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQY25HH-150-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25HH-150B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQY25HH-200-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25HH-200B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQY25HH-250-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25HH-250B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQY25HH-300-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25HH-300B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQY25HH-350-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25HH-350B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQY25HH-400-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25HH-400B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQY25HA-30-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25HA-30B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQY25HA-50-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25HA-50B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQY25HA-100-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25HA-100B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQY25HA-150-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25HA-150B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQY25HA-200-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25HA-200B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQY25HA-250-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25HA-250B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQY25HA-300-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25HA-300B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQY25HA-350-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25HA-350B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQY25HA-400-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25HA-400B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQY25HB-30-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25HB-30B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQY25HB-50-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25HB-50B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQY25HB-100-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25HB-100B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQY25HB-150-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25HB-150B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQY25HB-200-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25HB-200B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQY25HB-250-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25HB-250B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQY25HB-300-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25HB-300B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQY25HB-350-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25HB-350B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQY25HB-400-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25HB-400B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQY25HC-30-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25HC-30B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQY25HC-50-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25HC-50B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQY25HC-100-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25HC-100B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQY25HC-150-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25HC-150B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQY25HC-200-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25HC-200B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQY25HC-250-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25HC-250B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQY25HC-300-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25HC-300B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQY25HC-350-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25HC-350B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQY25HC-400-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25HC-400B-B5		Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQY25RHH-30-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25RHH-30B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQY25RHH-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25RHH-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQY25RHH-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25RHH-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQY25RHH-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25RHH-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQY25RHH-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25RHH-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQY25RHH-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25RHH-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQY25RHH-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25RHH-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQY25RHH-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25RHH-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQY25RHH-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25RHH-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQY25RHA-30-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25RHA-30B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQY25RHA-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25RHA-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQY25RHA-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25RHA-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQY25RHA-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25RHA-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQY25RHA-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25RHA-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQY25RHA-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25RHA-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQY25RHA-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25RHA-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQY25RHA-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25RHA-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQY25RHA-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25RHA-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQY25RHB-30-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25RHB-30B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQY25RHB-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25RHB-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQY25RHB-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25RHB-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQY25RHB-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25RHB-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQY25RHB-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25RHB-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQY25RHB-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25RHB-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQY25RHB-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25RHB-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQY25RHB-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25RHB-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQY25RHB-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25RHB-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQY25RHC-30-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25RHC-30B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQY25RHC-50-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25RHC-50B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQY25RHC-100-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25RHC-100B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQY25RHC-150-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25RHC-150B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQY25RHC-200-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25RHC-200B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQY25RHC-250-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25RHC-250B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQY25RHC-300-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25RHC-300B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQY25RHC-350-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25RHC-350B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQY25RHC-400-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25RHC-400B-B5		Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQY25LHH-30-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25LHH-30B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
EQY25LHH-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25LHH-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
EQY25LHH-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25LHH-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
EQY25LHH-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25LHH-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
EQY25LHH-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25LHH-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
EQY25LHH-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25LHH-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
EQY25LHH-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25LHH-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
EQY25LHH-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25LHH-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
EQY25LHH-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25LHH-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
EQY25LHA-30-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25LHA-30B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
EQY25LHA-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25LHA-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
EQY25LHA-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25LHA-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
EQY25LHA-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25LHA-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
EQY25LHA-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25LHA-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
EQY25LHA-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25LHA-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
EQY25LHA-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25LHA-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
EQY25LHA-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25LHA-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
EQY25LHA-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25LHA-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
EQY25LHB-30-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25LHB-30B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
EQY25LHB-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25LHB-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
EQY25LHB-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25LHB-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
EQY25LHB-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25LHB-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
EQY25LHB-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25LHB-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
EQY25LHB-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25LHB-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
EQY25LHB-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25LHB-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
EQY25LHB-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25LHB-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
EQY25LHB-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25LHB-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
EQY25LHC-30-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
EQY25LHC-30B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
EQY25LHC-50-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
EQY25LHC-50B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
EQY25LHC-100-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
EQY25LHC-100B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
EQY25LHC-150-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
EQY25LHC-150B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
EQY25LHC-200-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
EQY25LHC-200B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
EQY25LHC-250-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
EQY25LHC-250B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
EQY25LHC-300-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
EQY25LHC-300B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
EQY25LHC-350-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
EQY25LHC-350B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
EQY25LHC-400-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
EQY25LHC-400B-B5		Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
EQY32DHH-30-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32DHH-30B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQY32DHH-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32DHH-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQY32DHH-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32DHH-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQY32DHH-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32DHH-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQY32DHH-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32DHH-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQY32DHH-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32DHH-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQY32DHH-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32DHH-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQY32DHH-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32DHH-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQY32DHH-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32DHH-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQY32DHH-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32DHH-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQY32DHH-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32DHH-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQY32DHA-30-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32DHA-30B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQY32DHA-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32DHA-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQY32DHA-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32DHA-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQY32DHA-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32DHA-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQY32DHA-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32DHA-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQY32DHA-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32DHA-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQY32DHA-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32DHA-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQY32DHA-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32DHA-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQY32DHA-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32DHA-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQY32DHA-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32DHA-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQY32DHA-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32DHA-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQY32DHB-30-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32DHB-30B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQY32DHB-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32DHB-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQY32DHB-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32DHB-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQY32DHB-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32DHB-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQY32DHB-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32DHB-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQY32DHB-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32DHB-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQY32DHB-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32DHB-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQY32DHB-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32DHB-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQY32DHB-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32DHB-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQY32DHB-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32DHB-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQY32DHB-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32DHB-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQY32DHC-30-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32DHC-30B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQY32DHC-50-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32DHC-50B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQY32DHC-100-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32DHC-100B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQY32DHC-150-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32DHC-150B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQY32DHC-200-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32DHC-200B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQY32DHC-250-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32DHC-250B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQY32DHC-300-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32DHC-300B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQY32DHC-350-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32DHC-350B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQY32DHC-400-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32DHC-400B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQY32DHC-450-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32DHC-450B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQY32DHC-500-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32DHC-500B-B5		Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
EQY32HH-30-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32HH-30B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQY32HH-50-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32HH-50B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQY32HH-100-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32HH-100B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQY32HH-150-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32HH-150B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQY32HH-200-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32HH-200B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQY32HH-250-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32HH-250B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQY32HH-300-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32HH-300B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQY32HH-350-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32HH-350B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQY32HH-400-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32HH-400B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQY32HH-450-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32HH-450B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQY32HH-500-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32HH-500B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQY32HA-30-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32HA-30B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQY32HA-50-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32HA-50B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQY32HA-100-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32HA-100B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQY32HA-150-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32HA-150B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQY32HA-200-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32HA-200B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQY32HA-250-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32HA-250B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQY32HA-300-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32HA-300B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQY32HA-350-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32HA-350B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQY32HA-400-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32HA-400B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQY32HA-450-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32HA-450B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQY32HA-500-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32HA-500B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQY32HB-30-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32HB-30B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQY32HB-50-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32HB-50B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQY32HB-100-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32HB-100B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQY32HB-150-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32HB-150B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQY32HB-200-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32HB-200B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQY32HB-250-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32HB-250B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQY32HB-300-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32HB-300B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQY32HB-350-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32HB-350B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQY32HB-400-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32HB-400B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQY32HB-450-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32HB-450B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQY32HB-500-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32HB-500B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQY32HC-30-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32HC-30B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQY32HC-50-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32HC-50B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQY32HC-100-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32HC-100B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQY32HC-150-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32HC-150B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQY32HC-200-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32HC-200B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQY32HC-250-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32HC-250B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQY32HC-300-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32HC-300B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQY32HC-350-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32HC-350B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQY32HC-400-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32HC-400B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQY32HC-450-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32HC-450B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQY32HC-500-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32HC-500B-B5		Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
EQY32RHH-30-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32RHH-30B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQY32RHH-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32RHH-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQY32RHH-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32RHH-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQY32RHH-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32RHH-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQY32RHH-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32RHH-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQY32RHH-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32RHH-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQY32RHH-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32RHH-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQY32RHH-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32RHH-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQY32RHH-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32RHH-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQY32RHH-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32RHH-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQY32RHH-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32RHH-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQY32RHA-30-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32RHA-30B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQY32RHA-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32RHA-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQY32RHA-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32RHA-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQY32RHA-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32RHA-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQY32RHA-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32RHA-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQY32RHA-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32RHA-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQY32RHA-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32RHA-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQY32RHA-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32RHA-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQY32RHA-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32RHA-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQY32RHA-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32RHA-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQY32RHA-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32RHA-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQY32RHB-30-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32RHB-30B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQY32RHB-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32RHB-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQY32RHB-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32RHB-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQY32RHB-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32RHB-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQY32RHB-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32RHB-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQY32RHB-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32RHB-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQY32RHB-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32RHB-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQY32RHB-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32RHB-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQY32RHB-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32RHB-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQY32RHB-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32RHB-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQY32RHB-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32RHB-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQY32RHC-30-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32RHC-30B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQY32RHC-50-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32RHC-50B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQY32RHC-100-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32RHC-100B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQY32RHC-150-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32RHC-150B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQY32RHC-200-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32RHC-200B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQY32RHC-250-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32RHC-250B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQY32RHC-300-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32RHC-300B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQY32RHC-350-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32RHC-350B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQY32RHC-400-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32RHC-400B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQY32RHC-450-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32RHC-450B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQY32RHC-500-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32RHC-500B-B5		Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
EQY32LHH-30-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32LHH-30B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
EQY32LHH-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32LHH-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
EQY32LHH-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32LHH-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
EQY32LHH-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32LHH-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
EQY32LHH-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32LHH-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
EQY32LHH-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32LHH-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
EQY32LHH-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32LHH-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
EQY32LHH-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32LHH-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
EQY32LHH-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32LHH-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
EQY32LHH-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32LHH-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
EQY32LHH-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32LHH-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
EQY32LHA-30-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32LHA-30B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
EQY32LHA-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32LHA-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
EQY32LHA-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32LHA-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
EQY32LHA-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32LHA-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
EQY32LHA-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32LHA-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
EQY32LHA-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32LHA-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
EQY32LHA-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32LHA-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
EQY32LHA-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32LHA-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
EQY32LHA-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32LHA-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
EQY32LHA-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32LHA-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
EQY32LHA-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32LHA-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
EQY32LHB-30-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32LHB-30B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
EQY32LHB-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32LHB-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
EQY32LHB-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32LHB-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
EQY32LHB-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32LHB-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
EQY32LHB-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32LHB-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
EQY32LHB-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32LHB-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
EQY32LHB-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32LHB-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
EQY32LHB-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32LHB-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
EQY32LHB-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32LHB-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
EQY32LHB-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32LHB-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
EQY32LHB-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32LHB-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
EQY32LHC-30-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
EQY32LHC-30B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
EQY32LHC-50-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
EQY32LHC-50B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
EQY32LHC-100-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
EQY32LHC-100B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
EQY32LHC-150-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
EQY32LHC-150B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
EQY32LHC-200-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
EQY32LHC-200B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
EQY32LHC-250-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
EQY32LHC-250B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
EQY32LHC-300-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
EQY32LHC-300B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
EQY32LHC-350-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
EQY32LHC-350B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
EQY32LHC-400-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
EQY32LHC-400B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
EQY32LHC-450-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
EQY32LHC-450B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
EQY32LHC-500-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
EQY32LHC-500B-B5		Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock

Electric ActuatorsSMC

934 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC EQY Electric Rod Actuator, Controller Integrated (16/25/32)

Brand SMC·Electric Actuators

Available part numbers (934)

EQY16D1HA-30-B5, EQY16D1HA-30B-B5, EQY16D1HA-50-B5, EQY16D1HA-50B-B5, EQY16D1HA-100-B5, EQY16D1HA-100B-B5, EQY16D1HA-150-B5, EQY16D1HA-150B-B5, EQY16D1HA-200-B5, EQY16D1HA-200B-B5 + 924 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	EQY16D1HA-30-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D1HA-30B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D1HA-50-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D1HA-50B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D1HA-100-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D1HA-100B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D1HA-150-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D1HA-150B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D1HA-200-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D1HA-200B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D1HA-250-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D1HA-250B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D1HA-300-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D1HA-300B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D1HB-30-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D1HB-30B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D1HB-50-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D1HB-50B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D1HB-100-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D1HB-100B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D1HB-150-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D1HB-150B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D1HB-200-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D1HB-200B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D1HB-250-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D1HB-250B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D1HB-300-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D1HB-300B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D1HC-30-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D1HC-30B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D1HC-50-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D1HC-50B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D1HC-100-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D1HC-100B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D1HC-150-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D1HC-150B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D1HC-200-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D1HC-200B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D1HC-250-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D1HC-250B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D1HC-300-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D1HC-300B-B5	Size: 16 \| Motor layout: Straight, cover left \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D2HA-30-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D2HA-30B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D2HA-50-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D2HA-50B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D2HA-100-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D2HA-100B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D2HA-150-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D2HA-150B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D2HA-200-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D2HA-200B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D2HA-250-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D2HA-250B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D2HA-300-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D2HA-300B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D2HB-30-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D2HB-30B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D2HB-50-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D2HB-50B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D2HB-100-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D2HB-100B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D2HB-150-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D2HB-150B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D2HB-200-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D2HB-200B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D2HB-250-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D2HB-250B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D2HB-300-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D2HB-300B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D2HC-30-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D2HC-30B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D2HC-50-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D2HC-50B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D2HC-100-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D2HC-100B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D2HC-150-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D2HC-150B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D2HC-200-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D2HC-200B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D2HC-250-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D2HC-250B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D2HC-300-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D2HC-300B-B5	Size: 16 \| Motor layout: Straight, cover right \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D3HA-30-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D3HA-30B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D3HA-50-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D3HA-50B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D3HA-100-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D3HA-100B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D3HA-150-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D3HA-150B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D3HA-200-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D3HA-200B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D3HA-250-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D3HA-250B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D3HA-300-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D3HA-300B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D3HB-30-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D3HB-30B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D3HB-50-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D3HB-50B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D3HB-100-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D3HB-100B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D3HB-150-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D3HB-150B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D3HB-200-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D3HB-200B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D3HB-250-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D3HB-250B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D3HB-300-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D3HB-300B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D3HC-30-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D3HC-30B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D3HC-50-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D3HC-50B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D3HC-100-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D3HC-100B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D3HC-150-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D3HC-150B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D3HC-200-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D3HC-200B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D3HC-250-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D3HC-250B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D3HC-300-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D3HC-300B-B5	Size: 16 \| Motor layout: Straight, cover top \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D4HA-30-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D4HA-30B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D4HA-50-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D4HA-50B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D4HA-100-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D4HA-100B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D4HA-150-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D4HA-150B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D4HA-200-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D4HA-200B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D4HA-250-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D4HA-250B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D4HA-300-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D4HA-300B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D4HB-30-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D4HB-30B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D4HB-50-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D4HB-50B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D4HB-100-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D4HB-100B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D4HB-150-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D4HB-150B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D4HB-200-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D4HB-200B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D4HB-250-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D4HB-250B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D4HB-300-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D4HB-300B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16D4HC-30-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16D4HC-30B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16D4HC-50-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16D4HC-50B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16D4HC-100-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16D4HC-100B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16D4HC-150-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16D4HC-150B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16D4HC-200-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16D4HC-200B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16D4HC-250-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16D4HC-250B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16D4HC-300-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16D4HC-300B-B5	Size: 16 \| Motor layout: Straight, cover bottom \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16HA-30-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16HA-30B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16HA-50-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16HA-50B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16HA-100-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16HA-100B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16HA-150-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16HA-150B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16HA-200-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16HA-200B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16HA-250-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16HA-250B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16HA-300-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16HA-300B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16HB-30-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16HB-30B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16HB-50-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16HB-50B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16HB-100-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16HB-100B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16HB-150-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16HB-150B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16HB-200-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16HB-200B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16HB-250-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16HB-250B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16HB-300-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16HB-300B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16HC-30-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16HC-30B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16HC-50-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16HC-50B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16HC-100-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16HC-100B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16HC-150-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16HC-150B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16HC-200-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16HC-200B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16HC-250-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16HC-250B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16HC-300-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16HC-300B-B5	Size: 16 \| Motor layout: Parallel, top side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16RHA-30-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16RHA-30B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16RHA-50-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16RHA-50B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16RHA-100-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16RHA-100B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16RHA-150-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16RHA-150B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16RHA-200-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16RHA-200B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16RHA-250-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16RHA-250B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16RHA-300-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16RHA-300B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16RHB-30-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16RHB-30B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16RHB-50-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16RHB-50B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16RHB-100-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16RHB-100B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16RHB-150-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16RHB-150B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16RHB-200-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16RHB-200B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16RHB-250-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16RHB-250B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16RHB-300-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16RHB-300B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16RHC-30-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16RHC-30B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16RHC-50-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16RHC-50B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16RHC-100-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16RHC-100B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16RHC-150-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16RHC-150B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16RHC-200-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16RHC-200B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16RHC-250-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16RHC-250B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16RHC-300-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16RHC-300B-B5	Size: 16 \| Motor layout: Parallel, right side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16LHA-30-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16LHA-30B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16LHA-50-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16LHA-50B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16LHA-100-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16LHA-100B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16LHA-150-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16LHA-150B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16LHA-200-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16LHA-200B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16LHA-250-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16LHA-250B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16LHA-300-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16LHA-300B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16LHB-30-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16LHB-30B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16LHB-50-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16LHB-50B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16LHB-100-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16LHB-100B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16LHB-150-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16LHB-150B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16LHB-200-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16LHB-200B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16LHB-250-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16LHB-250B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16LHB-300-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16LHB-300B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY16LHC-30-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY16LHC-30B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 30 mm \| Lock: With lock
	EQY16LHC-50-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY16LHC-50B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 50 mm \| Lock: With lock
	EQY16LHC-100-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY16LHC-100B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 100 mm \| Lock: With lock
	EQY16LHC-150-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY16LHC-150B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 150 mm \| Lock: With lock
	EQY16LHC-200-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY16LHC-200B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 200 mm \| Lock: With lock
	EQY16LHC-250-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY16LHC-250B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 250 mm \| Lock: With lock
	EQY16LHC-300-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY16LHC-300B-B5	Size: 16 \| Motor layout: Parallel, left side \| Lead: 2.5 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25DHH-30-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25DHH-30B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25DHH-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25DHH-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25DHH-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25DHH-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25DHH-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25DHH-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25DHH-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25DHH-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25DHH-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25DHH-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25DHH-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25DHH-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25DHH-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25DHH-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25DHH-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25DHH-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25DHA-30-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25DHA-30B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25DHA-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25DHA-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25DHA-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25DHA-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25DHA-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25DHA-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25DHA-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25DHA-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25DHA-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25DHA-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25DHA-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25DHA-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25DHA-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25DHA-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25DHA-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25DHA-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25DHB-30-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25DHB-30B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25DHB-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25DHB-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25DHB-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25DHB-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25DHB-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25DHB-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25DHB-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25DHB-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25DHB-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25DHB-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25DHB-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25DHB-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25DHB-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25DHB-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25DHB-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25DHB-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25DHC-30-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25DHC-30B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25DHC-50-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25DHC-50B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25DHC-100-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25DHC-100B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25DHC-150-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25DHC-150B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25DHC-200-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25DHC-200B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25DHC-250-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25DHC-250B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25DHC-300-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25DHC-300B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25DHC-350-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25DHC-350B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25DHC-400-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25DHC-400B-B5	Size: 25 \| Motor layout: Straight \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25HH-30-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25HH-30B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25HH-50-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25HH-50B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25HH-100-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25HH-100B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25HH-150-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25HH-150B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25HH-200-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25HH-200B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25HH-250-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25HH-250B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25HH-300-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25HH-300B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25HH-350-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25HH-350B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25HH-400-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25HH-400B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25HA-30-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25HA-30B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25HA-50-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25HA-50B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25HA-100-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25HA-100B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25HA-150-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25HA-150B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25HA-200-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25HA-200B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25HA-250-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25HA-250B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25HA-300-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25HA-300B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25HA-350-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25HA-350B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25HA-400-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25HA-400B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25HB-30-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25HB-30B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25HB-50-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25HB-50B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25HB-100-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25HB-100B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25HB-150-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25HB-150B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25HB-200-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25HB-200B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25HB-250-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25HB-250B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25HB-300-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25HB-300B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25HB-350-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25HB-350B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25HB-400-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25HB-400B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25HC-30-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25HC-30B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25HC-50-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25HC-50B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25HC-100-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25HC-100B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25HC-150-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25HC-150B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25HC-200-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25HC-200B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25HC-250-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25HC-250B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25HC-300-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25HC-300B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25HC-350-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25HC-350B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25HC-400-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25HC-400B-B5	Size: 25 \| Motor layout: Parallel, top side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25RHH-30-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25RHH-30B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25RHH-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25RHH-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25RHH-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25RHH-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25RHH-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25RHH-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25RHH-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25RHH-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25RHH-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25RHH-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25RHH-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25RHH-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25RHH-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25RHH-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25RHH-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25RHH-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25RHA-30-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25RHA-30B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25RHA-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25RHA-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25RHA-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25RHA-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25RHA-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25RHA-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25RHA-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25RHA-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25RHA-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25RHA-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25RHA-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25RHA-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25RHA-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25RHA-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25RHA-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25RHA-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25RHB-30-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25RHB-30B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25RHB-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25RHB-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25RHB-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25RHB-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25RHB-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25RHB-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25RHB-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25RHB-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25RHB-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25RHB-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25RHB-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25RHB-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25RHB-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25RHB-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25RHB-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25RHB-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25RHC-30-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25RHC-30B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25RHC-50-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25RHC-50B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25RHC-100-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25RHC-100B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25RHC-150-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25RHC-150B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25RHC-200-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25RHC-200B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25RHC-250-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25RHC-250B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25RHC-300-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25RHC-300B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25RHC-350-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25RHC-350B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25RHC-400-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25RHC-400B-B5	Size: 25 \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25LHH-30-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25LHH-30B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25LHH-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25LHH-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25LHH-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25LHH-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25LHH-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25LHH-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25LHH-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25LHH-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25LHH-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25LHH-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25LHH-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25LHH-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25LHH-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25LHH-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25LHH-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25LHH-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25LHA-30-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25LHA-30B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25LHA-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25LHA-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25LHA-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25LHA-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25LHA-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25LHA-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25LHA-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25LHA-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25LHA-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25LHA-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25LHA-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25LHA-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25LHA-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25LHA-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25LHA-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25LHA-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25LHB-30-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25LHB-30B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25LHB-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25LHB-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25LHB-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25LHB-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25LHB-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25LHB-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25LHB-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25LHB-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25LHB-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25LHB-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25LHB-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25LHB-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25LHB-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25LHB-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25LHB-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25LHB-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Lock: With lock
	EQY25LHC-30-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY25LHC-30B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Lock: With lock
	EQY25LHC-50-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY25LHC-50B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Lock: With lock
	EQY25LHC-100-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY25LHC-100B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Lock: With lock
	EQY25LHC-150-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY25LHC-150B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Lock: With lock
	EQY25LHC-200-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY25LHC-200B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Lock: With lock
	EQY25LHC-250-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY25LHC-250B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Lock: With lock
	EQY25LHC-300-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY25LHC-300B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Lock: With lock
	EQY25LHC-350-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY25LHC-350B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Lock: With lock
	EQY25LHC-400-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY25LHC-400B-B5	Size: 25 \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32DHH-30-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32DHH-30B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32DHH-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32DHH-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32DHH-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32DHH-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32DHH-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32DHH-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32DHH-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32DHH-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32DHH-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32DHH-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32DHH-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32DHH-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32DHH-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32DHH-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32DHH-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32DHH-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32DHH-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32DHH-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32DHH-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32DHH-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32DHA-30-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32DHA-30B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32DHA-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32DHA-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32DHA-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32DHA-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32DHA-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32DHA-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32DHA-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32DHA-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32DHA-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32DHA-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32DHA-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32DHA-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32DHA-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32DHA-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32DHA-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32DHA-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32DHA-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32DHA-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32DHA-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32DHA-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32DHB-30-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32DHB-30B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32DHB-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32DHB-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32DHB-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32DHB-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32DHB-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32DHB-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32DHB-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32DHB-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32DHB-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32DHB-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32DHB-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32DHB-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32DHB-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32DHB-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32DHB-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32DHB-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32DHB-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32DHB-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32DHB-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32DHB-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32DHC-30-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32DHC-30B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32DHC-50-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32DHC-50B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32DHC-100-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32DHC-100B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32DHC-150-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32DHC-150B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32DHC-200-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32DHC-200B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32DHC-250-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32DHC-250B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32DHC-300-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32DHC-300B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32DHC-350-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32DHC-350B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32DHC-400-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32DHC-400B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32DHC-450-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32DHC-450B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32DHC-500-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32DHC-500B-B5	Size: 32 \| Motor layout: Straight \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32HH-30-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32HH-30B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32HH-50-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32HH-50B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32HH-100-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32HH-100B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32HH-150-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32HH-150B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32HH-200-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32HH-200B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32HH-250-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32HH-250B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32HH-300-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32HH-300B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32HH-350-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32HH-350B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32HH-400-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32HH-400B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32HH-450-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32HH-450B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32HH-500-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32HH-500B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32HA-30-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32HA-30B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32HA-50-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32HA-50B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32HA-100-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32HA-100B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32HA-150-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32HA-150B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32HA-200-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32HA-200B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32HA-250-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32HA-250B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32HA-300-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32HA-300B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32HA-350-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32HA-350B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32HA-400-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32HA-400B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32HA-450-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32HA-450B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32HA-500-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32HA-500B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32HB-30-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32HB-30B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32HB-50-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32HB-50B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32HB-100-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32HB-100B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32HB-150-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32HB-150B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32HB-200-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32HB-200B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32HB-250-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32HB-250B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32HB-300-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32HB-300B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32HB-350-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32HB-350B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32HB-400-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32HB-400B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32HB-450-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32HB-450B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32HB-500-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32HB-500B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32HC-30-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32HC-30B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32HC-50-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32HC-50B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32HC-100-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32HC-100B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32HC-150-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32HC-150B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32HC-200-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32HC-200B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32HC-250-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32HC-250B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32HC-300-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32HC-300B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32HC-350-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32HC-350B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32HC-400-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32HC-400B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32HC-450-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32HC-450B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32HC-500-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32HC-500B-B5	Size: 32 \| Motor layout: Parallel, top side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32RHH-30-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32RHH-30B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32RHH-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32RHH-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32RHH-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32RHH-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32RHH-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32RHH-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32RHH-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32RHH-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32RHH-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32RHH-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32RHH-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32RHH-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32RHH-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32RHH-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32RHH-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32RHH-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32RHH-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32RHH-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32RHH-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32RHH-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32RHA-30-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32RHA-30B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32RHA-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32RHA-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32RHA-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32RHA-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32RHA-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32RHA-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32RHA-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32RHA-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32RHA-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32RHA-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32RHA-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32RHA-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32RHA-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32RHA-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32RHA-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32RHA-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32RHA-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32RHA-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32RHA-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32RHA-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32RHB-30-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32RHB-30B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32RHB-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32RHB-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32RHB-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32RHB-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32RHB-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32RHB-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32RHB-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32RHB-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32RHB-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32RHB-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32RHB-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32RHB-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32RHB-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32RHB-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32RHB-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32RHB-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32RHB-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32RHB-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32RHB-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32RHB-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32RHC-30-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32RHC-30B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32RHC-50-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32RHC-50B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32RHC-100-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32RHC-100B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32RHC-150-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32RHC-150B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32RHC-200-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32RHC-200B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32RHC-250-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32RHC-250B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32RHC-300-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32RHC-300B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32RHC-350-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32RHC-350B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32RHC-400-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32RHC-400B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32RHC-450-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32RHC-450B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32RHC-500-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32RHC-500B-B5	Size: 32 \| Motor layout: Parallel, right side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32LHH-30-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32LHH-30B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32LHH-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32LHH-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32LHH-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32LHH-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32LHH-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32LHH-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32LHH-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32LHH-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32LHH-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32LHH-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32LHH-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32LHH-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32LHH-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32LHH-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32LHH-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32LHH-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32LHH-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32LHH-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32LHH-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32LHH-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 24 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32LHA-30-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32LHA-30B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32LHA-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32LHA-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32LHA-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32LHA-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32LHA-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32LHA-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32LHA-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32LHA-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32LHA-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32LHA-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32LHA-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32LHA-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32LHA-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32LHA-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32LHA-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32LHA-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32LHA-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32LHA-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32LHA-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32LHA-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 16 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32LHB-30-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32LHB-30B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32LHB-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32LHB-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32LHB-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32LHB-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32LHB-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32LHB-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32LHB-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32LHB-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32LHB-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32LHB-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32LHB-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32LHB-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32LHB-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32LHB-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32LHB-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32LHB-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32LHB-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32LHB-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32LHB-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32LHB-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 8 mm \| Stroke: 500 mm \| Lock: With lock
	EQY32LHC-30-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: Without lock
	EQY32LHC-30B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 30 mm \| Lock: With lock
	EQY32LHC-50-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: Without lock
	EQY32LHC-50B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 50 mm \| Lock: With lock
	EQY32LHC-100-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: Without lock
	EQY32LHC-100B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 100 mm \| Lock: With lock
	EQY32LHC-150-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: Without lock
	EQY32LHC-150B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 150 mm \| Lock: With lock
	EQY32LHC-200-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: Without lock
	EQY32LHC-200B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 200 mm \| Lock: With lock
	EQY32LHC-250-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: Without lock
	EQY32LHC-250B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 250 mm \| Lock: With lock
	EQY32LHC-300-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: Without lock
	EQY32LHC-300B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 300 mm \| Lock: With lock
	EQY32LHC-350-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: Without lock
	EQY32LHC-350B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 350 mm \| Lock: With lock
	EQY32LHC-400-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: Without lock
	EQY32LHC-400B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 400 mm \| Lock: With lock
	EQY32LHC-450-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: Without lock
	EQY32LHC-450B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 450 mm \| Lock: With lock
	EQY32LHC-500-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: Without lock
	EQY32LHC-500B-B5	Size: 32 \| Motor layout: Parallel, left side \| Lead: 4 mm \| Stroke: 500 mm \| Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC EQY Electric Rod Actuator, Controller Integrated (16/25/32)
