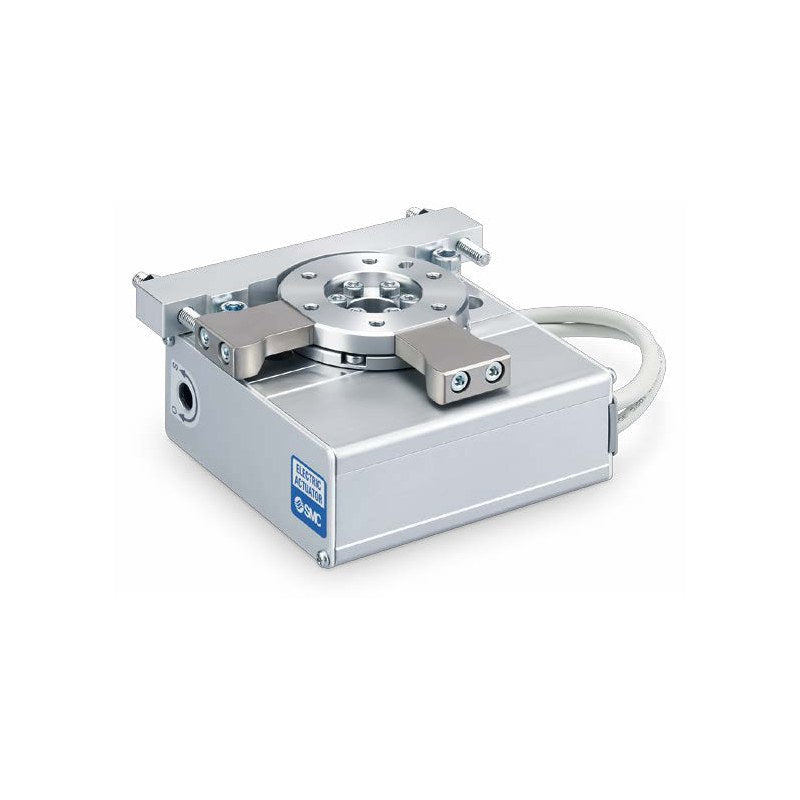

SMC LE2R Electric Rotary Table (Size 30/50)

SMC LE2R Electric Rotary Table (Size 30/50)

SMC LE2R series electric rotary table driven by a special worm gear and belt with battery-less absolute step motor, for the JXD1 manifold controller.

Key features

  • Battery-less absolute encoder: no return to origin after power-up and no backup battery to maintain
  • Rotation 320 deg, or 180/90 deg with external stopper (end repeatability ±0.01 deg)
  • Basic (±0.05 deg) or high-precision (±0.03 deg) table; high-torque K or basic J gearing
  • Max. rotating torque 2.5 N·m (size 30) and 13.9 N·m (size 50)
  • Runs on the JXD1 manifold controller (gateway for CC-Link, EtherNet/IP, EtherCAT, PROFINET; up to 16 axes); controller, actuator cable JX-CP-D-* and its length are ordered separately

Specifications

Drive Special worm gear + belt
Motor Battery-less absolute encoder step motor (DC24V), symbol H
Compatible controller JXD1 manifold controller (driver unit JXD1-MDP)
Backlash ±0.2 deg (basic), ±0.1 deg (high precision)
Angular speed 20-400 deg/s (K), 30-600 deg/s (J)
Max. operating frequency 60 c.p.m.
Operating temperature / enclosure 5 to 40°C / IP20
Power supply DC24V ±10%
