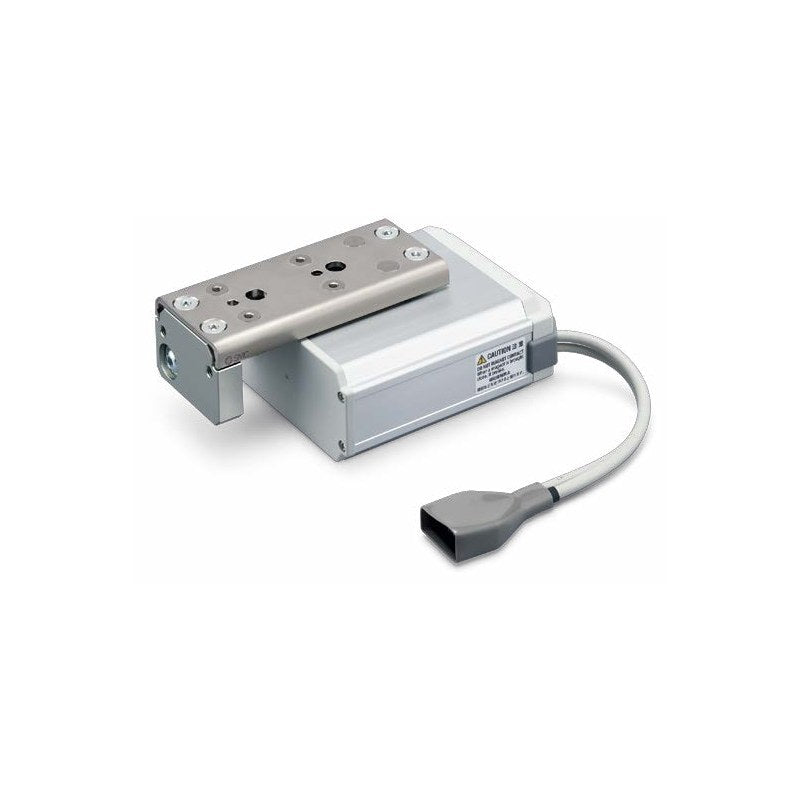

SMC LE2S Electric Slide Table, Low Profile (Size 16/25)

SMC LE2S Electric Slide Table, Low Profile (Size 16/25)

SMC LE2S series low-profile electric slide table with battery-less absolute step motor in basic, symmetric or straight layout, for the JXD1 manifold controller.

Key features

  • Battery-less absolute encoder: no return to origin after power-up and no backup battery to maintain
  • Three layouts: basic R type, symmetric L type and motor-straight D type
  • Sizes 16 and 25, slide screw leads 5 to 16 mm, strokes 30 to 100 mm (16) and 30 to 150 mm (25)
  • Lock option not available on R/L type size 16 at 30/50 mm stroke and size 25 at 30 mm stroke
  • Dust-proof internal parts (S) and side holders (H, D type only) available as suffixes; listed codes are the standard version
  • Runs on the JXD1 manifold controller (gateway for CC-Link, EtherNet/IP, EtherCAT, PROFINET; up to 16 axes); controller, actuator cable JX-CP-D-* and its length are ordered separately

Specifications

Drive Slide screw + belt (R/L type); slide screw (D type)
Guide Linear guide (circulating)
Motor Battery-less absolute encoder step motor (DC24V), symbol H
Compatible controller JXD1 manifold controller (driver unit JXD1-MDP)
Positioning repeatability ±0.05 mm
Max. work load horizontal 3 kg (16), 5 kg (25)
Pushing force 30-70% 36-84 N (16), 81-189 N (25)
Max. speed 550 mm/s
Operating temperature / enclosure 5 to 40°C / IP30
Power supply DC24V ±10%
Source SMC Korea catalog CAT.KS100-170D (SMCKR_LE2FS__H_LE2Y__H.pdf), p. 84-95 (PDF p. 85-96)
LE2S16RHJ-30A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16RHJ-50A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16RHJ-75A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16RHJ-75B Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LE2S16RHJ-100A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16RHJ-100B Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2S16RHK-30A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16RHK-50A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16RHK-75A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16RHK-75B Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LE2S16RHK-100A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16RHK-100B Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2S16LHJ-30A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16LHJ-50A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16LHJ-75A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16LHJ-75B Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LE2S16LHJ-100A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16LHJ-100B Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2S16LHK-30A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16LHK-50A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16LHK-75A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16LHK-75B Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LE2S16LHK-100A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16LHK-100B Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2S16DHJ-30A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16DHJ-30B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock
LE2S16DHJ-50A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16DHJ-50B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LE2S16DHJ-75A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16DHJ-75B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LE2S16DHJ-100A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16DHJ-100B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2S16DHK-30A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16DHK-30B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock
LE2S16DHK-50A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16DHK-50B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LE2S16DHK-75A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16DHK-75B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LE2S16DHK-100A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16DHK-100B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2S25RHJ-30A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25RHJ-50A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25RHJ-50B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2S25RHJ-75A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25RHJ-75B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LE2S25RHJ-100A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25RHJ-100B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2S25RHJ-125A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25RHJ-125B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LE2S25RHJ-150A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25RHJ-150B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2S25RHK-30A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25RHK-50A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25RHK-50B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2S25RHK-75A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25RHK-75B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LE2S25RHK-100A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25RHK-100B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2S25RHK-125A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25RHK-125B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LE2S25RHK-150A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25RHK-150B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LE2S25LHJ-30A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25LHJ-50A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25LHJ-50B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2S25LHJ-75A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25LHJ-75B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LE2S25LHJ-100A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25LHJ-100B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2S25LHJ-125A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25LHJ-125B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LE2S25LHJ-150A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25LHJ-150B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2S25LHK-30A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25LHK-50A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25LHK-50B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2S25LHK-75A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25LHK-75B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LE2S25LHK-100A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25LHK-100B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2S25LHK-125A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25LHK-125B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LE2S25LHK-150A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25LHK-150B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LE2S25DHJ-30A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25DHJ-30B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock
LE2S25DHJ-50A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25DHJ-50B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2S25DHJ-75A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25DHJ-75B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LE2S25DHJ-100A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25DHJ-100B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2S25DHJ-125A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25DHJ-125B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LE2S25DHJ-150A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25DHJ-150B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2S25DHK-30A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25DHK-30B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock
LE2S25DHK-50A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25DHK-50B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2S25DHK-75A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25DHK-75B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LE2S25DHK-100A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25DHK-100B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2S25DHK-125A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25DHK-125B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LE2S25DHK-150A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25DHK-150B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
Electric ActuatorsSMC
108 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LE2S Electric Slide Table, Low Profile (Size 16/25)

Brand SMC·Electric Actuators

Available part numbers (108)

LE2S16RHJ-30A, LE2S16RHJ-50A, LE2S16RHJ-75A, LE2S16RHJ-75B, LE2S16RHJ-100A, LE2S16RHJ-100B, LE2S16RHK-30A, LE2S16RHK-50A, LE2S16RHK-75A, LE2S16RHK-75B + 98 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LE2S16RHJ-30ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16RHJ-50ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16RHJ-75ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16RHJ-75BSize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LE2S16RHJ-100ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16RHJ-100BSize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2S16RHK-30ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16RHK-50ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16RHK-75ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16RHK-75BSize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LE2S16RHK-100ASize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16RHK-100BSize: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2S16LHJ-30ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16LHJ-50ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16LHJ-75ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16LHJ-75BSize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LE2S16LHJ-100ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16LHJ-100BSize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2S16LHK-30ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16LHK-50ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16LHK-75ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16LHK-75BSize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LE2S16LHK-100ASize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16LHK-100BSize: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2S16DHJ-30ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16DHJ-30BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock
LE2S16DHJ-50ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16DHJ-50BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LE2S16DHJ-75ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16DHJ-75BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LE2S16DHJ-100ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16DHJ-100BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2S16DHK-30ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 30 mm | Motor option: Without lock
LE2S16DHK-30BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock
LE2S16DHK-50ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2S16DHK-50BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LE2S16DHK-75ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LE2S16DHK-75BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LE2S16DHK-100ASize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2S16DHK-100BSize: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2S25RHJ-30ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25RHJ-50ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25RHJ-50BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2S25RHJ-75ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25RHJ-75BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LE2S25RHJ-100ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25RHJ-100BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2S25RHJ-125ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25RHJ-125BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LE2S25RHJ-150ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25RHJ-150BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2S25RHK-30ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25RHK-50ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25RHK-50BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2S25RHK-75ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25RHK-75BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LE2S25RHK-100ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25RHK-100BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2S25RHK-125ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25RHK-125BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LE2S25RHK-150ASize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25RHK-150BSize: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LE2S25LHJ-30ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25LHJ-50ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25LHJ-50BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2S25LHJ-75ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25LHJ-75BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LE2S25LHJ-100ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25LHJ-100BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2S25LHJ-125ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25LHJ-125BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LE2S25LHJ-150ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25LHJ-150BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2S25LHK-30ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25LHK-50ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25LHK-50BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2S25LHK-75ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25LHK-75BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LE2S25LHK-100ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25LHK-100BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2S25LHK-125ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25LHK-125BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LE2S25LHK-150ASize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25LHK-150BSize: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LE2S25DHJ-30ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25DHJ-30BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock
LE2S25DHJ-50ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25DHJ-50BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2S25DHJ-75ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25DHJ-75BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LE2S25DHJ-100ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25DHJ-100BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2S25DHJ-125ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25DHJ-125BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LE2S25DHJ-150ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25DHJ-150BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2S25DHK-30ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LE2S25DHK-30BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock
LE2S25DHK-50ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2S25DHK-50BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2S25DHK-75ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LE2S25DHK-75BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LE2S25DHK-100ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2S25DHK-100BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2S25DHK-125ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LE2S25DHK-125BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LE2S25DHK-150ASize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2S25DHK-150BSize: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
