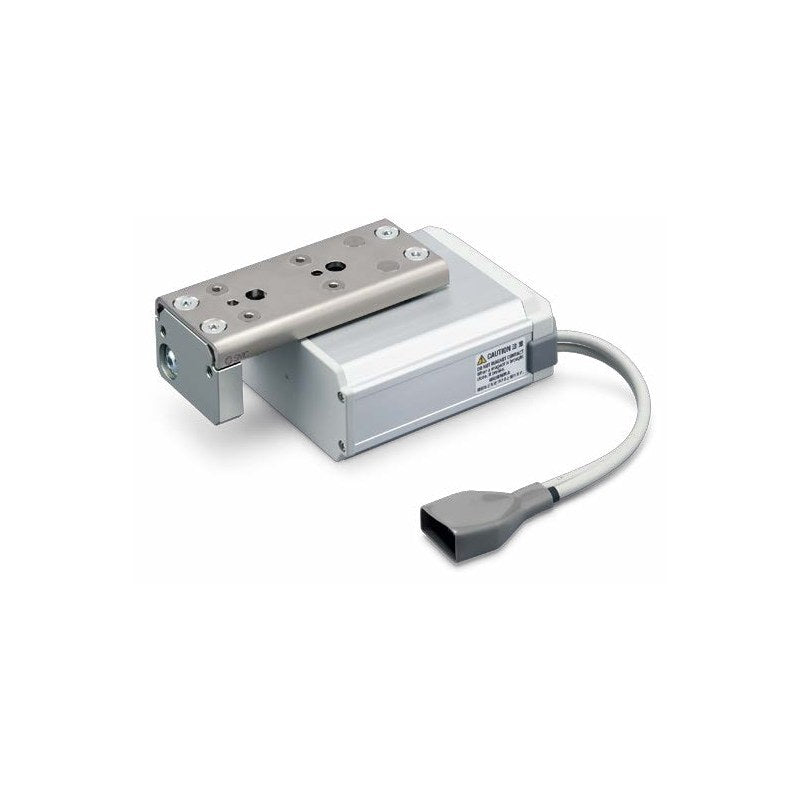

SMC LE2SH Electric Slide Table, High Rigidity (Size 16/25)

SMC LE2SH Electric Slide Table, High Rigidity (Size 16/25)

SMC LE2SH series high-rigidity electric slide table with battery-less absolute step motor in basic, symmetric or straight layout, for the JXD1 manifold controller.

Key features

  • Battery-less absolute encoder: no return to origin after power-up and no backup battery to maintain
  • High-rigidity table with larger work load (8 kg size 16, 12 kg size 25) than the low-profile LE2S
  • Three layouts: basic R type, symmetric L type and motor-straight D type; slide screw leads 5 to 16 mm
  • Strokes 50/100 mm (16) and 50/100/150 mm (25); lock not available on R/L type size 16 at 50 mm stroke
  • Dust-proof internal parts (S) and side holders (H, D type only) available as suffixes; listed codes are the standard version
  • Runs on the JXD1 manifold controller (gateway for CC-Link, EtherNet/IP, EtherCAT, PROFINET; up to 16 axes); controller, actuator cable JX-CP-D-* and its length are ordered separately

Specifications

Drive Slide screw + belt (R/L type); slide screw (D type)
Guide Linear guide (circulating)
Motor Battery-less absolute encoder step motor (DC24V), symbol H
Compatible controller JXD1 manifold controller (driver unit JXD1-MDP)
Positioning repeatability ±0.05 mm
Max. work load horizontal 8 kg (16), 12 kg (25)
Pushing force 30-70% 36-84 N (16), 81-189 N (25)
Lost motion 0.15 mm or less
Operating temperature / enclosure 5 to 40°C / IP30
Power supply DC24V ±10%
Source SMC Korea catalog CAT.KS100-170D (SMCKR_LE2FS__H_LE2Y__H.pdf), p. 84, 112-113 (PDF p. 85, 113-114)
LE2SH16RHJ-50A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH16RHJ-100A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH16RHJ-100B Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2SH16RHK-50A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH16RHK-100A Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH16RHK-100B Size: 16 | Motor mounting: Basic (R type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2SH16LHJ-50A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH16LHJ-100A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH16LHJ-100B Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2SH16LHK-50A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH16LHK-100A Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH16LHK-100B Size: 16 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2SH16DHJ-50A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH16DHJ-50B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LE2SH16DHJ-100A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH16DHJ-100B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock
LE2SH16DHK-50A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH16DHK-50B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LE2SH16DHK-100A Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH16DHK-100B Size: 16 | Motor mounting: Motor straight (D type) | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25RHJ-50A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH25RHJ-50B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2SH25RHJ-100A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH25RHJ-100B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25RHJ-150A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2SH25RHJ-150B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2SH25RHK-50A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH25RHK-50B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2SH25RHK-100A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH25RHK-100B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25RHK-150A Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2SH25RHK-150B Size: 25 | Motor mounting: Basic (R type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LE2SH25LHJ-50A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH25LHJ-50B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2SH25LHJ-100A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH25LHJ-100B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25LHJ-150A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2SH25LHJ-150B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2SH25LHK-50A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH25LHK-50B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2SH25LHK-100A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH25LHK-100B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25LHK-150A Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2SH25LHK-150B Size: 25 | Motor mounting: Symmetric (L type, parallel motor) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LE2SH25DHJ-50A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH25DHJ-50B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LE2SH25DHJ-100A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH25DHJ-100B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25DHJ-150A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LE2SH25DHJ-150B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LE2SH25DHK-50A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LE2SH25DHK-50B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LE2SH25DHK-100A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LE2SH25DHK-100B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LE2SH25DHK-150A Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LE2SH25DHK-150B Size: 25 | Motor mounting: Motor straight (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
Electric ActuatorsSMC
56 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LE2SH Electric Slide Table, High Rigidity (Size 16/25)

Brand SMC·Electric Actuators

Available part numbers (56)

LE2SH16RHJ-50A, LE2SH16RHJ-100A, LE2SH16RHJ-100B, LE2SH16RHK-50A, LE2SH16RHK-100A, LE2SH16RHK-100B, LE2SH16LHJ-50A, LE2SH16LHJ-100A, LE2SH16LHJ-100B, LE2SH16LHK-50A + 46 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
