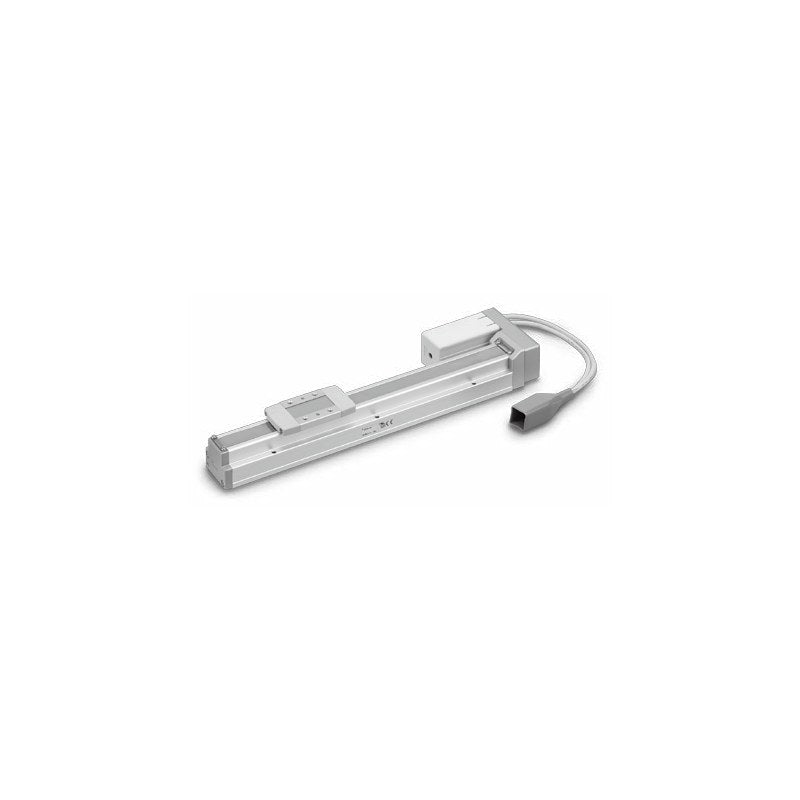

SMC LEFG Support Guide for LEF Slider Actuators (16-40)

SMC LEFG Support Guide for LEF Slider Actuators (16-40)

SMC LEFG support guide for LEFS ball screw and LEFB belt drive slider actuators, supporting workpieces with large overhang, sizes 16 to 40.

Key features

  • Same body/outer dimensions as the LEF series for easy installation, design and reduced assembly work
  • Mounting pitch S for ball screw LEFS (step, battery-less, servo DC24V, AC servo, motorless)
  • Mounting pitch BT for belt LEFB with step/servo DC24V motors; BS for belt LEFB with AC servo/motorless
  • Seal band standard to prevent grease scattering and foreign matter entry
  • Grease-free seal band (N, roller type) is an order suffix for S and BT types; BS is roller type as standard

Specifications

Function Passive support guide (no drive)
Guide Linear guide
Sizes 16, 25, 32, 40
Stroke range S 50-500 (16), 50-800 (25), 50-1000 (32), 150-1200 (40) mm
Stroke range BT 300-1000 (16), 300-2000 (25, 32) mm
Stroke range BS 300-2000 (25), 300-2500 (32), 300-3000 (40) mm
Source SMC Korea catalog LEF series (SMCKR_LEF.pdf), p. 213, 270
LEFG16-S-50 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 50 mm
LEFG16-S-100 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 100 mm
LEFG16-S-150 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG16-S-200 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG16-S-250 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG16-S-300 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG16-S-350 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG16-S-400 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG16-S-450 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG16-S-500 Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG25-S-50 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 50 mm
LEFG25-S-100 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 100 mm
LEFG25-S-150 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG25-S-200 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG25-S-250 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG25-S-300 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG25-S-350 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG25-S-400 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG25-S-450 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG25-S-500 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG25-S-550 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 550 mm
LEFG25-S-600 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 600 mm
LEFG25-S-650 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 650 mm
LEFG25-S-700 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 700 mm
LEFG25-S-750 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 750 mm
LEFG25-S-800 Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 800 mm
LEFG32-S-50 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 50 mm
LEFG32-S-100 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 100 mm
LEFG32-S-150 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG32-S-200 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG32-S-250 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG32-S-300 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG32-S-350 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG32-S-400 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG32-S-450 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG32-S-500 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG32-S-550 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 550 mm
LEFG32-S-600 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 600 mm
LEFG32-S-650 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 650 mm
LEFG32-S-700 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 700 mm
LEFG32-S-750 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 750 mm
LEFG32-S-800 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 800 mm
LEFG32-S-850 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 850 mm
LEFG32-S-900 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 900 mm
LEFG32-S-950 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 950 mm
LEFG32-S-1000 Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1000 mm
LEFG40-S-150 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG40-S-200 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG40-S-250 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG40-S-300 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG40-S-350 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG40-S-400 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG40-S-450 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG40-S-500 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG40-S-550 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 550 mm
LEFG40-S-600 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 600 mm
LEFG40-S-650 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 650 mm
LEFG40-S-700 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 700 mm
LEFG40-S-750 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 750 mm
LEFG40-S-800 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 800 mm
LEFG40-S-850 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 850 mm
LEFG40-S-900 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 900 mm
LEFG40-S-950 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 950 mm
LEFG40-S-1000 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1000 mm
LEFG40-S-1050 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1050 mm
LEFG40-S-1100 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1100 mm
LEFG40-S-1150 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1150 mm
LEFG40-S-1200 Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1200 mm
LEFG16-BT-300 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 300 mm
LEFG16-BT-500 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 500 mm
LEFG16-BT-600 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 600 mm
LEFG16-BT-700 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 700 mm
LEFG16-BT-800 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 800 mm
LEFG16-BT-900 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 900 mm
LEFG16-BT-1000 Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1000 mm
LEFG25-BT-300 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 300 mm
LEFG25-BT-500 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 500 mm
LEFG25-BT-600 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 600 mm
LEFG25-BT-700 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 700 mm
LEFG25-BT-800 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 800 mm
LEFG25-BT-900 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 900 mm
LEFG25-BT-1000 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1000 mm
LEFG25-BT-1200 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1200 mm
LEFG25-BT-1500 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1500 mm
LEFG25-BT-1800 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1800 mm
LEFG25-BT-2000 Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 2000 mm
LEFG32-BT-300 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 300 mm
LEFG32-BT-500 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 500 mm
LEFG32-BT-600 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 600 mm
LEFG32-BT-700 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 700 mm
LEFG32-BT-800 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 800 mm
LEFG32-BT-900 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 900 mm
LEFG32-BT-1000 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1000 mm
LEFG32-BT-1200 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1200 mm
LEFG32-BT-1500 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1500 mm
LEFG32-BT-1800 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1800 mm
LEFG32-BT-2000 Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 2000 mm
LEFG25-BS-300 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 300 mm
LEFG25-BS-400 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 400 mm
LEFG25-BS-500 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 500 mm
LEFG25-BS-600 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 600 mm
LEFG25-BS-700 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 700 mm
LEFG25-BS-800 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 800 mm
LEFG25-BS-900 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 900 mm
LEFG25-BS-1000 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1000 mm
LEFG25-BS-1100 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1100 mm
LEFG25-BS-1200 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1200 mm
LEFG25-BS-1300 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1300 mm
LEFG25-BS-1400 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1400 mm
LEFG25-BS-1500 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1500 mm
LEFG25-BS-1600 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1600 mm
LEFG25-BS-1700 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1700 mm
LEFG25-BS-1800 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1800 mm
LEFG25-BS-1900 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1900 mm
LEFG25-BS-2000 Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2000 mm
LEFG32-BS-300 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 300 mm
LEFG32-BS-400 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 400 mm
LEFG32-BS-500 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 500 mm
LEFG32-BS-600 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 600 mm
LEFG32-BS-700 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 700 mm
LEFG32-BS-800 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 800 mm
LEFG32-BS-900 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 900 mm
LEFG32-BS-1000 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1000 mm
LEFG32-BS-1100 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1100 mm
LEFG32-BS-1200 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1200 mm
LEFG32-BS-1300 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1300 mm
LEFG32-BS-1400 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1400 mm
LEFG32-BS-1500 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1500 mm
LEFG32-BS-1600 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1600 mm
LEFG32-BS-1700 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1700 mm
LEFG32-BS-1800 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1800 mm
LEFG32-BS-1900 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1900 mm
LEFG32-BS-2000 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2000 mm
LEFG32-BS-2500 Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2500 mm
LEFG40-BS-300 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 300 mm
LEFG40-BS-400 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 400 mm
LEFG40-BS-500 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 500 mm
LEFG40-BS-600 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 600 mm
LEFG40-BS-700 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 700 mm
LEFG40-BS-800 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 800 mm
LEFG40-BS-900 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 900 mm
LEFG40-BS-1000 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1000 mm
LEFG40-BS-1100 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1100 mm
LEFG40-BS-1200 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1200 mm
LEFG40-BS-1300 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1300 mm
LEFG40-BS-1400 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1400 mm
LEFG40-BS-1500 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1500 mm
LEFG40-BS-1600 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1600 mm
LEFG40-BS-1700 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1700 mm
LEFG40-BS-1800 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1800 mm
LEFG40-BS-1900 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1900 mm
LEFG40-BS-2000 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2000 mm
LEFG40-BS-2500 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2500 mm
LEFG40-BS-3000 Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 3000 mm
Electric ActuatorsSMC
154 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEFG Support Guide for LEF Slider Actuators (16-40)

Brand SMC·Electric Actuators

Available part numbers (154)

LEFG16-S-50, LEFG16-S-100, LEFG16-S-150, LEFG16-S-200, LEFG16-S-250, LEFG16-S-300, LEFG16-S-350, LEFG16-S-400, LEFG16-S-450, LEFG16-S-500 + 144 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEFG16-S-50Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 50 mm
LEFG16-S-100Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 100 mm
LEFG16-S-150Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG16-S-200Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG16-S-250Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG16-S-300Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG16-S-350Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG16-S-400Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG16-S-450Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG16-S-500Size: 16 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG25-S-50Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 50 mm
LEFG25-S-100Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 100 mm
LEFG25-S-150Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG25-S-200Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG25-S-250Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG25-S-300Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG25-S-350Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG25-S-400Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG25-S-450Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG25-S-500Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG25-S-550Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 550 mm
LEFG25-S-600Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 600 mm
LEFG25-S-650Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 650 mm
LEFG25-S-700Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 700 mm
LEFG25-S-750Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 750 mm
LEFG25-S-800Size: 25 | Mounting pitch: S (for ball screw LEFS) | Stroke: 800 mm
LEFG32-S-50Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 50 mm
LEFG32-S-100Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 100 mm
LEFG32-S-150Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG32-S-200Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG32-S-250Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG32-S-300Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG32-S-350Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG32-S-400Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG32-S-450Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG32-S-500Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG32-S-550Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 550 mm
LEFG32-S-600Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 600 mm
LEFG32-S-650Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 650 mm
LEFG32-S-700Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 700 mm
LEFG32-S-750Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 750 mm
LEFG32-S-800Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 800 mm
LEFG32-S-850Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 850 mm
LEFG32-S-900Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 900 mm
LEFG32-S-950Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 950 mm
LEFG32-S-1000Size: 32 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1000 mm
LEFG40-S-150Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 150 mm
LEFG40-S-200Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 200 mm
LEFG40-S-250Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 250 mm
LEFG40-S-300Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 300 mm
LEFG40-S-350Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 350 mm
LEFG40-S-400Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 400 mm
LEFG40-S-450Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 450 mm
LEFG40-S-500Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 500 mm
LEFG40-S-550Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 550 mm
LEFG40-S-600Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 600 mm
LEFG40-S-650Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 650 mm
LEFG40-S-700Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 700 mm
LEFG40-S-750Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 750 mm
LEFG40-S-800Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 800 mm
LEFG40-S-850Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 850 mm
LEFG40-S-900Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 900 mm
LEFG40-S-950Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 950 mm
LEFG40-S-1000Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1000 mm
LEFG40-S-1050Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1050 mm
LEFG40-S-1100Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1100 mm
LEFG40-S-1150Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1150 mm
LEFG40-S-1200Size: 40 | Mounting pitch: S (for ball screw LEFS) | Stroke: 1200 mm
LEFG16-BT-300Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 300 mm
LEFG16-BT-500Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 500 mm
LEFG16-BT-600Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 600 mm
LEFG16-BT-700Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 700 mm
LEFG16-BT-800Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 800 mm
LEFG16-BT-900Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 900 mm
LEFG16-BT-1000Size: 16 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1000 mm
LEFG25-BT-300Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 300 mm
LEFG25-BT-500Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 500 mm
LEFG25-BT-600Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 600 mm
LEFG25-BT-700Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 700 mm
LEFG25-BT-800Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 800 mm
LEFG25-BT-900Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 900 mm
LEFG25-BT-1000Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1000 mm
LEFG25-BT-1200Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1200 mm
LEFG25-BT-1500Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1500 mm
LEFG25-BT-1800Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1800 mm
LEFG25-BT-2000Size: 25 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 2000 mm
LEFG32-BT-300Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 300 mm
LEFG32-BT-500Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 500 mm
LEFG32-BT-600Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 600 mm
LEFG32-BT-700Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 700 mm
LEFG32-BT-800Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 800 mm
LEFG32-BT-900Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 900 mm
LEFG32-BT-1000Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1000 mm
LEFG32-BT-1200Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1200 mm
LEFG32-BT-1500Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1500 mm
LEFG32-BT-1800Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 1800 mm
LEFG32-BT-2000Size: 32 | Mounting pitch: BT (for belt LEFB, DC24V) | Stroke: 2000 mm
LEFG25-BS-300Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 300 mm
LEFG25-BS-400Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 400 mm
LEFG25-BS-500Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 500 mm
LEFG25-BS-600Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 600 mm
LEFG25-BS-700Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 700 mm
LEFG25-BS-800Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 800 mm
LEFG25-BS-900Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 900 mm
LEFG25-BS-1000Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1000 mm
LEFG25-BS-1100Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1100 mm
LEFG25-BS-1200Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1200 mm
LEFG25-BS-1300Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1300 mm
LEFG25-BS-1400Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1400 mm
LEFG25-BS-1500Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1500 mm
LEFG25-BS-1600Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1600 mm
LEFG25-BS-1700Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1700 mm
LEFG25-BS-1800Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1800 mm
LEFG25-BS-1900Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1900 mm
LEFG25-BS-2000Size: 25 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2000 mm
LEFG32-BS-300Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 300 mm
LEFG32-BS-400Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 400 mm
LEFG32-BS-500Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 500 mm
LEFG32-BS-600Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 600 mm
LEFG32-BS-700Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 700 mm
LEFG32-BS-800Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 800 mm
LEFG32-BS-900Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 900 mm
LEFG32-BS-1000Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1000 mm
LEFG32-BS-1100Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1100 mm
LEFG32-BS-1200Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1200 mm
LEFG32-BS-1300Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1300 mm
LEFG32-BS-1400Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1400 mm
LEFG32-BS-1500Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1500 mm
LEFG32-BS-1600Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1600 mm
LEFG32-BS-1700Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1700 mm
LEFG32-BS-1800Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1800 mm
LEFG32-BS-1900Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1900 mm
LEFG32-BS-2000Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2000 mm
LEFG32-BS-2500Size: 32 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2500 mm
LEFG40-BS-300Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 300 mm
LEFG40-BS-400Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 400 mm
LEFG40-BS-500Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 500 mm
LEFG40-BS-600Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 600 mm
LEFG40-BS-700Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 700 mm
LEFG40-BS-800Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 800 mm
LEFG40-BS-900Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 900 mm
LEFG40-BS-1000Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1000 mm
LEFG40-BS-1100Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1100 mm
LEFG40-BS-1200Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1200 mm
LEFG40-BS-1300Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1300 mm
LEFG40-BS-1400Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1400 mm
LEFG40-BS-1500Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1500 mm
LEFG40-BS-1600Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1600 mm
LEFG40-BS-1700Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1700 mm
LEFG40-BS-1800Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1800 mm
LEFG40-BS-1900Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 1900 mm
LEFG40-BS-2000Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2000 mm
LEFG40-BS-2500Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 2500 mm
LEFG40-BS-3000Size: 40 | Mounting pitch: BS (for belt LEFB, AC servo) | Stroke: 3000 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
