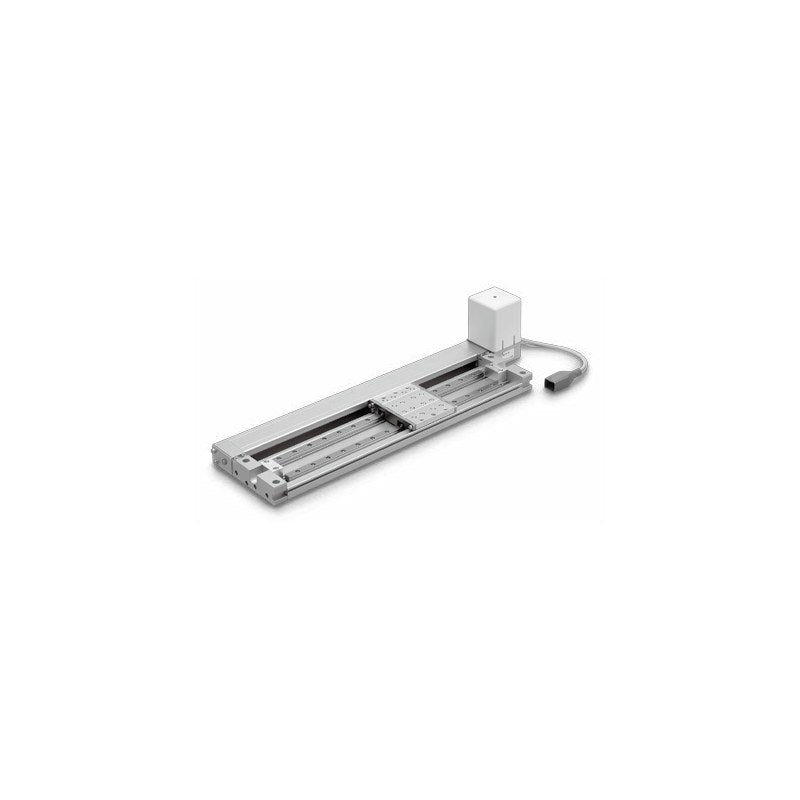

SMC LEMB Low Profile Electric Slider, Basic Type (Step Motor)

SMC LEMB series low profile belt-driven slider type electric actuator, basic type with slide bearing guide and step motor (DC24V), sizes 25 and 32.

Key features

Low-profile belt drive with equivalent lead 48 mm, speed 48 to 1000 mm/s, strokes 50 to 2000 mm
Motor top (standard) or bottom (U) mounting
Stroke adjusting unit (shipped together) at motor end (M), end side (E) or both ends (W)
Repeatability ±0.08 mm; non-excitation lock (B) optional
Actuator cable (standard S1-S5 or robot R1-RC) and controller (JXC step data / fieldbus direct input or LECP) are ordered as suffixes; codes listed are actuator only

Specifications

Drive	Belt
Guide	Slide bearing
Equivalent lead	48 mm
Max. work load (horizontal)	6 kg (25), 11 kg (32)
Speed	48 to 1000 mm/s
Repeatability	±0.08 mm
Motor	Step motor (servo/DC24V), incremental, 56.4
Power supply	DC24V ±10%
Enclosure	IP30
Operating temperature	5 to 40°C
Source	SMC Korea electric actuator catalog (SMCKR_LEM.pdf), p. 371-374 (PDF p. 14-17)

LEMB25T-50		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-50M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-50E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-50W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-50B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-50BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-50BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-50BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-100		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-100M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-100E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-100W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-100B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-100BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-100BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-100BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-150		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-150M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-150E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-150W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-150B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-150BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-150BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-150BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-200		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-200M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-200E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-200W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-200B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-200BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-200BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-200BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-250		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-250M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-250E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-250W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-250B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-250BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-250BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-250BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-300		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-300M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-300E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-300W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-300B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-300BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-300BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-300BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-350		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-350M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-350E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-350W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-350B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-350BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-350BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-350BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-400		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-400M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-400E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-400W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-400B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-400BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-400BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-400BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-450		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-450M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-450E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-450W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-450B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-450BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-450BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-450BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-500		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-500M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-500E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-500W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-500B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-500BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-500BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-500BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-550		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-550M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-550E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-550W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-550B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-550BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-550BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-550BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-600		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-600M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-600E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-600W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-600B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-600BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-600BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-600BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-700		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-700M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-700E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-700W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-700B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-700BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-700BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-700BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-800		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-800M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-800E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-800W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-800B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-800BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-800BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-800BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-900		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-900M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-900E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-900W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-900B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-900BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-900BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-900BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-1000		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-1000M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-1000E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-1000W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-1000B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-1000BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-1000BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-1000BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-1200		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-1200M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-1200E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-1200W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-1200B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-1200BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-1200BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-1200BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-1500		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-1500M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-1500E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-1500W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-1500B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-1500BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-1500BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-1500BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25T-2000		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
LEMB25T-2000M		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25T-2000E		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25T-2000W		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25T-2000B		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25T-2000BM		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25T-2000BE		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25T-2000BW		Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-50		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-50M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-50E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-50W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-50B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-50BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-50BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-50BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-100		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-100M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-100E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-100W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-100B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-100BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-100BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-100BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-150		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-150M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-150E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-150W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-150B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-150BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-150BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-150BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-200		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-200M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-200E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-200W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-200B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-200BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-200BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-200BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-250		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-250M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-250E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-250W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-250B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-250BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-250BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-250BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-300		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-300M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-300E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-300W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-300B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-300BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-300BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-300BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-350		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-350M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-350E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-350W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-350B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-350BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-350BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-350BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-400		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-400M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-400E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-400W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-400B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-400BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-400BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-400BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-450		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-450M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-450E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-450W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-450B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-450BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-450BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-450BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-500		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-500M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-500E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-500W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-500B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-500BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-500BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-500BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-550		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-550M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-550E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-550W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-550B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-550BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-550BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-550BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-600		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-600M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-600E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-600W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-600B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-600BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-600BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-600BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-700		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-700M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-700E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-700W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-700B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-700BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-700BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-700BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-800		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-800M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-800E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-800W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-800B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-800BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-800BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-800BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-900		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-900M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-900E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-900W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-900B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-900BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-900BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-900BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-1000		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-1000M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-1000E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-1000W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-1000B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-1000BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-1000BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-1000BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-1200		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-1200M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-1200E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-1200W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-1200B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-1200BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-1200BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-1200BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-1500		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-1500M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-1500E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-1500W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-1500B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-1500BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-1500BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-1500BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB25UT-2000		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
LEMB25UT-2000M		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB25UT-2000E		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB25UT-2000W		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB25UT-2000B		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB25UT-2000BM		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB25UT-2000BE		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB25UT-2000BW		Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-50		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-50M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-50E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-50W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-50B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-50BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-50BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-50BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-100		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-100M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-100E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-100W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-100B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-100BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-100BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-100BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-150		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-150M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-150E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-150W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-150B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-150BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-150BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-150BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-200		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-200M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-200E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-200W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-200B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-200BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-200BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-200BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-250		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-250M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-250E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-250W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-250B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-250BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-250BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-250BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-300		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-300M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-300E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-300W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-300B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-300BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-300BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-300BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-350		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-350M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-350E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-350W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-350B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-350BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-350BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-350BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-400		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-400M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-400E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-400W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-400B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-400BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-400BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-400BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-450		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-450M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-450E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-450W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-450B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-450BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-450BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-450BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-500		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-500M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-500E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-500W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-500B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-500BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-500BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-500BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-550		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-550M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-550E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-550W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-550B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-550BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-550BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-550BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-600		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-600M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-600E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-600W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-600B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-600BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-600BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-600BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-700		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-700M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-700E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-700W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-700B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-700BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-700BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-700BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-800		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-800M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-800E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-800W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-800B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-800BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-800BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-800BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-900		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-900M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-900E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-900W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-900B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-900BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-900BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-900BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-1000		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-1000M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-1000E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-1000W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-1000B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-1000BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-1000BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-1000BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-1200		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-1200M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-1200E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-1200W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-1200B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-1200BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-1200BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-1200BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-1500		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-1500M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-1500E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-1500W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-1500B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-1500BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-1500BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-1500BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32T-2000		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
LEMB32T-2000M		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32T-2000E		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32T-2000W		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32T-2000B		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32T-2000BM		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32T-2000BE		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32T-2000BW		Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-50		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-50M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-50E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-50W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-50B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-50BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-50BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-50BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-100		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-100M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-100E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-100W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-100B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-100BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-100BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-100BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-150		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-150M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-150E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-150W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-150B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-150BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-150BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-150BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-200		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-200M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-200E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-200W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-200B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-200BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-200BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-200BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-250		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-250M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-250E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-250W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-250B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-250BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-250BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-250BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-300		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-300M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-300E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-300W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-300B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-300BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-300BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-300BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-350		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-350M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-350E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-350W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-350B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-350BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-350BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-350BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-400		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-400M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-400E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-400W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-400B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-400BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-400BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-400BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-450		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-450M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-450E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-450W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-450B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-450BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-450BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-450BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-500		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-500M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-500E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-500W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-500B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-500BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-500BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-500BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-550		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-550M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-550E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-550W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-550B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-550BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-550BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-550BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-600		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-600M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-600E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-600W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-600B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-600BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-600BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-600BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-700		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-700M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-700E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-700W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-700B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-700BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-700BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-700BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-800		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-800M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-800E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-800W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-800B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-800BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-800BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-800BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-900		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-900M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-900E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-900W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-900B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-900BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-900BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-900BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-1000		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-1000M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-1000E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-1000W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-1000B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-1000BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-1000BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-1000BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-1200		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-1200M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-1200E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-1200W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-1200B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-1200BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-1200BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-1200BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-1500		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-1500M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-1500E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-1500W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-1500B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-1500BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-1500BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-1500BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
LEMB32UT-2000		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
LEMB32UT-2000M		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
LEMB32UT-2000E		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
LEMB32UT-2000W		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
LEMB32UT-2000B		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
LEMB32UT-2000BM		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
LEMB32UT-2000BE		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
LEMB32UT-2000BW		Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends

Electric ActuatorsSMC

608 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEMB Low Profile Electric Slider, Basic Type (Step Motor)

Brand SMC·Electric Actuators

Available part numbers (608)

LEMB25T-50, LEMB25T-50M, LEMB25T-50E, LEMB25T-50W, LEMB25T-50B, LEMB25T-50BM, LEMB25T-50BE, LEMB25T-50BW, LEMB25T-100, LEMB25T-100M + 598 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEMB25T-50	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-50M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-50E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-50W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-50B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-50BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-50BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-50BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-100	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-100M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-100E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-100W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-100B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-100BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-100BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-100BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-150	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-150M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-150E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-150W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-150B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-150BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-150BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-150BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-200	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-200M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-200E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-200W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-200B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-200BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-200BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-200BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-250	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-250M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-250E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-250W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-250B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-250BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-250BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-250BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-300	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-300M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-300E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-300W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-300B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-300BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-300BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-300BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-350	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-350M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-350E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-350W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-350B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-350BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-350BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-350BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-400	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-400M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-400E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-400W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-400B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-400BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-400BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-400BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-450	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-450M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-450E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-450W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-450B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-450BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-450BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-450BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-500	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-500M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-500E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-500W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-500B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-500BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-500BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-500BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-550	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-550M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-550E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-550W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-550B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-550BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-550BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-550BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-600	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-600M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-600E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-600W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-600B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-600BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-600BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-600BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-700	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-700M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-700E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-700W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-700B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-700BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-700BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-700BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-800	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-800M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-800E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-800W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-800B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-800BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-800BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-800BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-900	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-900M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-900E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-900W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-900B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-900BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-900BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-900BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-1000	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-1000M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-1000E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-1000W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-1000B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-1000BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-1000BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-1000BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-1200	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-1200M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-1200E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-1200W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-1200B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-1200BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-1200BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-1200BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-1500	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-1500M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-1500E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-1500W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-1500B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-1500BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-1500BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-1500BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25T-2000	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25T-2000M	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25T-2000E	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25T-2000W	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25T-2000B	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25T-2000BM	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25T-2000BE	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25T-2000BW	Size: 25 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-50	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-50M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-50E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-50W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-50B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-50BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-50BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-50BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-100	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-100M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-100E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-100W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-100B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-100BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-100BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-100BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-150	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-150M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-150E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-150W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-150B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-150BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-150BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-150BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-200	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-200M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-200E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-200W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-200B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-200BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-200BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-200BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-250	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-250M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-250E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-250W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-250B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-250BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-250BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-250BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-300	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-300M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-300E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-300W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-300B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-300BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-300BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-300BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-350	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-350M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-350E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-350W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-350B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-350BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-350BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-350BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-400	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-400M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-400E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-400W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-400B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-400BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-400BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-400BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-450	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-450M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-450E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-450W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-450B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-450BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-450BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-450BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-500	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-500M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-500E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-500W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-500B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-500BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-500BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-500BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-550	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-550M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-550E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-550W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-550B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-550BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-550BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-550BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-600	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-600M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-600E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-600W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-600B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-600BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-600BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-600BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-700	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-700M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-700E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-700W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-700B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-700BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-700BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-700BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-800	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-800M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-800E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-800W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-800B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-800BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-800BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-800BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-900	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-900M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-900E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-900W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-900B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-900BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-900BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-900BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-1000	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-1000M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-1000E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-1000W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-1000B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-1000BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-1000BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-1000BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-1200	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-1200M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-1200E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-1200W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-1200B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-1200BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-1200BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-1200BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-1500	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-1500M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-1500E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-1500W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-1500B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-1500BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-1500BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-1500BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB25UT-2000	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB25UT-2000M	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB25UT-2000E	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB25UT-2000W	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB25UT-2000B	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB25UT-2000BM	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB25UT-2000BE	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB25UT-2000BW	Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-50	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-50M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-50E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-50W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-50B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-50BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-50BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-50BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-100	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-100M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-100E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-100W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-100B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-100BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-100BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-100BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-150	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-150M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-150E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-150W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-150B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-150BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-150BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-150BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-200	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-200M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-200E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-200W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-200B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-200BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-200BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-200BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-250	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-250M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-250E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-250W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-250B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-250BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-250BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-250BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-300	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-300M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-300E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-300W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-300B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-300BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-300BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-300BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-350	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-350M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-350E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-350W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-350B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-350BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-350BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-350BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-400	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-400M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-400E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-400W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-400B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-400BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-400BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-400BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-450	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-450M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-450E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-450W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-450B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-450BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-450BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-450BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-500	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-500M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-500E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-500W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-500B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-500BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-500BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-500BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-550	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-550M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-550E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-550W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-550B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-550BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-550BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-550BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-600	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-600M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-600E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-600W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-600B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-600BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-600BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-600BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-700	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-700M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-700E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-700W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-700B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-700BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-700BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-700BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-800	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-800M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-800E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-800W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-800B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-800BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-800BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-800BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-900	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-900M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-900E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-900W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-900B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-900BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-900BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-900BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-1000	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-1000M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-1000E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-1000W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-1000B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-1000BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-1000BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-1000BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-1200	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-1200M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-1200E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-1200W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-1200B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-1200BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-1200BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-1200BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-1500	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-1500M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-1500E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-1500W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-1500B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-1500BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-1500BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-1500BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32T-2000	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32T-2000M	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32T-2000E	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32T-2000W	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32T-2000B	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32T-2000BM	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32T-2000BE	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32T-2000BW	Size: 32 \| Motor mounting: Top mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-50	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-50M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-50E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-50W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-50B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-50BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-50BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-50BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-100	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-100M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-100E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-100W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-100B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-100BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-100BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-100BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-150	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-150M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-150E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-150W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-150B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-150BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-150BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-150BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-200	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-200M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-200E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-200W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-200B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-200BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-200BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-200BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-250	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-250M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-250E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-250W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-250B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-250BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-250BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-250BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-300	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-300M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-300E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-300W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-300B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-300BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-300BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-300BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-350	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-350M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-350E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-350W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-350B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-350BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-350BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-350BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-400	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-400M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-400E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-400W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-400B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-400BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-400BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-400BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-450	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-450M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-450E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-450W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-450B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-450BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-450BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-450BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-500	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-500M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-500E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-500W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-500B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-500BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-500BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-500BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-550	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-550M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-550E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-550W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-550B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-550BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-550BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-550BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-600	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-600M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-600E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-600W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-600B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-600BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-600BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-600BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-700	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-700M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-700E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-700W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-700B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-700BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-700BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-700BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 700 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-800	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-800M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-800E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-800W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-800B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-800BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-800BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-800BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 800 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-900	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-900M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-900E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-900W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-900B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-900BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-900BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-900BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 900 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-1000	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-1000M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-1000E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-1000W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-1000B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-1000BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-1000BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-1000BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1000 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-1200	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-1200M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-1200E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-1200W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-1200B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-1200BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-1200BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-1200BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1200 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-1500	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-1500M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-1500E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-1500W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-1500B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-1500BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-1500BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-1500BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 1500 mm \| Lock: With lock \| Stroke adjust unit: Both ends
	LEMB32UT-2000	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: None
	LEMB32UT-2000M	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Motor end
	LEMB32UT-2000E	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: End side
	LEMB32UT-2000W	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: None \| Stroke adjust unit: Both ends
	LEMB32UT-2000B	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: None
	LEMB32UT-2000BM	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Motor end
	LEMB32UT-2000BE	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: End side
	LEMB32UT-2000BW	Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 2000 mm \| Lock: With lock \| Stroke adjust unit: Both ends

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEMB Low Profile Electric Slider, Basic Type (Step Motor)
