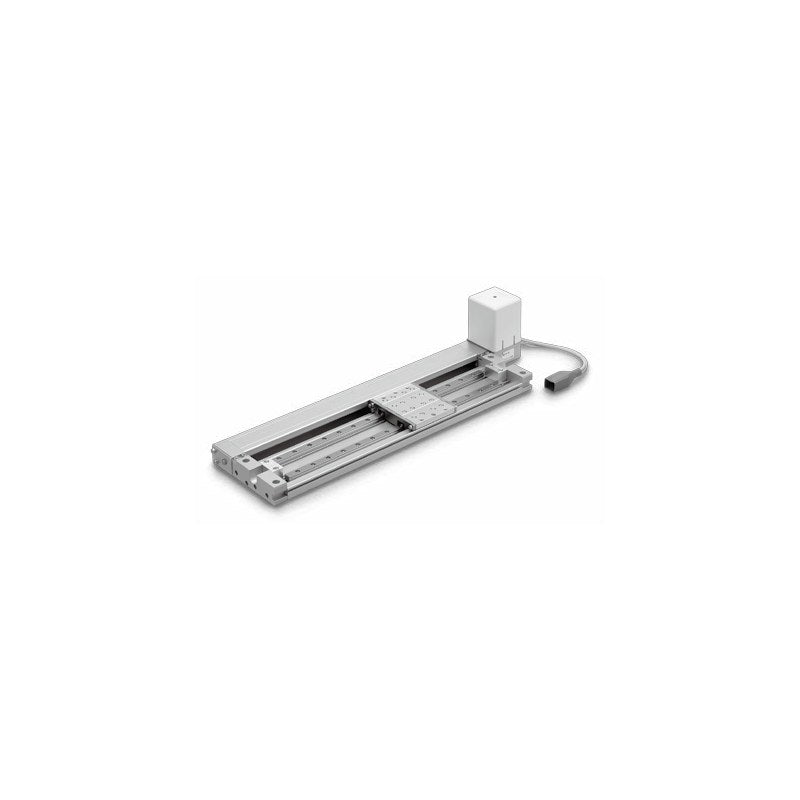

SMC LEMC Low Profile Electric Slider, Cam Follower Guide (Step Motor)

SMC LEMC Low Profile Electric Slider, Cam Follower Guide (Step Motor)

SMC LEMC series low profile belt-driven slider type electric actuator with cam follower guide and step motor (DC24V), sizes 25 and 32.

Key features

  • Cam follower guide for higher load: 10 kg (25) / 20 kg (32) horizontal
  • Equivalent lead 48 mm, speed 48 to 1000 mm/s, strokes 50 to 2000 mm
  • Four motor mountings: top, bottom (U), symmetric top (L), symmetric bottom (LU)
  • Stroke adjusting unit built in; non-excitation lock (B) optional
  • Actuator cable (standard S1-S5 or robot R1-RC) and controller (JXC step data / fieldbus direct input or LECP) are ordered as suffixes; codes listed are actuator only

Specifications

Drive Belt
Guide Cam follower guide
Equivalent lead 48 mm
Max. work load (horizontal) 10 kg (25), 20 kg (32)
Speed 48 to 1000 mm/s
Repeatability ±0.08 mm
Motor Step motor (servo/DC24V), incremental, 56.4
Power supply DC24V ±10%
Enclosure IP10
Operating temperature 5 to 40°C
Source SMC Korea electric actuator catalog (SMCKR_LEM.pdf), p. 381-384 (PDF p. 24-27)
LEMC25T-50 Size: 25 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: None
LEMC25T-50B Size: 25 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: With lock
LEMC25T-100 Size: 25 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: None
LEMC25T-100B Size: 25 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: With lock
LEMC25T-150 Size: 25 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: None
LEMC25T-150B Size: 25 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: With lock
LEMC25T-200 Size: 25 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: None
LEMC25T-200B Size: 25 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: With lock
LEMC25T-250 Size: 25 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: None
LEMC25T-250B Size: 25 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: With lock
LEMC25T-300 Size: 25 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: None
LEMC25T-300B Size: 25 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: With lock
LEMC25T-350 Size: 25 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: None
LEMC25T-350B Size: 25 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: With lock
LEMC25T-400 Size: 25 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: None
LEMC25T-400B Size: 25 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: With lock
LEMC25T-450 Size: 25 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: None
LEMC25T-450B Size: 25 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: With lock
LEMC25T-500 Size: 25 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: None
LEMC25T-500B Size: 25 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: With lock
LEMC25T-550 Size: 25 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: None
LEMC25T-550B Size: 25 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: With lock
LEMC25T-600 Size: 25 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: None
LEMC25T-600B Size: 25 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: With lock
LEMC25T-700 Size: 25 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: None
LEMC25T-700B Size: 25 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: With lock
LEMC25T-800 Size: 25 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: None
LEMC25T-800B Size: 25 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: With lock
LEMC25T-900 Size: 25 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: None
LEMC25T-900B Size: 25 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: With lock
LEMC25T-1000 Size: 25 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: None
LEMC25T-1000B Size: 25 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: With lock
LEMC25T-1200 Size: 25 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: None
LEMC25T-1200B Size: 25 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: With lock
LEMC25T-1500 Size: 25 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: None
LEMC25T-1500B Size: 25 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: With lock
LEMC25T-2000 Size: 25 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: None
LEMC25T-2000B Size: 25 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: With lock
LEMC25UT-50 Size: 25 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: None
LEMC25UT-50B Size: 25 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC25UT-100 Size: 25 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: None
LEMC25UT-100B Size: 25 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC25UT-150 Size: 25 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: None
LEMC25UT-150B Size: 25 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC25UT-200 Size: 25 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: None
LEMC25UT-200B Size: 25 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC25UT-250 Size: 25 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: None
LEMC25UT-250B Size: 25 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC25UT-300 Size: 25 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: None
LEMC25UT-300B Size: 25 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC25UT-350 Size: 25 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: None
LEMC25UT-350B Size: 25 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC25UT-400 Size: 25 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: None
LEMC25UT-400B Size: 25 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC25UT-450 Size: 25 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: None
LEMC25UT-450B Size: 25 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC25UT-500 Size: 25 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: None
LEMC25UT-500B Size: 25 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC25UT-550 Size: 25 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: None
LEMC25UT-550B Size: 25 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC25UT-600 Size: 25 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: None
LEMC25UT-600B Size: 25 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC25UT-700 Size: 25 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: None
LEMC25UT-700B Size: 25 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC25UT-800 Size: 25 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: None
LEMC25UT-800B Size: 25 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC25UT-900 Size: 25 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: None
LEMC25UT-900B Size: 25 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC25UT-1000 Size: 25 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: None
LEMC25UT-1000B Size: 25 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC25UT-1200 Size: 25 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: None
LEMC25UT-1200B Size: 25 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC25UT-1500 Size: 25 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: None
LEMC25UT-1500B Size: 25 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC25UT-2000 Size: 25 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: None
LEMC25UT-2000B Size: 25 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: With lock
LEMC25LT-50 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: None
LEMC25LT-50B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: With lock
LEMC25LT-100 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: None
LEMC25LT-100B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: With lock
LEMC25LT-150 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: None
LEMC25LT-150B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: With lock
LEMC25LT-200 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: None
LEMC25LT-200B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: With lock
LEMC25LT-250 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: None
LEMC25LT-250B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: With lock
LEMC25LT-300 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: None
LEMC25LT-300B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: With lock
LEMC25LT-350 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: None
LEMC25LT-350B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: With lock
LEMC25LT-400 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: None
LEMC25LT-400B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: With lock
LEMC25LT-450 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: None
LEMC25LT-450B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: With lock
LEMC25LT-500 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: None
LEMC25LT-500B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: With lock
LEMC25LT-550 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: None
LEMC25LT-550B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: With lock
LEMC25LT-600 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: None
LEMC25LT-600B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: With lock
LEMC25LT-700 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: None
LEMC25LT-700B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: With lock
LEMC25LT-800 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: None
LEMC25LT-800B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: With lock
LEMC25LT-900 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: None
LEMC25LT-900B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: With lock
LEMC25LT-1000 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: None
LEMC25LT-1000B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: With lock
LEMC25LT-1200 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: None
LEMC25LT-1200B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: With lock
LEMC25LT-1500 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: None
LEMC25LT-1500B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: With lock
LEMC25LT-2000 Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: None
LEMC25LT-2000B Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: With lock
LEMC25LUT-50 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: None
LEMC25LUT-50B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC25LUT-100 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: None
LEMC25LUT-100B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC25LUT-150 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: None
LEMC25LUT-150B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC25LUT-200 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: None
LEMC25LUT-200B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC25LUT-250 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: None
LEMC25LUT-250B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC25LUT-300 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: None
LEMC25LUT-300B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC25LUT-350 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: None
LEMC25LUT-350B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC25LUT-400 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: None
LEMC25LUT-400B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC25LUT-450 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: None
LEMC25LUT-450B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC25LUT-500 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: None
LEMC25LUT-500B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC25LUT-550 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: None
LEMC25LUT-550B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC25LUT-600 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: None
LEMC25LUT-600B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC25LUT-700 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: None
LEMC25LUT-700B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC25LUT-800 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: None
LEMC25LUT-800B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC25LUT-900 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: None
LEMC25LUT-900B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC25LUT-1000 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: None
LEMC25LUT-1000B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC25LUT-1200 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: None
LEMC25LUT-1200B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC25LUT-1500 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: None
LEMC25LUT-1500B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC25LUT-2000 Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: None
LEMC25LUT-2000B Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: With lock
LEMC32T-50 Size: 32 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: None
LEMC32T-50B Size: 32 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: With lock
LEMC32T-100 Size: 32 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: None
LEMC32T-100B Size: 32 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: With lock
LEMC32T-150 Size: 32 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: None
LEMC32T-150B Size: 32 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: With lock
LEMC32T-200 Size: 32 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: None
LEMC32T-200B Size: 32 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: With lock
LEMC32T-250 Size: 32 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: None
LEMC32T-250B Size: 32 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: With lock
LEMC32T-300 Size: 32 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: None
LEMC32T-300B Size: 32 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: With lock
LEMC32T-350 Size: 32 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: None
LEMC32T-350B Size: 32 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: With lock
LEMC32T-400 Size: 32 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: None
LEMC32T-400B Size: 32 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: With lock
LEMC32T-450 Size: 32 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: None
LEMC32T-450B Size: 32 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: With lock
LEMC32T-500 Size: 32 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: None
LEMC32T-500B Size: 32 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: With lock
LEMC32T-550 Size: 32 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: None
LEMC32T-550B Size: 32 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: With lock
LEMC32T-600 Size: 32 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: None
LEMC32T-600B Size: 32 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: With lock
LEMC32T-700 Size: 32 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: None
LEMC32T-700B Size: 32 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: With lock
LEMC32T-800 Size: 32 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: None
LEMC32T-800B Size: 32 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: With lock
LEMC32T-900 Size: 32 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: None
LEMC32T-900B Size: 32 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: With lock
LEMC32T-1000 Size: 32 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: None
LEMC32T-1000B Size: 32 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: With lock
LEMC32T-1200 Size: 32 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: None
LEMC32T-1200B Size: 32 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: With lock
LEMC32T-1500 Size: 32 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: None
LEMC32T-1500B Size: 32 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: With lock
LEMC32T-2000 Size: 32 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: None
LEMC32T-2000B Size: 32 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: With lock
LEMC32UT-50 Size: 32 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: None
LEMC32UT-50B Size: 32 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC32UT-100 Size: 32 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: None
LEMC32UT-100B Size: 32 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC32UT-150 Size: 32 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: None
LEMC32UT-150B Size: 32 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC32UT-200 Size: 32 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: None
LEMC32UT-200B Size: 32 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC32UT-250 Size: 32 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: None
LEMC32UT-250B Size: 32 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC32UT-300 Size: 32 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: None
LEMC32UT-300B Size: 32 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC32UT-350 Size: 32 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: None
LEMC32UT-350B Size: 32 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC32UT-400 Size: 32 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: None
LEMC32UT-400B Size: 32 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC32UT-450 Size: 32 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: None
LEMC32UT-450B Size: 32 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC32UT-500 Size: 32 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: None
LEMC32UT-500B Size: 32 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC32UT-550 Size: 32 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: None
LEMC32UT-550B Size: 32 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC32UT-600 Size: 32 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: None
LEMC32UT-600B Size: 32 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC32UT-700 Size: 32 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: None
LEMC32UT-700B Size: 32 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC32UT-800 Size: 32 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: None
LEMC32UT-800B Size: 32 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC32UT-900 Size: 32 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: None
LEMC32UT-900B Size: 32 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC32UT-1000 Size: 32 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: None
LEMC32UT-1000B Size: 32 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC32UT-1200 Size: 32 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: None
LEMC32UT-1200B Size: 32 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC32UT-1500 Size: 32 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: None
LEMC32UT-1500B Size: 32 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC32UT-2000 Size: 32 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: None
LEMC32UT-2000B Size: 32 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: With lock
LEMC32LT-50 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: None
LEMC32LT-50B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: With lock
LEMC32LT-100 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: None
LEMC32LT-100B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: With lock
LEMC32LT-150 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: None
LEMC32LT-150B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: With lock
LEMC32LT-200 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: None
LEMC32LT-200B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: With lock
LEMC32LT-250 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: None
LEMC32LT-250B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: With lock
LEMC32LT-300 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: None
LEMC32LT-300B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: With lock
LEMC32LT-350 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: None
LEMC32LT-350B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: With lock
LEMC32LT-400 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: None
LEMC32LT-400B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: With lock
LEMC32LT-450 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: None
LEMC32LT-450B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: With lock
LEMC32LT-500 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: None
LEMC32LT-500B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: With lock
LEMC32LT-550 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: None
LEMC32LT-550B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: With lock
LEMC32LT-600 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: None
LEMC32LT-600B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: With lock
LEMC32LT-700 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: None
LEMC32LT-700B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: With lock
LEMC32LT-800 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: None
LEMC32LT-800B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: With lock
LEMC32LT-900 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: None
LEMC32LT-900B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: With lock
LEMC32LT-1000 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: None
LEMC32LT-1000B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: With lock
LEMC32LT-1200 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: None
LEMC32LT-1200B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: With lock
LEMC32LT-1500 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: None
LEMC32LT-1500B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: With lock
LEMC32LT-2000 Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: None
LEMC32LT-2000B Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: With lock
LEMC32LUT-50 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: None
LEMC32LUT-50B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC32LUT-100 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: None
LEMC32LUT-100B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC32LUT-150 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: None
LEMC32LUT-150B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC32LUT-200 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: None
LEMC32LUT-200B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC32LUT-250 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: None
LEMC32LUT-250B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC32LUT-300 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: None
LEMC32LUT-300B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC32LUT-350 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: None
LEMC32LUT-350B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC32LUT-400 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: None
LEMC32LUT-400B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC32LUT-450 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: None
LEMC32LUT-450B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC32LUT-500 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: None
LEMC32LUT-500B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC32LUT-550 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: None
LEMC32LUT-550B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC32LUT-600 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: None
LEMC32LUT-600B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC32LUT-700 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: None
LEMC32LUT-700B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC32LUT-800 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: None
LEMC32LUT-800B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC32LUT-900 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: None
LEMC32LUT-900B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC32LUT-1000 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: None
LEMC32LUT-1000B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC32LUT-1200 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: None
LEMC32LUT-1200B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC32LUT-1500 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: None
LEMC32LUT-1500B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC32LUT-2000 Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: None
LEMC32LUT-2000B Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: With lock
Electric ActuatorsSMC
304 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEMC Low Profile Electric Slider, Cam Follower Guide (Step Motor)

Brand SMC·Electric Actuators

Available part numbers (304)

LEMC25T-50, LEMC25T-50B, LEMC25T-100, LEMC25T-100B, LEMC25T-150, LEMC25T-150B, LEMC25T-200, LEMC25T-200B, LEMC25T-250, LEMC25T-250B + 294 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEMC25T-50Size: 25 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: None
LEMC25T-50BSize: 25 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: With lock
LEMC25T-100Size: 25 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: None
LEMC25T-100BSize: 25 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: With lock
LEMC25T-150Size: 25 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: None
LEMC25T-150BSize: 25 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: With lock
LEMC25T-200Size: 25 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: None
LEMC25T-200BSize: 25 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: With lock
LEMC25T-250Size: 25 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: None
LEMC25T-250BSize: 25 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: With lock
LEMC25T-300Size: 25 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: None
LEMC25T-300BSize: 25 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: With lock
LEMC25T-350Size: 25 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: None
LEMC25T-350BSize: 25 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: With lock
LEMC25T-400Size: 25 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: None
LEMC25T-400BSize: 25 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: With lock
LEMC25T-450Size: 25 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: None
LEMC25T-450BSize: 25 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: With lock
LEMC25T-500Size: 25 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: None
LEMC25T-500BSize: 25 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: With lock
LEMC25T-550Size: 25 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: None
LEMC25T-550BSize: 25 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: With lock
LEMC25T-600Size: 25 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: None
LEMC25T-600BSize: 25 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: With lock
LEMC25T-700Size: 25 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: None
LEMC25T-700BSize: 25 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: With lock
LEMC25T-800Size: 25 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: None
LEMC25T-800BSize: 25 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: With lock
LEMC25T-900Size: 25 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: None
LEMC25T-900BSize: 25 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: With lock
LEMC25T-1000Size: 25 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: None
LEMC25T-1000BSize: 25 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: With lock
LEMC25T-1200Size: 25 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: None
LEMC25T-1200BSize: 25 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: With lock
LEMC25T-1500Size: 25 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: None
LEMC25T-1500BSize: 25 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: With lock
LEMC25T-2000Size: 25 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: None
LEMC25T-2000BSize: 25 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: With lock
LEMC25UT-50Size: 25 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: None
LEMC25UT-50BSize: 25 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC25UT-100Size: 25 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: None
LEMC25UT-100BSize: 25 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC25UT-150Size: 25 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: None
LEMC25UT-150BSize: 25 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC25UT-200Size: 25 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: None
LEMC25UT-200BSize: 25 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC25UT-250Size: 25 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: None
LEMC25UT-250BSize: 25 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC25UT-300Size: 25 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: None
LEMC25UT-300BSize: 25 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC25UT-350Size: 25 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: None
LEMC25UT-350BSize: 25 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC25UT-400Size: 25 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: None
LEMC25UT-400BSize: 25 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC25UT-450Size: 25 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: None
LEMC25UT-450BSize: 25 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC25UT-500Size: 25 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: None
LEMC25UT-500BSize: 25 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC25UT-550Size: 25 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: None
LEMC25UT-550BSize: 25 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC25UT-600Size: 25 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: None
LEMC25UT-600BSize: 25 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC25UT-700Size: 25 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: None
LEMC25UT-700BSize: 25 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC25UT-800Size: 25 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: None
LEMC25UT-800BSize: 25 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC25UT-900Size: 25 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: None
LEMC25UT-900BSize: 25 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC25UT-1000Size: 25 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: None
LEMC25UT-1000BSize: 25 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC25UT-1200Size: 25 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: None
LEMC25UT-1200BSize: 25 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC25UT-1500Size: 25 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: None
LEMC25UT-1500BSize: 25 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC25UT-2000Size: 25 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: None
LEMC25UT-2000BSize: 25 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: With lock
LEMC25LT-50Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: None
LEMC25LT-50BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: With lock
LEMC25LT-100Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: None
LEMC25LT-100BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: With lock
LEMC25LT-150Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: None
LEMC25LT-150BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: With lock
LEMC25LT-200Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: None
LEMC25LT-200BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: With lock
LEMC25LT-250Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: None
LEMC25LT-250BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: With lock
LEMC25LT-300Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: None
LEMC25LT-300BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: With lock
LEMC25LT-350Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: None
LEMC25LT-350BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: With lock
LEMC25LT-400Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: None
LEMC25LT-400BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: With lock
LEMC25LT-450Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: None
LEMC25LT-450BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: With lock
LEMC25LT-500Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: None
LEMC25LT-500BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: With lock
LEMC25LT-550Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: None
LEMC25LT-550BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: With lock
LEMC25LT-600Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: None
LEMC25LT-600BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: With lock
LEMC25LT-700Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: None
LEMC25LT-700BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: With lock
LEMC25LT-800Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: None
LEMC25LT-800BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: With lock
LEMC25LT-900Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: None
LEMC25LT-900BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: With lock
LEMC25LT-1000Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: None
LEMC25LT-1000BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: With lock
LEMC25LT-1200Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: None
LEMC25LT-1200BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: With lock
LEMC25LT-1500Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: None
LEMC25LT-1500BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: With lock
LEMC25LT-2000Size: 25 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: None
LEMC25LT-2000BSize: 25 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: With lock
LEMC25LUT-50Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: None
LEMC25LUT-50BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC25LUT-100Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: None
LEMC25LUT-100BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC25LUT-150Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: None
LEMC25LUT-150BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC25LUT-200Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: None
LEMC25LUT-200BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC25LUT-250Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: None
LEMC25LUT-250BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC25LUT-300Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: None
LEMC25LUT-300BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC25LUT-350Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: None
LEMC25LUT-350BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC25LUT-400Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: None
LEMC25LUT-400BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC25LUT-450Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: None
LEMC25LUT-450BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC25LUT-500Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: None
LEMC25LUT-500BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC25LUT-550Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: None
LEMC25LUT-550BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC25LUT-600Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: None
LEMC25LUT-600BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC25LUT-700Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: None
LEMC25LUT-700BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC25LUT-800Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: None
LEMC25LUT-800BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC25LUT-900Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: None
LEMC25LUT-900BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC25LUT-1000Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: None
LEMC25LUT-1000BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC25LUT-1200Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: None
LEMC25LUT-1200BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC25LUT-1500Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: None
LEMC25LUT-1500BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC25LUT-2000Size: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: None
LEMC25LUT-2000BSize: 25 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: With lock
LEMC32T-50Size: 32 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: None
LEMC32T-50BSize: 32 | Motor mounting: Top mounting | Stroke: 50 mm | Lock: With lock
LEMC32T-100Size: 32 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: None
LEMC32T-100BSize: 32 | Motor mounting: Top mounting | Stroke: 100 mm | Lock: With lock
LEMC32T-150Size: 32 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: None
LEMC32T-150BSize: 32 | Motor mounting: Top mounting | Stroke: 150 mm | Lock: With lock
LEMC32T-200Size: 32 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: None
LEMC32T-200BSize: 32 | Motor mounting: Top mounting | Stroke: 200 mm | Lock: With lock
LEMC32T-250Size: 32 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: None
LEMC32T-250BSize: 32 | Motor mounting: Top mounting | Stroke: 250 mm | Lock: With lock
LEMC32T-300Size: 32 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: None
LEMC32T-300BSize: 32 | Motor mounting: Top mounting | Stroke: 300 mm | Lock: With lock
LEMC32T-350Size: 32 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: None
LEMC32T-350BSize: 32 | Motor mounting: Top mounting | Stroke: 350 mm | Lock: With lock
LEMC32T-400Size: 32 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: None
LEMC32T-400BSize: 32 | Motor mounting: Top mounting | Stroke: 400 mm | Lock: With lock
LEMC32T-450Size: 32 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: None
LEMC32T-450BSize: 32 | Motor mounting: Top mounting | Stroke: 450 mm | Lock: With lock
LEMC32T-500Size: 32 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: None
LEMC32T-500BSize: 32 | Motor mounting: Top mounting | Stroke: 500 mm | Lock: With lock
LEMC32T-550Size: 32 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: None
LEMC32T-550BSize: 32 | Motor mounting: Top mounting | Stroke: 550 mm | Lock: With lock
LEMC32T-600Size: 32 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: None
LEMC32T-600BSize: 32 | Motor mounting: Top mounting | Stroke: 600 mm | Lock: With lock
LEMC32T-700Size: 32 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: None
LEMC32T-700BSize: 32 | Motor mounting: Top mounting | Stroke: 700 mm | Lock: With lock
LEMC32T-800Size: 32 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: None
LEMC32T-800BSize: 32 | Motor mounting: Top mounting | Stroke: 800 mm | Lock: With lock
LEMC32T-900Size: 32 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: None
LEMC32T-900BSize: 32 | Motor mounting: Top mounting | Stroke: 900 mm | Lock: With lock
LEMC32T-1000Size: 32 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: None
LEMC32T-1000BSize: 32 | Motor mounting: Top mounting | Stroke: 1000 mm | Lock: With lock
LEMC32T-1200Size: 32 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: None
LEMC32T-1200BSize: 32 | Motor mounting: Top mounting | Stroke: 1200 mm | Lock: With lock
LEMC32T-1500Size: 32 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: None
LEMC32T-1500BSize: 32 | Motor mounting: Top mounting | Stroke: 1500 mm | Lock: With lock
LEMC32T-2000Size: 32 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: None
LEMC32T-2000BSize: 32 | Motor mounting: Top mounting | Stroke: 2000 mm | Lock: With lock
LEMC32UT-50Size: 32 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: None
LEMC32UT-50BSize: 32 | Motor mounting: Bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC32UT-100Size: 32 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: None
LEMC32UT-100BSize: 32 | Motor mounting: Bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC32UT-150Size: 32 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: None
LEMC32UT-150BSize: 32 | Motor mounting: Bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC32UT-200Size: 32 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: None
LEMC32UT-200BSize: 32 | Motor mounting: Bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC32UT-250Size: 32 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: None
LEMC32UT-250BSize: 32 | Motor mounting: Bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC32UT-300Size: 32 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: None
LEMC32UT-300BSize: 32 | Motor mounting: Bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC32UT-350Size: 32 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: None
LEMC32UT-350BSize: 32 | Motor mounting: Bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC32UT-400Size: 32 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: None
LEMC32UT-400BSize: 32 | Motor mounting: Bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC32UT-450Size: 32 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: None
LEMC32UT-450BSize: 32 | Motor mounting: Bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC32UT-500Size: 32 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: None
LEMC32UT-500BSize: 32 | Motor mounting: Bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC32UT-550Size: 32 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: None
LEMC32UT-550BSize: 32 | Motor mounting: Bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC32UT-600Size: 32 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: None
LEMC32UT-600BSize: 32 | Motor mounting: Bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC32UT-700Size: 32 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: None
LEMC32UT-700BSize: 32 | Motor mounting: Bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC32UT-800Size: 32 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: None
LEMC32UT-800BSize: 32 | Motor mounting: Bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC32UT-900Size: 32 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: None
LEMC32UT-900BSize: 32 | Motor mounting: Bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC32UT-1000Size: 32 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: None
LEMC32UT-1000BSize: 32 | Motor mounting: Bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC32UT-1200Size: 32 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: None
LEMC32UT-1200BSize: 32 | Motor mounting: Bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC32UT-1500Size: 32 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: None
LEMC32UT-1500BSize: 32 | Motor mounting: Bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC32UT-2000Size: 32 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: None
LEMC32UT-2000BSize: 32 | Motor mounting: Bottom mounting | Stroke: 2000 mm | Lock: With lock
LEMC32LT-50Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: None
LEMC32LT-50BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 50 mm | Lock: With lock
LEMC32LT-100Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: None
LEMC32LT-100BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 100 mm | Lock: With lock
LEMC32LT-150Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: None
LEMC32LT-150BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 150 mm | Lock: With lock
LEMC32LT-200Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: None
LEMC32LT-200BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 200 mm | Lock: With lock
LEMC32LT-250Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: None
LEMC32LT-250BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 250 mm | Lock: With lock
LEMC32LT-300Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: None
LEMC32LT-300BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 300 mm | Lock: With lock
LEMC32LT-350Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: None
LEMC32LT-350BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 350 mm | Lock: With lock
LEMC32LT-400Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: None
LEMC32LT-400BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 400 mm | Lock: With lock
LEMC32LT-450Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: None
LEMC32LT-450BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 450 mm | Lock: With lock
LEMC32LT-500Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: None
LEMC32LT-500BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 500 mm | Lock: With lock
LEMC32LT-550Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: None
LEMC32LT-550BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 550 mm | Lock: With lock
LEMC32LT-600Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: None
LEMC32LT-600BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 600 mm | Lock: With lock
LEMC32LT-700Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: None
LEMC32LT-700BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 700 mm | Lock: With lock
LEMC32LT-800Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: None
LEMC32LT-800BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 800 mm | Lock: With lock
LEMC32LT-900Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: None
LEMC32LT-900BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 900 mm | Lock: With lock
LEMC32LT-1000Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: None
LEMC32LT-1000BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1000 mm | Lock: With lock
LEMC32LT-1200Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: None
LEMC32LT-1200BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1200 mm | Lock: With lock
LEMC32LT-1500Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: None
LEMC32LT-1500BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 1500 mm | Lock: With lock
LEMC32LT-2000Size: 32 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: None
LEMC32LT-2000BSize: 32 | Motor mounting: Symmetric, top mounting | Stroke: 2000 mm | Lock: With lock
LEMC32LUT-50Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: None
LEMC32LUT-50BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 50 mm | Lock: With lock
LEMC32LUT-100Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: None
LEMC32LUT-100BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 100 mm | Lock: With lock
LEMC32LUT-150Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: None
LEMC32LUT-150BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 150 mm | Lock: With lock
LEMC32LUT-200Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: None
LEMC32LUT-200BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 200 mm | Lock: With lock
LEMC32LUT-250Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: None
LEMC32LUT-250BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 250 mm | Lock: With lock
LEMC32LUT-300Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: None
LEMC32LUT-300BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 300 mm | Lock: With lock
LEMC32LUT-350Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: None
LEMC32LUT-350BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 350 mm | Lock: With lock
LEMC32LUT-400Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: None
LEMC32LUT-400BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 400 mm | Lock: With lock
LEMC32LUT-450Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: None
LEMC32LUT-450BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 450 mm | Lock: With lock
LEMC32LUT-500Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: None
LEMC32LUT-500BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 500 mm | Lock: With lock
LEMC32LUT-550Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: None
LEMC32LUT-550BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 550 mm | Lock: With lock
LEMC32LUT-600Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: None
LEMC32LUT-600BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 600 mm | Lock: With lock
LEMC32LUT-700Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: None
LEMC32LUT-700BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 700 mm | Lock: With lock
LEMC32LUT-800Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: None
LEMC32LUT-800BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 800 mm | Lock: With lock
LEMC32LUT-900Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: None
LEMC32LUT-900BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 900 mm | Lock: With lock
LEMC32LUT-1000Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: None
LEMC32LUT-1000BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1000 mm | Lock: With lock
LEMC32LUT-1200Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: None
LEMC32LUT-1200BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1200 mm | Lock: With lock
LEMC32LUT-1500Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: None
LEMC32LUT-1500BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 1500 mm | Lock: With lock
LEMC32LUT-2000Size: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: None
LEMC32LUT-2000BSize: 32 | Motor mounting: Symmetric, bottom mounting | Stroke: 2000 mm | Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
