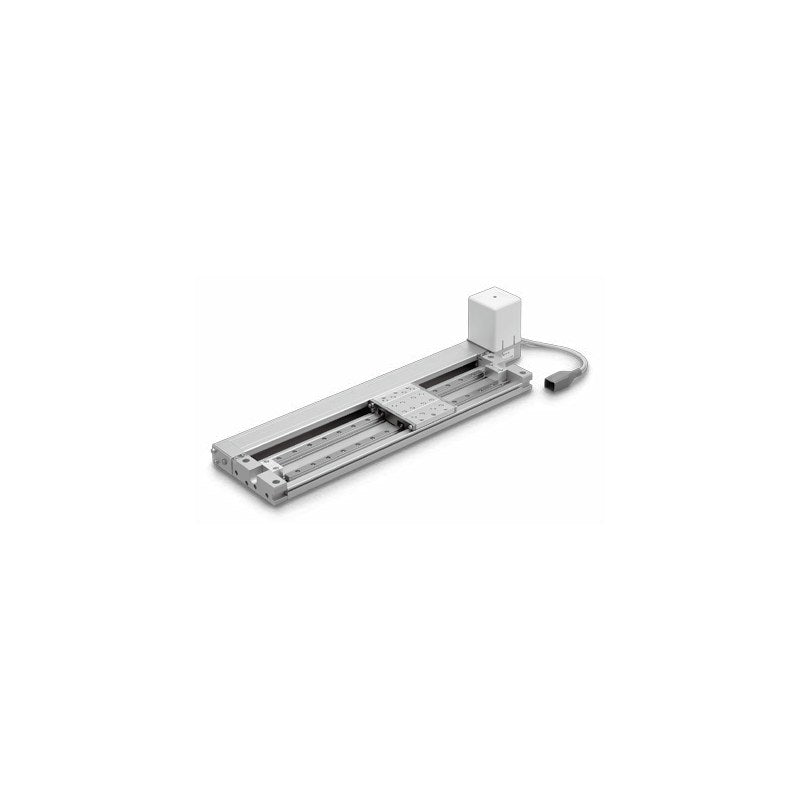

SMC LEMH/LEMHT Low Profile Electric Slider, Linear Guide (Step Motor)

SMC LEMH (single axis) and LEMHT (dual axis) linear guide low profile belt-driven slider type electric actuators with step motor (DC24V), sizes 25 and 32.

Key features

Linear guide: single axis (LEMH) or dual axis (LEMHT) for high moment capacity (LEMHT up to 120 N·m)
Equivalent lead 48 mm, speed 48 to 2000 mm/s; standard strokes 50 to 600 mm
Four motor mountings: top, bottom (U), symmetric top (L), symmetric bottom (LU)
Stroke adjusting unit built in; non-excitation lock (B) optional
Actuator cable (standard S1-S5 or robot R1-RC) and controller (JXC step data / fieldbus direct input or LECP) are ordered as suffixes; codes listed are actuator only

Specifications

Drive	Belt
Equivalent lead	48 mm
Max. work load (horizontal)	10 kg (25), 20 kg (32)
Speed	48 to 2000 mm/s
Max. acceleration/deceleration	20000 mm/s²
Repeatability	±0.08 mm
Motor	Step motor (servo/DC24V), incremental, 56.4
Power supply	DC24V ±10%
Enclosure	IP10
Operating temperature	5 to 40°C
Source	SMC Korea electric actuator catalog (SMCKR_LEM.pdf), p. 391-394 (PDF p. 34-37)

LEMH25T-50		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
LEMH25T-50B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
LEMH25T-100		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
LEMH25T-100B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
LEMH25T-150		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
LEMH25T-150B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
LEMH25T-200		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
LEMH25T-200B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
LEMH25T-250		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
LEMH25T-250B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
LEMH25T-300		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
LEMH25T-300B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
LEMH25T-350		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
LEMH25T-350B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
LEMH25T-400		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
LEMH25T-400B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
LEMH25T-450		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
LEMH25T-450B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
LEMH25T-500		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
LEMH25T-500B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
LEMH25T-550		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
LEMH25T-550B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
LEMH25T-600		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
LEMH25T-600B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
LEMH25UT-50		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
LEMH25UT-50B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMH25UT-100		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
LEMH25UT-100B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMH25UT-150		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
LEMH25UT-150B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMH25UT-200		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
LEMH25UT-200B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMH25UT-250		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
LEMH25UT-250B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMH25UT-300		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
LEMH25UT-300B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMH25UT-350		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
LEMH25UT-350B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMH25UT-400		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
LEMH25UT-400B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMH25UT-450		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
LEMH25UT-450B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMH25UT-500		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
LEMH25UT-500B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMH25UT-550		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
LEMH25UT-550B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMH25UT-600		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
LEMH25UT-600B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMH25LT-50		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
LEMH25LT-50B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
LEMH25LT-100		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
LEMH25LT-100B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
LEMH25LT-150		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
LEMH25LT-150B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
LEMH25LT-200		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
LEMH25LT-200B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
LEMH25LT-250		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
LEMH25LT-250B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
LEMH25LT-300		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
LEMH25LT-300B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
LEMH25LT-350		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
LEMH25LT-350B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
LEMH25LT-400		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
LEMH25LT-400B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
LEMH25LT-450		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
LEMH25LT-450B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
LEMH25LT-500		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
LEMH25LT-500B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
LEMH25LT-550		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
LEMH25LT-550B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
LEMH25LT-600		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
LEMH25LT-600B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
LEMH25LUT-50		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
LEMH25LUT-50B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMH25LUT-100		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
LEMH25LUT-100B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMH25LUT-150		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
LEMH25LUT-150B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMH25LUT-200		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
LEMH25LUT-200B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMH25LUT-250		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
LEMH25LUT-250B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMH25LUT-300		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
LEMH25LUT-300B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMH25LUT-350		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
LEMH25LUT-350B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMH25LUT-400		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
LEMH25LUT-400B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMH25LUT-450		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
LEMH25LUT-450B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMH25LUT-500		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
LEMH25LUT-500B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMH25LUT-550		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
LEMH25LUT-550B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMH25LUT-600		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
LEMH25LUT-600B		Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMH32T-50		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
LEMH32T-50B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
LEMH32T-100		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
LEMH32T-100B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
LEMH32T-150		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
LEMH32T-150B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
LEMH32T-200		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
LEMH32T-200B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
LEMH32T-250		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
LEMH32T-250B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
LEMH32T-300		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
LEMH32T-300B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
LEMH32T-350		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
LEMH32T-350B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
LEMH32T-400		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
LEMH32T-400B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
LEMH32T-450		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
LEMH32T-450B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
LEMH32T-500		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
LEMH32T-500B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
LEMH32T-550		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
LEMH32T-550B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
LEMH32T-600		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
LEMH32T-600B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
LEMH32UT-50		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
LEMH32UT-50B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMH32UT-100		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
LEMH32UT-100B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMH32UT-150		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
LEMH32UT-150B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMH32UT-200		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
LEMH32UT-200B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMH32UT-250		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
LEMH32UT-250B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMH32UT-300		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
LEMH32UT-300B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMH32UT-350		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
LEMH32UT-350B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMH32UT-400		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
LEMH32UT-400B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMH32UT-450		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
LEMH32UT-450B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMH32UT-500		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
LEMH32UT-500B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMH32UT-550		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
LEMH32UT-550B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMH32UT-600		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
LEMH32UT-600B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMH32LT-50		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
LEMH32LT-50B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
LEMH32LT-100		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
LEMH32LT-100B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
LEMH32LT-150		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
LEMH32LT-150B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
LEMH32LT-200		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
LEMH32LT-200B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
LEMH32LT-250		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
LEMH32LT-250B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
LEMH32LT-300		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
LEMH32LT-300B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
LEMH32LT-350		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
LEMH32LT-350B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
LEMH32LT-400		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
LEMH32LT-400B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
LEMH32LT-450		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
LEMH32LT-450B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
LEMH32LT-500		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
LEMH32LT-500B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
LEMH32LT-550		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
LEMH32LT-550B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
LEMH32LT-600		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
LEMH32LT-600B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
LEMH32LUT-50		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
LEMH32LUT-50B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMH32LUT-100		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
LEMH32LUT-100B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMH32LUT-150		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
LEMH32LUT-150B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMH32LUT-200		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
LEMH32LUT-200B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMH32LUT-250		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
LEMH32LUT-250B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMH32LUT-300		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
LEMH32LUT-300B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMH32LUT-350		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
LEMH32LUT-350B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMH32LUT-400		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
LEMH32LUT-400B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMH32LUT-450		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
LEMH32LUT-450B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMH32LUT-500		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
LEMH32LUT-500B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMH32LUT-550		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
LEMH32LUT-550B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMH32LUT-600		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
LEMH32LUT-600B		Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT25T-50		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
LEMHT25T-50B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT25T-100		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
LEMHT25T-100B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT25T-150		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
LEMHT25T-150B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT25T-200		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
LEMHT25T-200B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT25T-250		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
LEMHT25T-250B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT25T-300		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
LEMHT25T-300B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT25T-350		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
LEMHT25T-350B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT25T-400		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
LEMHT25T-400B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT25T-450		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
LEMHT25T-450B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT25T-500		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
LEMHT25T-500B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT25T-550		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
LEMHT25T-550B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT25T-600		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
LEMHT25T-600B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT25UT-50		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
LEMHT25UT-50B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT25UT-100		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
LEMHT25UT-100B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT25UT-150		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
LEMHT25UT-150B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT25UT-200		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
LEMHT25UT-200B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT25UT-250		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
LEMHT25UT-250B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT25UT-300		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
LEMHT25UT-300B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT25UT-350		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
LEMHT25UT-350B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT25UT-400		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
LEMHT25UT-400B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT25UT-450		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
LEMHT25UT-450B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT25UT-500		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
LEMHT25UT-500B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT25UT-550		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
LEMHT25UT-550B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT25UT-600		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
LEMHT25UT-600B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT25LT-50		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
LEMHT25LT-50B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT25LT-100		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
LEMHT25LT-100B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT25LT-150		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
LEMHT25LT-150B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT25LT-200		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
LEMHT25LT-200B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT25LT-250		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
LEMHT25LT-250B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT25LT-300		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
LEMHT25LT-300B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT25LT-350		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
LEMHT25LT-350B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT25LT-400		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
LEMHT25LT-400B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT25LT-450		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
LEMHT25LT-450B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT25LT-500		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
LEMHT25LT-500B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT25LT-550		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
LEMHT25LT-550B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT25LT-600		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
LEMHT25LT-600B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT25LUT-50		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
LEMHT25LUT-50B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT25LUT-100		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
LEMHT25LUT-100B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT25LUT-150		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
LEMHT25LUT-150B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT25LUT-200		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
LEMHT25LUT-200B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT25LUT-250		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
LEMHT25LUT-250B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT25LUT-300		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
LEMHT25LUT-300B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT25LUT-350		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
LEMHT25LUT-350B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT25LUT-400		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
LEMHT25LUT-400B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT25LUT-450		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
LEMHT25LUT-450B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT25LUT-500		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
LEMHT25LUT-500B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT25LUT-550		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
LEMHT25LUT-550B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT25LUT-600		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
LEMHT25LUT-600B		Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT32T-50		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
LEMHT32T-50B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT32T-100		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
LEMHT32T-100B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT32T-150		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
LEMHT32T-150B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT32T-200		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
LEMHT32T-200B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT32T-250		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
LEMHT32T-250B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT32T-300		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
LEMHT32T-300B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT32T-350		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
LEMHT32T-350B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT32T-400		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
LEMHT32T-400B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT32T-450		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
LEMHT32T-450B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT32T-500		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
LEMHT32T-500B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT32T-550		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
LEMHT32T-550B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT32T-600		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
LEMHT32T-600B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT32UT-50		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
LEMHT32UT-50B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT32UT-100		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
LEMHT32UT-100B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT32UT-150		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
LEMHT32UT-150B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT32UT-200		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
LEMHT32UT-200B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT32UT-250		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
LEMHT32UT-250B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT32UT-300		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
LEMHT32UT-300B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT32UT-350		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
LEMHT32UT-350B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT32UT-400		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
LEMHT32UT-400B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT32UT-450		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
LEMHT32UT-450B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT32UT-500		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
LEMHT32UT-500B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT32UT-550		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
LEMHT32UT-550B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT32UT-600		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
LEMHT32UT-600B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT32LT-50		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
LEMHT32LT-50B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT32LT-100		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
LEMHT32LT-100B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT32LT-150		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
LEMHT32LT-150B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT32LT-200		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
LEMHT32LT-200B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT32LT-250		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
LEMHT32LT-250B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT32LT-300		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
LEMHT32LT-300B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT32LT-350		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
LEMHT32LT-350B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT32LT-400		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
LEMHT32LT-400B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT32LT-450		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
LEMHT32LT-450B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT32LT-500		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
LEMHT32LT-500B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT32LT-550		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
LEMHT32LT-550B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT32LT-600		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
LEMHT32LT-600B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
LEMHT32LUT-50		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
LEMHT32LUT-50B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
LEMHT32LUT-100		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
LEMHT32LUT-100B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
LEMHT32LUT-150		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
LEMHT32LUT-150B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
LEMHT32LUT-200		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
LEMHT32LUT-200B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
LEMHT32LUT-250		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
LEMHT32LUT-250B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
LEMHT32LUT-300		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
LEMHT32LUT-300B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
LEMHT32LUT-350		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
LEMHT32LUT-350B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
LEMHT32LUT-400		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
LEMHT32LUT-400B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
LEMHT32LUT-450		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
LEMHT32LUT-450B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
LEMHT32LUT-500		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
LEMHT32LUT-500B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
LEMHT32LUT-550		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
LEMHT32LUT-550B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
LEMHT32LUT-600		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
LEMHT32LUT-600B		Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock

Electric ActuatorsSMC

384 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEMH/LEMHT Low Profile Electric Slider, Linear Guide (Step Motor)

Brand SMC·Electric Actuators

Available part numbers (384)

LEMH25T-50, LEMH25T-50B, LEMH25T-100, LEMH25T-100B, LEMH25T-150, LEMH25T-150B, LEMH25T-200, LEMH25T-200B, LEMH25T-250, LEMH25T-250B + 374 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEMH25T-50	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
	LEMH25T-50B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH25T-100	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
	LEMH25T-100B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH25T-150	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
	LEMH25T-150B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH25T-200	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
	LEMH25T-200B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH25T-250	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
	LEMH25T-250B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH25T-300	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
	LEMH25T-300B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH25T-350	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
	LEMH25T-350B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH25T-400	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
	LEMH25T-400B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH25T-450	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
	LEMH25T-450B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH25T-500	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
	LEMH25T-500B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH25T-550	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
	LEMH25T-550B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH25T-600	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
	LEMH25T-600B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH25UT-50	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMH25UT-50B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH25UT-100	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMH25UT-100B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH25UT-150	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMH25UT-150B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH25UT-200	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMH25UT-200B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH25UT-250	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMH25UT-250B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH25UT-300	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMH25UT-300B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH25UT-350	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMH25UT-350B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH25UT-400	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMH25UT-400B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH25UT-450	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMH25UT-450B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH25UT-500	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMH25UT-500B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH25UT-550	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMH25UT-550B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH25UT-600	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMH25UT-600B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH25LT-50	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
	LEMH25LT-50B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH25LT-100	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
	LEMH25LT-100B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH25LT-150	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
	LEMH25LT-150B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH25LT-200	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
	LEMH25LT-200B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH25LT-250	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
	LEMH25LT-250B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH25LT-300	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
	LEMH25LT-300B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH25LT-350	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
	LEMH25LT-350B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH25LT-400	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
	LEMH25LT-400B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH25LT-450	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
	LEMH25LT-450B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH25LT-500	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
	LEMH25LT-500B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH25LT-550	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
	LEMH25LT-550B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH25LT-600	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
	LEMH25LT-600B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH25LUT-50	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMH25LUT-50B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH25LUT-100	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMH25LUT-100B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH25LUT-150	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMH25LUT-150B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH25LUT-200	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMH25LUT-200B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH25LUT-250	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMH25LUT-250B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH25LUT-300	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMH25LUT-300B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH25LUT-350	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMH25LUT-350B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH25LUT-400	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMH25LUT-400B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH25LUT-450	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMH25LUT-450B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH25LUT-500	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMH25LUT-500B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH25LUT-550	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMH25LUT-550B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH25LUT-600	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMH25LUT-600B	Guide: Single axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH32T-50	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
	LEMH32T-50B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH32T-100	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
	LEMH32T-100B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH32T-150	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
	LEMH32T-150B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH32T-200	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
	LEMH32T-200B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH32T-250	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
	LEMH32T-250B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH32T-300	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
	LEMH32T-300B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH32T-350	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
	LEMH32T-350B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH32T-400	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
	LEMH32T-400B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH32T-450	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
	LEMH32T-450B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH32T-500	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
	LEMH32T-500B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH32T-550	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
	LEMH32T-550B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH32T-600	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
	LEMH32T-600B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH32UT-50	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMH32UT-50B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH32UT-100	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMH32UT-100B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH32UT-150	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMH32UT-150B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH32UT-200	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMH32UT-200B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH32UT-250	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMH32UT-250B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH32UT-300	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMH32UT-300B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH32UT-350	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMH32UT-350B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH32UT-400	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMH32UT-400B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH32UT-450	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMH32UT-450B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH32UT-500	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMH32UT-500B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH32UT-550	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMH32UT-550B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH32UT-600	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMH32UT-600B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH32LT-50	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
	LEMH32LT-50B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH32LT-100	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
	LEMH32LT-100B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH32LT-150	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
	LEMH32LT-150B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH32LT-200	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
	LEMH32LT-200B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH32LT-250	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
	LEMH32LT-250B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH32LT-300	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
	LEMH32LT-300B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH32LT-350	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
	LEMH32LT-350B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH32LT-400	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
	LEMH32LT-400B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH32LT-450	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
	LEMH32LT-450B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH32LT-500	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
	LEMH32LT-500B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH32LT-550	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
	LEMH32LT-550B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH32LT-600	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
	LEMH32LT-600B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMH32LUT-50	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMH32LUT-50B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMH32LUT-100	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMH32LUT-100B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMH32LUT-150	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMH32LUT-150B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMH32LUT-200	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMH32LUT-200B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMH32LUT-250	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMH32LUT-250B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMH32LUT-300	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMH32LUT-300B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMH32LUT-350	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMH32LUT-350B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMH32LUT-400	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMH32LUT-400B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMH32LUT-450	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMH32LUT-450B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMH32LUT-500	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMH32LUT-500B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMH32LUT-550	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMH32LUT-550B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMH32LUT-600	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMH32LUT-600B	Guide: Single axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT25T-50	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
	LEMHT25T-50B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT25T-100	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
	LEMHT25T-100B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT25T-150	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
	LEMHT25T-150B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT25T-200	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
	LEMHT25T-200B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT25T-250	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
	LEMHT25T-250B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT25T-300	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
	LEMHT25T-300B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT25T-350	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
	LEMHT25T-350B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT25T-400	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
	LEMHT25T-400B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT25T-450	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
	LEMHT25T-450B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT25T-500	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
	LEMHT25T-500B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT25T-550	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
	LEMHT25T-550B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT25T-600	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
	LEMHT25T-600B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT25UT-50	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMHT25UT-50B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT25UT-100	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMHT25UT-100B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT25UT-150	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMHT25UT-150B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT25UT-200	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMHT25UT-200B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT25UT-250	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMHT25UT-250B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT25UT-300	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMHT25UT-300B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT25UT-350	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMHT25UT-350B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT25UT-400	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMHT25UT-400B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT25UT-450	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMHT25UT-450B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT25UT-500	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMHT25UT-500B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT25UT-550	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMHT25UT-550B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT25UT-600	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMHT25UT-600B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT25LT-50	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
	LEMHT25LT-50B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT25LT-100	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
	LEMHT25LT-100B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT25LT-150	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
	LEMHT25LT-150B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT25LT-200	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
	LEMHT25LT-200B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT25LT-250	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
	LEMHT25LT-250B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT25LT-300	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
	LEMHT25LT-300B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT25LT-350	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
	LEMHT25LT-350B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT25LT-400	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
	LEMHT25LT-400B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT25LT-450	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
	LEMHT25LT-450B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT25LT-500	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
	LEMHT25LT-500B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT25LT-550	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
	LEMHT25LT-550B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT25LT-600	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
	LEMHT25LT-600B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT25LUT-50	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMHT25LUT-50B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT25LUT-100	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMHT25LUT-100B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT25LUT-150	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMHT25LUT-150B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT25LUT-200	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMHT25LUT-200B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT25LUT-250	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMHT25LUT-250B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT25LUT-300	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMHT25LUT-300B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT25LUT-350	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMHT25LUT-350B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT25LUT-400	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMHT25LUT-400B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT25LUT-450	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMHT25LUT-450B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT25LUT-500	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMHT25LUT-500B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT25LUT-550	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMHT25LUT-550B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT25LUT-600	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMHT25LUT-600B	Guide: Dual axis linear guide \| Size: 25 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT32T-50	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: None
	LEMHT32T-50B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT32T-100	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: None
	LEMHT32T-100B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT32T-150	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: None
	LEMHT32T-150B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT32T-200	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: None
	LEMHT32T-200B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT32T-250	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: None
	LEMHT32T-250B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT32T-300	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: None
	LEMHT32T-300B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT32T-350	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: None
	LEMHT32T-350B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT32T-400	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: None
	LEMHT32T-400B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT32T-450	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: None
	LEMHT32T-450B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT32T-500	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: None
	LEMHT32T-500B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT32T-550	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: None
	LEMHT32T-550B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT32T-600	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: None
	LEMHT32T-600B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT32UT-50	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMHT32UT-50B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT32UT-100	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMHT32UT-100B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT32UT-150	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMHT32UT-150B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT32UT-200	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMHT32UT-200B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT32UT-250	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMHT32UT-250B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT32UT-300	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMHT32UT-300B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT32UT-350	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMHT32UT-350B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT32UT-400	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMHT32UT-400B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT32UT-450	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMHT32UT-450B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT32UT-500	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMHT32UT-500B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT32UT-550	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMHT32UT-550B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT32UT-600	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMHT32UT-600B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Bottom mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT32LT-50	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: None
	LEMHT32LT-50B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT32LT-100	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: None
	LEMHT32LT-100B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT32LT-150	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: None
	LEMHT32LT-150B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT32LT-200	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: None
	LEMHT32LT-200B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT32LT-250	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: None
	LEMHT32LT-250B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT32LT-300	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: None
	LEMHT32LT-300B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT32LT-350	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: None
	LEMHT32LT-350B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT32LT-400	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: None
	LEMHT32LT-400B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT32LT-450	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: None
	LEMHT32LT-450B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT32LT-500	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: None
	LEMHT32LT-500B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT32LT-550	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: None
	LEMHT32LT-550B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT32LT-600	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: None
	LEMHT32LT-600B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, top mounting \| Stroke: 600 mm \| Lock: With lock
	LEMHT32LUT-50	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: None
	LEMHT32LUT-50B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 50 mm \| Lock: With lock
	LEMHT32LUT-100	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: None
	LEMHT32LUT-100B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 100 mm \| Lock: With lock
	LEMHT32LUT-150	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: None
	LEMHT32LUT-150B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 150 mm \| Lock: With lock
	LEMHT32LUT-200	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: None
	LEMHT32LUT-200B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 200 mm \| Lock: With lock
	LEMHT32LUT-250	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: None
	LEMHT32LUT-250B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 250 mm \| Lock: With lock
	LEMHT32LUT-300	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: None
	LEMHT32LUT-300B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 300 mm \| Lock: With lock
	LEMHT32LUT-350	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: None
	LEMHT32LUT-350B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 350 mm \| Lock: With lock
	LEMHT32LUT-400	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: None
	LEMHT32LUT-400B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 400 mm \| Lock: With lock
	LEMHT32LUT-450	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: None
	LEMHT32LUT-450B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 450 mm \| Lock: With lock
	LEMHT32LUT-500	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: None
	LEMHT32LUT-500B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 500 mm \| Lock: With lock
	LEMHT32LUT-550	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: None
	LEMHT32LUT-550B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 550 mm \| Lock: With lock
	LEMHT32LUT-600	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: None
	LEMHT32LUT-600B	Guide: Dual axis linear guide \| Size: 32 \| Motor mounting: Symmetric, bottom mounting \| Stroke: 600 mm \| Lock: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEMH/LEMHT Low Profile Electric Slider, Linear Guide (Step Motor)
