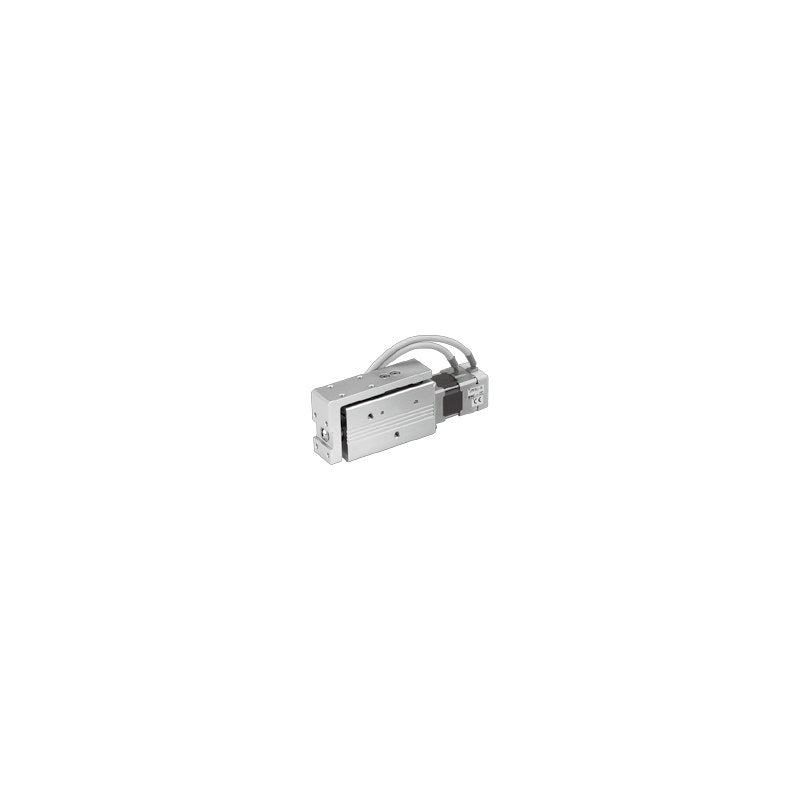

SMC LEPS Miniature Electric Slide Table (Step Motor)

SMC LEPS Miniature Electric Slide Table (Step Motor)

SMC LEPS series miniature slide table type electric actuator with integrated linear guide and step motor (DC24V), sizes 6 and 10, strokes 25 and 50 mm.

Key features

  • Integrated linear guide table; from 290 g (LEPS6, 25 mm stroke)
  • Up to 64 positioning points with position, speed and force settings; pushing force up to 50 N
  • Lead screw (slide screw) drive; repeatability ±0.05 mm
  • Basic motor (sizes 6, 10) or compact motor (L, size 10); motor cable exit top, left (L), bottom (U) or right (R)
  • Actuator cable (standard S1-S5 or robot R1-RC) and controller (JXC51/61, fieldbus JXC1, LECP6, pulse input LECPA) are ordered as suffixes; codes listed are actuator only

Specifications

Guide Linear guide
Max. work load (horizontal) 0.75 to 2.0 kg
Drive Slide screw
Repeatability ±0.05 mm
Backlash 0.2 mm or less
Acceleration/deceleration 3000 mm/s²
Max. operating frequency 60 c.p.m
Motor Step motor (servo/DC24V), incremental, 20 (6) / 28 (10)
Power supply DC24V ±10%
Enclosure IP40
Operating temperature 5 to 40°C
Source SMC Korea electric actuator catalog (SMCKR_LEPY_LEPS.pdf), p. 757-760 (PDF p. 22-25)
LEPS6K-25 Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Top
LEPS6K-25L Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Left side
LEPS6K-25U Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS6K-25R Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Right side
LEPS6K-50 Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Top
LEPS6K-50L Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Left side
LEPS6K-50U Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS6K-50R Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Right side
LEPS6J-25 Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Top
LEPS6J-25L Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Left side
LEPS6J-25U Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS6J-25R Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Right side
LEPS6J-50 Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Top
LEPS6J-50L Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Left side
LEPS6J-50U Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS6J-50R Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10K-25 Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Top
LEPS10K-25L Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10K-25U Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10K-25R Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10K-50 Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Top
LEPS10K-50L Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10K-50U Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10K-50R Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10J-25 Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Top
LEPS10J-25L Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10J-25U Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10J-25R Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10J-50 Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Top
LEPS10J-50L Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10J-50U Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10J-50R Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10LK-25 Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Top
LEPS10LK-25L Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10LK-25U Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10LK-25R Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10LK-50 Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Top
LEPS10LK-50L Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10LK-50U Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10LK-50R Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10LJ-25 Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Top
LEPS10LJ-25L Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10LJ-25U Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10LJ-25R Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10LJ-50 Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Top
LEPS10LJ-50L Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10LJ-50U Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10LJ-50R Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Right side
Electric ActuatorsSMC
48 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEPS Miniature Electric Slide Table (Step Motor)

Brand SMC·Electric Actuators

Available part numbers (48)

LEPS6K-25, LEPS6K-25L, LEPS6K-25U, LEPS6K-25R, LEPS6K-50, LEPS6K-50L, LEPS6K-50U, LEPS6K-50R, LEPS6J-25, LEPS6J-25L + 38 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEPS6K-25Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Top
LEPS6K-25LSize: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Left side
LEPS6K-25USize: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS6K-25RSize: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 25 mm | Cable exit: Right side
LEPS6K-50Size: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Top
LEPS6K-50LSize: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Left side
LEPS6K-50USize: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS6K-50RSize: 6 | Motor size: Basic | Lead: 4 mm | Stroke: 50 mm | Cable exit: Right side
LEPS6J-25Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Top
LEPS6J-25LSize: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Left side
LEPS6J-25USize: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS6J-25RSize: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 25 mm | Cable exit: Right side
LEPS6J-50Size: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Top
LEPS6J-50LSize: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Left side
LEPS6J-50USize: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS6J-50RSize: 6 | Motor size: Basic | Lead: 8 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10K-25Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Top
LEPS10K-25LSize: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10K-25USize: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10K-25RSize: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10K-50Size: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Top
LEPS10K-50LSize: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10K-50USize: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10K-50RSize: 10 | Motor size: Basic | Lead: 5 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10J-25Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Top
LEPS10J-25LSize: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10J-25USize: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10J-25RSize: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10J-50Size: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Top
LEPS10J-50LSize: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10J-50USize: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10J-50RSize: 10 | Motor size: Basic | Lead: 10 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10LK-25Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Top
LEPS10LK-25LSize: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10LK-25USize: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10LK-25RSize: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10LK-50Size: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Top
LEPS10LK-50LSize: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10LK-50USize: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10LK-50RSize: 10 | Motor size: Compact | Lead: 5 mm | Stroke: 50 mm | Cable exit: Right side
LEPS10LJ-25Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Top
LEPS10LJ-25LSize: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Left side
LEPS10LJ-25USize: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Bottom
LEPS10LJ-25RSize: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 25 mm | Cable exit: Right side
LEPS10LJ-50Size: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Top
LEPS10LJ-50LSize: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Left side
LEPS10LJ-50USize: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Bottom
LEPS10LJ-50RSize: 10 | Motor size: Compact | Lead: 10 mm | Stroke: 50 mm | Cable exit: Right side
