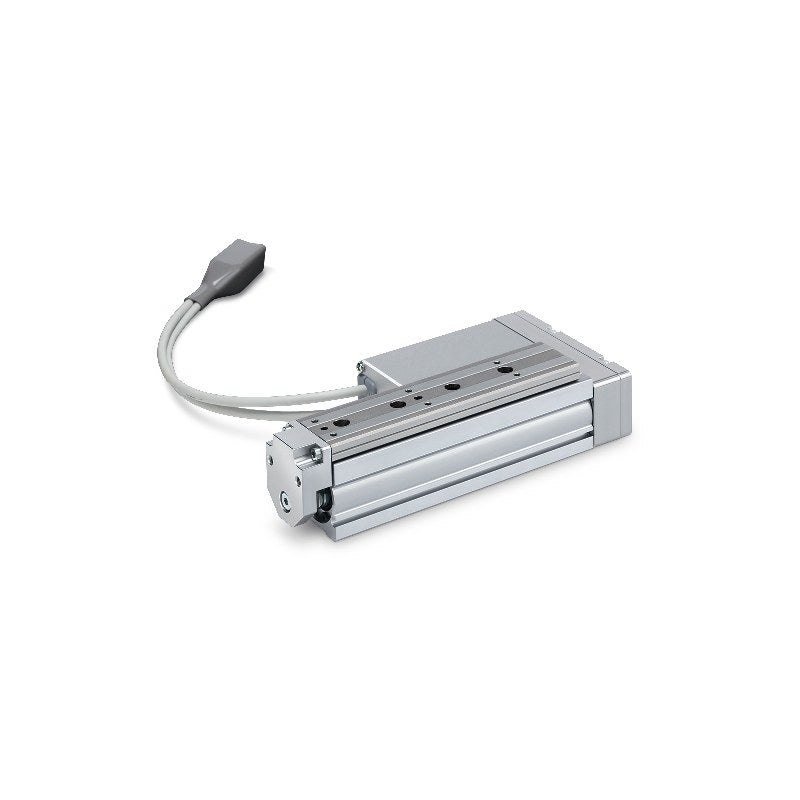

SMC LES25 Battery-less Absolute Slide Table (Compact Type)

SMC LES25 Battery-less Absolute Slide Table (Compact Type)

SMC LES25 compact (low-profile) electric slide table with battery-less absolute encoder step motor (DC24V), in basic R, symmetric L and in-line D types.

Key features

  • Battery-less absolute encoder: position retained at power off, no backup battery maintenance
  • Low-profile slide table with recirculating linear guide; strokes 30 to 150 mm
  • Pushing force up to 180 N (lead 8); lock option (B, not available at 30 mm stroke for R/L)
  • Dustproof IP5X equivalent body (S) and side holder mounting (H, D type) are suffix options
  • Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Size 25
Drive Sliding screw + belt (R/L), sliding screw (D)
Guide Linear guide (circulating)
Work load Horizontal 5 kg; vertical 5 kg (lead 8), 2.5 kg (lead 16)
Repeatability ±0.05 mm
Lost motion 0.3 mm or less
Motor size 42
Motor Battery-less absolute encoder step motor (servo/DC24V)
Encoder Battery-less absolute (position held at power off)
Power supply voltage DC24V ±10%
Source SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 115-117 (PDF p. 116-118)
LES25REJ-30 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LES25REJ-50 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LES25REJ-50B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LES25REJ-75 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LES25REJ-75B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LES25REJ-100 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LES25REJ-100B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LES25REJ-125 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LES25REJ-125B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LES25REJ-150 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LES25REJ-150B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LES25REK-30 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LES25REK-50 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LES25REK-50B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LES25REK-75 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LES25REK-75B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LES25REK-100 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LES25REK-100B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LES25REK-125 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LES25REK-125B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LES25REK-150 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LES25REK-150B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LES25LEJ-30 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LES25LEJ-50 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LES25LEJ-50B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LES25LEJ-75 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LES25LEJ-75B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LES25LEJ-100 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LES25LEJ-100B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LES25LEJ-125 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LES25LEJ-125B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LES25LEJ-150 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LES25LEJ-150B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LES25LEK-30 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LES25LEK-50 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LES25LEK-50B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LES25LEK-75 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LES25LEK-75B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LES25LEK-100 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LES25LEK-100B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LES25LEK-125 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LES25LEK-125B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LES25LEK-150 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LES25LEK-150B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LES25DEJ-30 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 30 mm | Motor option: Without lock
LES25DEJ-30B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock
LES25DEJ-50 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LES25DEJ-50B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LES25DEJ-75 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 75 mm | Motor option: Without lock
LES25DEJ-75B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 75 mm | Motor option: With lock
LES25DEJ-100 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LES25DEJ-100B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LES25DEJ-125 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 125 mm | Motor option: Without lock
LES25DEJ-125B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 125 mm | Motor option: With lock
LES25DEJ-150 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LES25DEJ-150B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LES25DEK-30 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 30 mm | Motor option: Without lock
LES25DEK-30B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock
LES25DEK-50 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LES25DEK-50B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LES25DEK-75 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 75 mm | Motor option: Without lock
LES25DEK-75B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 75 mm | Motor option: With lock
LES25DEK-100 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LES25DEK-100B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LES25DEK-125 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 125 mm | Motor option: Without lock
LES25DEK-125B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 125 mm | Motor option: With lock
LES25DEK-150 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LES25DEK-150B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
Electric ActuatorsSMC
68 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LES25 Battery-less Absolute Slide Table (Compact Type)

Brand SMC·Electric Actuators

Available part numbers (68)

LES25REJ-30, LES25REJ-50, LES25REJ-50B, LES25REJ-75, LES25REJ-75B, LES25REJ-100, LES25REJ-100B, LES25REJ-125, LES25REJ-125B, LES25REJ-150 + 58 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
