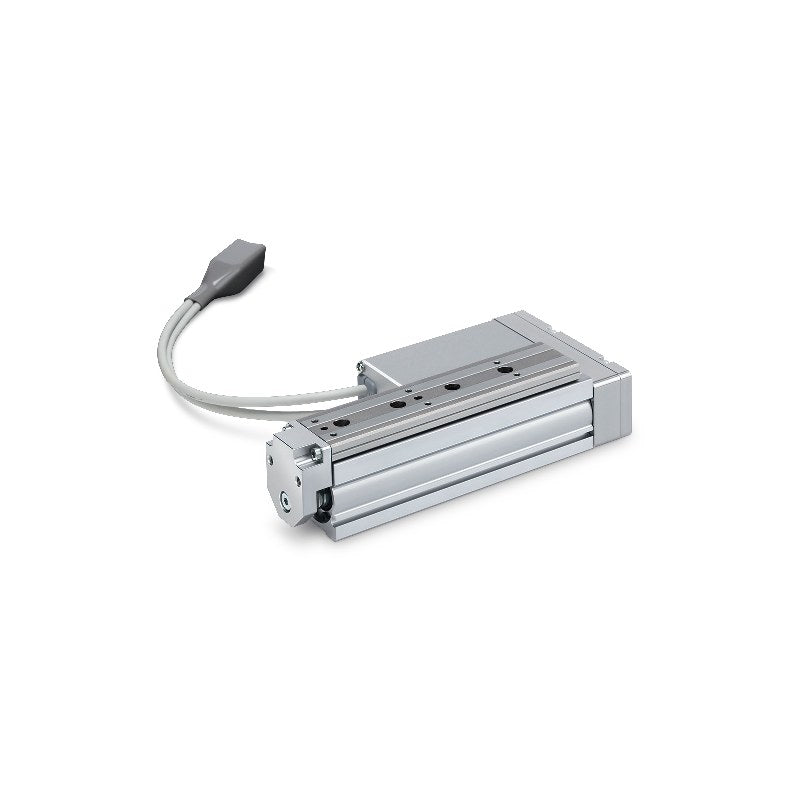

SMC LESH25 Battery-less Absolute Slide Table (High Rigidity Type)

SMC LESH25 Battery-less Absolute Slide Table (High Rigidity Type)

SMC LESH25 high rigidity electric slide table with battery-less absolute encoder step motor (DC24V), in basic R, symmetric L and in-line D types.

Key features

  • Battery-less absolute encoder: position retained at power off, no backup battery maintenance
  • High rigidity recirculating linear guide; work load up to 12 kg horizontal
  • Strokes 50, 100 and 150 mm; lock option (B) for vertical use
  • Dustproof IP5X equivalent body (S) and side holder mounting (H, D type) are suffix options
  • Controller (JXC51/61 step data input; JXCE1/91/P1/D1/L1/M1 EtherCAT, EtherNet/IP, PROFINET, DeviceNet, IO-Link, CC-Link direct input), robot actuator cable length (R1/R3/R5/R8/RA/RB/RC = 1.5 to 20 m) and I/O cable are ordered as suffixes, not listed

Specifications

Size 25
Drive Sliding screw + belt (R/L), sliding screw (D)
Guide Linear guide (circulating)
Work load Horizontal 12/8 kg, vertical 4/2 kg (lead 8/16)
Repeatability ±0.05 mm
Lost motion 0.15 mm or less
Motor size 42
Motor Battery-less absolute encoder step motor (servo/DC24V)
Encoder Battery-less absolute (position held at power off)
Power supply voltage DC24V ±10%
Source SMC Korea catalog Battery-less Absolute Encoder Type LE Series (SMCKR_Batteryless_LE__.pdf), p. 133-135 (PDF p. 134-136)
LESH25REJ-50 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESH25REJ-50B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESH25REJ-100 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESH25REJ-100B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESH25REJ-150 Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESH25REJ-150B Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESH25REK-50 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESH25REK-50B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESH25REK-100 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESH25REK-100B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESH25REK-150 Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESH25REK-150B Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESH25LEJ-50 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESH25LEJ-50B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESH25LEJ-100 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESH25LEJ-100B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESH25LEJ-150 Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESH25LEJ-150B Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESH25LEK-50 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESH25LEK-50B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESH25LEK-100 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESH25LEK-100B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESH25LEK-150 Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESH25LEK-150B Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESH25DEJ-50 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESH25DEJ-50B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESH25DEJ-100 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESH25DEJ-100B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESH25DEJ-150 Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESH25DEJ-150B Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESH25DEK-50 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESH25DEK-50B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESH25DEK-100 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESH25DEK-100B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESH25DEK-150 Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESH25DEK-150B Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
Electric ActuatorsSMC
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LESH25 Battery-less Absolute Slide Table (High Rigidity Type)

Brand SMC·Electric Actuators

Available part numbers (36)

LESH25REJ-50, LESH25REJ-50B, LESH25REJ-100, LESH25REJ-100B, LESH25REJ-150, LESH25REJ-150B, LESH25REK-50, LESH25REK-50B, LESH25REK-100, LESH25REK-100B + 26 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LESH25REJ-50Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESH25REJ-50BMotor mounting: Basic (R type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESH25REJ-100Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESH25REJ-100BMotor mounting: Basic (R type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESH25REJ-150Motor mounting: Basic (R type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESH25REJ-150BMotor mounting: Basic (R type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESH25REK-50Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESH25REK-50BMotor mounting: Basic (R type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESH25REK-100Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESH25REK-100BMotor mounting: Basic (R type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESH25REK-150Motor mounting: Basic (R type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESH25REK-150BMotor mounting: Basic (R type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESH25LEJ-50Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESH25LEJ-50BMotor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESH25LEJ-100Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESH25LEJ-100BMotor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESH25LEJ-150Motor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESH25LEJ-150BMotor mounting: Symmetric (L type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESH25LEK-50Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESH25LEK-50BMotor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESH25LEK-100Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESH25LEK-100BMotor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESH25LEK-150Motor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESH25LEK-150BMotor mounting: Symmetric (L type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESH25DEJ-50Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESH25DEJ-50BMotor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESH25DEJ-100Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESH25DEJ-100BMotor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESH25DEJ-150Motor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESH25DEJ-150BMotor mounting: In-line motor (D type) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESH25DEK-50Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESH25DEK-50BMotor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESH25DEK-100Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESH25DEK-100BMotor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESH25DEK-150Motor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESH25DEK-150BMotor mounting: In-line motor (D type) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
