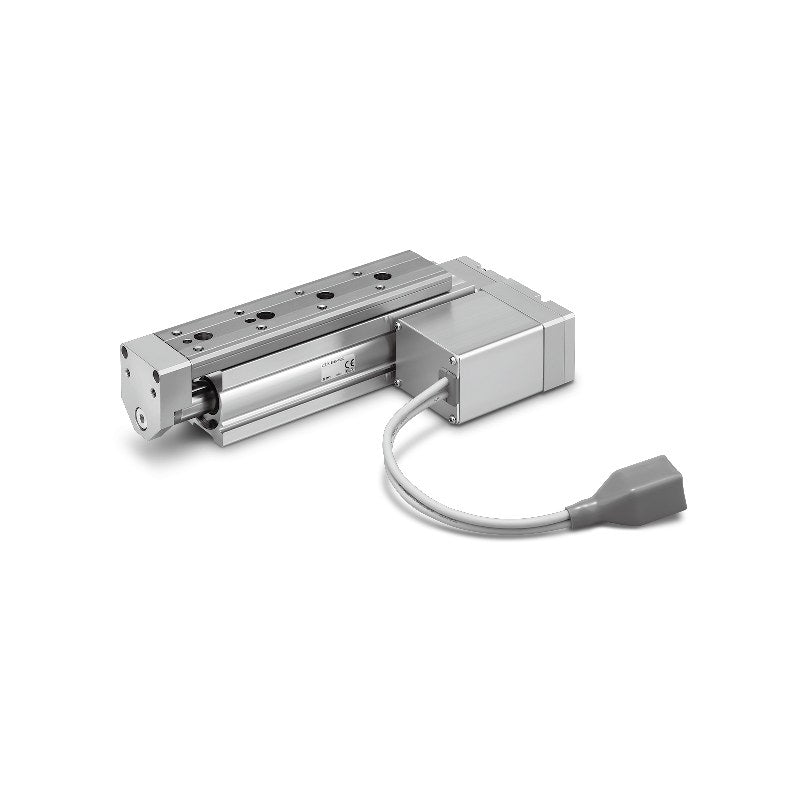

SMC LESYH-G High-Speed Tact Electric Slide Table (High Precision, 8-25)

SMC LESYH-G High-Speed Tact Electric Slide Table (High Precision, 8-25)

SMC LESYH-G high precision electric slide table with a high-speed tact battery-less absolute step motor (DC24V), sizes 8, 16 and 25, for shorter cycle times.

Key features

  • High-speed tact motor (G): max. speed 800 mm/s and acceleration 10,000 mm/s² (horizontal), about twice the standard LESYH
  • Battery-less absolute encoder: position retained at power off, no return to origin or backup battery needed
  • Ball screw drive with recirculating linear guide; repeatability ±0.01 mm, lost motion 0.1 mm or less
  • Motor mounted in-line (size 8 with four motor cover directions) or right/left side parallel; lock option (W) for vertical use
  • Compatible with auto switches D-M9, D-M9E, D-M9W (ordered separately)
  • Dedicated controllers JXC5H/6H (parallel I/O), JXCEH/9H/PH (EtherCAT, EtherNet/IP, PROFINET) and robot cable (R1-RC, 1.5 to 20 m) are ordered as suffixes, not listed

Specifications

Motor High-speed tact step motor (servo/DC24V), battery-less absolute
Drive Ball screw (in-line), ball screw + belt (R, L)
Guide Linear guide (circulating)
Repeatability ±0.01 mm
Lost motion 0.1 mm or less
Max. acceleration/deceleration 10,000 mm/s² horizontal, 5,000 mm/s² vertical
Max. speed 800 mm/s (lead A)
Max. work load (horizontal) 2 kg (8), 8 kg (16), 12 kg (25)
Motor size 28 (8), 42 (16), 56 (25)
Enclosure IP40
Power supply voltage DC24V ±10%
Source SMC Korea catalog CAT.KS100-149A (SMCKR_LESYHG.pdf), p. 17-19 (PDF p. 19-21)
LESYH8D1GA-50C Size: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1GA-50W Size: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1GA-75C Size: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1GA-75W Size: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1GB-50C Size: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1GB-50W Size: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1GB-75C Size: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1GB-75W Size: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1GC-50C Size: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1GC-50W Size: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1GC-75C Size: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1GC-75W Size: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2GA-50C Size: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2GA-50W Size: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2GA-75C Size: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2GA-75W Size: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2GB-50C Size: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2GB-50W Size: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2GB-75C Size: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2GB-75W Size: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2GC-50C Size: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2GC-50W Size: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2GC-75C Size: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2GC-75W Size: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3GA-50C Size: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3GA-50W Size: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3GA-75C Size: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3GA-75W Size: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3GB-50C Size: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3GB-50W Size: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3GB-75C Size: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3GB-75W Size: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3GC-50C Size: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3GC-50W Size: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3GC-75C Size: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3GC-75W Size: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4GA-50C Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4GA-50W Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4GA-75C Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4GA-75W Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4GB-50C Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4GB-50W Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4GB-75C Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4GB-75W Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4GC-50C Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4GC-50W Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4GC-75C Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4GC-75W Size: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8RGA-50C Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8RGA-50W Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8RGA-75C Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8RGA-75W Size: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8RGB-50C Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8RGB-50W Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8RGB-75C Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8RGB-75W Size: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8RGC-50C Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8RGC-50W Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8RGC-75C Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8RGC-75W Size: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LGA-50C Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LGA-50W Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LGA-75C Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LGA-75W Size: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LGB-50C Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LGB-50W Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LGB-75C Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LGB-75W Size: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LGC-50C Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LGC-50W Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LGC-75C Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LGC-75W Size: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH16DGA-50C Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DGA-50W Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DGA-100C Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DGA-100W Size: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16DGB-50C Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DGB-50W Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DGB-100C Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DGB-100W Size: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16RGA-50C Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16RGA-50W Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16RGA-100C Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16RGA-100W Size: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16RGB-50C Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16RGB-50W Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16RGB-100C Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16RGB-100W Size: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LGA-50C Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LGA-50W Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LGA-100C Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LGA-100W Size: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LGB-50C Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LGB-50W Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LGB-100C Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LGB-100W Size: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DGA-50C Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DGA-50W Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DGA-100C Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DGA-100W Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DGA-150C Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DGA-150W Size: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25DGB-50C Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DGB-50W Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DGB-100C Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DGB-100W Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DGB-150C Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DGB-150W Size: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25RGA-50C Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25RGA-50W Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25RGA-100C Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25RGA-100W Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25RGA-150C Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25RGA-150W Size: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25RGB-50C Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25RGB-50W Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25RGB-100C Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25RGB-100W Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25RGB-150C Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25RGB-150W Size: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LGA-50C Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LGA-50W Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LGA-100C Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LGA-100W Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LGA-150C Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LGA-150W Size: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LGB-50C Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LGB-50W Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LGB-100C Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LGB-100W Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LGB-150C Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LGB-150W Size: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
Electric ActuatorsSMC
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LESYH-G High-Speed Tact Electric Slide Table (High Precision, 8-25)

Brand SMC·Electric Actuators

Available part numbers (132)

LESYH8D1GA-50C, LESYH8D1GA-50W, LESYH8D1GA-75C, LESYH8D1GA-75W, LESYH8D1GB-50C, LESYH8D1GB-50W, LESYH8D1GB-75C, LESYH8D1GB-75W, LESYH8D1GC-50C, LESYH8D1GC-50W + 122 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LESYH8D1GA-50CSize: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1GA-50WSize: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1GA-75CSize: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1GA-75WSize: 8 | Motor mounting: In-line, motor cover left | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1GB-50CSize: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1GB-50WSize: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1GB-75CSize: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1GB-75WSize: 8 | Motor mounting: In-line, motor cover left | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D1GC-50CSize: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D1GC-50WSize: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D1GC-75CSize: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D1GC-75WSize: 8 | Motor mounting: In-line, motor cover left | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2GA-50CSize: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2GA-50WSize: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2GA-75CSize: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2GA-75WSize: 8 | Motor mounting: In-line, motor cover right | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2GB-50CSize: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2GB-50WSize: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2GB-75CSize: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2GB-75WSize: 8 | Motor mounting: In-line, motor cover right | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D2GC-50CSize: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D2GC-50WSize: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D2GC-75CSize: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D2GC-75WSize: 8 | Motor mounting: In-line, motor cover right | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3GA-50CSize: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3GA-50WSize: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3GA-75CSize: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3GA-75WSize: 8 | Motor mounting: In-line, motor cover top | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3GB-50CSize: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3GB-50WSize: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3GB-75CSize: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3GB-75WSize: 8 | Motor mounting: In-line, motor cover top | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D3GC-50CSize: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D3GC-50WSize: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D3GC-75CSize: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D3GC-75WSize: 8 | Motor mounting: In-line, motor cover top | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4GA-50CSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4GA-50WSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4GA-75CSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4GA-75WSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4GB-50CSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4GB-50WSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4GB-75CSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4GB-75WSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8D4GC-50CSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8D4GC-50WSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8D4GC-75CSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8D4GC-75WSize: 8 | Motor mounting: In-line, motor cover bottom | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8RGA-50CSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8RGA-50WSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8RGA-75CSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8RGA-75WSize: 8 | Motor mounting: Right side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8RGB-50CSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8RGB-50WSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8RGB-75CSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8RGB-75WSize: 8 | Motor mounting: Right side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8RGC-50CSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8RGC-50WSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8RGC-75CSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8RGC-75WSize: 8 | Motor mounting: Right side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LGA-50CSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LGA-50WSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LGA-75CSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LGA-75WSize: 8 | Motor mounting: Left side parallel | Lead: 10 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LGB-50CSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LGB-50WSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LGB-75CSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LGB-75WSize: 8 | Motor mounting: Left side parallel | Lead: 5 mm | Stroke: 75 mm | Motor option: With lock
LESYH8LGC-50CSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: Without lock
LESYH8LGC-50WSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock
LESYH8LGC-75CSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: Without lock
LESYH8LGC-75WSize: 8 | Motor mounting: Left side parallel | Lead: 2.5 mm | Stroke: 75 mm | Motor option: With lock
LESYH16DGA-50CSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DGA-50WSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DGA-100CSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DGA-100WSize: 16 | Motor mounting: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16DGB-50CSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16DGB-50WSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16DGB-100CSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16DGB-100WSize: 16 | Motor mounting: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16RGA-50CSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16RGA-50WSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16RGA-100CSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16RGA-100WSize: 16 | Motor mounting: Right side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16RGB-50CSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16RGB-50WSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16RGB-100CSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16RGB-100WSize: 16 | Motor mounting: Right side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LGA-50CSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LGA-50WSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LGA-100CSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LGA-100WSize: 16 | Motor mounting: Left side parallel | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock
LESYH16LGB-50CSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: Without lock
LESYH16LGB-50WSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock
LESYH16LGB-100CSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: Without lock
LESYH16LGB-100WSize: 16 | Motor mounting: Left side parallel | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DGA-50CSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DGA-50WSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DGA-100CSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DGA-100WSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DGA-150CSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DGA-150WSize: 25 | Motor mounting: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25DGB-50CSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25DGB-50WSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25DGB-100CSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25DGB-100WSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25DGB-150CSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25DGB-150WSize: 25 | Motor mounting: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25RGA-50CSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25RGA-50WSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25RGA-100CSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25RGA-100WSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25RGA-150CSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25RGA-150WSize: 25 | Motor mounting: Right side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25RGB-50CSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25RGB-50WSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25RGB-100CSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25RGB-100WSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25RGB-150CSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25RGB-150WSize: 25 | Motor mounting: Right side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LGA-50CSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LGA-50WSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LGA-100CSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LGA-100WSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LGA-150CSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LGA-150WSize: 25 | Motor mounting: Left side parallel | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock
LESYH25LGB-50CSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: Without lock
LESYH25LGB-50WSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock
LESYH25LGB-100CSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: Without lock
LESYH25LGB-100WSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock
LESYH25LGB-150CSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: Without lock
LESYH25LGB-150WSize: 25 | Motor mounting: Left side parallel | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
