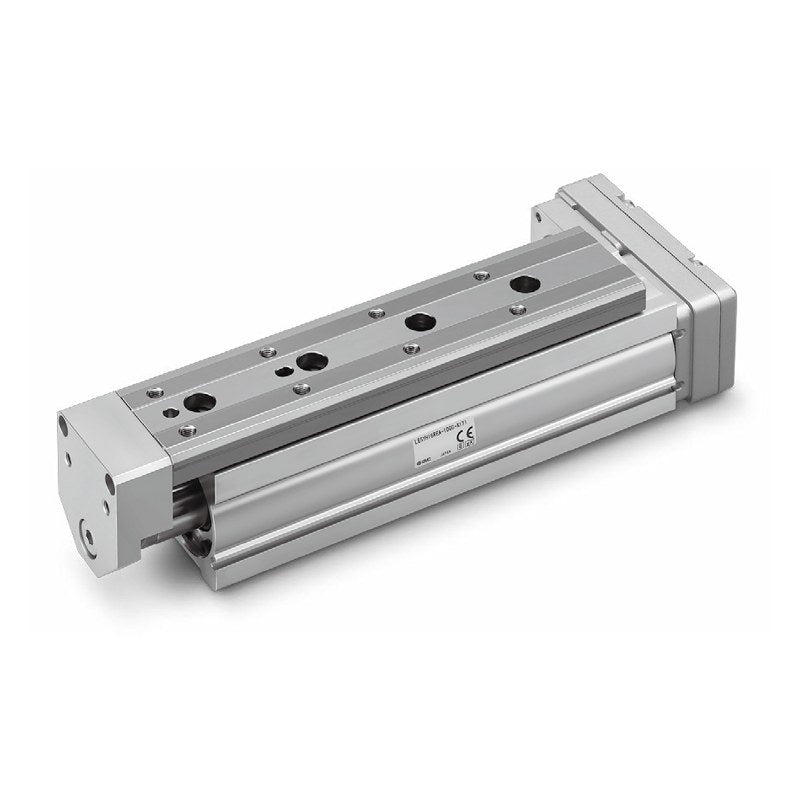

SMC LESYH Electric Slide Table, High Precision, Motorless (16/25)

SMC LESYH Electric Slide Table, High Precision, Motorless (16/25)

SMC LESYH high-precision electric slide table, sizes 16 and 25, supplied without motor, in straight or right/left side parallel motor layout.

Key features

  • Motorless specification: choose the motor mounting type that matches your servo/stepping motor and driver
  • Circulating linear guide slide table; repeatability ±0.01 mm
  • Straight (D, ball screw) or right/left side parallel (R/L, ball screw + belt) motor layout
  • Mounting symbols NZ to NM3 fit the customer's own servo or stepping motor; the motor makers shown are representative examples from the catalog compatibility table (19 makers incl. Mitsubishi, Yaskawa, Sanyo, Omron, Panasonic, FANUC, Nidec, Keyence, Fuji, Minebea Mitsumi, Shinano Kenshi, Oriental Motor, FASTECH, Rockwell, Beckhoff, Siemens, Delta, ANCA, Muscle) - check motor flange dimensions before selecting
  • Size 25 parallel types use pulley ratio 1.25:1 (except NM1); Motor flange option kits (LEF-MF / LEY-MF / LESYH-MF) allow later conversion between mounting types (except NM1, NM3)

Specifications

Repeatability ±0.01 mm
Lost motion 0.1 mm or less
Guide Linear guide (circulating)
Reference motor AC servo 100 W (16), 200 W (25)
Operating temperature 5 to 40°C
Operating humidity 90% RH or less (no condensation)
Source SMC Korea catalog CAT.KS100-111E (SMCKR_motorless.pdf), p. 205-208 (PDF p. 212-215)
LESYH16DNZA-50 Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNZA-100 Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNZB-50 Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNZB-100 Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNYA-50 Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNYA-100 Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNYB-50 Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNYB-100 Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNXA-50 Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNXA-100 Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNXB-50 Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNXB-100 Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNM1A-50 Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNM1A-100 Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNM1B-50 Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNM1B-100 Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNM2A-50 Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNM2A-100 Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNM2B-50 Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNM2B-100 Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNZA-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNZA-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNZB-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNZB-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNYA-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNYA-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNYB-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNYB-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNXA-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNXA-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNXB-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNXB-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNM1A-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNM1A-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNM1B-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNM1B-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNM2A-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNM2A-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNM2B-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNM2B-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNM3A-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNM3A-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNM3B-50 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNM3B-100 Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNZA-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNZA-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNZB-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNZB-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNYA-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNYA-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNYB-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNYB-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNXA-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNXA-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNXB-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNXB-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNM1A-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNM1A-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNM1B-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNM1B-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNM2A-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNM2A-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNM2B-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNM2B-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNM3A-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNM3A-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNM3B-50 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNM3B-100 Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH25DNZA-50 Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNZA-100 Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNZA-150 Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNZB-50 Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNZB-100 Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNZB-150 Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNYA-50 Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNYA-100 Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNYA-150 Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNYB-50 Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNYB-100 Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNYB-150 Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNXA-50 Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNXA-100 Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNXA-150 Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNXB-50 Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNXB-100 Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNXB-150 Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNWA-50 Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNWA-100 Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNWA-150 Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNWB-50 Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNWB-100 Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNWB-150 Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNVA-50 Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNVA-100 Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNVA-150 Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNVB-50 Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNVB-100 Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNVB-150 Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNUA-50 Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNUA-100 Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNUA-150 Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNUB-50 Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNUB-100 Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNUB-150 Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNTA-50 Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNTA-100 Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNTA-150 Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNTB-50 Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNTB-100 Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNTB-150 Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNM1A-50 Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNM1A-100 Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNM1A-150 Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNM1B-50 Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNM1B-100 Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNM1B-150 Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNM2A-50 Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNM2A-100 Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNM2A-150 Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNM2B-50 Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNM2B-100 Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNM2B-150 Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25RNZA-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNZA-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNZA-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNZB-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNZB-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNZB-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNYA-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNYA-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNYA-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNYB-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNYB-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNYB-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNWA-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNWA-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNWA-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNWB-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNWB-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNWB-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNUA-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNUA-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNUA-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNUB-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNUB-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNUB-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNTA-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNTA-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNTA-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNTB-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNTB-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNTB-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNM1A-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25RNM1A-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25RNM1A-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25RNM1B-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25RNM1B-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25RNM1B-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25RNM2A-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNM2A-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNM2A-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNM2B-50 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNM2B-100 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNM2B-150 Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNZA-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNZA-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNZA-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNZB-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNZB-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNZB-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNYA-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNYA-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNYA-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNYB-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNYB-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNYB-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNWA-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNWA-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNWA-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNWB-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNWB-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNWB-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNUA-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNUA-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNUA-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNUB-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNUB-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNUB-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNTA-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNTA-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNTA-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNTB-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNTB-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNTB-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNM1A-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25LNM1A-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25LNM1A-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25LNM1B-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25LNM1B-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25LNM1B-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25LNM2A-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNM2A-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNM2A-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNM2B-50 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNM2B-100 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNM2B-150 Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
Electric ActuatorsSMC
206 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LESYH Electric Slide Table, High Precision, Motorless (16/25)

Brand SMC·Electric Actuators

Available part numbers (206)

LESYH16DNZA-50, LESYH16DNZA-100, LESYH16DNZB-50, LESYH16DNZB-100, LESYH16DNYA-50, LESYH16DNYA-100, LESYH16DNYB-50, LESYH16DNYB-100, LESYH16DNXA-50, LESYH16DNXA-100 + 196 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LESYH16DNZA-50Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNZA-100Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNZB-50Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNZB-100Size: 16 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNYA-50Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNYA-100Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNYB-50Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNYB-100Size: 16 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNXA-50Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNXA-100Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNXB-50Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNXB-100Size: 16 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNM1A-50Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNM1A-100Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNM1B-50Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNM1B-100Size: 16 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16DNM2A-50Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16DNM2A-100Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16DNM2B-50Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16DNM2B-100Size: 16 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNZA-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNZA-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNZB-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNZB-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNYA-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNYA-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNYB-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNYB-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNXA-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNXA-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNXB-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNXB-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNM1A-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNM1A-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNM1B-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNM1B-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNM2A-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNM2A-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNM2B-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNM2B-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16RNM3A-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16RNM3A-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16RNM3B-50Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16RNM3B-100Size: 16 | Motor layout: Right side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNZA-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNZA-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNZB-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNZB-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNYA-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNYA-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNYB-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNYB-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNXA-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNXA-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNXB-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNXB-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNM1A-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNM1A-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNM1B-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNM1B-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNM2A-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNM2A-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNM2B-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNM2B-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH16LNM3A-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 50 mm
LESYH16LNM3A-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 12 mm (A) | Stroke: 100 mm
LESYH16LNM3B-50Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 50 mm
LESYH16LNM3B-100Size: 16 | Motor layout: Left side parallel | Motor mounting: NM3 (stepping: Minebea/Shinano) | Lead: 6 mm (B) | Stroke: 100 mm
LESYH25DNZA-50Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNZA-100Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNZA-150Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNZB-50Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNZB-100Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNZB-150Size: 25 | Motor layout: Straight | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNYA-50Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNYA-100Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNYA-150Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNYB-50Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNYB-100Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNYB-150Size: 25 | Motor layout: Straight | Motor mounting: NY (Omron/Panasonic) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNXA-50Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNXA-100Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNXA-150Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNXB-50Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNXB-100Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNXB-150Size: 25 | Motor layout: Straight | Motor mounting: NX (Siemens/Rockwell/Beckhoff) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNWA-50Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNWA-100Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNWA-150Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNWB-50Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNWB-100Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNWB-150Size: 25 | Motor layout: Straight | Motor mounting: NW (FANUC) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNVA-50Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNVA-100Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNVA-150Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNVB-50Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNVB-100Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNVB-150Size: 25 | Motor layout: Straight | Motor mounting: NV (Beckhoff AM30) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNUA-50Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNUA-100Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNUA-150Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNUB-50Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNUB-100Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNUB-150Size: 25 | Motor layout: Straight | Motor mounting: NU (Beckhoff AM31) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNTA-50Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNTA-100Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNTA-150Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNTB-50Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNTB-100Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNTB-150Size: 25 | Motor layout: Straight | Motor mounting: NT (Rockwell TL) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNM1A-50Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNM1A-100Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNM1A-150Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNM1B-50Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNM1B-100Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNM1B-150Size: 25 | Motor layout: Straight | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25DNM2A-50Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25DNM2A-100Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25DNM2A-150Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25DNM2B-50Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25DNM2B-100Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25DNM2B-150Size: 25 | Motor layout: Straight | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25RNZA-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNZA-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNZA-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNZB-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNZB-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNZB-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNYA-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNYA-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNYA-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNYB-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNYB-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNYB-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNWA-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNWA-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNWA-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNWB-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNWB-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNWB-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNUA-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNUA-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNUA-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNUB-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNUB-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNUB-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNTA-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNTA-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNTA-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNTB-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNTB-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNTB-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNM1A-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25RNM1A-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25RNM1A-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25RNM1B-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25RNM1B-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25RNM1B-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25RNM2A-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNM2A-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNM2A-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25RNM2B-50Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25RNM2B-100Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25RNM2B-150Size: 25 | Motor layout: Right side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNZA-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNZA-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNZA-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNZB-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNZB-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNZB-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NZ (Mitsubishi/Yaskawa/Sanyo etc.) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNYA-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNYA-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNYA-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNYB-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNYB-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNYB-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NY (Omron/Panasonic) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNWA-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNWA-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNWA-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNWB-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNWB-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNWB-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NW (FANUC) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNUA-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNUA-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNUA-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNUB-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNUB-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNUB-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NU (Beckhoff AM31) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNTA-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNTA-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNTA-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNTB-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNTB-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNTB-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NT (Rockwell TL) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNM1A-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 50 mm
LESYH25LNM1A-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 100 mm
LESYH25LNM1A-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 16 mm (A) | Stroke: 150 mm
LESYH25LNM1B-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 50 mm
LESYH25LNM1B-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 100 mm
LESYH25LNM1B-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NM1 (stepping: Minebea/FASTECH etc.) | Lead: 8 mm (B) | Stroke: 150 mm
LESYH25LNM2A-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNM2A-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNM2A-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 20 mm (A, pulley 1.25:1) | Stroke: 150 mm
LESYH25LNM2B-50Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 50 mm
LESYH25LNM2B-100Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 100 mm
LESYH25LNM2B-150Size: 25 | Motor layout: Left side parallel | Motor mounting: NM2 (Oriental Motor alphaSTEP) | Lead: 10 mm (B, pulley 1.25:1) | Stroke: 150 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
