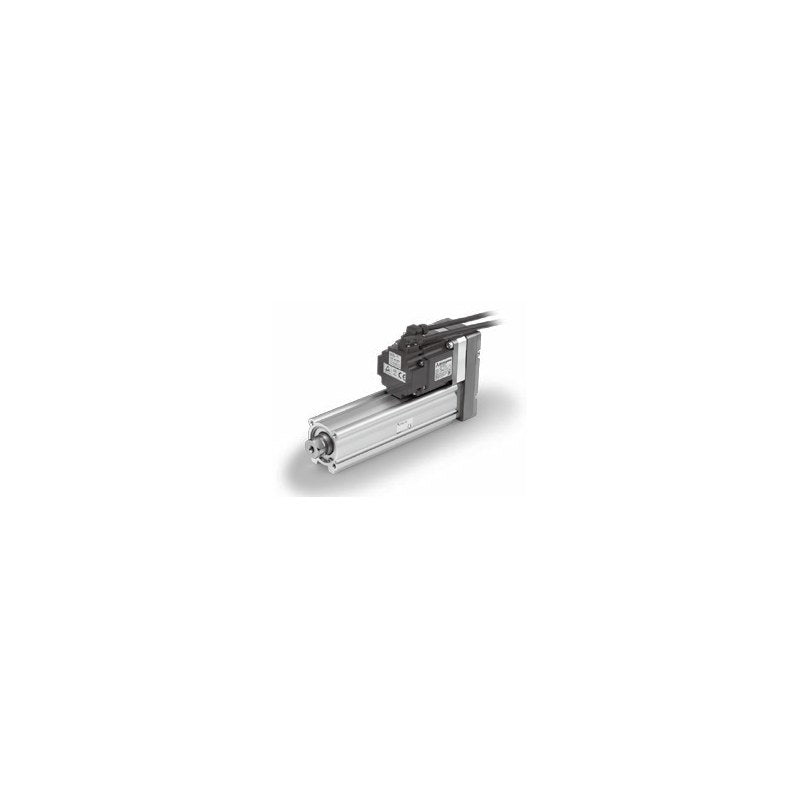

SMC LEY Electric Actuator, Rod Type (AC Servo LECS, Size 25/32)

SMC LEY series rod type electric actuator with 100 W or 200 W AC servo motor for LECS series drivers, sizes 25 and 32.

Key features

High-output AC servo motors with high-speed transfer and acceleration/deceleration up to 5000 mm/s²
Four motor layouts: parallel top, right or left mounting, or in-line; motor option lock (B)
High-precision type (H prefix, repeatability ±0.01 mm) and IP65-equivalent dust/drip-proof option (P, size 63) are available on order
Rod end female thread standard; male thread (M, with one rod end nut) is a suffix option
Mounting (end/body bottom tapped standard; foot L, rod flange F, head flange G, double clevis D) is ordered as a suffix and shipped unassembled
AC servo driver (LECSA, LECSB2-T, LECSC2-T, LECSS2-T, LECSN2-T), motor/encoder cable (standard or robot, 2/5/10 m) and I/O cable are ordered as suffixes; codes listed are actuator only

Specifications

Motor type	AC servo motor (AC100/200V)
Encoder	S2/S3: incremental 17-bit; T6/T7: absolute 22-bit
Repeatability	±0.02 mm (high-precision type ±0.01 mm)
Lost motion	0.1 mm or less
Max. acceleration/deceleration	5000 mm/s²
Max. speed	1200 mm/s (size 32, lead 20)
Drive	Ball screw + belt (parallel), ball screw (in-line)
Guide	Slide bushing (piston rod)
Operating temperature	5 to 40°C
Enclosure	IP40
Source	SMC Korea electric actuator catalog (SMCKR_LEY.pdf), p. 473-476 (PDF p. 62-65)

LEY25S2A-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25S2A-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25S2A-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25S2A-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25S2A-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25S2A-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25S2A-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25S2A-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25S2A-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25S2A-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25S2A-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25S2A-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25S2A-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25S2A-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25S2A-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25S2A-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25S2A-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25S2A-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25S2B-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25S2B-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25S2B-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25S2B-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25S2B-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25S2B-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25S2B-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25S2B-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25S2B-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25S2B-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25S2B-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25S2B-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25S2B-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25S2B-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25S2B-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25S2B-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25S2B-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25S2B-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25S2C-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25S2C-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25S2C-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25S2C-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25S2C-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25S2C-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25S2C-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25S2C-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25S2C-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25S2C-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25S2C-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25S2C-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25S2C-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25S2C-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25S2C-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25S2C-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25S2C-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25S2C-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RS2A-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25RS2A-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RS2A-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25RS2A-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RS2A-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25RS2A-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RS2A-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25RS2A-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RS2A-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25RS2A-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RS2A-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25RS2A-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RS2A-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25RS2A-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RS2A-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25RS2A-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RS2A-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25RS2A-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RS2B-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25RS2B-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RS2B-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25RS2B-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RS2B-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25RS2B-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RS2B-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25RS2B-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RS2B-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25RS2B-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RS2B-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25RS2B-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RS2B-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25RS2B-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RS2B-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25RS2B-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RS2B-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25RS2B-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RS2C-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25RS2C-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RS2C-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25RS2C-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RS2C-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25RS2C-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RS2C-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25RS2C-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RS2C-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25RS2C-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RS2C-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25RS2C-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RS2C-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25RS2C-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RS2C-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25RS2C-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RS2C-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25RS2C-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LS2A-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25LS2A-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LS2A-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25LS2A-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LS2A-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25LS2A-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LS2A-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25LS2A-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LS2A-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25LS2A-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LS2A-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25LS2A-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LS2A-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25LS2A-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LS2A-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25LS2A-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LS2A-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25LS2A-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LS2B-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25LS2B-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LS2B-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25LS2B-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LS2B-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25LS2B-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LS2B-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25LS2B-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LS2B-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25LS2B-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LS2B-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25LS2B-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LS2B-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25LS2B-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LS2B-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25LS2B-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LS2B-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25LS2B-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LS2C-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25LS2C-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LS2C-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25LS2C-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LS2C-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25LS2C-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LS2C-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25LS2C-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LS2C-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25LS2C-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LS2C-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25LS2C-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LS2C-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25LS2C-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LS2C-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25LS2C-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LS2C-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25LS2C-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DS2A-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25DS2A-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DS2A-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25DS2A-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DS2A-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25DS2A-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DS2A-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25DS2A-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DS2A-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25DS2A-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DS2A-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25DS2A-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DS2A-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25DS2A-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DS2A-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25DS2A-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DS2A-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25DS2A-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DS2B-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25DS2B-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DS2B-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25DS2B-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DS2B-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25DS2B-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DS2B-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25DS2B-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DS2B-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25DS2B-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DS2B-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25DS2B-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DS2B-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25DS2B-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DS2B-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25DS2B-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DS2B-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25DS2B-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DS2C-30		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25DS2C-30B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DS2C-50		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25DS2C-50B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DS2C-100		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25DS2C-100B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DS2C-150		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25DS2C-150B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DS2C-200		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25DS2C-200B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DS2C-250		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25DS2C-250B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DS2C-300		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25DS2C-300B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DS2C-350		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25DS2C-350B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DS2C-400		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25DS2C-400B		Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25T6A-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25T6A-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25T6A-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25T6A-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25T6A-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25T6A-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25T6A-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25T6A-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25T6A-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25T6A-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25T6A-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25T6A-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25T6A-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25T6A-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25T6A-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25T6A-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25T6A-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25T6A-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25T6B-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25T6B-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25T6B-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25T6B-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25T6B-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25T6B-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25T6B-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25T6B-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25T6B-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25T6B-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25T6B-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25T6B-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25T6B-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25T6B-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25T6B-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25T6B-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25T6B-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25T6B-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25T6C-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25T6C-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25T6C-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25T6C-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25T6C-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25T6C-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25T6C-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25T6C-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25T6C-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25T6C-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25T6C-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25T6C-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25T6C-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25T6C-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25T6C-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25T6C-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25T6C-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25T6C-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RT6A-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25RT6A-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RT6A-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25RT6A-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RT6A-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25RT6A-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RT6A-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25RT6A-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RT6A-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25RT6A-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RT6A-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25RT6A-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RT6A-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25RT6A-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RT6A-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25RT6A-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RT6A-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25RT6A-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RT6B-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25RT6B-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RT6B-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25RT6B-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RT6B-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25RT6B-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RT6B-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25RT6B-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RT6B-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25RT6B-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RT6B-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25RT6B-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RT6B-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25RT6B-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RT6B-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25RT6B-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RT6B-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25RT6B-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25RT6C-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25RT6C-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25RT6C-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25RT6C-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25RT6C-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25RT6C-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25RT6C-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25RT6C-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25RT6C-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25RT6C-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25RT6C-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25RT6C-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25RT6C-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25RT6C-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25RT6C-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25RT6C-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25RT6C-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25RT6C-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LT6A-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25LT6A-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LT6A-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25LT6A-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LT6A-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25LT6A-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LT6A-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25LT6A-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LT6A-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25LT6A-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LT6A-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25LT6A-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LT6A-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25LT6A-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LT6A-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25LT6A-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LT6A-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25LT6A-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LT6B-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25LT6B-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LT6B-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25LT6B-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LT6B-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25LT6B-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LT6B-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25LT6B-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LT6B-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25LT6B-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LT6B-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25LT6B-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LT6B-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25LT6B-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LT6B-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25LT6B-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LT6B-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25LT6B-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25LT6C-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25LT6C-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25LT6C-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25LT6C-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25LT6C-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25LT6C-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25LT6C-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25LT6C-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25LT6C-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25LT6C-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25LT6C-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25LT6C-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25LT6C-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25LT6C-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25LT6C-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25LT6C-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25LT6C-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25LT6C-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DT6A-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
LEY25DT6A-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DT6A-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
LEY25DT6A-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DT6A-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
LEY25DT6A-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DT6A-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
LEY25DT6A-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DT6A-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
LEY25DT6A-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DT6A-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
LEY25DT6A-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DT6A-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
LEY25DT6A-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DT6A-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
LEY25DT6A-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DT6A-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
LEY25DT6A-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DT6B-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
LEY25DT6B-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DT6B-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
LEY25DT6B-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DT6B-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
LEY25DT6B-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DT6B-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
LEY25DT6B-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DT6B-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
LEY25DT6B-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DT6B-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
LEY25DT6B-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DT6B-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
LEY25DT6B-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DT6B-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
LEY25DT6B-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DT6B-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
LEY25DT6B-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
LEY25DT6C-30		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
LEY25DT6C-30B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
LEY25DT6C-50		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
LEY25DT6C-50B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
LEY25DT6C-100		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
LEY25DT6C-100B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
LEY25DT6C-150		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
LEY25DT6C-150B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
LEY25DT6C-200		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
LEY25DT6C-200B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
LEY25DT6C-250		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
LEY25DT6C-250B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
LEY25DT6C-300		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
LEY25DT6C-300B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
LEY25DT6C-350		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
LEY25DT6C-350B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
LEY25DT6C-400		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
LEY25DT6C-400B		Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32S3A-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32S3A-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32S3A-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32S3A-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32S3A-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32S3A-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32S3A-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32S3A-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32S3A-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32S3A-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32S3A-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32S3A-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32S3A-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32S3A-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32S3A-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32S3A-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32S3A-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32S3A-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32S3A-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32S3A-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32S3A-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32S3A-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32S3B-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32S3B-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32S3B-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32S3B-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32S3B-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32S3B-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32S3B-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32S3B-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32S3B-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32S3B-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32S3B-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32S3B-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32S3B-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32S3B-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32S3B-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32S3B-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32S3B-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32S3B-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32S3B-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32S3B-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32S3B-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32S3B-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32S3C-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32S3C-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32S3C-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32S3C-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32S3C-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32S3C-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32S3C-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32S3C-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32S3C-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32S3C-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32S3C-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32S3C-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32S3C-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32S3C-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32S3C-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32S3C-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32S3C-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32S3C-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32S3C-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32S3C-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32S3C-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32S3C-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RS3A-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32RS3A-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RS3A-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32RS3A-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RS3A-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32RS3A-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RS3A-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32RS3A-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RS3A-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32RS3A-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RS3A-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32RS3A-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RS3A-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32RS3A-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RS3A-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32RS3A-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RS3A-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32RS3A-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RS3A-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32RS3A-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RS3A-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32RS3A-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RS3B-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32RS3B-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RS3B-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32RS3B-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RS3B-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32RS3B-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RS3B-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32RS3B-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RS3B-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32RS3B-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RS3B-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32RS3B-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RS3B-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32RS3B-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RS3B-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32RS3B-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RS3B-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32RS3B-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RS3B-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32RS3B-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RS3B-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32RS3B-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RS3C-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32RS3C-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RS3C-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32RS3C-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RS3C-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32RS3C-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RS3C-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32RS3C-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RS3C-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32RS3C-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RS3C-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32RS3C-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RS3C-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32RS3C-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RS3C-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32RS3C-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RS3C-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32RS3C-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RS3C-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32RS3C-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RS3C-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32RS3C-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LS3A-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32LS3A-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LS3A-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32LS3A-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LS3A-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32LS3A-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LS3A-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32LS3A-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LS3A-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32LS3A-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LS3A-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32LS3A-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LS3A-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32LS3A-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LS3A-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32LS3A-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LS3A-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32LS3A-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LS3A-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32LS3A-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LS3A-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32LS3A-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LS3B-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32LS3B-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LS3B-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32LS3B-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LS3B-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32LS3B-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LS3B-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32LS3B-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LS3B-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32LS3B-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LS3B-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32LS3B-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LS3B-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32LS3B-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LS3B-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32LS3B-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LS3B-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32LS3B-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LS3B-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32LS3B-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LS3B-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32LS3B-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LS3C-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32LS3C-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LS3C-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32LS3C-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LS3C-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32LS3C-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LS3C-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32LS3C-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LS3C-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32LS3C-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LS3C-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32LS3C-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LS3C-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32LS3C-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LS3C-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32LS3C-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LS3C-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32LS3C-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LS3C-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32LS3C-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LS3C-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32LS3C-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DS3A-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32DS3A-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DS3A-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32DS3A-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DS3A-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32DS3A-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DS3A-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32DS3A-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DS3A-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32DS3A-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DS3A-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32DS3A-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DS3A-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32DS3A-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DS3A-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32DS3A-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DS3A-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32DS3A-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DS3A-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32DS3A-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DS3A-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32DS3A-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DS3B-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32DS3B-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DS3B-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32DS3B-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DS3B-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32DS3B-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DS3B-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32DS3B-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DS3B-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32DS3B-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DS3B-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32DS3B-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DS3B-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32DS3B-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DS3B-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32DS3B-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DS3B-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32DS3B-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DS3B-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32DS3B-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DS3B-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32DS3B-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DS3C-30		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32DS3C-30B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DS3C-50		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32DS3C-50B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DS3C-100		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32DS3C-100B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DS3C-150		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32DS3C-150B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DS3C-200		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32DS3C-200B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DS3C-250		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32DS3C-250B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DS3C-300		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32DS3C-300B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DS3C-350		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32DS3C-350B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DS3C-400		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32DS3C-400B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DS3C-450		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32DS3C-450B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DS3C-500		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32DS3C-500B		Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32T7A-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32T7A-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32T7A-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32T7A-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32T7A-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32T7A-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32T7A-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32T7A-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32T7A-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32T7A-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32T7A-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32T7A-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32T7A-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32T7A-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32T7A-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32T7A-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32T7A-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32T7A-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32T7A-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32T7A-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32T7A-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32T7A-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32T7B-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32T7B-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32T7B-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32T7B-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32T7B-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32T7B-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32T7B-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32T7B-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32T7B-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32T7B-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32T7B-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32T7B-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32T7B-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32T7B-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32T7B-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32T7B-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32T7B-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32T7B-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32T7B-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32T7B-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32T7B-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32T7B-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32T7C-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32T7C-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32T7C-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32T7C-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32T7C-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32T7C-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32T7C-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32T7C-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32T7C-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32T7C-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32T7C-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32T7C-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32T7C-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32T7C-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32T7C-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32T7C-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32T7C-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32T7C-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32T7C-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32T7C-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32T7C-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32T7C-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RT7A-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32RT7A-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RT7A-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32RT7A-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RT7A-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32RT7A-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RT7A-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32RT7A-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RT7A-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32RT7A-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RT7A-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32RT7A-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RT7A-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32RT7A-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RT7A-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32RT7A-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RT7A-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32RT7A-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RT7A-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32RT7A-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RT7A-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32RT7A-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RT7B-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32RT7B-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RT7B-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32RT7B-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RT7B-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32RT7B-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RT7B-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32RT7B-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RT7B-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32RT7B-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RT7B-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32RT7B-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RT7B-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32RT7B-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RT7B-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32RT7B-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RT7B-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32RT7B-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RT7B-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32RT7B-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RT7B-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32RT7B-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32RT7C-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32RT7C-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32RT7C-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32RT7C-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32RT7C-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32RT7C-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32RT7C-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32RT7C-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32RT7C-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32RT7C-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32RT7C-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32RT7C-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32RT7C-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32RT7C-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32RT7C-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32RT7C-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32RT7C-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32RT7C-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32RT7C-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32RT7C-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32RT7C-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32RT7C-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LT7A-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
LEY32LT7A-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LT7A-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY32LT7A-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LT7A-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY32LT7A-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LT7A-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY32LT7A-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LT7A-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY32LT7A-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LT7A-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY32LT7A-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LT7A-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY32LT7A-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LT7A-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY32LT7A-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LT7A-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY32LT7A-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LT7A-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY32LT7A-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LT7A-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY32LT7A-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LT7B-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
LEY32LT7B-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LT7B-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY32LT7B-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LT7B-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY32LT7B-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LT7B-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY32LT7B-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LT7B-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY32LT7B-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LT7B-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY32LT7B-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LT7B-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY32LT7B-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LT7B-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY32LT7B-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LT7B-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY32LT7B-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LT7B-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY32LT7B-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LT7B-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY32LT7B-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32LT7C-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
LEY32LT7C-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32LT7C-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY32LT7C-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32LT7C-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY32LT7C-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32LT7C-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY32LT7C-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32LT7C-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY32LT7C-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32LT7C-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY32LT7C-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32LT7C-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY32LT7C-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32LT7C-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY32LT7C-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32LT7C-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY32LT7C-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32LT7C-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY32LT7C-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32LT7C-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY32LT7C-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DT7A-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
LEY32DT7A-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DT7A-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
LEY32DT7A-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DT7A-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
LEY32DT7A-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DT7A-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
LEY32DT7A-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DT7A-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
LEY32DT7A-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DT7A-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
LEY32DT7A-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DT7A-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
LEY32DT7A-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DT7A-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
LEY32DT7A-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DT7A-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
LEY32DT7A-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DT7A-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
LEY32DT7A-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DT7A-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
LEY32DT7A-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DT7B-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
LEY32DT7B-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DT7B-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
LEY32DT7B-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DT7B-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
LEY32DT7B-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DT7B-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
LEY32DT7B-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DT7B-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
LEY32DT7B-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DT7B-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
LEY32DT7B-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DT7B-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
LEY32DT7B-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DT7B-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
LEY32DT7B-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DT7B-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
LEY32DT7B-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DT7B-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
LEY32DT7B-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DT7B-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
LEY32DT7B-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
LEY32DT7C-30		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
LEY32DT7C-30B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
LEY32DT7C-50		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
LEY32DT7C-50B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
LEY32DT7C-100		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
LEY32DT7C-100B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
LEY32DT7C-150		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
LEY32DT7C-150B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
LEY32DT7C-200		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
LEY32DT7C-200B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
LEY32DT7C-250		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
LEY32DT7C-250B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
LEY32DT7C-300		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
LEY32DT7C-300B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
LEY32DT7C-350		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
LEY32DT7C-350B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
LEY32DT7C-400		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
LEY32DT7C-400B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
LEY32DT7C-450		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
LEY32DT7C-450B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
LEY32DT7C-500		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
LEY32DT7C-500B		Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock

Electric ActuatorsSMC

960 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY Electric Actuator, Rod Type (AC Servo LECS, Size 25/32)

Brand SMC·Electric Actuators

Available part numbers (960)

LEY25S2A-30, LEY25S2A-30B, LEY25S2A-50, LEY25S2A-50B, LEY25S2A-100, LEY25S2A-100B, LEY25S2A-150, LEY25S2A-150B, LEY25S2A-200, LEY25S2A-200B + 950 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEY25S2A-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25S2A-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25S2A-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25S2A-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25S2A-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25S2A-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25S2A-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25S2A-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25S2A-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25S2A-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25S2A-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25S2A-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25S2A-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25S2A-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25S2A-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25S2A-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25S2A-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25S2A-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25S2B-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25S2B-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25S2B-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25S2B-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25S2B-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25S2B-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25S2B-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25S2B-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25S2B-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25S2B-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25S2B-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25S2B-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25S2B-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25S2B-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25S2B-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25S2B-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25S2B-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25S2B-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25S2C-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25S2C-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25S2C-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25S2C-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25S2C-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25S2C-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25S2C-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25S2C-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25S2C-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25S2C-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25S2C-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25S2C-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25S2C-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25S2C-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25S2C-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25S2C-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25S2C-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25S2C-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RS2A-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RS2A-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RS2A-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RS2A-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RS2A-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RS2A-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RS2A-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RS2A-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RS2A-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RS2A-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RS2A-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RS2A-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RS2A-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RS2A-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RS2A-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RS2A-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RS2A-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RS2A-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RS2B-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RS2B-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RS2B-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RS2B-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RS2B-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RS2B-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RS2B-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RS2B-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RS2B-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RS2B-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RS2B-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RS2B-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RS2B-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RS2B-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RS2B-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RS2B-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RS2B-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RS2B-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RS2C-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RS2C-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RS2C-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RS2C-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RS2C-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RS2C-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RS2C-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RS2C-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RS2C-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RS2C-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RS2C-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RS2C-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RS2C-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RS2C-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RS2C-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RS2C-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RS2C-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RS2C-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LS2A-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LS2A-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LS2A-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LS2A-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LS2A-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LS2A-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LS2A-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LS2A-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LS2A-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LS2A-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LS2A-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LS2A-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LS2A-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LS2A-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LS2A-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LS2A-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LS2A-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LS2A-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LS2B-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LS2B-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LS2B-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LS2B-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LS2B-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LS2B-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LS2B-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LS2B-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LS2B-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LS2B-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LS2B-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LS2B-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LS2B-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LS2B-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LS2B-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LS2B-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LS2B-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LS2B-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LS2C-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LS2C-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LS2C-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LS2C-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LS2C-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LS2C-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LS2C-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LS2C-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LS2C-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LS2C-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LS2C-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LS2C-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LS2C-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LS2C-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LS2C-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LS2C-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LS2C-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LS2C-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DS2A-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DS2A-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DS2A-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DS2A-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DS2A-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DS2A-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DS2A-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DS2A-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DS2A-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DS2A-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DS2A-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DS2A-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DS2A-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DS2A-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DS2A-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DS2A-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DS2A-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DS2A-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DS2B-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DS2B-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DS2B-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DS2B-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DS2B-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DS2B-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DS2B-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DS2B-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DS2B-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DS2B-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DS2B-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DS2B-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DS2B-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DS2B-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DS2B-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DS2B-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DS2B-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DS2B-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DS2C-30	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DS2C-30B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DS2C-50	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DS2C-50B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DS2C-100	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DS2C-100B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DS2C-150	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DS2C-150B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DS2C-200	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DS2C-200B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DS2C-250	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DS2C-250B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DS2C-300	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DS2C-300B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DS2C-350	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DS2C-350B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DS2C-400	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DS2C-400B	Size: 25 \| Motor: 100 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25T6A-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25T6A-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25T6A-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25T6A-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25T6A-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25T6A-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25T6A-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25T6A-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25T6A-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25T6A-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25T6A-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25T6A-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25T6A-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25T6A-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25T6A-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25T6A-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25T6A-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25T6A-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25T6B-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25T6B-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25T6B-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25T6B-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25T6B-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25T6B-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25T6B-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25T6B-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25T6B-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25T6B-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25T6B-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25T6B-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25T6B-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25T6B-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25T6B-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25T6B-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25T6B-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25T6B-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25T6C-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25T6C-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25T6C-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25T6C-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25T6C-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25T6C-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25T6C-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25T6C-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25T6C-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25T6C-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25T6C-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25T6C-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25T6C-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25T6C-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25T6C-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25T6C-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25T6C-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25T6C-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RT6A-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RT6A-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RT6A-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RT6A-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RT6A-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RT6A-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RT6A-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RT6A-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RT6A-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RT6A-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RT6A-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RT6A-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RT6A-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RT6A-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RT6A-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RT6A-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RT6A-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RT6A-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RT6B-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RT6B-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RT6B-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RT6B-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RT6B-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RT6B-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RT6B-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RT6B-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RT6B-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RT6B-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RT6B-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RT6B-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RT6B-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RT6B-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RT6B-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RT6B-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RT6B-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RT6B-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25RT6C-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25RT6C-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25RT6C-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25RT6C-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25RT6C-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25RT6C-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25RT6C-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25RT6C-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25RT6C-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25RT6C-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25RT6C-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25RT6C-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25RT6C-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25RT6C-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25RT6C-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25RT6C-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25RT6C-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25RT6C-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LT6A-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LT6A-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LT6A-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LT6A-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LT6A-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LT6A-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LT6A-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LT6A-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LT6A-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LT6A-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LT6A-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LT6A-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LT6A-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LT6A-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LT6A-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LT6A-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LT6A-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LT6A-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LT6B-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LT6B-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LT6B-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LT6B-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LT6B-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LT6B-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LT6B-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LT6B-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LT6B-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LT6B-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LT6B-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LT6B-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LT6B-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LT6B-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LT6B-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LT6B-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LT6B-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LT6B-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25LT6C-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25LT6C-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25LT6C-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25LT6C-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25LT6C-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25LT6C-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25LT6C-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25LT6C-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25LT6C-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25LT6C-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25LT6C-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25LT6C-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25LT6C-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25LT6C-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25LT6C-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25LT6C-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25LT6C-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25LT6C-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DT6A-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DT6A-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DT6A-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DT6A-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DT6A-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DT6A-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DT6A-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DT6A-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DT6A-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DT6A-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DT6A-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DT6A-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DT6A-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DT6A-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DT6A-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DT6A-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DT6A-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DT6A-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 12 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DT6B-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DT6B-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DT6B-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DT6B-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DT6B-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DT6B-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DT6B-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DT6B-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DT6B-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DT6B-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DT6B-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DT6B-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DT6B-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DT6B-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DT6B-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DT6B-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DT6B-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DT6B-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 6 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY25DT6C-30	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: None
	LEY25DT6C-30B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY25DT6C-50	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: None
	LEY25DT6C-50B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY25DT6C-100	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: None
	LEY25DT6C-100B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY25DT6C-150	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: None
	LEY25DT6C-150B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY25DT6C-200	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: None
	LEY25DT6C-200B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY25DT6C-250	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: None
	LEY25DT6C-250B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY25DT6C-300	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: None
	LEY25DT6C-300B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY25DT6C-350	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: None
	LEY25DT6C-350B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY25DT6C-400	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: None
	LEY25DT6C-400B	Size: 25 \| Motor: 100 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32S3A-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32S3A-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32S3A-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32S3A-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32S3A-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32S3A-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32S3A-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32S3A-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32S3A-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32S3A-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32S3A-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32S3A-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32S3A-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32S3A-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32S3A-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32S3A-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32S3A-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32S3A-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32S3A-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32S3A-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32S3A-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32S3A-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32S3B-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32S3B-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32S3B-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32S3B-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32S3B-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32S3B-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32S3B-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32S3B-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32S3B-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32S3B-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32S3B-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32S3B-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32S3B-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32S3B-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32S3B-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32S3B-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32S3B-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32S3B-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32S3B-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32S3B-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32S3B-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32S3B-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32S3C-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32S3C-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32S3C-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32S3C-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32S3C-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32S3C-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32S3C-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32S3C-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32S3C-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32S3C-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32S3C-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32S3C-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32S3C-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32S3C-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32S3C-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32S3C-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32S3C-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32S3C-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32S3C-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32S3C-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32S3C-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32S3C-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RS3A-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RS3A-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RS3A-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RS3A-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RS3A-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RS3A-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RS3A-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RS3A-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RS3A-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RS3A-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RS3A-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RS3A-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RS3A-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RS3A-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RS3A-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RS3A-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RS3A-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RS3A-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RS3A-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RS3A-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RS3A-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RS3A-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RS3B-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RS3B-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RS3B-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RS3B-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RS3B-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RS3B-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RS3B-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RS3B-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RS3B-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RS3B-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RS3B-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RS3B-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RS3B-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RS3B-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RS3B-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RS3B-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RS3B-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RS3B-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RS3B-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RS3B-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RS3B-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RS3B-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RS3C-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RS3C-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RS3C-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RS3C-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RS3C-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RS3C-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RS3C-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RS3C-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RS3C-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RS3C-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RS3C-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RS3C-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RS3C-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RS3C-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RS3C-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RS3C-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RS3C-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RS3C-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RS3C-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RS3C-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RS3C-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RS3C-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LS3A-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LS3A-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LS3A-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LS3A-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LS3A-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LS3A-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LS3A-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LS3A-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LS3A-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LS3A-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LS3A-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LS3A-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LS3A-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LS3A-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LS3A-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LS3A-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LS3A-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LS3A-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LS3A-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LS3A-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LS3A-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LS3A-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LS3B-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LS3B-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LS3B-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LS3B-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LS3B-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LS3B-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LS3B-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LS3B-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LS3B-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LS3B-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LS3B-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LS3B-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LS3B-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LS3B-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LS3B-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LS3B-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LS3B-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LS3B-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LS3B-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LS3B-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LS3B-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LS3B-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LS3C-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LS3C-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LS3C-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LS3C-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LS3C-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LS3C-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LS3C-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LS3C-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LS3C-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LS3C-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LS3C-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LS3C-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LS3C-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LS3C-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LS3C-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LS3C-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LS3C-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LS3C-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LS3C-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LS3C-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LS3C-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LS3C-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DS3A-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DS3A-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DS3A-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DS3A-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DS3A-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DS3A-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DS3A-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DS3A-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DS3A-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DS3A-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DS3A-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DS3A-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DS3A-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DS3A-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DS3A-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DS3A-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DS3A-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DS3A-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DS3A-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DS3A-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DS3A-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DS3A-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DS3B-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DS3B-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DS3B-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DS3B-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DS3B-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DS3B-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DS3B-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DS3B-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DS3B-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DS3B-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DS3B-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DS3B-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DS3B-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DS3B-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DS3B-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DS3B-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DS3B-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DS3B-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DS3B-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DS3B-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DS3B-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DS3B-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DS3C-30	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DS3C-30B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DS3C-50	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DS3C-50B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DS3C-100	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DS3C-100B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DS3C-150	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DS3C-150B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DS3C-200	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DS3C-200B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DS3C-250	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DS3C-250B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DS3C-300	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DS3C-300B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DS3C-350	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DS3C-350B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DS3C-400	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DS3C-400B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DS3C-450	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DS3C-450B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DS3C-500	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DS3C-500B	Size: 32 \| Motor: 200 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32T7A-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32T7A-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32T7A-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32T7A-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32T7A-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32T7A-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32T7A-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32T7A-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32T7A-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32T7A-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32T7A-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32T7A-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32T7A-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32T7A-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32T7A-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32T7A-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32T7A-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32T7A-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32T7A-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32T7A-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32T7A-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32T7A-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32T7B-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32T7B-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32T7B-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32T7B-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32T7B-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32T7B-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32T7B-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32T7B-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32T7B-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32T7B-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32T7B-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32T7B-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32T7B-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32T7B-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32T7B-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32T7B-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32T7B-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32T7B-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32T7B-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32T7B-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32T7B-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32T7B-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32T7C-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32T7C-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32T7C-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32T7C-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32T7C-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32T7C-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32T7C-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32T7C-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32T7C-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32T7C-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32T7C-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32T7C-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32T7C-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32T7C-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32T7C-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32T7C-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32T7C-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32T7C-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32T7C-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32T7C-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32T7C-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32T7C-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RT7A-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RT7A-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RT7A-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RT7A-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RT7A-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RT7A-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RT7A-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RT7A-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RT7A-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RT7A-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RT7A-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RT7A-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RT7A-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RT7A-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RT7A-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RT7A-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RT7A-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RT7A-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RT7A-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RT7A-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RT7A-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RT7A-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RT7B-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RT7B-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RT7B-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RT7B-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RT7B-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RT7B-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RT7B-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RT7B-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RT7B-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RT7B-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RT7B-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RT7B-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RT7B-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RT7B-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RT7B-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RT7B-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RT7B-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RT7B-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RT7B-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RT7B-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RT7B-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RT7B-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32RT7C-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32RT7C-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32RT7C-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32RT7C-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32RT7C-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32RT7C-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32RT7C-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32RT7C-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32RT7C-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32RT7C-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32RT7C-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32RT7C-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32RT7C-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32RT7C-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32RT7C-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32RT7C-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32RT7C-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32RT7C-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32RT7C-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32RT7C-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32RT7C-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32RT7C-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LT7A-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LT7A-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LT7A-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LT7A-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LT7A-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LT7A-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LT7A-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LT7A-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LT7A-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LT7A-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LT7A-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LT7A-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LT7A-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LT7A-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LT7A-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LT7A-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LT7A-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LT7A-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LT7A-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LT7A-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LT7A-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LT7A-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LT7B-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LT7B-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LT7B-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LT7B-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LT7B-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LT7B-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LT7B-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LT7B-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LT7B-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LT7B-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LT7B-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LT7B-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LT7B-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LT7B-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LT7B-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LT7B-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LT7B-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LT7B-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LT7B-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LT7B-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LT7B-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LT7B-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32LT7C-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: None
	LEY32LT7C-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32LT7C-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY32LT7C-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32LT7C-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY32LT7C-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32LT7C-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY32LT7C-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32LT7C-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY32LT7C-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32LT7C-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY32LT7C-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32LT7C-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY32LT7C-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32LT7C-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY32LT7C-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32LT7C-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY32LT7C-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32LT7C-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY32LT7C-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32LT7C-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY32LT7C-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DT7A-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DT7A-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DT7A-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DT7A-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DT7A-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DT7A-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DT7A-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DT7A-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DT7A-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DT7A-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DT7A-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DT7A-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DT7A-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DT7A-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DT7A-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DT7A-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DT7A-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DT7A-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DT7A-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DT7A-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DT7A-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DT7A-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 16 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DT7B-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DT7B-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DT7B-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DT7B-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DT7B-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DT7B-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DT7B-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DT7B-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DT7B-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DT7B-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DT7B-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DT7B-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DT7B-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DT7B-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DT7B-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DT7B-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DT7B-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DT7B-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DT7B-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DT7B-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DT7B-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DT7B-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 8 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY32DT7C-30	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: None
	LEY32DT7C-30B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 30 mm \| Motor option: With lock
	LEY32DT7C-50	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: None
	LEY32DT7C-50B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY32DT7C-100	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: None
	LEY32DT7C-100B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY32DT7C-150	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: None
	LEY32DT7C-150B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY32DT7C-200	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: None
	LEY32DT7C-200B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY32DT7C-250	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: None
	LEY32DT7C-250B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY32DT7C-300	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: None
	LEY32DT7C-300B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY32DT7C-350	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: None
	LEY32DT7C-350B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY32DT7C-400	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: None
	LEY32DT7C-400B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY32DT7C-450	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: None
	LEY32DT7C-450B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY32DT7C-500	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: None
	LEY32DT7C-500B	Size: 32 \| Motor: 200 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 4 mm \| Stroke: 500 mm \| Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEY Electric Actuator, Rod Type (AC Servo LECS, Size 25/32)
