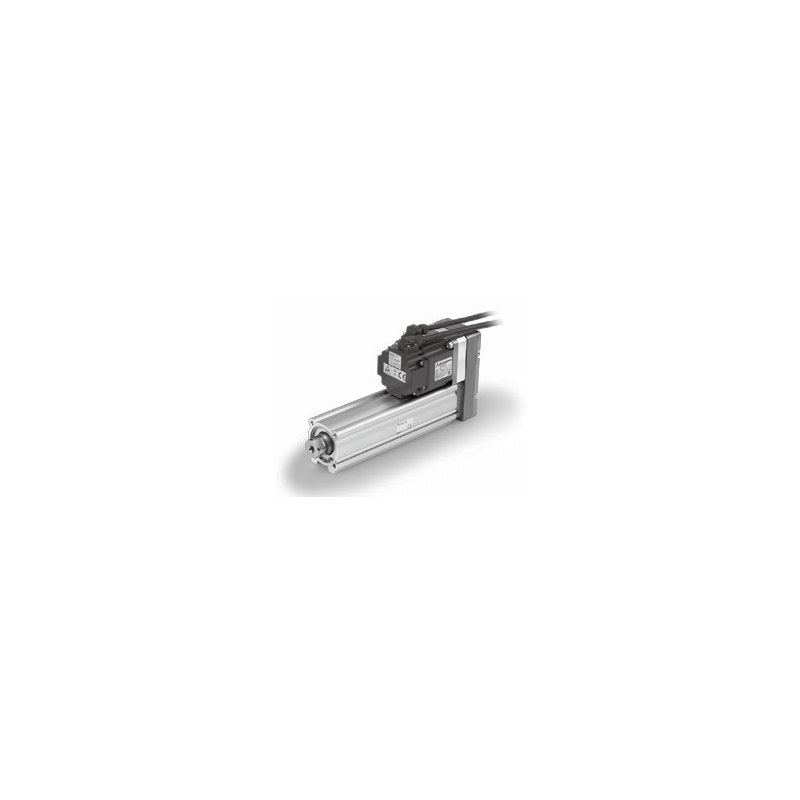

SMC LEY Electric Actuator, Rod Type (AC Servo LECS, Size 63/100)

SMC LEY series heavy-duty rod type electric actuator with 400 W (size 63) or 750 W (size 100) AC servo motor for LECS series drivers.

Key features

Size 63: 400 W AC servo, strokes to 800 mm; size 100: 750 W AC servo, strokes 100 to 1000 mm and max. thrust up to 12000 N
Four motor layouts: parallel top, right or left mounting, or in-line; motor option lock (B)
Size 100 leads 10 mm, 3.33 mm (1:3 reduction) and 2 mm (1:5 reduction); size 63 lead 2.86 mm for parallel layout only
High-precision type (H prefix, size 63) and IP65-equivalent dust/drip-proof option (P, size 63) available on order
Mounting (end/body bottom tapped standard; foot L, rod flange F, head flange G, double clevis D) is ordered as a suffix and shipped unassembled; size 100 adds head-side foot (H)
AC servo driver (LECSA, LECSB2-T, LECSC2-T, LECSS2-T, LECSN2-T), motor/encoder cable (standard or robot, 2/5/10 m) and I/O cable are ordered as suffixes; codes listed are actuator only

Specifications

Motor type	AC servo motor (AC200V)
Motor output	400 W (size 63), 750 W (size 100)
Encoder	S4: incremental 17-bit; T8/T9: absolute 22-bit
Repeatability	±0.02 mm
Lost motion	0.1 mm or less
Max. thrust (size 100)	12000 N (lead 2), 7200 N (lead 3.33), 2600 N (lead 10)
Drive	Ball screw + belt (parallel), ball screw (in-line)
Guide	Slide bushing (piston rod)
Operating temperature	5 to 40°C
Enclosure	IP40
Source	SMC Korea electric actuator catalog (SMCKR_LEY.pdf), p. 473-475, 485-486 (PDF p. 62-64, 74-75)

LEY63S4A-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63S4A-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63S4A-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63S4A-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63S4A-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63S4A-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63S4A-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63S4A-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63S4A-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63S4A-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63S4A-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63S4A-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63S4A-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63S4A-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63S4A-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63S4A-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63S4A-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63S4A-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63S4A-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63S4A-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63S4A-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63S4A-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63S4A-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63S4A-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63S4A-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63S4A-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63S4B-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63S4B-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63S4B-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63S4B-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63S4B-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63S4B-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63S4B-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63S4B-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63S4B-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63S4B-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63S4B-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63S4B-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63S4B-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63S4B-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63S4B-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63S4B-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63S4B-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63S4B-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63S4B-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63S4B-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63S4B-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63S4B-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63S4B-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63S4B-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63S4B-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63S4B-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63S4C-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63S4C-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63S4C-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63S4C-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63S4C-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63S4C-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63S4C-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63S4C-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63S4C-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63S4C-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63S4C-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63S4C-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63S4C-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63S4C-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63S4C-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63S4C-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63S4C-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63S4C-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63S4C-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63S4C-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63S4C-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63S4C-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63S4C-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63S4C-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63S4C-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63S4C-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63S4L-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63S4L-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63S4L-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63S4L-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63S4L-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63S4L-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63S4L-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63S4L-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63S4L-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63S4L-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63S4L-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63S4L-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63S4L-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63S4L-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63S4L-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63S4L-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63S4L-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63S4L-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63S4L-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63S4L-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63S4L-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63S4L-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63S4L-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63S4L-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63S4L-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63S4L-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RS4A-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63RS4A-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RS4A-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63RS4A-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RS4A-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63RS4A-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RS4A-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63RS4A-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RS4A-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63RS4A-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RS4A-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63RS4A-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RS4A-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63RS4A-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RS4A-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63RS4A-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RS4A-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63RS4A-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RS4A-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63RS4A-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RS4A-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63RS4A-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RS4A-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63RS4A-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RS4A-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63RS4A-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RS4B-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63RS4B-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RS4B-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63RS4B-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RS4B-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63RS4B-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RS4B-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63RS4B-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RS4B-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63RS4B-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RS4B-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63RS4B-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RS4B-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63RS4B-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RS4B-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63RS4B-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RS4B-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63RS4B-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RS4B-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63RS4B-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RS4B-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63RS4B-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RS4B-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63RS4B-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RS4B-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63RS4B-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RS4C-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63RS4C-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RS4C-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63RS4C-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RS4C-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63RS4C-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RS4C-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63RS4C-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RS4C-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63RS4C-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RS4C-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63RS4C-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RS4C-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63RS4C-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RS4C-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63RS4C-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RS4C-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63RS4C-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RS4C-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63RS4C-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RS4C-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63RS4C-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RS4C-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63RS4C-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RS4C-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63RS4C-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RS4L-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63RS4L-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RS4L-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63RS4L-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RS4L-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63RS4L-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RS4L-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63RS4L-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RS4L-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63RS4L-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RS4L-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63RS4L-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RS4L-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63RS4L-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RS4L-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63RS4L-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RS4L-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63RS4L-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RS4L-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63RS4L-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RS4L-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63RS4L-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RS4L-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63RS4L-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RS4L-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63RS4L-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LS4A-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63LS4A-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LS4A-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63LS4A-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LS4A-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63LS4A-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LS4A-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63LS4A-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LS4A-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63LS4A-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LS4A-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63LS4A-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LS4A-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63LS4A-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LS4A-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63LS4A-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LS4A-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63LS4A-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LS4A-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63LS4A-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LS4A-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63LS4A-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LS4A-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63LS4A-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LS4A-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63LS4A-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LS4B-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63LS4B-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LS4B-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63LS4B-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LS4B-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63LS4B-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LS4B-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63LS4B-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LS4B-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63LS4B-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LS4B-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63LS4B-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LS4B-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63LS4B-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LS4B-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63LS4B-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LS4B-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63LS4B-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LS4B-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63LS4B-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LS4B-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63LS4B-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LS4B-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63LS4B-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LS4B-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63LS4B-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LS4C-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63LS4C-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LS4C-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63LS4C-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LS4C-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63LS4C-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LS4C-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63LS4C-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LS4C-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63LS4C-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LS4C-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63LS4C-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LS4C-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63LS4C-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LS4C-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63LS4C-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LS4C-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63LS4C-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LS4C-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63LS4C-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LS4C-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63LS4C-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LS4C-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63LS4C-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LS4C-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63LS4C-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LS4L-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63LS4L-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LS4L-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63LS4L-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LS4L-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63LS4L-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LS4L-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63LS4L-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LS4L-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63LS4L-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LS4L-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63LS4L-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LS4L-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63LS4L-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LS4L-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63LS4L-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LS4L-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63LS4L-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LS4L-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63LS4L-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LS4L-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63LS4L-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LS4L-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63LS4L-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LS4L-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63LS4L-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DS4A-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63DS4A-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DS4A-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63DS4A-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DS4A-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63DS4A-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DS4A-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63DS4A-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DS4A-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63DS4A-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DS4A-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63DS4A-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DS4A-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63DS4A-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DS4A-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63DS4A-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DS4A-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63DS4A-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DS4A-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63DS4A-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DS4A-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63DS4A-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DS4A-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63DS4A-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DS4A-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63DS4A-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DS4B-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63DS4B-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DS4B-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63DS4B-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DS4B-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63DS4B-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DS4B-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63DS4B-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DS4B-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63DS4B-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DS4B-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63DS4B-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DS4B-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63DS4B-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DS4B-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63DS4B-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DS4B-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63DS4B-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DS4B-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63DS4B-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DS4B-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63DS4B-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DS4B-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63DS4B-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DS4B-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63DS4B-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DS4C-50		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63DS4C-50B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DS4C-100		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63DS4C-100B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DS4C-150		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63DS4C-150B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DS4C-200		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63DS4C-200B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DS4C-250		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63DS4C-250B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DS4C-300		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63DS4C-300B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DS4C-350		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63DS4C-350B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DS4C-400		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63DS4C-400B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DS4C-450		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63DS4C-450B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DS4C-500		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63DS4C-500B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DS4C-600		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63DS4C-600B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DS4C-700		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63DS4C-700B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DS4C-800		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63DS4C-800B		Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63T8A-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63T8A-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63T8A-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63T8A-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63T8A-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63T8A-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63T8A-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63T8A-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63T8A-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63T8A-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63T8A-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63T8A-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63T8A-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63T8A-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63T8A-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63T8A-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63T8A-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63T8A-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63T8A-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63T8A-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63T8A-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63T8A-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63T8A-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63T8A-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63T8A-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63T8A-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63T8B-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63T8B-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63T8B-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63T8B-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63T8B-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63T8B-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63T8B-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63T8B-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63T8B-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63T8B-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63T8B-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63T8B-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63T8B-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63T8B-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63T8B-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63T8B-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63T8B-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63T8B-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63T8B-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63T8B-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63T8B-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63T8B-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63T8B-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63T8B-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63T8B-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63T8B-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63T8C-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63T8C-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63T8C-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63T8C-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63T8C-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63T8C-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63T8C-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63T8C-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63T8C-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63T8C-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63T8C-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63T8C-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63T8C-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63T8C-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63T8C-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63T8C-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63T8C-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63T8C-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63T8C-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63T8C-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63T8C-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63T8C-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63T8C-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63T8C-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63T8C-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63T8C-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63T8L-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63T8L-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63T8L-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63T8L-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63T8L-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63T8L-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63T8L-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63T8L-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63T8L-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63T8L-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63T8L-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63T8L-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63T8L-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63T8L-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63T8L-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63T8L-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63T8L-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63T8L-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63T8L-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63T8L-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63T8L-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63T8L-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63T8L-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63T8L-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63T8L-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63T8L-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RT8A-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63RT8A-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RT8A-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63RT8A-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RT8A-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63RT8A-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RT8A-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63RT8A-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RT8A-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63RT8A-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RT8A-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63RT8A-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RT8A-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63RT8A-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RT8A-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63RT8A-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RT8A-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63RT8A-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RT8A-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63RT8A-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RT8A-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63RT8A-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RT8A-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63RT8A-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RT8A-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63RT8A-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RT8B-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63RT8B-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RT8B-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63RT8B-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RT8B-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63RT8B-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RT8B-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63RT8B-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RT8B-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63RT8B-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RT8B-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63RT8B-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RT8B-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63RT8B-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RT8B-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63RT8B-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RT8B-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63RT8B-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RT8B-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63RT8B-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RT8B-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63RT8B-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RT8B-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63RT8B-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RT8B-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63RT8B-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RT8C-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63RT8C-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RT8C-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63RT8C-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RT8C-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63RT8C-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RT8C-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63RT8C-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RT8C-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63RT8C-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RT8C-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63RT8C-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RT8C-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63RT8C-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RT8C-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63RT8C-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RT8C-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63RT8C-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RT8C-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63RT8C-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RT8C-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63RT8C-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RT8C-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63RT8C-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RT8C-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63RT8C-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63RT8L-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63RT8L-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63RT8L-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63RT8L-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63RT8L-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63RT8L-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63RT8L-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63RT8L-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63RT8L-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63RT8L-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63RT8L-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63RT8L-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63RT8L-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63RT8L-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63RT8L-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63RT8L-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63RT8L-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63RT8L-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63RT8L-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63RT8L-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63RT8L-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63RT8L-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63RT8L-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63RT8L-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63RT8L-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63RT8L-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LT8A-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63LT8A-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LT8A-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63LT8A-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LT8A-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63LT8A-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LT8A-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63LT8A-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LT8A-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63LT8A-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LT8A-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63LT8A-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LT8A-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63LT8A-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LT8A-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63LT8A-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LT8A-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63LT8A-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LT8A-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63LT8A-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LT8A-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63LT8A-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LT8A-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63LT8A-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LT8A-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63LT8A-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LT8B-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63LT8B-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LT8B-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63LT8B-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LT8B-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63LT8B-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LT8B-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63LT8B-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LT8B-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63LT8B-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LT8B-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63LT8B-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LT8B-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63LT8B-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LT8B-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63LT8B-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LT8B-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63LT8B-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LT8B-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63LT8B-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LT8B-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63LT8B-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LT8B-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63LT8B-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LT8B-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63LT8B-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LT8C-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63LT8C-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LT8C-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63LT8C-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LT8C-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63LT8C-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LT8C-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63LT8C-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LT8C-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63LT8C-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LT8C-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63LT8C-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LT8C-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63LT8C-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LT8C-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63LT8C-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LT8C-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63LT8C-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LT8C-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63LT8C-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LT8C-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63LT8C-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LT8C-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63LT8C-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LT8C-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63LT8C-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63LT8L-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
LEY63LT8L-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63LT8L-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
LEY63LT8L-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63LT8L-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
LEY63LT8L-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63LT8L-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
LEY63LT8L-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63LT8L-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
LEY63LT8L-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63LT8L-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
LEY63LT8L-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63LT8L-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
LEY63LT8L-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63LT8L-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
LEY63LT8L-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63LT8L-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
LEY63LT8L-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63LT8L-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
LEY63LT8L-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63LT8L-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
LEY63LT8L-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63LT8L-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
LEY63LT8L-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63LT8L-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
LEY63LT8L-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DT8A-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
LEY63DT8A-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DT8A-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
LEY63DT8A-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DT8A-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
LEY63DT8A-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DT8A-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
LEY63DT8A-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DT8A-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
LEY63DT8A-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DT8A-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
LEY63DT8A-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DT8A-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
LEY63DT8A-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DT8A-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
LEY63DT8A-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DT8A-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
LEY63DT8A-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DT8A-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
LEY63DT8A-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DT8A-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
LEY63DT8A-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DT8A-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
LEY63DT8A-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DT8A-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
LEY63DT8A-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DT8B-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
LEY63DT8B-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DT8B-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY63DT8B-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DT8B-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
LEY63DT8B-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DT8B-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY63DT8B-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DT8B-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
LEY63DT8B-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DT8B-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY63DT8B-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DT8B-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
LEY63DT8B-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DT8B-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY63DT8B-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DT8B-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
LEY63DT8B-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DT8B-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY63DT8B-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DT8B-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY63DT8B-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DT8B-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY63DT8B-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DT8B-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY63DT8B-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY63DT8C-50		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
LEY63DT8C-50B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
LEY63DT8C-100		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
LEY63DT8C-100B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
LEY63DT8C-150		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
LEY63DT8C-150B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
LEY63DT8C-200		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
LEY63DT8C-200B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
LEY63DT8C-250		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
LEY63DT8C-250B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
LEY63DT8C-300		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
LEY63DT8C-300B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
LEY63DT8C-350		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
LEY63DT8C-350B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
LEY63DT8C-400		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
LEY63DT8C-400B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
LEY63DT8C-450		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
LEY63DT8C-450B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
LEY63DT8C-500		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
LEY63DT8C-500B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
LEY63DT8C-600		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
LEY63DT8C-600B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
LEY63DT8C-700		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
LEY63DT8C-700B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
LEY63DT8C-800		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
LEY63DT8C-800B		Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
LEY100T9B-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY100T9B-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY100T9B-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY100T9B-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY100T9B-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY100T9B-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY100T9B-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY100T9B-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY100T9B-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY100T9B-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY100T9B-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY100T9B-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY100T9B-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY100T9B-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY100T9B-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY100T9B-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY100T9B-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
LEY100T9B-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEY100T9B-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
LEY100T9B-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEY100T9D-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100T9D-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100T9D-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100T9D-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100T9D-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100T9D-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100T9D-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100T9D-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100T9D-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100T9D-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100T9D-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100T9D-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100T9D-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100T9D-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100T9D-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100T9D-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100T9D-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100T9D-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100T9D-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100T9D-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100T9L-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100T9L-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100T9L-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100T9L-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100T9L-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100T9L-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100T9L-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100T9L-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100T9L-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100T9L-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100T9L-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100T9L-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100T9L-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100T9L-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100T9L-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100T9L-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100T9L-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100T9L-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100T9L-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100T9L-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100RT9B-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY100RT9B-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY100RT9B-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY100RT9B-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY100RT9B-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY100RT9B-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY100RT9B-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY100RT9B-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY100RT9B-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY100RT9B-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY100RT9B-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY100RT9B-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY100RT9B-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY100RT9B-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY100RT9B-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY100RT9B-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY100RT9B-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
LEY100RT9B-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEY100RT9B-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
LEY100RT9B-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEY100RT9D-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100RT9D-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100RT9D-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100RT9D-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100RT9D-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100RT9D-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100RT9D-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100RT9D-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100RT9D-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100RT9D-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100RT9D-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100RT9D-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100RT9D-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100RT9D-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100RT9D-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100RT9D-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100RT9D-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100RT9D-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100RT9D-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100RT9D-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100RT9L-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100RT9L-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100RT9L-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100RT9L-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100RT9L-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100RT9L-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100RT9L-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100RT9L-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100RT9L-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100RT9L-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100RT9L-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100RT9L-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100RT9L-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100RT9L-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100RT9L-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100RT9L-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100RT9L-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100RT9L-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100RT9L-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100RT9L-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100LT9B-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY100LT9B-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY100LT9B-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY100LT9B-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY100LT9B-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY100LT9B-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY100LT9B-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY100LT9B-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY100LT9B-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY100LT9B-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY100LT9B-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY100LT9B-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY100LT9B-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY100LT9B-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY100LT9B-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY100LT9B-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY100LT9B-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
LEY100LT9B-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEY100LT9B-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
LEY100LT9B-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEY100LT9D-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100LT9D-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100LT9D-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100LT9D-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100LT9D-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100LT9D-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100LT9D-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100LT9D-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100LT9D-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100LT9D-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100LT9D-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100LT9D-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100LT9D-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100LT9D-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100LT9D-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100LT9D-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100LT9D-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100LT9D-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100LT9D-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100LT9D-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100LT9L-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100LT9L-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100LT9L-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100LT9L-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100LT9L-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100LT9L-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100LT9L-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100LT9L-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100LT9L-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100LT9L-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100LT9L-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100LT9L-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100LT9L-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100LT9L-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100LT9L-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100LT9L-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100LT9L-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100LT9L-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100LT9L-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100LT9L-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100DT9B-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
LEY100DT9B-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
LEY100DT9B-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
LEY100DT9B-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
LEY100DT9B-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
LEY100DT9B-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
LEY100DT9B-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
LEY100DT9B-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
LEY100DT9B-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
LEY100DT9B-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
LEY100DT9B-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
LEY100DT9B-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
LEY100DT9B-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
LEY100DT9B-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
LEY100DT9B-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
LEY100DT9B-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
LEY100DT9B-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
LEY100DT9B-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
LEY100DT9B-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
LEY100DT9B-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
LEY100DT9D-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100DT9D-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100DT9D-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100DT9D-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100DT9D-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100DT9D-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100DT9D-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100DT9D-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100DT9D-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100DT9D-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100DT9D-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100DT9D-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100DT9D-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100DT9D-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100DT9D-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100DT9D-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100DT9D-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100DT9D-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100DT9D-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100DT9D-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
LEY100DT9L-100		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
LEY100DT9L-100B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
LEY100DT9L-200		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
LEY100DT9L-200B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
LEY100DT9L-300		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
LEY100DT9L-300B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
LEY100DT9L-400		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
LEY100DT9L-400B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
LEY100DT9L-500		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
LEY100DT9L-500B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
LEY100DT9L-600		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
LEY100DT9L-600B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
LEY100DT9L-700		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
LEY100DT9L-700B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
LEY100DT9L-800		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
LEY100DT9L-800B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
LEY100DT9L-900		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
LEY100DT9L-900B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
LEY100DT9L-1000		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
LEY100DT9L-1000B		Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock

Electric ActuatorsSMC

1020 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY Electric Actuator, Rod Type (AC Servo LECS, Size 63/100)

Brand SMC·Electric Actuators

Available part numbers (1020)

LEY63S4A-50, LEY63S4A-50B, LEY63S4A-100, LEY63S4A-100B, LEY63S4A-150, LEY63S4A-150B, LEY63S4A-200, LEY63S4A-200B, LEY63S4A-250, LEY63S4A-250B + 1010 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	LEY63S4A-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63S4A-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63S4A-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63S4A-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63S4A-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63S4A-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63S4A-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63S4A-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63S4A-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63S4A-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63S4A-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63S4A-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63S4A-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63S4A-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63S4A-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63S4A-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63S4A-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63S4A-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63S4A-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63S4A-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63S4A-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63S4A-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63S4A-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63S4A-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63S4A-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63S4A-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63S4B-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63S4B-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63S4B-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63S4B-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63S4B-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63S4B-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63S4B-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63S4B-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63S4B-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63S4B-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63S4B-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63S4B-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63S4B-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63S4B-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63S4B-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63S4B-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63S4B-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63S4B-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63S4B-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63S4B-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63S4B-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63S4B-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63S4B-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63S4B-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63S4B-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63S4B-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63S4C-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63S4C-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63S4C-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63S4C-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63S4C-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63S4C-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63S4C-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63S4C-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63S4C-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63S4C-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63S4C-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63S4C-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63S4C-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63S4C-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63S4C-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63S4C-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63S4C-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63S4C-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63S4C-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63S4C-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63S4C-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63S4C-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63S4C-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63S4C-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63S4C-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63S4C-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63S4L-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63S4L-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63S4L-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63S4L-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63S4L-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63S4L-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63S4L-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63S4L-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63S4L-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63S4L-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63S4L-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63S4L-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63S4L-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63S4L-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63S4L-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63S4L-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63S4L-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63S4L-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63S4L-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63S4L-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63S4L-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63S4L-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63S4L-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63S4L-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63S4L-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63S4L-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RS4A-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RS4A-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RS4A-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RS4A-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RS4A-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RS4A-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RS4A-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RS4A-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RS4A-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RS4A-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RS4A-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RS4A-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RS4A-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RS4A-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RS4A-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RS4A-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RS4A-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RS4A-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RS4A-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RS4A-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RS4A-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RS4A-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RS4A-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RS4A-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RS4A-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RS4A-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RS4B-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RS4B-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RS4B-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RS4B-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RS4B-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RS4B-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RS4B-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RS4B-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RS4B-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RS4B-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RS4B-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RS4B-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RS4B-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RS4B-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RS4B-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RS4B-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RS4B-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RS4B-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RS4B-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RS4B-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RS4B-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RS4B-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RS4B-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RS4B-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RS4B-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RS4B-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RS4C-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RS4C-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RS4C-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RS4C-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RS4C-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RS4C-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RS4C-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RS4C-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RS4C-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RS4C-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RS4C-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RS4C-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RS4C-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RS4C-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RS4C-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RS4C-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RS4C-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RS4C-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RS4C-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RS4C-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RS4C-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RS4C-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RS4C-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RS4C-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RS4C-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RS4C-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RS4L-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RS4L-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RS4L-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RS4L-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RS4L-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RS4L-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RS4L-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RS4L-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RS4L-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RS4L-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RS4L-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RS4L-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RS4L-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RS4L-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RS4L-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RS4L-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RS4L-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RS4L-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RS4L-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RS4L-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RS4L-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RS4L-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RS4L-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RS4L-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RS4L-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RS4L-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LS4A-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LS4A-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LS4A-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LS4A-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LS4A-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LS4A-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LS4A-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LS4A-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LS4A-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LS4A-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LS4A-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LS4A-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LS4A-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LS4A-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LS4A-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LS4A-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LS4A-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LS4A-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LS4A-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LS4A-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LS4A-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LS4A-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LS4A-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LS4A-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LS4A-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LS4A-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LS4B-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LS4B-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LS4B-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LS4B-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LS4B-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LS4B-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LS4B-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LS4B-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LS4B-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LS4B-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LS4B-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LS4B-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LS4B-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LS4B-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LS4B-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LS4B-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LS4B-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LS4B-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LS4B-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LS4B-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LS4B-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LS4B-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LS4B-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LS4B-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LS4B-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LS4B-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LS4C-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LS4C-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LS4C-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LS4C-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LS4C-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LS4C-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LS4C-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LS4C-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LS4C-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LS4C-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LS4C-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LS4C-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LS4C-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LS4C-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LS4C-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LS4C-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LS4C-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LS4C-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LS4C-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LS4C-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LS4C-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LS4C-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LS4C-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LS4C-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LS4C-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LS4C-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LS4L-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LS4L-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LS4L-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LS4L-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LS4L-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LS4L-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LS4L-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LS4L-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LS4L-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LS4L-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LS4L-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LS4L-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LS4L-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LS4L-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LS4L-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LS4L-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LS4L-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LS4L-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LS4L-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LS4L-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LS4L-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LS4L-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LS4L-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LS4L-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LS4L-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LS4L-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DS4A-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DS4A-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DS4A-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DS4A-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DS4A-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DS4A-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DS4A-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DS4A-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DS4A-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DS4A-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DS4A-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DS4A-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DS4A-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DS4A-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DS4A-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DS4A-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DS4A-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DS4A-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DS4A-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DS4A-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DS4A-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DS4A-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DS4A-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DS4A-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DS4A-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DS4A-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DS4B-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DS4B-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DS4B-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DS4B-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DS4B-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DS4B-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DS4B-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DS4B-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DS4B-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DS4B-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DS4B-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DS4B-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DS4B-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DS4B-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DS4B-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DS4B-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DS4B-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DS4B-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DS4B-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DS4B-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DS4B-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DS4B-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DS4B-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DS4B-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DS4B-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DS4B-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DS4C-50	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DS4C-50B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DS4C-100	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DS4C-100B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DS4C-150	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DS4C-150B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DS4C-200	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DS4C-200B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DS4C-250	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DS4C-250B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DS4C-300	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DS4C-300B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DS4C-350	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DS4C-350B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DS4C-400	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DS4C-400B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DS4C-450	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DS4C-450B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DS4C-500	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DS4C-500B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DS4C-600	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DS4C-600B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DS4C-700	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DS4C-700B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DS4C-800	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DS4C-800B	Size: 63 \| Motor: 400 W, incremental encoder (LECSA) \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63T8A-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63T8A-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63T8A-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63T8A-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63T8A-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63T8A-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63T8A-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63T8A-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63T8A-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63T8A-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63T8A-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63T8A-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63T8A-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63T8A-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63T8A-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63T8A-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63T8A-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63T8A-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63T8A-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63T8A-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63T8A-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63T8A-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63T8A-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63T8A-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63T8A-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63T8A-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63T8B-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63T8B-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63T8B-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63T8B-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63T8B-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63T8B-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63T8B-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63T8B-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63T8B-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63T8B-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63T8B-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63T8B-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63T8B-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63T8B-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63T8B-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63T8B-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63T8B-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63T8B-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63T8B-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63T8B-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63T8B-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63T8B-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63T8B-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63T8B-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63T8B-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63T8B-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63T8C-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63T8C-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63T8C-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63T8C-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63T8C-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63T8C-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63T8C-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63T8C-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63T8C-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63T8C-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63T8C-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63T8C-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63T8C-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63T8C-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63T8C-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63T8C-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63T8C-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63T8C-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63T8C-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63T8C-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63T8C-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63T8C-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63T8C-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63T8C-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63T8C-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63T8C-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63T8L-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63T8L-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63T8L-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63T8L-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63T8L-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63T8L-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63T8L-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63T8L-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63T8L-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63T8L-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63T8L-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63T8L-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63T8L-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63T8L-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63T8L-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63T8L-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63T8L-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63T8L-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63T8L-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63T8L-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63T8L-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63T8L-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63T8L-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63T8L-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63T8L-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63T8L-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RT8A-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RT8A-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RT8A-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RT8A-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RT8A-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RT8A-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RT8A-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RT8A-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RT8A-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RT8A-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RT8A-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RT8A-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RT8A-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RT8A-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RT8A-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RT8A-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RT8A-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RT8A-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RT8A-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RT8A-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RT8A-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RT8A-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RT8A-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RT8A-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RT8A-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RT8A-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RT8B-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RT8B-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RT8B-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RT8B-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RT8B-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RT8B-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RT8B-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RT8B-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RT8B-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RT8B-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RT8B-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RT8B-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RT8B-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RT8B-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RT8B-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RT8B-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RT8B-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RT8B-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RT8B-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RT8B-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RT8B-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RT8B-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RT8B-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RT8B-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RT8B-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RT8B-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RT8C-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RT8C-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RT8C-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RT8C-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RT8C-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RT8C-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RT8C-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RT8C-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RT8C-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RT8C-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RT8C-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RT8C-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RT8C-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RT8C-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RT8C-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RT8C-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RT8C-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RT8C-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RT8C-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RT8C-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RT8C-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RT8C-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RT8C-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RT8C-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RT8C-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RT8C-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63RT8L-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63RT8L-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63RT8L-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63RT8L-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63RT8L-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63RT8L-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63RT8L-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63RT8L-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63RT8L-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63RT8L-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63RT8L-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63RT8L-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63RT8L-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63RT8L-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63RT8L-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63RT8L-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63RT8L-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63RT8L-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63RT8L-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63RT8L-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63RT8L-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63RT8L-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63RT8L-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63RT8L-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63RT8L-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63RT8L-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LT8A-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LT8A-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LT8A-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LT8A-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LT8A-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LT8A-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LT8A-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LT8A-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LT8A-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LT8A-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LT8A-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LT8A-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LT8A-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LT8A-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LT8A-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LT8A-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LT8A-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LT8A-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LT8A-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LT8A-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LT8A-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LT8A-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LT8A-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LT8A-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LT8A-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LT8A-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LT8B-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LT8B-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LT8B-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LT8B-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LT8B-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LT8B-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LT8B-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LT8B-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LT8B-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LT8B-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LT8B-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LT8B-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LT8B-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LT8B-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LT8B-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LT8B-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LT8B-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LT8B-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LT8B-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LT8B-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LT8B-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LT8B-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LT8B-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LT8B-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LT8B-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LT8B-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LT8C-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LT8C-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LT8C-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LT8C-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LT8C-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LT8C-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LT8C-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LT8C-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LT8C-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LT8C-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LT8C-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LT8C-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LT8C-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LT8C-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LT8C-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LT8C-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LT8C-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LT8C-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LT8C-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LT8C-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LT8C-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LT8C-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LT8C-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LT8C-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LT8C-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LT8C-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63LT8L-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: None
	LEY63LT8L-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63LT8L-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: None
	LEY63LT8L-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63LT8L-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: None
	LEY63LT8L-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63LT8L-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: None
	LEY63LT8L-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63LT8L-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: None
	LEY63LT8L-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63LT8L-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: None
	LEY63LT8L-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63LT8L-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: None
	LEY63LT8L-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63LT8L-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: None
	LEY63LT8L-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63LT8L-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: None
	LEY63LT8L-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63LT8L-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: None
	LEY63LT8L-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63LT8L-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: None
	LEY63LT8L-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63LT8L-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: None
	LEY63LT8L-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63LT8L-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: None
	LEY63LT8L-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2.86 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DT8A-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DT8A-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DT8A-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DT8A-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DT8A-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DT8A-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DT8A-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DT8A-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DT8A-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DT8A-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DT8A-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DT8A-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DT8A-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DT8A-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DT8A-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DT8A-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DT8A-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DT8A-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DT8A-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DT8A-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DT8A-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DT8A-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DT8A-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DT8A-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DT8A-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DT8A-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 20 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DT8B-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DT8B-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DT8B-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DT8B-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DT8B-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DT8B-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DT8B-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DT8B-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DT8B-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DT8B-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DT8B-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DT8B-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DT8B-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DT8B-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DT8B-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DT8B-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DT8B-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DT8B-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DT8B-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DT8B-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DT8B-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DT8B-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DT8B-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DT8B-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DT8B-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DT8B-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY63DT8C-50	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: None
	LEY63DT8C-50B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 50 mm \| Motor option: With lock
	LEY63DT8C-100	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: None
	LEY63DT8C-100B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY63DT8C-150	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: None
	LEY63DT8C-150B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 150 mm \| Motor option: With lock
	LEY63DT8C-200	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: None
	LEY63DT8C-200B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY63DT8C-250	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: None
	LEY63DT8C-250B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 250 mm \| Motor option: With lock
	LEY63DT8C-300	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: None
	LEY63DT8C-300B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY63DT8C-350	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: None
	LEY63DT8C-350B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 350 mm \| Motor option: With lock
	LEY63DT8C-400	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: None
	LEY63DT8C-400B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY63DT8C-450	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: None
	LEY63DT8C-450B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 450 mm \| Motor option: With lock
	LEY63DT8C-500	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: None
	LEY63DT8C-500B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY63DT8C-600	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: None
	LEY63DT8C-600B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY63DT8C-700	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: None
	LEY63DT8C-700B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY63DT8C-800	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: None
	LEY63DT8C-800B	Size: 63 \| Motor: 400 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 5 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY100T9B-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY100T9B-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY100T9B-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY100T9B-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY100T9B-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY100T9B-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY100T9B-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY100T9B-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY100T9B-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY100T9B-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY100T9B-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY100T9B-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY100T9B-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY100T9B-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY100T9B-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY100T9B-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY100T9B-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
	LEY100T9B-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEY100T9B-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
	LEY100T9B-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEY100T9D-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100T9D-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100T9D-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100T9D-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100T9D-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100T9D-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100T9D-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100T9D-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100T9D-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100T9D-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100T9D-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100T9D-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100T9D-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100T9D-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100T9D-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100T9D-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100T9D-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100T9D-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100T9D-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100T9D-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100T9L-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100T9L-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100T9L-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100T9L-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100T9L-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100T9L-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100T9L-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100T9L-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100T9L-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100T9L-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100T9L-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100T9L-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100T9L-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100T9L-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100T9L-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100T9L-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100T9L-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100T9L-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100T9L-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100T9L-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, top mounting \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100RT9B-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY100RT9B-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY100RT9B-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY100RT9B-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY100RT9B-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY100RT9B-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY100RT9B-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY100RT9B-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY100RT9B-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY100RT9B-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY100RT9B-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY100RT9B-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY100RT9B-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY100RT9B-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY100RT9B-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY100RT9B-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY100RT9B-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
	LEY100RT9B-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEY100RT9B-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
	LEY100RT9B-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEY100RT9D-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100RT9D-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100RT9D-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100RT9D-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100RT9D-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100RT9D-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100RT9D-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100RT9D-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100RT9D-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100RT9D-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100RT9D-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100RT9D-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100RT9D-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100RT9D-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100RT9D-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100RT9D-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100RT9D-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100RT9D-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100RT9D-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100RT9D-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100RT9L-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100RT9L-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100RT9L-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100RT9L-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100RT9L-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100RT9L-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100RT9L-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100RT9L-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100RT9L-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100RT9L-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100RT9L-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100RT9L-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100RT9L-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100RT9L-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100RT9L-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100RT9L-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100RT9L-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100RT9L-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100RT9L-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100RT9L-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, right side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100LT9B-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY100LT9B-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY100LT9B-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY100LT9B-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY100LT9B-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY100LT9B-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY100LT9B-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY100LT9B-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY100LT9B-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY100LT9B-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY100LT9B-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY100LT9B-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY100LT9B-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY100LT9B-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY100LT9B-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY100LT9B-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY100LT9B-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
	LEY100LT9B-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEY100LT9B-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
	LEY100LT9B-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEY100LT9D-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100LT9D-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100LT9D-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100LT9D-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100LT9D-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100LT9D-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100LT9D-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100LT9D-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100LT9D-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100LT9D-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100LT9D-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100LT9D-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100LT9D-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100LT9D-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100LT9D-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100LT9D-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100LT9D-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100LT9D-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100LT9D-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100LT9D-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100LT9L-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100LT9L-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100LT9L-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100LT9L-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100LT9L-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100LT9L-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100LT9L-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100LT9L-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100LT9L-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100LT9L-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100LT9L-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100LT9L-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100LT9L-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100LT9L-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100LT9L-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100LT9L-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100LT9L-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100LT9L-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100LT9L-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100LT9L-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: Parallel, left side \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100DT9B-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: None
	LEY100DT9B-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 100 mm \| Motor option: With lock
	LEY100DT9B-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: None
	LEY100DT9B-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 200 mm \| Motor option: With lock
	LEY100DT9B-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: None
	LEY100DT9B-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 300 mm \| Motor option: With lock
	LEY100DT9B-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: None
	LEY100DT9B-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 400 mm \| Motor option: With lock
	LEY100DT9B-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: None
	LEY100DT9B-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 500 mm \| Motor option: With lock
	LEY100DT9B-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: None
	LEY100DT9B-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 600 mm \| Motor option: With lock
	LEY100DT9B-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: None
	LEY100DT9B-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 700 mm \| Motor option: With lock
	LEY100DT9B-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: None
	LEY100DT9B-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 800 mm \| Motor option: With lock
	LEY100DT9B-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: None
	LEY100DT9B-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 900 mm \| Motor option: With lock
	LEY100DT9B-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: None
	LEY100DT9B-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 10 mm \| Stroke: 1000 mm \| Motor option: With lock
	LEY100DT9D-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100DT9D-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100DT9D-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100DT9D-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100DT9D-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100DT9D-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100DT9D-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100DT9D-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100DT9D-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100DT9D-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100DT9D-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100DT9D-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100DT9D-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100DT9D-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100DT9D-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100DT9D-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100DT9D-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100DT9D-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100DT9D-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100DT9D-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 3.33 mm (1:3 reduction) \| Stroke: 1000 mm \| Motor option: With lock
	LEY100DT9L-100	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: None
	LEY100DT9L-100B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 100 mm \| Motor option: With lock
	LEY100DT9L-200	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: None
	LEY100DT9L-200B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 200 mm \| Motor option: With lock
	LEY100DT9L-300	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: None
	LEY100DT9L-300B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 300 mm \| Motor option: With lock
	LEY100DT9L-400	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: None
	LEY100DT9L-400B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 400 mm \| Motor option: With lock
	LEY100DT9L-500	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: None
	LEY100DT9L-500B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 500 mm \| Motor option: With lock
	LEY100DT9L-600	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: None
	LEY100DT9L-600B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 600 mm \| Motor option: With lock
	LEY100DT9L-700	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: None
	LEY100DT9L-700B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 700 mm \| Motor option: With lock
	LEY100DT9L-800	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: None
	LEY100DT9L-800B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 800 mm \| Motor option: With lock
	LEY100DT9L-900	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: None
	LEY100DT9L-900B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 900 mm \| Motor option: With lock
	LEY100DT9L-1000	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: None
	LEY100DT9L-1000B	Size: 100 \| Motor: 750 W, absolute encoder \| Motor layout: In-line (straight) \| Lead: 2 mm (1:5 reduction) \| Stroke: 1000 mm \| Motor option: With lock

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →

Item added to your cart

SMC LEY Electric Actuator, Rod Type (AC Servo LECS, Size 63/100)
