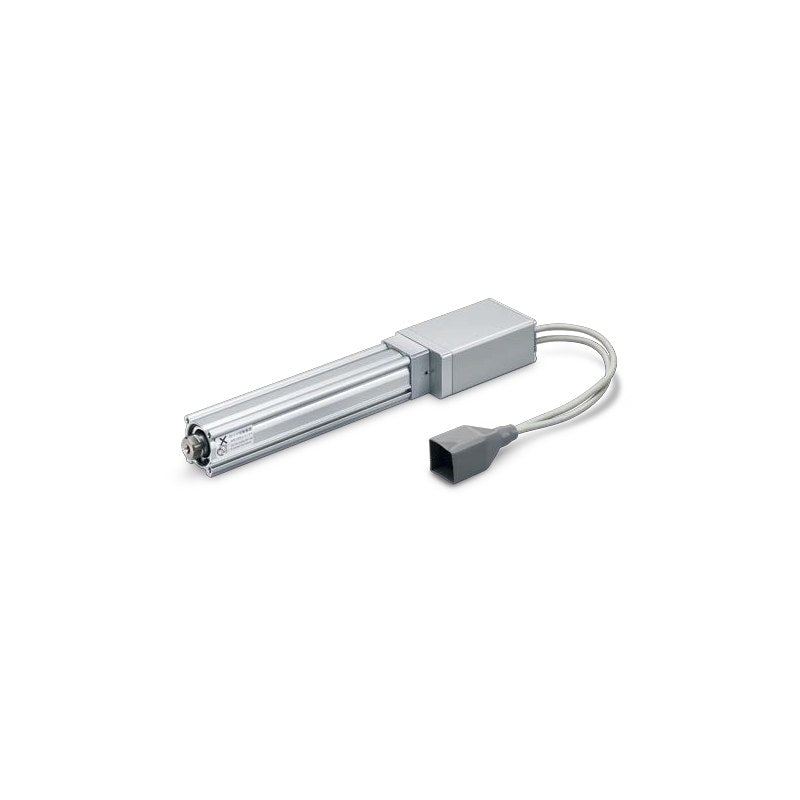

SMC LEY-G Electric Actuator, Rod Type (High Speed, Battery-less)

SMC LEY-G Electric Actuator, Rod Type (High Speed, Battery-less)

SMC LEY-G series high-speed, high-acceleration rod type electric actuator with battery-less absolute step motor (DC24V), sizes 16, 25 and 40.

Key features

  • Acceleration/deceleration up to 10000 mm/s² and max. speed up to 800 mm/s for shorter cycle times
  • Battery-less absolute encoder; restart from the stop position after power recovery without return to origin
  • Dedicated high-speed controllers JXC5H/6H (parallel I/O) and JXCEH/9H/PH (EtherCAT, EtherNet/IP, PROFINET)
  • Motor cover (C) or lock with motor cover (W); size 16 in-line types specify motor cover direction (D1 to D4)
  • Mounting (end/body bottom tapped standard; foot L, rod flange F, head flange G, double clevis D) is ordered as a suffix and shipped unassembled
  • Controller, robot cable length (1.5 to 20 m) and rod end male thread (M) are ordered as suffixes; codes listed are actuator only

Specifications

Motor type Battery-less absolute step motor (DC24V), high-speed type
Power supply DC24V ±10%
Repeatability ±0.02 mm
Lost motion 0.1 mm or less
Max. acceleration/deceleration 10000 mm/s² (vertical 5000 mm/s²)
Max. speed 700 mm/s (size 16/25), 800 mm/s (size 40)
Pushing force 14 to 1058 N (by size and lead)
Drive Ball screw + belt (parallel), ball screw (in-line)
Operating temperature 5 to 40°C
Enclosure IP40
Source SMC Korea catalog CAT.KS100-150A (SMCKR_LEY__G.pdf), p. 17-19 (PDF p. 18-20)
LEY16GA-30C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16GA-30W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16GA-50C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16GA-50W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16GA-100C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16GA-100W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16GA-150C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16GA-150W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16GA-200C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16GA-200W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16GA-250C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16GA-250W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16GA-300C Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16GA-300W Size: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16GB-30C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16GB-30W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16GB-50C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16GB-50W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16GB-100C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16GB-100W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16GB-150C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16GB-150W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16GB-200C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16GB-200W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16GB-250C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16GB-250W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16GB-300C Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16GB-300W Size: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16GC-30C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16GC-30W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16GC-50C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16GC-50W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16GC-100C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16GC-100W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16GC-150C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16GC-150W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16GC-200C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16GC-200W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16GC-250C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16GC-250W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16GC-300C Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16GC-300W Size: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D1GA-30C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D1GA-30W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D1GA-50C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D1GA-50W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D1GA-100C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D1GA-100W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D1GA-150C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D1GA-150W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D1GA-200C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D1GA-200W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D1GA-250C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D1GA-250W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D1GA-300C Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D1GA-300W Size: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D1GB-30C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D1GB-30W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D1GB-50C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D1GB-50W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D1GB-100C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D1GB-100W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D1GB-150C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D1GB-150W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D1GB-200C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D1GB-200W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D1GB-250C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D1GB-250W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D1GB-300C Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D1GB-300W Size: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D1GC-30C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D1GC-30W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D1GC-50C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D1GC-50W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D1GC-100C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D1GC-100W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D1GC-150C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D1GC-150W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D1GC-200C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D1GC-200W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D1GC-250C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D1GC-250W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D1GC-300C Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D1GC-300W Size: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D2GA-30C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D2GA-30W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D2GA-50C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D2GA-50W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D2GA-100C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D2GA-100W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D2GA-150C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D2GA-150W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D2GA-200C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D2GA-200W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D2GA-250C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D2GA-250W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D2GA-300C Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D2GA-300W Size: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D2GB-30C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D2GB-30W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D2GB-50C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D2GB-50W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D2GB-100C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D2GB-100W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D2GB-150C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D2GB-150W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D2GB-200C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D2GB-200W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D2GB-250C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D2GB-250W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D2GB-300C Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D2GB-300W Size: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D2GC-30C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D2GC-30W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D2GC-50C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D2GC-50W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D2GC-100C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D2GC-100W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D2GC-150C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D2GC-150W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D2GC-200C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D2GC-200W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D2GC-250C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D2GC-250W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D2GC-300C Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D2GC-300W Size: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D3GA-30C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D3GA-30W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D3GA-50C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D3GA-50W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D3GA-100C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D3GA-100W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D3GA-150C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D3GA-150W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D3GA-200C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D3GA-200W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D3GA-250C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D3GA-250W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D3GA-300C Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D3GA-300W Size: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D3GB-30C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D3GB-30W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D3GB-50C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D3GB-50W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D3GB-100C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D3GB-100W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D3GB-150C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D3GB-150W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D3GB-200C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D3GB-200W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D3GB-250C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D3GB-250W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D3GB-300C Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D3GB-300W Size: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D3GC-30C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D3GC-30W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D3GC-50C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D3GC-50W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D3GC-100C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D3GC-100W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D3GC-150C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D3GC-150W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D3GC-200C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D3GC-200W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D3GC-250C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D3GC-250W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D3GC-300C Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D3GC-300W Size: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D4GA-30C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D4GA-30W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D4GA-50C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D4GA-50W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D4GA-100C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D4GA-100W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D4GA-150C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D4GA-150W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D4GA-200C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D4GA-200W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D4GA-250C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D4GA-250W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D4GA-300C Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D4GA-300W Size: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D4GB-30C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D4GB-30W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D4GB-50C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D4GB-50W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D4GB-100C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D4GB-100W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D4GB-150C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D4GB-150W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D4GB-200C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D4GB-200W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D4GB-250C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D4GB-250W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D4GB-300C Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D4GB-300W Size: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D4GC-30C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D4GC-30W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D4GC-50C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D4GC-50W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D4GC-100C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D4GC-100W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D4GC-150C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D4GC-150W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D4GC-200C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D4GC-200W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D4GC-250C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D4GC-250W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D4GC-300C Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D4GC-300W Size: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GA-30C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25GA-30W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25GA-50C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25GA-50W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25GA-100C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25GA-100W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25GA-150C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25GA-150W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25GA-200C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25GA-200W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25GA-250C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25GA-250W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25GA-300C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25GA-300W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GA-350C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25GA-350W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25GA-400C Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25GA-400W Size: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25GB-30C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25GB-30W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25GB-50C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25GB-50W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25GB-100C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25GB-100W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25GB-150C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25GB-150W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25GB-200C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25GB-200W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25GB-250C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25GB-250W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25GB-300C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25GB-300W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GB-350C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25GB-350W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25GB-400C Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25GB-400W Size: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25GC-30C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25GC-30W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25GC-50C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25GC-50W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25GC-100C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25GC-100W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25GC-150C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25GC-150W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25GC-200C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25GC-200W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25GC-250C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25GC-250W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25GC-300C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25GC-300W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GC-350C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25GC-350W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25GC-400C Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25GC-400W Size: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25DGA-30C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25DGA-30W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25DGA-50C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25DGA-50W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25DGA-100C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25DGA-100W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25DGA-150C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25DGA-150W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25DGA-200C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25DGA-200W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25DGA-250C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25DGA-250W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25DGA-300C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25DGA-300W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25DGA-350C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25DGA-350W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25DGA-400C Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25DGA-400W Size: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25DGB-30C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25DGB-30W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25DGB-50C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25DGB-50W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25DGB-100C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25DGB-100W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25DGB-150C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25DGB-150W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25DGB-200C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25DGB-200W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25DGB-250C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25DGB-250W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25DGB-300C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25DGB-300W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25DGB-350C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25DGB-350W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25DGB-400C Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25DGB-400W Size: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25DGC-30C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25DGC-30W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25DGC-50C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25DGC-50W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25DGC-100C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25DGC-100W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25DGC-150C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25DGC-150W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25DGC-200C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25DGC-200W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25DGC-250C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25DGC-250W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25DGC-300C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25DGC-300W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25DGC-350C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25DGC-350W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25DGC-400C Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25DGC-400W Size: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GA-30C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40GA-30W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40GA-50C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40GA-50W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40GA-100C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40GA-100W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40GA-150C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40GA-150W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40GA-200C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40GA-200W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40GA-250C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40GA-250W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40GA-300C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40GA-300W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40GA-350C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40GA-350W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40GA-400C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40GA-400W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GA-450C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40GA-450W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40GA-500C Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40GA-500W Size: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40GB-30C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40GB-30W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40GB-50C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40GB-50W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40GB-100C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40GB-100W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40GB-150C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40GB-150W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40GB-200C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40GB-200W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40GB-250C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40GB-250W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40GB-300C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40GB-300W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40GB-350C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40GB-350W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40GB-400C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40GB-400W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GB-450C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40GB-450W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40GB-500C Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40GB-500W Size: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40GC-30C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40GC-30W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40GC-50C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40GC-50W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40GC-100C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40GC-100W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40GC-150C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40GC-150W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40GC-200C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40GC-200W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40GC-250C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40GC-250W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40GC-300C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40GC-300W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40GC-350C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40GC-350W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40GC-400C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40GC-400W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GC-450C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40GC-450W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40GC-500C Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40GC-500W Size: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40DGA-30C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40DGA-30W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40DGA-50C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40DGA-50W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40DGA-100C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40DGA-100W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40DGA-150C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40DGA-150W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40DGA-200C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40DGA-200W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40DGA-250C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40DGA-250W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40DGA-300C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40DGA-300W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40DGA-350C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40DGA-350W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40DGA-400C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40DGA-400W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40DGA-450C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40DGA-450W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40DGA-500C Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40DGA-500W Size: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40DGB-30C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40DGB-30W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40DGB-50C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40DGB-50W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40DGB-100C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40DGB-100W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40DGB-150C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40DGB-150W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40DGB-200C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40DGB-200W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40DGB-250C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40DGB-250W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40DGB-300C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40DGB-300W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40DGB-350C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40DGB-350W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40DGB-400C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40DGB-400W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40DGB-450C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40DGB-450W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40DGB-500C Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40DGB-500W Size: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40DGC-30C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40DGC-30W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40DGC-50C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40DGC-50W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40DGC-100C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40DGC-100W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40DGC-150C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40DGC-150W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40DGC-200C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40DGC-200W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40DGC-250C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40DGC-250W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40DGC-300C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40DGC-300W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40DGC-350C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40DGC-350W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40DGC-400C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40DGC-400W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40DGC-450C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40DGC-450W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40DGC-500C Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40DGC-500W Size: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 500 mm | Motor option: With lock and motor cover
Electric ActuatorsSMC
450 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SMC LEY-G Electric Actuator, Rod Type (High Speed, Battery-less)

Brand SMC·Electric Actuators

Available part numbers (450)

LEY16GA-30C, LEY16GA-30W, LEY16GA-50C, LEY16GA-50W, LEY16GA-100C, LEY16GA-100W, LEY16GA-150C, LEY16GA-150W, LEY16GA-200C, LEY16GA-200W + 440 more — see full table ↓

How to order

Send the SMC part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LEY16GA-30CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16GA-30WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16GA-50CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16GA-50WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16GA-100CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16GA-100WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16GA-150CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16GA-150WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16GA-200CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16GA-200WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16GA-250CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16GA-250WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16GA-300CSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16GA-300WSize: 16 | Motor layout: Parallel, top mounting | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16GB-30CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16GB-30WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16GB-50CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16GB-50WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16GB-100CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16GB-100WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16GB-150CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16GB-150WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16GB-200CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16GB-200WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16GB-250CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16GB-250WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16GB-300CSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16GB-300WSize: 16 | Motor layout: Parallel, top mounting | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16GC-30CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16GC-30WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16GC-50CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16GC-50WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16GC-100CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16GC-100WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16GC-150CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16GC-150WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16GC-200CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16GC-200WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16GC-250CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16GC-250WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16GC-300CSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16GC-300WSize: 16 | Motor layout: Parallel, top mounting | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D1GA-30CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D1GA-30WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D1GA-50CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D1GA-50WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D1GA-100CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D1GA-100WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D1GA-150CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D1GA-150WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D1GA-200CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D1GA-200WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D1GA-250CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D1GA-250WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D1GA-300CSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D1GA-300WSize: 16 | Motor layout: In-line, cover left | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D1GB-30CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D1GB-30WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D1GB-50CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D1GB-50WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D1GB-100CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D1GB-100WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D1GB-150CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D1GB-150WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D1GB-200CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D1GB-200WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D1GB-250CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D1GB-250WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D1GB-300CSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D1GB-300WSize: 16 | Motor layout: In-line, cover left | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D1GC-30CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D1GC-30WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D1GC-50CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D1GC-50WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D1GC-100CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D1GC-100WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D1GC-150CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D1GC-150WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D1GC-200CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D1GC-200WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D1GC-250CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D1GC-250WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D1GC-300CSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D1GC-300WSize: 16 | Motor layout: In-line, cover left | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D2GA-30CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D2GA-30WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D2GA-50CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D2GA-50WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D2GA-100CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D2GA-100WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D2GA-150CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D2GA-150WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D2GA-200CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D2GA-200WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D2GA-250CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D2GA-250WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D2GA-300CSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D2GA-300WSize: 16 | Motor layout: In-line, cover right | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D2GB-30CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D2GB-30WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D2GB-50CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D2GB-50WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D2GB-100CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D2GB-100WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D2GB-150CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D2GB-150WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D2GB-200CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D2GB-200WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D2GB-250CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D2GB-250WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D2GB-300CSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D2GB-300WSize: 16 | Motor layout: In-line, cover right | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D2GC-30CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D2GC-30WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D2GC-50CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D2GC-50WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D2GC-100CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D2GC-100WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D2GC-150CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D2GC-150WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D2GC-200CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D2GC-200WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D2GC-250CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D2GC-250WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D2GC-300CSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D2GC-300WSize: 16 | Motor layout: In-line, cover right | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D3GA-30CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D3GA-30WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D3GA-50CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D3GA-50WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D3GA-100CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D3GA-100WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D3GA-150CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D3GA-150WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D3GA-200CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D3GA-200WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D3GA-250CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D3GA-250WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D3GA-300CSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D3GA-300WSize: 16 | Motor layout: In-line, cover top | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D3GB-30CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D3GB-30WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D3GB-50CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D3GB-50WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D3GB-100CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D3GB-100WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D3GB-150CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D3GB-150WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D3GB-200CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D3GB-200WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D3GB-250CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D3GB-250WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D3GB-300CSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D3GB-300WSize: 16 | Motor layout: In-line, cover top | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D3GC-30CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D3GC-30WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D3GC-50CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D3GC-50WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D3GC-100CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D3GC-100WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D3GC-150CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D3GC-150WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D3GC-200CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D3GC-200WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D3GC-250CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D3GC-250WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D3GC-300CSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D3GC-300WSize: 16 | Motor layout: In-line, cover top | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D4GA-30CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D4GA-30WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D4GA-50CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D4GA-50WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D4GA-100CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D4GA-100WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D4GA-150CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D4GA-150WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D4GA-200CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D4GA-200WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D4GA-250CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D4GA-250WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D4GA-300CSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D4GA-300WSize: 16 | Motor layout: In-line, cover bottom | Lead: 10 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D4GB-30CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D4GB-30WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D4GB-50CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D4GB-50WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D4GB-100CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D4GB-100WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D4GB-150CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D4GB-150WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D4GB-200CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D4GB-200WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D4GB-250CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D4GB-250WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D4GB-300CSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D4GB-300WSize: 16 | Motor layout: In-line, cover bottom | Lead: 5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY16D4GC-30CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With motor cover
LEY16D4GC-30WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY16D4GC-50CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With motor cover
LEY16D4GC-50WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY16D4GC-100CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With motor cover
LEY16D4GC-100WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY16D4GC-150CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With motor cover
LEY16D4GC-150WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY16D4GC-200CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With motor cover
LEY16D4GC-200WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY16D4GC-250CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With motor cover
LEY16D4GC-250WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY16D4GC-300CSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With motor cover
LEY16D4GC-300WSize: 16 | Motor layout: In-line, cover bottom | Lead: 2.5 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GA-30CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25GA-30WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25GA-50CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25GA-50WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25GA-100CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25GA-100WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25GA-150CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25GA-150WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25GA-200CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25GA-200WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25GA-250CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25GA-250WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25GA-300CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25GA-300WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GA-350CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25GA-350WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25GA-400CSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25GA-400WSize: 25 | Motor layout: Parallel, top mounting | Lead: 12 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25GB-30CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25GB-30WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25GB-50CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25GB-50WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25GB-100CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25GB-100WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25GB-150CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25GB-150WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25GB-200CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25GB-200WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25GB-250CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25GB-250WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25GB-300CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25GB-300WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GB-350CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25GB-350WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25GB-400CSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25GB-400WSize: 25 | Motor layout: Parallel, top mounting | Lead: 6 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25GC-30CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25GC-30WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25GC-50CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25GC-50WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25GC-100CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25GC-100WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25GC-150CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25GC-150WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25GC-200CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25GC-200WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25GC-250CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25GC-250WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25GC-300CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25GC-300WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25GC-350CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25GC-350WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25GC-400CSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25GC-400WSize: 25 | Motor layout: Parallel, top mounting | Lead: 3 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25DGA-30CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25DGA-30WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25DGA-50CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25DGA-50WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25DGA-100CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25DGA-100WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25DGA-150CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25DGA-150WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25DGA-200CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25DGA-200WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25DGA-250CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25DGA-250WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25DGA-300CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25DGA-300WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25DGA-350CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25DGA-350WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25DGA-400CSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25DGA-400WSize: 25 | Motor layout: In-line (straight) | Lead: 12 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25DGB-30CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25DGB-30WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25DGB-50CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25DGB-50WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25DGB-100CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25DGB-100WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25DGB-150CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25DGB-150WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25DGB-200CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25DGB-200WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25DGB-250CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25DGB-250WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25DGB-300CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25DGB-300WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25DGB-350CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25DGB-350WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25DGB-400CSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25DGB-400WSize: 25 | Motor layout: In-line (straight) | Lead: 6 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY25DGC-30CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 30 mm | Motor option: With motor cover
LEY25DGC-30WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY25DGC-50CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 50 mm | Motor option: With motor cover
LEY25DGC-50WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY25DGC-100CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 100 mm | Motor option: With motor cover
LEY25DGC-100WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY25DGC-150CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 150 mm | Motor option: With motor cover
LEY25DGC-150WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY25DGC-200CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 200 mm | Motor option: With motor cover
LEY25DGC-200WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY25DGC-250CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 250 mm | Motor option: With motor cover
LEY25DGC-250WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY25DGC-300CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 300 mm | Motor option: With motor cover
LEY25DGC-300WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY25DGC-350CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 350 mm | Motor option: With motor cover
LEY25DGC-350WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY25DGC-400CSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 400 mm | Motor option: With motor cover
LEY25DGC-400WSize: 25 | Motor layout: In-line (straight) | Lead: 3 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GA-30CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40GA-30WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40GA-50CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40GA-50WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40GA-100CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40GA-100WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40GA-150CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40GA-150WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40GA-200CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40GA-200WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40GA-250CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40GA-250WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40GA-300CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40GA-300WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40GA-350CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40GA-350WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40GA-400CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40GA-400WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GA-450CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40GA-450WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40GA-500CSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40GA-500WSize: 40 | Motor layout: Parallel, top mounting | Lead: 16 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40GB-30CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40GB-30WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40GB-50CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40GB-50WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40GB-100CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40GB-100WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40GB-150CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40GB-150WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40GB-200CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40GB-200WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40GB-250CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40GB-250WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40GB-300CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40GB-300WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40GB-350CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40GB-350WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40GB-400CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40GB-400WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GB-450CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40GB-450WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40GB-500CSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40GB-500WSize: 40 | Motor layout: Parallel, top mounting | Lead: 8 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40GC-30CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40GC-30WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40GC-50CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40GC-50WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40GC-100CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40GC-100WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40GC-150CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40GC-150WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40GC-200CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40GC-200WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40GC-250CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40GC-250WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40GC-300CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40GC-300WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40GC-350CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40GC-350WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40GC-400CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40GC-400WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40GC-450CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40GC-450WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40GC-500CSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40GC-500WSize: 40 | Motor layout: Parallel, top mounting | Lead: 4 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40DGA-30CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40DGA-30WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40DGA-50CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40DGA-50WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40DGA-100CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40DGA-100WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40DGA-150CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40DGA-150WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40DGA-200CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40DGA-200WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40DGA-250CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40DGA-250WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40DGA-300CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40DGA-300WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40DGA-350CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40DGA-350WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40DGA-400CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40DGA-400WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40DGA-450CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40DGA-450WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40DGA-500CSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40DGA-500WSize: 40 | Motor layout: In-line (straight) | Lead: 16 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40DGB-30CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40DGB-30WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40DGB-50CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40DGB-50WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40DGB-100CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40DGB-100WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40DGB-150CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40DGB-150WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40DGB-200CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40DGB-200WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40DGB-250CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40DGB-250WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40DGB-300CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40DGB-300WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40DGB-350CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40DGB-350WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40DGB-400CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40DGB-400WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40DGB-450CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40DGB-450WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40DGB-500CSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40DGB-500WSize: 40 | Motor layout: In-line (straight) | Lead: 8 mm | Stroke: 500 mm | Motor option: With lock and motor cover
LEY40DGC-30CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 30 mm | Motor option: With motor cover
LEY40DGC-30WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 30 mm | Motor option: With lock and motor cover
LEY40DGC-50CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 50 mm | Motor option: With motor cover
LEY40DGC-50WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 50 mm | Motor option: With lock and motor cover
LEY40DGC-100CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 100 mm | Motor option: With motor cover
LEY40DGC-100WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 100 mm | Motor option: With lock and motor cover
LEY40DGC-150CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 150 mm | Motor option: With motor cover
LEY40DGC-150WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 150 mm | Motor option: With lock and motor cover
LEY40DGC-200CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 200 mm | Motor option: With motor cover
LEY40DGC-200WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 200 mm | Motor option: With lock and motor cover
LEY40DGC-250CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 250 mm | Motor option: With motor cover
LEY40DGC-250WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 250 mm | Motor option: With lock and motor cover
LEY40DGC-300CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 300 mm | Motor option: With motor cover
LEY40DGC-300WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 300 mm | Motor option: With lock and motor cover
LEY40DGC-350CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 350 mm | Motor option: With motor cover
LEY40DGC-350WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 350 mm | Motor option: With lock and motor cover
LEY40DGC-400CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 400 mm | Motor option: With motor cover
LEY40DGC-400WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 400 mm | Motor option: With lock and motor cover
LEY40DGC-450CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 450 mm | Motor option: With motor cover
LEY40DGC-450WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 450 mm | Motor option: With lock and motor cover
LEY40DGC-500CSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 500 mm | Motor option: With motor cover
LEY40DGC-500WSize: 40 | Motor layout: In-line (straight) | Lead: 4 mm | Stroke: 500 mm | Motor option: With lock and motor cover

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Linear Motion & Bearings →
