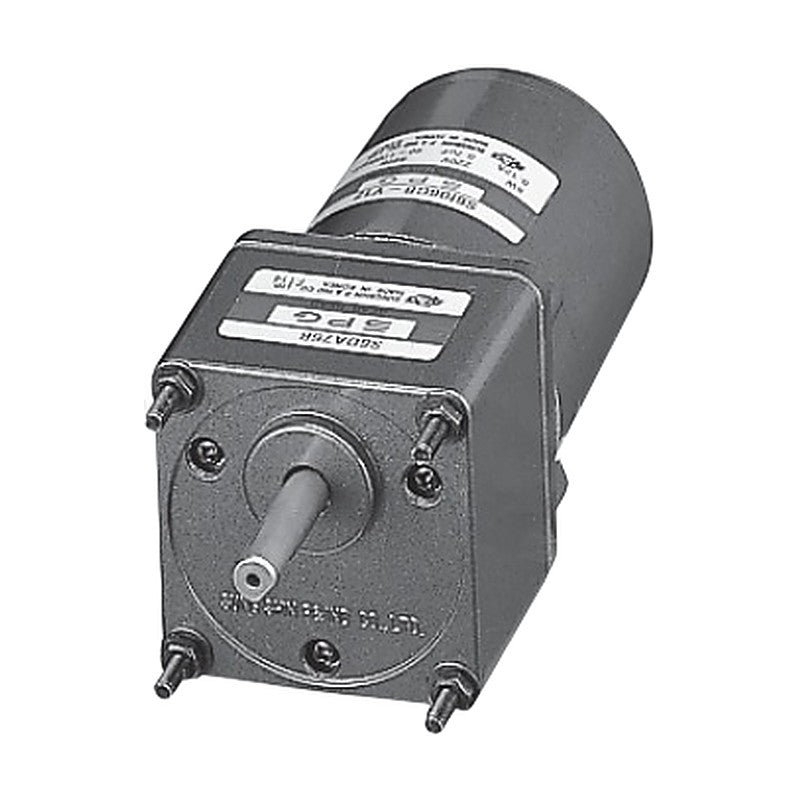

SPG 60 mm Speed Control Induction Motors (6 W, SR/SS Type)

SPG 60 mm Speed Control Induction Motors (6 W, SR/SS Type)

SPG 60 mm single-phase induction speed control motors (6 W) with built-in tacho generator, matched to SR or SS speed controllers.

Key features

  • Built-in tacho generator for feedback control; speed stays constant when supply frequency changes
  • Variable speed with SPG SR (-S12) or SS (-S24) socket-type speed controllers
  • Speed conversion, braking and reversing operation possible; slow run / slow stop with SS controller
  • CE-marked models (suffix CE) available for every voltage

Specifications

Frame size 60 mm sq.
Output 6 W
Motor type Induction speed control motor, lead wire type
Phase Single-phase
Poles 4
Duty Continuous
Speed range 50 Hz: 90-1400 rpm; 60 Hz: 90-1700 rpm
Tacho generator -S12: 12 V for SR controller; -S24: 24 V for SS
Insulation class B (130 C)
Shaft Pinion shaft (G) for S6 gearheads; gearheads sold separately
Source SPG Standard AC Geared Motor catalog, p. 238-240
S6I06GA-S12 Voltage: 1-ph 110 V 60 Hz | Controller: SRA01 | Version: Standard | Capacitor: 2.5 uF
S6I06GA-S12CE Voltage: 1-ph 110 V 60 Hz | Controller: SRA01CE | Version: CE marked | Capacitor: 2.5 uF
S6I06GB-S12 Voltage: 1-ph 220 V 60 Hz | Controller: SRB01 | Version: Standard | Capacitor: 0.7 uF
S6I06GB-S12CE Voltage: 1-ph 220 V 60 Hz | Controller: SRB01CE | Version: CE marked | Capacitor: 0.7 uF
S6I06GC-S12 Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01 | Version: Standard | Capacitor: 2.5 uF
S6I06GC-S12CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01CE | Version: CE marked | Capacitor: 2.5 uF
S6I06GD-S12 Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01 | Version: Standard | Capacitor: 0.7 uF
S6I06GD-S12CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01CE | Version: CE marked | Capacitor: 0.7 uF
S6I06GX-S12 Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX01 | Version: Standard | Capacitor: 0.7 uF
S6I06GX-S12CE Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX01CE | Version: CE marked | Capacitor: 0.7 uF
S6I06GA-S24 Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 2.5 uF
S6I06GA-S24CE Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S6I06GB-S24 Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 0.7 uF
S6I06GB-S24CE Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 0.7 uF
S6I06GC-S24 Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 2.5 uF
S6I06GC-S24CE Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S6I06GD-S24 Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 0.7 uF
S6I06GD-S24CE Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 0.7 uF
S6I06GX-S24 Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Version: Standard | Capacitor: 0.7 uF
S6I06GX-S24CE Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 0.7 uF
Speed Control MotorsSPG
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 60 mm Speed Control Induction Motors (6 W, SR/SS Type)

Brand SPG·Speed Control Motors

Available part numbers (20)

S6I06GA-S12, S6I06GA-S12CE, S6I06GB-S12, S6I06GB-S12CE, S6I06GC-S12, S6I06GC-S12CE, S6I06GD-S12, S6I06GD-S12CE, S6I06GX-S12, S6I06GX-S12CE + 10 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S6I06GA-S12Voltage: 1-ph 110 V 60 Hz | Controller: SRA01 | Version: Standard | Capacitor: 2.5 uF
S6I06GA-S12CEVoltage: 1-ph 110 V 60 Hz | Controller: SRA01CE | Version: CE marked | Capacitor: 2.5 uF
S6I06GB-S12Voltage: 1-ph 220 V 60 Hz | Controller: SRB01 | Version: Standard | Capacitor: 0.7 uF
S6I06GB-S12CEVoltage: 1-ph 220 V 60 Hz | Controller: SRB01CE | Version: CE marked | Capacitor: 0.7 uF
S6I06GC-S12Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC01 | Version: Standard | Capacitor: 2.5 uF
S6I06GC-S12CEVoltage: 1-ph 100 V 50/60 Hz | Controller: SRC01CE | Version: CE marked | Capacitor: 2.5 uF
S6I06GD-S12Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD01 | Version: Standard | Capacitor: 0.7 uF
S6I06GD-S12CEVoltage: 1-ph 200 V 50/60 Hz | Controller: SRD01CE | Version: CE marked | Capacitor: 0.7 uF
S6I06GX-S12Voltage: 1-ph 220-240 V 50 Hz | Controller: SRX01 | Version: Standard | Capacitor: 0.7 uF
S6I06GX-S12CEVoltage: 1-ph 220-240 V 50 Hz | Controller: SRX01CE | Version: CE marked | Capacitor: 0.7 uF
S6I06GA-S24Voltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Version: Standard | Capacitor: 2.5 uF
S6I06GA-S24CEVoltage: 1-ph 110 V 60 Hz | Controller: SSA01-SRSS / SSA03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S6I06GB-S24Voltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Version: Standard | Capacitor: 0.7 uF
S6I06GB-S24CEVoltage: 1-ph 220 V 60 Hz | Controller: SSB01-SRSS / SSB03-SRSS | Version: CE marked | Capacitor: 0.7 uF
S6I06GC-S24Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Version: Standard | Capacitor: 2.5 uF
S6I06GC-S24CEVoltage: 1-ph 100 V 50/60 Hz | Controller: SSC01-SRSS / SSC03-SRSS | Version: CE marked | Capacitor: 2.5 uF
S6I06GD-S24Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Version: Standard | Capacitor: 0.7 uF
S6I06GD-S24CEVoltage: 1-ph 200 V 50/60 Hz | Controller: SSD01-SRSS / SSD03-SRSS | Version: CE marked | Capacitor: 0.7 uF
S6I06GX-S24Voltage: 1-ph 220-240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Version: Standard | Capacitor: 0.7 uF
S6I06GX-S24CEVoltage: 1-ph 220-240 V 50 Hz | Controller: SSX01-SRSS / SSX03-SRSS | Version: CE marked | Capacitor: 0.7 uF
