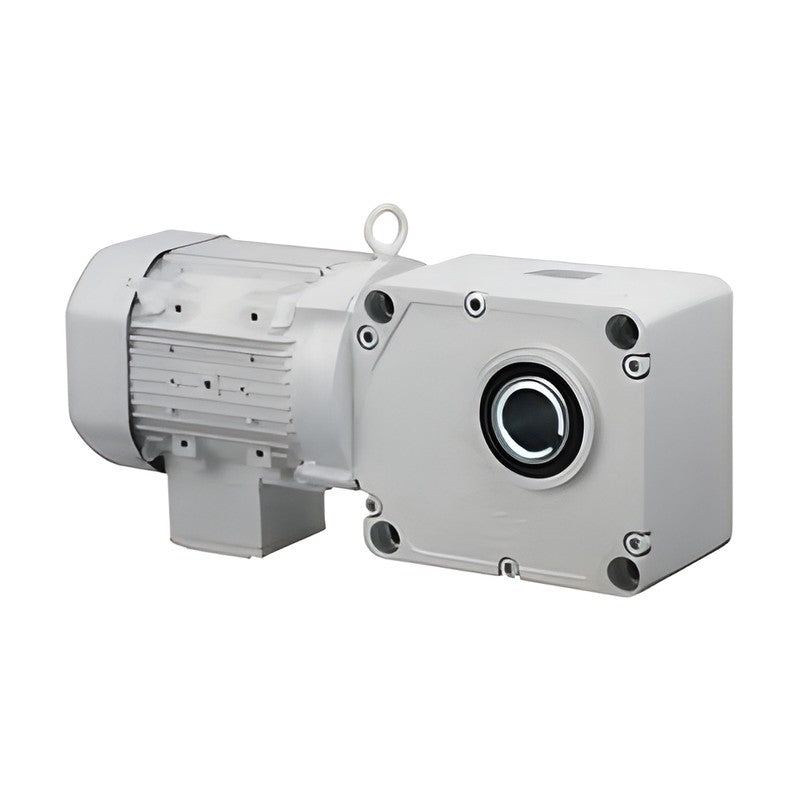

SPG PCH Frame 35 Hollow Shaft Right-Angle Geared Motors (0.4-0.75 kW)

SPG PCH Frame 35 Hollow Shaft Right-Angle Geared Motors (0.4-0.75 kW)

SPG PCH series right-angle hollow shaft industrial geared motor, gear frame 35, 3-phase 0.4-0.75 kW, ratios 1/80-1/60.

Key features

  • Right-angle hollow output shaft gearbox driven by a compact 3-phase 4-pole induction motor, 0.4-0.75 kW
  • Reduction ratios 1/80-1/60 on gear frame 35; ratios marked limited are capped by permissible gear torque
  • Motor options: A lead box (IP55), B terminal box (IP55), C terminal box + brake (IP40), D terminal box + brake waterproof (IP55)
  • Voltage codes R4 (220/380 V 60 Hz), W6 (200 V 50 Hz / 200/220 V 60 Hz) and X6 (380/400 V 50 Hz / 400/440 V 60 Hz)
  • Codes are listed with the standard terminal box direction (B); directions L/T/R are available by changing the last letter
  • Self-locking is not available; 0.75 kW and above meet premium (minimum efficiency) regulations

Specifications

Series PCH (hollow shaft, right-angle)
Gear frame 35
Output shaft Hollow shaft, bore 35 mm
Motor 3-phase induction, 4 poles
Efficiency code M - Standard efficiency / P - Premium efficiency
Reduction ratio range 1/80-1/60
Duty Continuous
Insulation class F
Cooling Totally enclosed fan-cooled
Terminal box location B - 6 o'clock (standard)
Source SPG Industrial Motor catalog, p. 71-87, 100
PCH35-80-MA040R4B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-80-MB040R4B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-80-MC040R4B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-80-MD040R4B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-80-MA040W6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-80-MB040W6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-80-MC040W6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-80-MD040W6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-80-MA040X6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-80-MB040X6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-80-MC040X6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-80-MD040X6B Output: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-100-MA040R4B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-100-MB040R4B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-100-MC040R4B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-100-MD040R4B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-100-MA040W6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-100-MB040W6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-100-MC040W6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-100-MD040W6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-100-MA040X6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-100-MB040X6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-100-MC040X6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-100-MD040X6B Output: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-120-MA040R4B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-120-MB040R4B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-120-MC040R4B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-120-MD040R4B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-120-MA040W6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-120-MB040W6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-120-MC040W6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-120-MD040W6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-120-MA040X6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-120-MB040X6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-120-MC040X6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-120-MD040X6B Output: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-160-MA040R4B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-160-MB040R4B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-160-MC040R4B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-160-MD040R4B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-160-MA040W6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-160-MB040W6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-160-MC040W6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-160-MD040W6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-160-MA040X6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-160-MB040X6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-160-MC040X6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-160-MD040X6B Output: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-200-MA040R4B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-200-MB040R4B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-200-MC040R4B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-200-MD040R4B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-200-MA040W6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-200-MB040W6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-200-MC040W6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-200-MD040W6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-200-MA040X6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-200-MB040X6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-200-MC040X6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-200-MD040X6B Output: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-240-MA040R4B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-240-MB040R4B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-240-MC040R4B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-240-MD040R4B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-240-MA040W6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-240-MB040W6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-240-MC040W6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-240-MD040W6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-240-MA040X6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-240-MB040X6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-240-MC040X6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-240-MD040X6B Output: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-5-PA075R4B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-5-PB075R4B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-5-PC075R4B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-5-PD075R4B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-5-PA075W6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-5-PB075W6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-5-PC075W6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-5-PD075W6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-5-PA075X6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-5-PB075X6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-5-PC075X6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-5-PD075X6B Output: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-7.5-PA075R4B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-7.5-PB075R4B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-7.5-PC075R4B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-7.5-PD075R4B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-7.5-PA075W6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-7.5-PB075W6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-7.5-PC075W6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-7.5-PD075W6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-7.5-PA075X6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-7.5-PB075X6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-7.5-PC075X6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-7.5-PD075X6B Output: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-10-PA075R4B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-10-PB075R4B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-10-PC075R4B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-10-PD075R4B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-10-PA075W6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-10-PB075W6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-10-PC075W6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-10-PD075W6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-10-PA075X6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-10-PB075X6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-10-PC075X6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-10-PD075X6B Output: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-12.5-PA075R4B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-12.5-PB075R4B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-12.5-PC075R4B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-12.5-PD075R4B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-12.5-PA075W6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-12.5-PB075W6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-12.5-PC075W6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-12.5-PD075W6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-12.5-PA075X6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-12.5-PB075X6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-12.5-PC075X6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-12.5-PD075X6B Output: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-15-PA075R4B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-15-PB075R4B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-15-PC075R4B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-15-PD075R4B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-15-PA075W6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-15-PB075W6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-15-PC075W6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-15-PD075W6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-15-PA075X6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-15-PB075X6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-15-PC075X6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-15-PD075X6B Output: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-20-PA075R4B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-20-PB075R4B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-20-PC075R4B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-20-PD075R4B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-20-PA075W6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-20-PB075W6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-20-PC075W6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-20-PD075W6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-20-PA075X6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-20-PB075X6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-20-PC075X6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-20-PD075X6B Output: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-25-PA075R4B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-25-PB075R4B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-25-PC075R4B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-25-PD075R4B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-25-PA075W6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-25-PB075W6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-25-PC075W6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-25-PD075W6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-25-PA075X6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-25-PB075X6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-25-PC075X6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-25-PD075X6B Output: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-30-PA075R4B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-30-PB075R4B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-30-PC075R4B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-30-PD075R4B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-30-PA075W6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-30-PB075W6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-30-PC075W6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-30-PD075W6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-30-PA075X6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-30-PB075X6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-30-PC075X6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-30-PD075X6B Output: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-40-PA075R4B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-40-PB075R4B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-40-PC075R4B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-40-PD075R4B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-40-PA075W6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-40-PB075W6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-40-PC075W6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-40-PD075W6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-40-PA075X6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-40-PB075X6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-40-PC075X6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-40-PD075X6B Output: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-50-PA075R4B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-50-PB075R4B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-50-PC075R4B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-50-PD075R4B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-50-PA075W6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-50-PB075W6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-50-PC075W6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-50-PD075W6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-50-PA075X6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-50-PB075X6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-50-PC075X6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-50-PD075X6B Output: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-60-PA075R4B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-60-PB075R4B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-60-PC075R4B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-60-PD075R4B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-60-PA075W6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-60-PB075W6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-60-PC075W6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-60-PD075W6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-60-PA075X6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-60-PB075X6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-60-PC075X6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-60-PD075X6B Output: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
Industrial MotorsSPG
204 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PCH Frame 35 Hollow Shaft Right-Angle Geared Motors (0.4-0.75 kW)

Brand SPG·Industrial Motors

Available part numbers (204)

PCH35-80-MA040R4B, PCH35-80-MB040R4B, PCH35-80-MC040R4B, PCH35-80-MD040R4B, PCH35-80-MA040W6B, PCH35-80-MB040W6B, PCH35-80-MC040W6B, PCH35-80-MD040W6B, PCH35-80-MA040X6B, PCH35-80-MB040X6B + 194 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCH35-80-MA040R4BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-80-MB040R4BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-80-MC040R4BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-80-MD040R4BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-80-MA040W6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-80-MB040W6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-80-MC040W6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-80-MD040W6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-80-MA040X6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-80-MB040X6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-80-MC040X6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-80-MD040X6BOutput: 0.4 kW | Ratio: 1/80 (22.5 r/min) | Allowable torque: 145 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-100-MA040R4BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-100-MB040R4BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-100-MC040R4BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-100-MD040R4BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-100-MA040W6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-100-MB040W6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-100-MC040W6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-100-MD040W6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-100-MA040X6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-100-MB040X6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-100-MC040X6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-100-MD040X6BOutput: 0.4 kW | Ratio: 1/100 (18 r/min) | Allowable torque: 180 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-120-MA040R4BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-120-MB040R4BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-120-MC040R4BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-120-MD040R4BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-120-MA040W6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-120-MB040W6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-120-MC040W6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-120-MD040W6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-120-MA040X6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-120-MB040X6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-120-MC040X6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-120-MD040X6BOutput: 0.4 kW | Ratio: 1/120 (15 r/min) | Allowable torque: 217 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-160-MA040R4BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-160-MB040R4BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-160-MC040R4BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-160-MD040R4BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-160-MA040W6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-160-MB040W6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-160-MC040W6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-160-MD040W6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-160-MA040X6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-160-MB040X6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-160-MC040X6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-160-MD040X6BOutput: 0.4 kW | Ratio: 1/160 (11.3 r/min) | Allowable torque: 268 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-200-MA040R4BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-200-MB040R4BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-200-MC040R4BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-200-MD040R4BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-200-MA040W6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-200-MB040W6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-200-MC040W6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-200-MD040W6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-200-MA040X6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-200-MB040X6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-200-MC040X6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-200-MD040X6BOutput: 0.4 kW | Ratio: 1/200 (9 r/min) | Allowable torque: 268 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-240-MA040R4BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-240-MB040R4BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-240-MC040R4BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-240-MD040R4BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-240-MA040W6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-240-MB040W6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-240-MC040W6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-240-MD040W6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-240-MA040X6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-240-MB040X6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-240-MC040X6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-240-MD040X6BOutput: 0.4 kW | Ratio: 1/240 (7.5 r/min) | Allowable torque: 290 N·m (limited) | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-5-PA075R4BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-5-PB075R4BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-5-PC075R4BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-5-PD075R4BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-5-PA075W6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-5-PB075W6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-5-PC075W6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-5-PD075W6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-5-PA075X6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-5-PB075X6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-5-PC075X6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-5-PD075X6BOutput: 0.75 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 17.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-7.5-PA075R4BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-7.5-PB075R4BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-7.5-PC075R4BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-7.5-PD075R4BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-7.5-PA075W6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-7.5-PB075W6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-7.5-PC075W6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-7.5-PD075W6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-7.5-PA075X6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-7.5-PB075X6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-7.5-PC075X6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-7.5-PD075X6BOutput: 0.75 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 26 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-10-PA075R4BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-10-PB075R4BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-10-PC075R4BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-10-PD075R4BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-10-PA075W6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-10-PB075W6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-10-PC075W6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-10-PD075W6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-10-PA075X6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-10-PB075X6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-10-PC075X6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-10-PD075X6BOutput: 0.75 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 34.3 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-12.5-PA075R4BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-12.5-PB075R4BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-12.5-PC075R4BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-12.5-PD075R4BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-12.5-PA075W6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-12.5-PB075W6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-12.5-PC075W6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-12.5-PD075W6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-12.5-PA075X6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-12.5-PB075X6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-12.5-PC075X6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-12.5-PD075X6BOutput: 0.75 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 43.1 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-15-PA075R4BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-15-PB075R4BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-15-PC075R4BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-15-PD075R4BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-15-PA075W6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-15-PB075W6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-15-PC075W6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-15-PD075W6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-15-PA075X6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-15-PB075X6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-15-PC075X6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-15-PD075X6BOutput: 0.75 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 51.9 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-20-PA075R4BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-20-PB075R4BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-20-PC075R4BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-20-PD075R4BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-20-PA075W6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-20-PB075W6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-20-PC075W6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-20-PD075W6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-20-PA075X6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-20-PB075X6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-20-PC075X6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-20-PD075X6BOutput: 0.75 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 69.6 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-25-PA075R4BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-25-PB075R4BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-25-PC075R4BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-25-PD075R4BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-25-PA075W6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-25-PB075W6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-25-PC075W6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-25-PD075W6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-25-PA075X6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-25-PB075X6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-25-PC075X6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-25-PD075X6BOutput: 0.75 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 86.2 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-30-PA075R4BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-30-PB075R4BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-30-PC075R4BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-30-PD075R4BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-30-PA075W6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-30-PB075W6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-30-PC075W6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-30-PD075W6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-30-PA075X6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-30-PB075X6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-30-PC075X6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-30-PD075X6BOutput: 0.75 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 104 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-40-PA075R4BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-40-PB075R4BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-40-PC075R4BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-40-PD075R4BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-40-PA075W6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-40-PB075W6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-40-PC075W6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-40-PD075W6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-40-PA075X6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-40-PB075X6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-40-PC075X6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-40-PD075X6BOutput: 0.75 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 138 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-50-PA075R4BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-50-PB075R4BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-50-PC075R4BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-50-PD075R4BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-50-PA075W6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-50-PB075W6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-50-PC075W6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-50-PD075W6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-50-PA075X6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-50-PB075X6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-50-PC075X6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-50-PD075X6BOutput: 0.75 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 173 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-60-PA075R4BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-60-PB075R4BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-60-PC075R4BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-60-PD075R4BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-60-PA075W6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-60-PB075W6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-60-PC075W6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-60-PD075W6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH35-60-PA075X6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH35-60-PB075X6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH35-60-PC075X6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH35-60-PD075X6BOutput: 0.75 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 208 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
