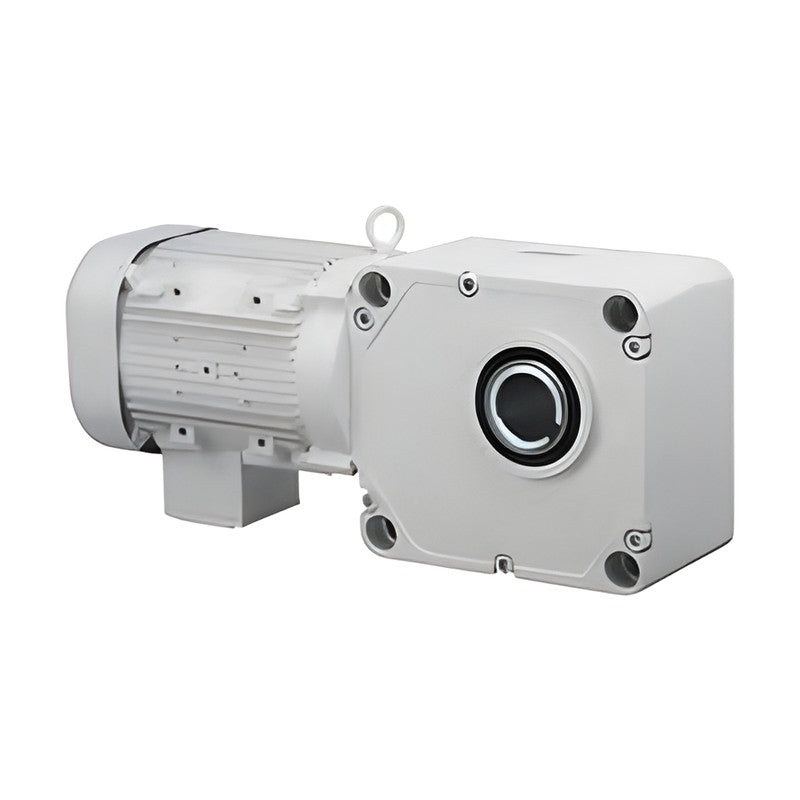

SPG PCH Frame 55 Hollow Shaft Right-Angle Geared Motors (2.2 kW)

SPG PCH Frame 55 Hollow Shaft Right-Angle Geared Motors (2.2 kW)

SPG PCH series right-angle hollow shaft industrial geared motor, gear frame 55, 3-phase 2.2 kW, ratios 1/5-1/60.

Key features

  • Right-angle hollow output shaft gearbox driven by a compact 3-phase 4-pole induction motor, 2.2 kW
  • Reduction ratios 1/5-1/60 on gear frame 55; ratios marked limited are capped by permissible gear torque
  • Motor options: A lead box (IP55), B terminal box (IP55), C terminal box + brake (IP40), D terminal box + brake waterproof (IP55)
  • Voltage codes R4 (220/380 V 60 Hz), W6 (200 V 50 Hz / 200/220 V 60 Hz) and X6 (380/400 V 50 Hz / 400/440 V 60 Hz)
  • Codes are listed with the standard terminal box direction (B); directions L/T/R are available by changing the last letter
  • Self-locking is not available; 0.75 kW and above meet premium (minimum efficiency) regulations

Specifications

Series PCH (hollow shaft, right-angle)
Gear frame 55
Output shaft Hollow shaft, bore 55 mm
Motor 3-phase induction, 4 poles
Efficiency code P - Premium efficiency
Reduction ratio range 1/5-1/60
Duty Continuous
Insulation class F
Cooling Totally enclosed fan-cooled
Terminal box location B - 6 o'clock (standard)
Source SPG Industrial Motor catalog, p. 71-87, 100
PCH55-5-PA220R4B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-5-PB220R4B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-5-PC220R4B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-5-PD220R4B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-5-PA220W6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-5-PB220W6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-5-PC220W6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-5-PD220W6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-5-PA220X6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-5-PB220X6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-5-PC220X6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-5-PD220X6B Output: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-7.5-PA220R4B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-7.5-PB220R4B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-7.5-PC220R4B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-7.5-PD220R4B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-7.5-PA220W6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-7.5-PB220W6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-7.5-PC220W6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-7.5-PD220W6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-7.5-PA220X6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-7.5-PB220X6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-7.5-PC220X6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-7.5-PD220X6B Output: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-10-PA220R4B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-10-PB220R4B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-10-PC220R4B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-10-PD220R4B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-10-PA220W6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-10-PB220W6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-10-PC220W6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-10-PD220W6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-10-PA220X6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-10-PB220X6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-10-PC220X6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-10-PD220X6B Output: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-12.5-PA220R4B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-12.5-PB220R4B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-12.5-PC220R4B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-12.5-PD220R4B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-12.5-PA220W6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-12.5-PB220W6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-12.5-PC220W6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-12.5-PD220W6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-12.5-PA220X6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-12.5-PB220X6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-12.5-PC220X6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-12.5-PD220X6B Output: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-15-PA220R4B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-15-PB220R4B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-15-PC220R4B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-15-PD220R4B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-15-PA220W6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-15-PB220W6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-15-PC220W6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-15-PD220W6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-15-PA220X6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-15-PB220X6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-15-PC220X6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-15-PD220X6B Output: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-20-PA220R4B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-20-PB220R4B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-20-PC220R4B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-20-PD220R4B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-20-PA220W6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-20-PB220W6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-20-PC220W6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-20-PD220W6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-20-PA220X6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-20-PB220X6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-20-PC220X6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-20-PD220X6B Output: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-25-PA220R4B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-25-PB220R4B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-25-PC220R4B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-25-PD220R4B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-25-PA220W6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-25-PB220W6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-25-PC220W6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-25-PD220W6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-25-PA220X6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-25-PB220X6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-25-PC220X6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-25-PD220X6B Output: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-30-PA220R4B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-30-PB220R4B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-30-PC220R4B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-30-PD220R4B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-30-PA220W6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-30-PB220W6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-30-PC220W6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-30-PD220W6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-30-PA220X6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-30-PB220X6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-30-PC220X6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-30-PD220X6B Output: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-40-PA220R4B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-40-PB220R4B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-40-PC220R4B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-40-PD220R4B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-40-PA220W6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-40-PB220W6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-40-PC220W6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-40-PD220W6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-40-PA220X6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-40-PB220X6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-40-PC220X6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-40-PD220X6B Output: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-50-PA220R4B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-50-PB220R4B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-50-PC220R4B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-50-PD220R4B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-50-PA220W6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-50-PB220W6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-50-PC220W6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-50-PD220W6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-50-PA220X6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-50-PB220X6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-50-PC220X6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-50-PD220X6B Output: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-60-PA220R4B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-60-PB220R4B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-60-PC220R4B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-60-PD220R4B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-60-PA220W6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-60-PB220W6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-60-PC220W6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-60-PD220W6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-60-PA220X6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-60-PB220X6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-60-PC220X6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-60-PD220X6B Output: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
Industrial MotorsSPG
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PCH Frame 55 Hollow Shaft Right-Angle Geared Motors (2.2 kW)

Brand SPG·Industrial Motors

Available part numbers (132)

PCH55-5-PA220R4B, PCH55-5-PB220R4B, PCH55-5-PC220R4B, PCH55-5-PD220R4B, PCH55-5-PA220W6B, PCH55-5-PB220W6B, PCH55-5-PC220W6B, PCH55-5-PD220W6B, PCH55-5-PA220X6B, PCH55-5-PB220X6B + 122 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PCH55-5-PA220R4BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-5-PB220R4BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-5-PC220R4BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-5-PD220R4BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-5-PA220W6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-5-PB220W6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-5-PC220W6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-5-PD220W6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-5-PA220X6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-5-PB220X6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-5-PC220X6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-5-PD220X6BOutput: 2.2 kW | Ratio: 1/5 (360 r/min) | Allowable torque: 51 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-7.5-PA220R4BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-7.5-PB220R4BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-7.5-PC220R4BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-7.5-PD220R4BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-7.5-PA220W6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-7.5-PB220W6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-7.5-PC220W6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-7.5-PD220W6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-7.5-PA220X6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-7.5-PB220X6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-7.5-PC220X6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-7.5-PD220X6BOutput: 2.2 kW | Ratio: 1/7.5 (240 r/min) | Allowable torque: 76 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-10-PA220R4BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-10-PB220R4BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-10-PC220R4BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-10-PD220R4BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-10-PA220W6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-10-PB220W6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-10-PC220W6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-10-PD220W6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-10-PA220X6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-10-PB220X6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-10-PC220X6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-10-PD220X6BOutput: 2.2 kW | Ratio: 1/10 (180 r/min) | Allowable torque: 101 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-12.5-PA220R4BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-12.5-PB220R4BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-12.5-PC220R4BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-12.5-PD220R4BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-12.5-PA220W6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-12.5-PB220W6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-12.5-PC220W6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-12.5-PD220W6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-12.5-PA220X6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-12.5-PB220X6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-12.5-PC220X6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-12.5-PD220X6BOutput: 2.2 kW | Ratio: 1/12.5 (144 r/min) | Allowable torque: 127 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-15-PA220R4BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-15-PB220R4BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-15-PC220R4BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-15-PD220R4BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-15-PA220W6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-15-PB220W6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-15-PC220W6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-15-PD220W6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-15-PA220X6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-15-PB220X6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-15-PC220X6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-15-PD220X6BOutput: 2.2 kW | Ratio: 1/15 (120 r/min) | Allowable torque: 152 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-20-PA220R4BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-20-PB220R4BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-20-PC220R4BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-20-PD220R4BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-20-PA220W6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-20-PB220W6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-20-PC220W6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-20-PD220W6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-20-PA220X6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-20-PB220X6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-20-PC220X6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-20-PD220X6BOutput: 2.2 kW | Ratio: 1/20 (90 r/min) | Allowable torque: 204 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-25-PA220R4BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-25-PB220R4BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-25-PC220R4BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-25-PD220R4BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-25-PA220W6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-25-PB220W6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-25-PC220W6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-25-PD220W6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-25-PA220X6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-25-PB220X6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-25-PC220X6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-25-PD220X6BOutput: 2.2 kW | Ratio: 1/25 (72 r/min) | Allowable torque: 254 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-30-PA220R4BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-30-PB220R4BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-30-PC220R4BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-30-PD220R4BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-30-PA220W6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-30-PB220W6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-30-PC220W6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-30-PD220W6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-30-PA220X6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-30-PB220X6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-30-PC220X6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-30-PD220X6BOutput: 2.2 kW | Ratio: 1/30 (60 r/min) | Allowable torque: 305 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-40-PA220R4BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-40-PB220R4BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-40-PC220R4BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-40-PD220R4BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-40-PA220W6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-40-PB220W6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-40-PC220W6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-40-PD220W6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-40-PA220X6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-40-PB220X6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-40-PC220X6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-40-PD220X6BOutput: 2.2 kW | Ratio: 1/40 (45 r/min) | Allowable torque: 406 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-50-PA220R4BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-50-PB220R4BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-50-PC220R4BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-50-PD220R4BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-50-PA220W6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-50-PB220W6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-50-PC220W6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-50-PD220W6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-50-PA220X6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-50-PB220X6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-50-PC220X6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-50-PD220X6BOutput: 2.2 kW | Ratio: 1/50 (36 r/min) | Allowable torque: 508 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-60-PA220R4BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-60-PB220R4BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-60-PC220R4BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-60-PD220R4BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 220/380 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-60-PA220W6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-60-PB220W6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-60-PC220W6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-60-PD220W6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 200 V 50 Hz, 200/220 V 60 Hz | Motor option: D - Terminal box + brake, IP55
PCH55-60-PA220X6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: A - Lead box, IP55
PCH55-60-PB220X6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: B - Terminal box, IP55
PCH55-60-PC220X6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: C - Terminal box + brake, IP40
PCH55-60-PD220X6BOutput: 2.2 kW | Ratio: 1/60 (30 r/min) | Allowable torque: 610 N·m | Voltage: 3Ph 380/400 V 50 Hz, 400/440 V 60 Hz | Motor option: D - Terminal box + brake, IP55

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
