SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 0.2 kW)

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 0.2 kW)

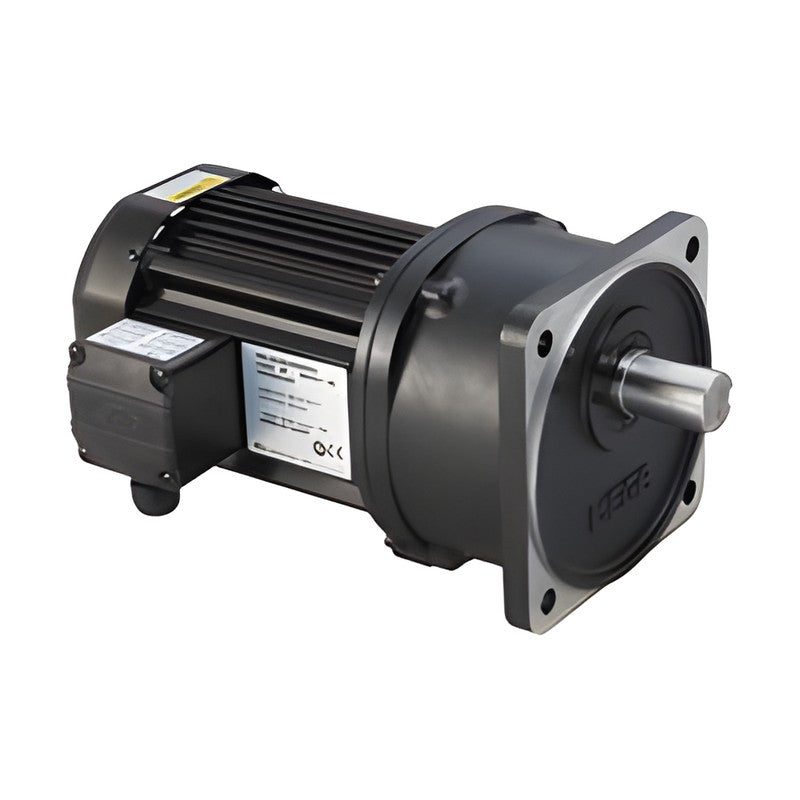

SPG PMK MEGA series small flange-mount 3-phase industrial geared motors, 0.2 kW, with parallel-shaft gearing in frames 88-105 and ratios 1/5-1/200.

Key features

  • PMK MEGA series parallel-shaft industrial geared motor, small flange mounted, vertical installation
  • 3-phase 4-pole motor, 0.2 kW, 2 gear frame sizes (88-105), ratios 1/5-1/200
  • Compact size meeting the Korean minimum-efficiency regulation; IP55 (brake type C: IP40), class F insulation
  • Mounting dimensions (A, B, C, D) compatible with geared motors of major Korean manufacturers
  • Ratios marked with a star in the catalog are speed-limited (output torque capped at the allowable torque); use a larger frame for torque duty
  • Motor option code: A lead box, B terminal box, C terminal box + brake (IP40), D terminal box + closed brake (IP55)

Specifications

Series PMK (MEGA series, parallel shaft, small flange mounted, vertical installation)
Phase / poles 3-phase, 4 poles
Motor output 0.2 kW
Efficiency grade M: standard efficiency
Frame (output shaft height) 88, 105
Reduction ratio 1/5 to 1/200
Duty / insulation / cooling Continuous / class F / TEFC
Rated load (R4, 60 Hz) 1.05/0.60 A, 1715 r/min, eff. 71.5%
Terminal box location L: 9 o'clock (standard); T/R/B on request
Source SPG Industrial Geared Motor (MEGA series) catalog, p. 5, 34-35
PMK88-5-MA020R4L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MA020W6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MA020X6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-5-MB020R4L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MB020W6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MB020X6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-5-MC020R4L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MC020W6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MC020X6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-5-MD020R4L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MD020W6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MD020X6L Frame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MA020R4L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MA020W6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MA020X6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MB020R4L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MB020W6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MB020X6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MC020R4L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MC020W6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MC020X6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MD020R4L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MD020W6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MD020X6L Frame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MA020R4L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MA020W6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MA020X6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MB020R4L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MB020W6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MB020X6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MC020R4L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MC020W6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MC020X6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MD020R4L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MD020W6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MD020X6L Frame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MA020R4L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MA020W6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MA020X6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MB020R4L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MB020W6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MB020X6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MC020R4L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MC020W6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MC020X6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MD020R4L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MD020W6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MD020X6L Frame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MA020R4L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MA020W6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MA020X6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MB020R4L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MB020W6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MB020X6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MC020R4L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MC020W6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MC020X6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MD020R4L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MD020W6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MD020X6L Frame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MA020R4L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MA020W6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MA020X6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MB020R4L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MB020W6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MB020X6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MC020R4L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MC020W6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MC020X6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MD020R4L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MD020W6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MD020X6L Frame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MA020R4L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MA020W6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MA020X6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MB020R4L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MB020W6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MB020X6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MC020R4L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MC020W6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MC020X6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MD020R4L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MD020W6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MD020X6L Frame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MA020R4L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MA020W6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MA020X6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MB020R4L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MB020W6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MB020X6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MC020R4L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MC020W6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MC020X6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MD020R4L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MD020W6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MD020X6L Frame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MA020R4L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MA020W6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MA020X6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MB020R4L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MB020W6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MB020X6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MC020R4L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MC020W6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MC020X6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MD020R4L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MD020W6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MD020X6L Frame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MA020R4L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MA020W6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MA020X6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MB020R4L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MB020W6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MB020X6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MC020R4L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MC020W6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MC020X6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MD020R4L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MD020W6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MD020X6L Frame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MA020R4L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MA020W6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MA020X6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MB020R4L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MB020W6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MB020X6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MC020R4L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MC020W6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MC020X6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MD020R4L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MD020W6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MD020X6L Frame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MA020R4L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MA020W6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MA020X6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MB020R4L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MB020W6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MB020X6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MC020R4L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MC020W6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MC020X6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MD020R4L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MD020W6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MD020X6L Frame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MA020R4L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MA020W6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MA020X6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MB020R4L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MB020W6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MB020X6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MC020R4L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MC020W6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MC020X6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MD020R4L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MD020W6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MD020X6L Frame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MA020R4L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MA020W6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MA020X6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MB020R4L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MB020W6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MB020X6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MC020R4L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MC020W6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MC020X6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MD020R4L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MD020W6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MD020X6L Frame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MA020R4L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MA020W6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MA020X6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MB020R4L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MB020W6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MB020X6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MC020R4L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MC020W6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MC020X6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MD020R4L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MD020W6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MD020X6L Frame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MA020R4L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MA020W6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MA020X6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MB020R4L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MB020W6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MB020X6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MC020R4L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MC020W6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MC020X6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MD020R4L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MD020W6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MD020X6L Frame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MA020R4L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MA020W6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MA020X6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MB020R4L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MB020W6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MB020X6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MC020R4L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MC020W6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MC020X6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MD020R4L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MD020W6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MD020X6L Frame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MA020R4L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MA020W6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MA020X6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MB020R4L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MB020W6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MB020X6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MC020R4L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MC020W6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MC020X6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MD020R4L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MD020W6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MD020X6L Frame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MA020R4L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MA020W6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MA020X6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MB020R4L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MB020W6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MB020X6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MC020R4L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MC020W6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MC020X6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MD020R4L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MD020W6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MD020X6L Frame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MA020R4L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MA020W6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MA020X6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MB020R4L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MB020W6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MB020X6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MC020R4L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MC020W6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MC020X6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MD020R4L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MD020W6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MD020X6L Frame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MA020R4L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MA020W6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MA020X6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MB020R4L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MB020W6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MB020X6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MC020R4L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MC020W6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MC020X6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MD020R4L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MD020W6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MD020X6L Frame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MA020R4L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MA020W6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MA020X6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MB020R4L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MB020W6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MB020X6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MC020R4L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MC020W6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MC020X6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MD020R4L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MD020W6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MD020X6L Frame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MA020R4L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MA020W6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MA020X6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MB020R4L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MB020W6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MB020X6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MC020R4L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MC020W6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MC020X6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MD020R4L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MD020W6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MD020X6L Frame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MA020R4L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MA020W6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MA020X6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MB020R4L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MB020W6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MB020X6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MC020R4L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MC020W6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MC020X6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MD020R4L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MD020W6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MD020X6L Frame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MA020R4L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MA020W6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MA020X6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MB020R4L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MB020W6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MB020X6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MC020R4L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MC020W6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MC020X6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MD020R4L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MD020W6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MD020X6L Frame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
Industrial MotorsSPG
300 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PMK MEGA Small Flange-Mount Geared Motors (3-Phase 0.2 kW)

Brand SPG·Industrial Motors

Available part numbers (300)

PMK88-5-MA020R4L, PMK88-5-MA020W6L, PMK88-5-MA020X6L, PMK88-5-MB020R4L, PMK88-5-MB020W6L, PMK88-5-MB020X6L, PMK88-5-MC020R4L, PMK88-5-MC020W6L, PMK88-5-MC020X6L, PMK88-5-MD020R4L + 290 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PMK88-5-MA020R4LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MA020W6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MA020X6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-5-MB020R4LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MB020W6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MB020X6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-5-MC020R4LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MC020W6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MC020X6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-5-MD020R4LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-5-MD020W6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-5-MD020X6LFrame: 88 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MA020R4LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MA020W6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MA020X6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MB020R4LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MB020W6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MB020X6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MC020R4LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MC020W6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MC020X6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-10-MD020R4LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-10-MD020W6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-10-MD020X6LFrame: 88 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MA020R4LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MA020W6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MA020X6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MB020R4LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MB020W6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MB020X6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MC020R4LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MC020W6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MC020X6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-15-MD020R4LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-15-MD020W6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-15-MD020X6LFrame: 88 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MA020R4LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MA020W6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MA020X6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MB020R4LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MB020W6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MB020X6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MC020R4LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MC020W6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MC020X6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-20-MD020R4LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-20-MD020W6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-20-MD020X6LFrame: 88 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MA020R4LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MA020W6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MA020X6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MB020R4LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MB020W6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MB020X6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MC020R4LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MC020W6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MC020X6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-30-MD020R4LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-30-MD020W6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-30-MD020X6LFrame: 88 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MA020R4LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MA020W6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MA020X6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MB020R4LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MB020W6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MB020X6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MC020R4LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MC020W6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MC020X6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-40-MD020R4LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-40-MD020W6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-40-MD020X6LFrame: 88 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MA020R4LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MA020W6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MA020X6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MB020R4LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MB020W6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MB020X6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MC020R4LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MC020W6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MC020X6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-50-MD020R4LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-50-MD020W6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-50-MD020X6LFrame: 88 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MA020R4LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MA020W6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MA020X6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MB020R4LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MB020W6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MB020X6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MC020R4LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MC020W6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MC020X6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-60-MD020R4LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-60-MD020W6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-60-MD020X6LFrame: 88 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MA020R4LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MA020W6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MA020X6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MB020R4LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MB020W6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MB020X6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MC020R4LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MC020W6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MC020X6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-75-MD020R4LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-75-MD020W6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-75-MD020X6LFrame: 88 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MA020R4LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MA020W6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MA020X6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MB020R4LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MB020W6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MB020X6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MC020R4LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MC020W6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MC020X6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-90-MD020R4LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-90-MD020W6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-90-MD020X6LFrame: 88 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MA020R4LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MA020W6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MA020X6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MB020R4LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MB020W6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MB020X6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MC020R4LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MC020W6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MC020X6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-100-MD020R4LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-100-MD020W6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-100-MD020X6LFrame: 88 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MA020R4LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MA020W6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MA020X6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MB020R4LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MB020W6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MB020X6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MC020R4LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MC020W6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MC020X6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-120-MD020R4LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-120-MD020W6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-120-MD020X6LFrame: 88 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MA020R4LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MA020W6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MA020X6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MB020R4LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MB020W6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MB020X6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MC020R4LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MC020W6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MC020X6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-140-MD020R4LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-140-MD020W6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-140-MD020X6LFrame: 88 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MA020R4LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MA020W6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MA020X6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MB020R4LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MB020W6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MB020X6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MC020R4LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MC020W6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MC020X6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-150-MD020R4LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-150-MD020W6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-150-MD020X6LFrame: 88 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MA020R4LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MA020W6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MA020X6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MB020R4LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MB020W6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MB020X6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MC020R4LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MC020W6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MC020X6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-160-MD020R4LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-160-MD020W6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-160-MD020X6LFrame: 88 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MA020R4LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MA020W6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MA020X6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MB020R4LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MB020W6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MB020X6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MC020R4LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MC020W6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MC020X6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-180-MD020R4LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-180-MD020W6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-180-MD020X6LFrame: 88 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MA020R4LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MA020W6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MA020X6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MB020R4LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MB020W6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MB020X6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MC020R4LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MC020W6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MC020X6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK88-200-MD020R4LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK88-200-MD020W6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK88-200-MD020X6LFrame: 88 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MA020R4LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MA020W6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MA020X6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MB020R4LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MB020W6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MB020X6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MC020R4LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MC020W6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MC020X6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-90-MD020R4LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-90-MD020W6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-90-MD020X6LFrame: 105 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MA020R4LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MA020W6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MA020X6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MB020R4LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MB020W6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MB020X6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MC020R4LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MC020W6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MC020X6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-100-MD020R4LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-100-MD020W6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-100-MD020X6LFrame: 105 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MA020R4LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MA020W6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MA020X6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MB020R4LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MB020W6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MB020X6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MC020R4LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MC020W6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MC020X6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-120-MD020R4LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-120-MD020W6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-120-MD020X6LFrame: 105 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MA020R4LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MA020W6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MA020X6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MB020R4LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MB020W6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MB020X6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MC020R4LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MC020W6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MC020X6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-140-MD020R4LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-140-MD020W6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-140-MD020X6LFrame: 105 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MA020R4LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MA020W6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MA020X6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MB020R4LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MB020W6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MB020X6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MC020R4LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MC020W6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MC020X6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-150-MD020R4LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-150-MD020W6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-150-MD020X6LFrame: 105 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MA020R4LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MA020W6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MA020X6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MB020R4LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MB020W6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MB020X6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MC020R4LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MC020W6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MC020X6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-160-MD020R4LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-160-MD020W6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-160-MD020X6LFrame: 105 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MA020R4LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MA020W6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MA020X6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MB020R4LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MB020W6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MB020X6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MC020R4LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MC020W6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MC020X6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-180-MD020R4LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-180-MD020W6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-180-MD020X6LFrame: 105 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MA020R4LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MA020W6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MA020X6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MB020R4LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MB020W6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MB020X6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MC020R4LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MC020W6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MC020X6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PMK105-200-MD020R4LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PMK105-200-MD020W6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PMK105-200-MD020X6LFrame: 105 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
