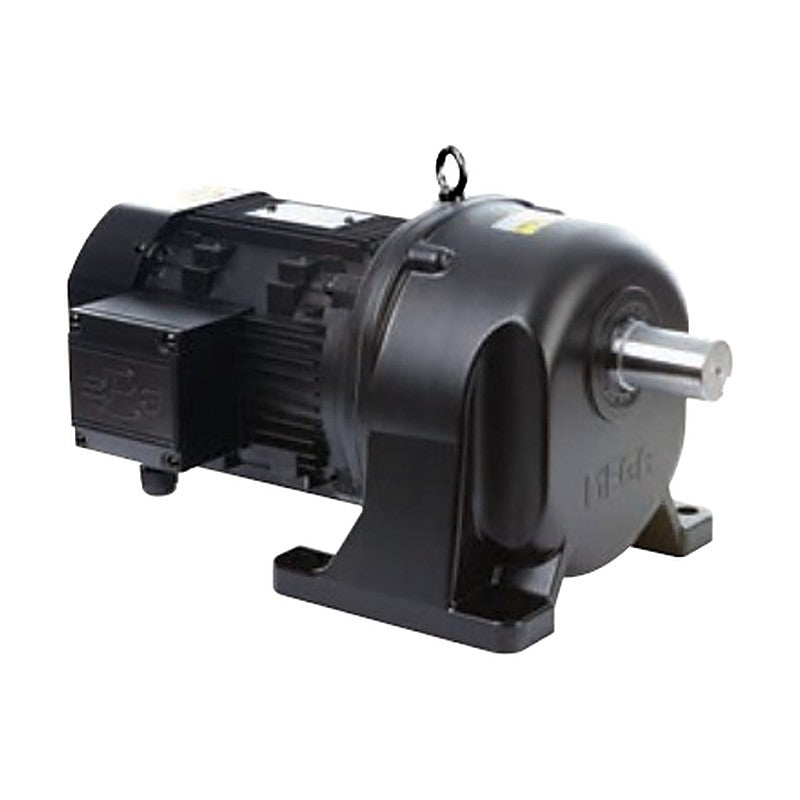

SPG PML MEGA Foot-Mount Geared Motors (3-Phase 1.5 kW)

SPG PML MEGA Foot-Mount Geared Motors (3-Phase 1.5 kW)

SPG PML MEGA series foot-mount 3-phase industrial geared motors, 1.5 kW, with parallel-shaft gearing in frames 135-235 and ratios 1/5-1/200.

Key features

  • PML MEGA series parallel-shaft industrial geared motor, foot (leg) mounted, horizontal installation
  • 3-phase 4-pole motor, 1.5 kW, 5 gear frame sizes (135-235), ratios 1/5-1/200
  • Compact size meeting the Korean minimum-efficiency regulation; IP55 (brake type C: IP40), class F insulation
  • Mounting dimensions (A, B, C, D) compatible with geared motors of major Korean manufacturers
  • Ratios marked with a star in the catalog are speed-limited (output torque capped at the allowable torque); use a larger frame for torque duty
  • Motor option code: A lead box, B terminal box, C terminal box + brake (IP40), D terminal box + closed brake (IP55)

Specifications

Series PML (MEGA series, parallel shaft, foot (leg) mounted, horizontal installation)
Phase / poles 3-phase, 4 poles
Motor output 1.5 kW
Efficiency grade P: premium efficiency (IE3 class)
Frame (output shaft height) 135, 153, 172, 205, 235
Reduction ratio 1/5 to 1/200
Duty / insulation / cooling Continuous / class F / TEFC
Rated load (R4, 60 Hz) 5.90/3.40 A, 1760 r/min, eff. 86.5%
Terminal box location L: 9 o'clock (standard); T/R/B on request
Source SPG Industrial Geared Motor (MEGA series) catalog, p. 5, 16-18
PML135-5-PA150R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PA150W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PA150X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-5-PB150R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PB150W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PB150X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-5-PC150R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PC150W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PC150X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-5-PD150R4L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PD150W6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PD150X6L Frame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PA150R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PA150W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PA150X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PB150R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PB150W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PB150X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PC150R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PC150W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PC150X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PD150R4L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PD150W6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PD150X6L Frame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PA150R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PA150W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PA150X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PB150R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PB150W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PB150X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PC150R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PC150W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PC150X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PD150R4L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PD150W6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PD150X6L Frame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PA150R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PA150W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PA150X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PB150R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PB150W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PB150X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PC150R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PC150W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PC150X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PD150R4L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PD150W6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PD150X6L Frame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PA150R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PA150W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PA150X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PB150R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PB150W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PB150X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PC150R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PC150W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PC150X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PD150R4L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PD150W6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PD150X6L Frame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PA150R4L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PA150W6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PA150X6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PB150R4L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PB150W6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PB150X6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PC150R4L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PC150W6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PC150X6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PD150R4L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PD150W6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PD150X6L Frame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PA150R4L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PA150W6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PA150X6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PB150R4L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PB150W6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PB150X6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PC150R4L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PC150W6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PC150X6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PD150R4L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PD150W6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PD150X6L Frame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PA150R4L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PA150W6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PA150X6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PB150R4L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PB150W6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PB150X6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PC150R4L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PC150W6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PC150X6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PD150R4L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PD150W6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PD150X6L Frame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PA150R4L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PA150W6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PA150X6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PB150R4L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PB150W6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PB150X6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PC150R4L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PC150W6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PC150X6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PD150R4L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PD150W6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PD150X6L Frame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PA150R4L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PA150W6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PA150X6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PB150R4L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PB150W6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PB150X6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PC150R4L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PC150W6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PC150X6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PD150R4L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PD150W6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PD150X6L Frame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PA150R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PA150W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PA150X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PB150R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PB150W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PB150X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PC150R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PC150W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PC150X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PD150R4L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PD150W6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PD150X6L Frame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PA150R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PA150W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PA150X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PB150R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PB150W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PB150X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PC150R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PC150W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PC150X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PD150R4L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PD150W6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PD150X6L Frame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PA150R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PA150W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PA150X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PB150R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PB150W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PB150X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PC150R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PC150W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PC150X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PD150R4L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PD150W6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PD150X6L Frame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PA150R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PA150W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PA150X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PB150R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PB150W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PB150X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PC150R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PC150W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PC150X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PD150R4L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PD150W6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PD150X6L Frame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PA150R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PA150W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PA150X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PB150R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PB150W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PB150X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PC150R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PC150W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PC150X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PD150R4L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PD150W6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PD150X6L Frame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PA150R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PA150W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PA150X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PB150R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PB150W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PB150X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PC150R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PC150W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PC150X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PD150R4L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PD150W6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PD150X6L Frame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PA150R4L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PA150W6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PA150X6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PB150R4L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PB150W6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PB150X6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PC150R4L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PC150W6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PC150X6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PD150R4L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PD150W6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PD150X6L Frame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PA150R4L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PA150W6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PA150X6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PB150R4L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PB150W6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PB150X6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PC150R4L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PC150W6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PC150X6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PD150R4L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PD150W6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PD150X6L Frame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PA150R4L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PA150W6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PA150X6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PB150R4L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PB150W6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PB150X6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PC150R4L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PC150W6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PC150X6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PD150R4L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PD150W6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PD150X6L Frame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PA150R4L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PA150W6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PA150X6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PB150R4L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PB150W6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PB150X6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PC150R4L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PC150W6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PC150X6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PD150R4L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PD150W6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PD150X6L Frame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PA150R4L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PA150W6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PA150X6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PB150R4L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PB150W6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PB150X6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PC150R4L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PC150W6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PC150X6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PD150R4L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PD150W6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PD150X6L Frame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PA150R4L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PA150W6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PA150X6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PB150R4L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PB150W6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PB150X6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PC150R4L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PC150W6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PC150X6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PD150R4L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PD150W6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PD150X6L Frame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PA150R4L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PA150W6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PA150X6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PB150R4L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PB150W6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PB150X6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PC150R4L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PC150W6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PC150X6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PD150R4L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PD150W6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PD150X6L Frame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PA150R4L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PA150W6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PA150X6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PB150R4L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PB150W6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PB150X6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PC150R4L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PC150W6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PC150X6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PD150R4L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PD150W6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PD150X6L Frame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PA150R4L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PA150W6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PA150X6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PB150R4L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PB150W6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PB150X6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PC150R4L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PC150W6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PC150X6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PD150R4L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PD150W6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PD150X6L Frame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PA150R4L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PA150W6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PA150X6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PB150R4L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PB150W6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PB150X6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PC150R4L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PC150W6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PC150X6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PD150R4L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PD150W6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PD150X6L Frame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PA150R4L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PA150W6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PA150X6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PB150R4L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PB150W6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PB150X6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PC150R4L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PC150W6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PC150X6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PD150R4L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PD150W6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PD150X6L Frame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PA150R4L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PA150W6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PA150X6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PB150R4L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PB150W6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PB150X6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PC150R4L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PC150W6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PC150X6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PD150R4L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PD150W6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PD150X6L Frame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PA150R4L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PA150W6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PA150X6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PB150R4L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PB150W6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PB150X6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PC150R4L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PC150W6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PC150X6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PD150R4L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PD150W6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PD150X6L Frame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PA150R4L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PA150W6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PA150X6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PB150R4L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PB150W6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PB150X6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PC150R4L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PC150W6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PC150X6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PD150R4L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PD150W6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PD150X6L Frame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PA150R4L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PA150W6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PA150X6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PB150R4L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PB150W6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PB150X6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PC150R4L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PC150W6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PC150X6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PD150R4L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PD150W6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PD150X6L Frame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
Industrial MotorsSPG
372 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG PML MEGA Foot-Mount Geared Motors (3-Phase 1.5 kW)

Brand SPG·Industrial Motors

Available part numbers (372)

PML135-5-PA150R4L, PML135-5-PA150W6L, PML135-5-PA150X6L, PML135-5-PB150R4L, PML135-5-PB150W6L, PML135-5-PB150X6L, PML135-5-PC150R4L, PML135-5-PC150W6L, PML135-5-PC150X6L, PML135-5-PD150R4L + 362 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
PML135-5-PA150R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PA150W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PA150X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-5-PB150R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PB150W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PB150X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-5-PC150R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PC150W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PC150X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-5-PD150R4LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-5-PD150W6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-5-PD150X6LFrame: 135 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PA150R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PA150W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PA150X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PB150R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PB150W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PB150X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PC150R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PC150W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PC150X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-10-PD150R4LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-10-PD150W6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-10-PD150X6LFrame: 135 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PA150R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PA150W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PA150X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PB150R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PB150W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PB150X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PC150R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PC150W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PC150X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-15-PD150R4LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-15-PD150W6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-15-PD150X6LFrame: 135 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PA150R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PA150W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PA150X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PB150R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PB150W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PB150X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PC150R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PC150W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PC150X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-20-PD150R4LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-20-PD150W6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-20-PD150X6LFrame: 135 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PA150R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PA150W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PA150X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PB150R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PB150W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PB150X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PC150R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PC150W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PC150X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML135-30-PD150R4LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML135-30-PD150W6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML135-30-PD150X6LFrame: 135 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PA150R4LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PA150W6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PA150X6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PB150R4LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PB150W6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PB150X6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PC150R4LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PC150W6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PC150X6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-5-PD150R4LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-5-PD150W6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-5-PD150X6LFrame: 153 | Ratio: 1/5 | Speed (60 Hz): 360 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PA150R4LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PA150W6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PA150X6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PB150R4LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PB150W6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PB150X6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PC150R4LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PC150W6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PC150X6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-10-PD150R4LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-10-PD150W6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-10-PD150X6LFrame: 153 | Ratio: 1/10 | Speed (60 Hz): 180 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PA150R4LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PA150W6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PA150X6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PB150R4LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PB150W6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PB150X6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PC150R4LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PC150W6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PC150X6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-15-PD150R4LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-15-PD150W6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-15-PD150X6LFrame: 153 | Ratio: 1/15 | Speed (60 Hz): 120 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PA150R4LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PA150W6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PA150X6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PB150R4LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PB150W6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PB150X6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PC150R4LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PC150W6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PC150X6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-20-PD150R4LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-20-PD150W6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-20-PD150X6LFrame: 153 | Ratio: 1/20 | Speed (60 Hz): 90 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PA150R4LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PA150W6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PA150X6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PB150R4LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PB150W6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PB150X6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PC150R4LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PC150W6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PC150X6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-30-PD150R4LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-30-PD150W6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-30-PD150X6LFrame: 153 | Ratio: 1/30 | Speed (60 Hz): 60 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PA150R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PA150W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PA150X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PB150R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PB150W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PB150X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PC150R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PC150W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PC150X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-40-PD150R4LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-40-PD150W6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-40-PD150X6LFrame: 153 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PA150R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PA150W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PA150X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PB150R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PB150W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PB150X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PC150R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PC150W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PC150X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-50-PD150R4LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-50-PD150W6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-50-PD150X6LFrame: 153 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PA150R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PA150W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PA150X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PB150R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PB150W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PB150X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PC150R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PC150W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PC150X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-60-PD150R4LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-60-PD150W6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-60-PD150X6LFrame: 153 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PA150R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PA150W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PA150X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PB150R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PB150W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PB150X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PC150R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PC150W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PC150X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-75-PD150R4LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-75-PD150W6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-75-PD150X6LFrame: 153 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PA150R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PA150W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PA150X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PB150R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PB150W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PB150X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PC150R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PC150W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PC150X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-90-PD150R4LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-90-PD150W6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-90-PD150X6LFrame: 153 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PA150R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PA150W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PA150X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PB150R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PB150W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PB150X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PC150R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PC150W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PC150X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML153-100-PD150R4LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML153-100-PD150W6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML153-100-PD150X6LFrame: 153 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PA150R4LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PA150W6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PA150X6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PB150R4LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PB150W6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PB150X6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PC150R4LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PC150W6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PC150X6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-40-PD150R4LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-40-PD150W6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-40-PD150X6LFrame: 172 | Ratio: 1/40 | Speed (60 Hz): 45 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PA150R4LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PA150W6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PA150X6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PB150R4LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PB150W6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PB150X6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PC150R4LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PC150W6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PC150X6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-50-PD150R4LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-50-PD150W6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-50-PD150X6LFrame: 172 | Ratio: 1/50 | Speed (60 Hz): 36 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PA150R4LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PA150W6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PA150X6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PB150R4LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PB150W6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PB150X6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PC150R4LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PC150W6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PC150X6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-60-PD150R4LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-60-PD150W6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-60-PD150X6LFrame: 172 | Ratio: 1/60 | Speed (60 Hz): 30 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PA150R4LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PA150W6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PA150X6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PB150R4LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PB150W6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PB150X6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PC150R4LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PC150W6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PC150X6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-75-PD150R4LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-75-PD150W6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-75-PD150X6LFrame: 172 | Ratio: 1/75 | Speed (60 Hz): 24 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PA150R4LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PA150W6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PA150X6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PB150R4LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PB150W6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PB150X6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PC150R4LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PC150W6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PC150X6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-90-PD150R4LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-90-PD150W6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-90-PD150X6LFrame: 172 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PA150R4LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PA150W6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PA150X6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PB150R4LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PB150W6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PB150X6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PC150R4LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PC150W6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PC150X6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-100-PD150R4LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-100-PD150W6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-100-PD150X6LFrame: 172 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PA150R4LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PA150W6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PA150X6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PB150R4LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PB150W6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PB150X6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PC150R4LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PC150W6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PC150X6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-120-PD150R4LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-120-PD150W6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-120-PD150X6LFrame: 172 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PA150R4LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PA150W6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PA150X6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PB150R4LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PB150W6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PB150X6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PC150R4LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PC150W6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PC150X6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-140-PD150R4LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-140-PD150W6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-140-PD150X6LFrame: 172 | Ratio: 1/140 | Speed (60 Hz): 12.8 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PA150R4LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PA150W6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PA150X6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PB150R4LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PB150W6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PB150X6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PC150R4LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PC150W6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PC150X6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-150-PD150R4LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-150-PD150W6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-150-PD150X6LFrame: 172 | Ratio: 1/150 | Speed (60 Hz): 12 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PA150R4LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PA150W6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PA150X6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PB150R4LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PB150W6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PB150X6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PC150R4LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PC150W6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PC150X6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-160-PD150R4LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-160-PD150W6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-160-PD150X6LFrame: 172 | Ratio: 1/160 | Speed (60 Hz): 11.2 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PA150R4LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PA150W6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PA150X6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PB150R4LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PB150W6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PB150X6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PC150R4LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PC150W6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PC150X6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-180-PD150R4LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-180-PD150W6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-180-PD150X6LFrame: 172 | Ratio: 1/180 | Speed (60 Hz): 10 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PA150R4LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PA150W6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PA150X6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PB150R4LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PB150W6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PB150X6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PC150R4LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PC150W6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PC150X6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML172-200-PD150R4LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML172-200-PD150W6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML172-200-PD150X6LFrame: 172 | Ratio: 1/200 | Speed (60 Hz): 9 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PA150R4LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PA150W6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PA150X6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PB150R4LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PB150W6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PB150X6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PC150R4LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PC150W6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PC150X6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML205-90-PD150R4LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML205-90-PD150W6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML205-90-PD150X6LFrame: 205 | Ratio: 1/90 | Speed (60 Hz): 20 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PA150R4LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PA150W6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PA150X6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PB150R4LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PB150W6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PB150X6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PC150R4LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PC150W6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PC150X6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-100-PD150R4LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-100-PD150W6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-100-PD150X6LFrame: 235 | Ratio: 1/100 | Speed (60 Hz): 18 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PA150R4LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PA150W6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PA150X6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: A: Lead box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PB150R4LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PB150W6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PB150X6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: B: Terminal box (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PC150R4LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PC150W6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PC150X6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: C: Terminal box + brake (IP40) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)
PML235-120-PD150R4LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: R4 (220/380 V 60 Hz)
PML235-120-PD150W6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: W6 (200 V 50 Hz, 200/220 V 60 Hz)
PML235-120-PD150X6LFrame: 235 | Ratio: 1/120 | Speed (60 Hz): 15 r/min | Motor option: D: Terminal box + closed brake (IP55) | Voltage: X6 (380/400 V 50 Hz, 400/440 V 60 Hz)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
