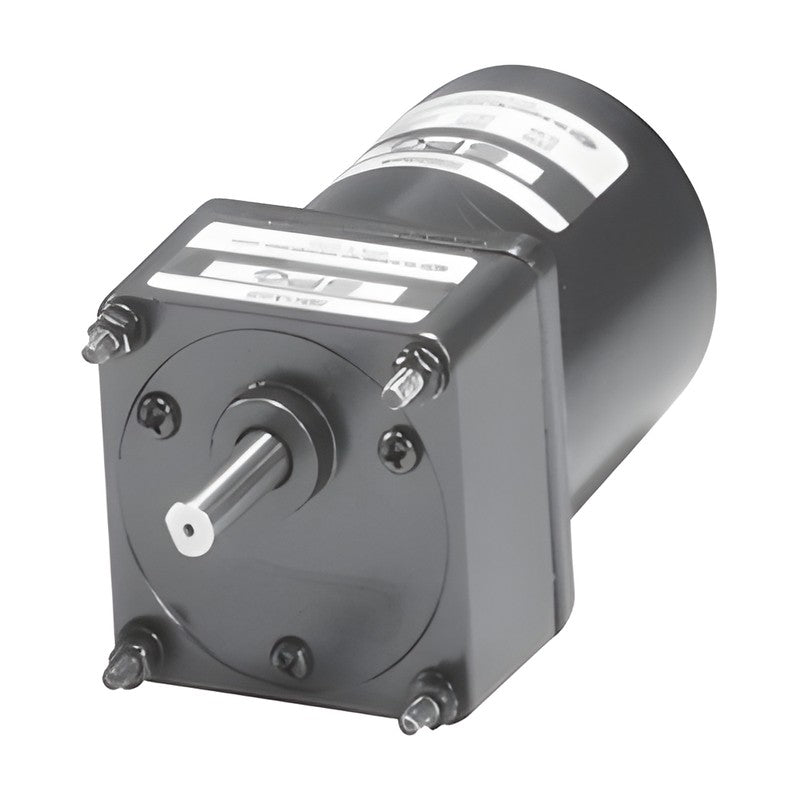

SPG S6ST/S6DT 60 mm Gearheads (for 3 W Motors)

SPG 60 mm T-type parallel-shaft gearheads for 3 W S6I03G induction motors, 25 ratios from 1/3 to 1/250.

Key features

Code S6<shaft>T<ratio>B: straight S or D-cut D output shaft, ratio 1/3-1/250
Permissible torque of motor + gearhead up to 1.5 N·m; 1.5 N·m with S6GX10B inter-decimal head
Output rotates in the same or opposite direction to the motor depending on ratio (see catalog table)
Speeds based on synchronous speed; actual speed is 2-20% lower depending on load

Specifications

Frame size	60 mm square
Gear type	T (3 W)
Bearing	B
Applicable motor	S6I03G (3 W)
Output shaft dia.	6 mm
Weight	0.21-0.30 kg
Source	SPG Standard AC Geared Motor catalog, p. 42-43

S6ST3B		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: Straight
S6ST3.6B		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: Straight
S6ST5B		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: Straight
S6ST6B		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: Straight
S6ST7.5B		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: Straight
S6ST9B		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: Straight
S6ST10B		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: Straight
S6ST12.5B		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: Straight
S6ST15B		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: Straight
S6ST18B		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: Straight
S6ST20B		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: Straight
S6ST25B		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: Straight
S6ST30B		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: Straight
S6ST36B		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: Straight
S6ST40B		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: Straight
S6ST50B		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: Straight
S6ST60B		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: Straight
S6ST75B		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: Straight
S6ST90B		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: Straight
S6ST100B		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: Straight
S6ST120B		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: Straight
S6ST150B		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: Straight
S6ST180B		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: Straight
S6ST200B		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: Straight
S6ST250B		Ratio: 1/250 \| Speed 50/60 Hz: 6 / 7.2 rpm \| Output shaft: Straight
S6DT3B		Ratio: 1/3 \| Speed 50/60 Hz: 500 / 600 rpm \| Output shaft: D-cut
S6DT3.6B		Ratio: 1/3.6 \| Speed 50/60 Hz: 416 / 500 rpm \| Output shaft: D-cut
S6DT5B		Ratio: 1/5 \| Speed 50/60 Hz: 300 / 360 rpm \| Output shaft: D-cut
S6DT6B		Ratio: 1/6 \| Speed 50/60 Hz: 250 / 300 rpm \| Output shaft: D-cut
S6DT7.5B		Ratio: 1/7.5 \| Speed 50/60 Hz: 200 / 240 rpm \| Output shaft: D-cut
S6DT9B		Ratio: 1/9 \| Speed 50/60 Hz: 166 / 200 rpm \| Output shaft: D-cut
S6DT10B		Ratio: 1/10 \| Speed 50/60 Hz: 150 / 180 rpm \| Output shaft: D-cut
S6DT12.5B		Ratio: 1/12.5 \| Speed 50/60 Hz: 120 / 144 rpm \| Output shaft: D-cut
S6DT15B		Ratio: 1/15 \| Speed 50/60 Hz: 100 / 120 rpm \| Output shaft: D-cut
S6DT18B		Ratio: 1/18 \| Speed 50/60 Hz: 83 / 100 rpm \| Output shaft: D-cut
S6DT20B		Ratio: 1/20 \| Speed 50/60 Hz: 75 / 90 rpm \| Output shaft: D-cut
S6DT25B		Ratio: 1/25 \| Speed 50/60 Hz: 60 / 72 rpm \| Output shaft: D-cut
S6DT30B		Ratio: 1/30 \| Speed 50/60 Hz: 50 / 60 rpm \| Output shaft: D-cut
S6DT36B		Ratio: 1/36 \| Speed 50/60 Hz: 41 / 50 rpm \| Output shaft: D-cut
S6DT40B		Ratio: 1/40 \| Speed 50/60 Hz: 37 / 45 rpm \| Output shaft: D-cut
S6DT50B		Ratio: 1/50 \| Speed 50/60 Hz: 30 / 36 rpm \| Output shaft: D-cut
S6DT60B		Ratio: 1/60 \| Speed 50/60 Hz: 25 / 30 rpm \| Output shaft: D-cut
S6DT75B		Ratio: 1/75 \| Speed 50/60 Hz: 20 / 24 rpm \| Output shaft: D-cut
S6DT90B		Ratio: 1/90 \| Speed 50/60 Hz: 16 / 20 rpm \| Output shaft: D-cut
S6DT100B		Ratio: 1/100 \| Speed 50/60 Hz: 15 / 18 rpm \| Output shaft: D-cut
S6DT120B		Ratio: 1/120 \| Speed 50/60 Hz: 12 / 15 rpm \| Output shaft: D-cut
S6DT150B		Ratio: 1/150 \| Speed 50/60 Hz: 10 / 12 rpm \| Output shaft: D-cut
S6DT180B		Ratio: 1/180 \| Speed 50/60 Hz: 8 / 10 rpm \| Output shaft: D-cut
S6DT200B		Ratio: 1/200 \| Speed 50/60 Hz: 7.5 / 9 rpm \| Output shaft: D-cut
S6DT250B		Ratio: 1/250 \| Speed 50/60 Hz: 6 / 7.2 rpm \| Output shaft: D-cut
