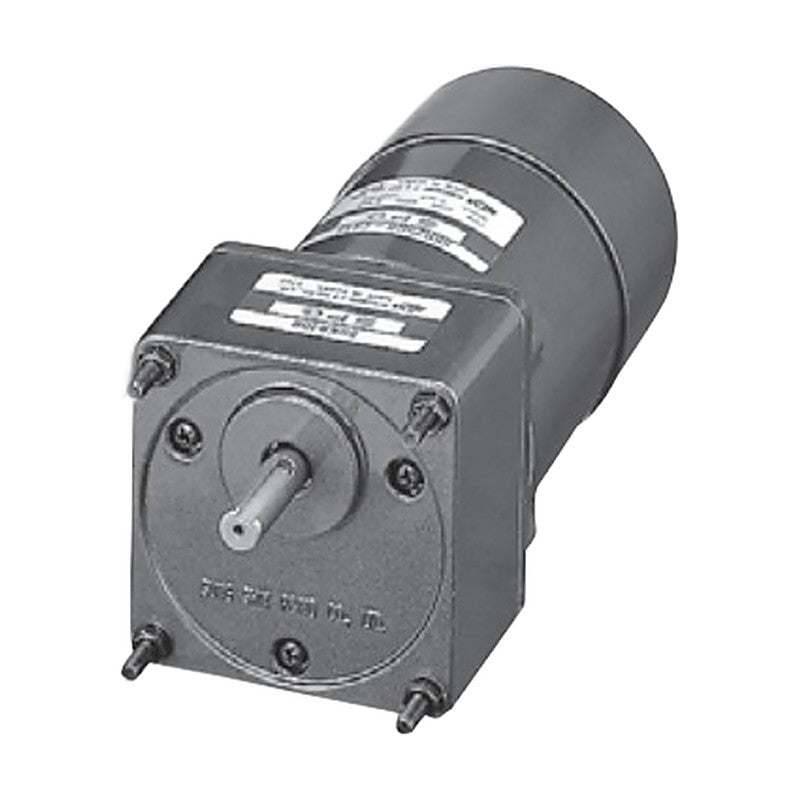

SPG 80 mm E-S Speed Control Brake Motors (15–25 W, Lead Wire)

SPG 80 mm E-S Speed Control Brake Motors (15–25 W, Lead Wire)

SPG 80 mm square single-phase E-S motors (15–25 W): reversible speed control motors with built-in electromagnetic brake and tachogenerator, lead wire type.

Key features

  • Variable speed 90-1700 rpm at 60 Hz, 90-1400 rpm at 50 Hz with matching speed controller
  • Electromagnetic brake integrated for holding the load when stopped
  • -ES12 motors (T.G. 12 V) pair with SR pack controllers (slow run / slow stop); -ES24 motors (T.G. 24 V) pair with SS socket controllers (run/stop)
  • Pinion (G) shaft for SPG gearheads; straight (S), D-cut (D) and key (K) round shafts available
  • Thermal protector (TP) and CE-certified, thermally protected (CE suffix) versions

Specifications

Motor type Speed Control Electromagnetic Brake Motors
Frame size 80 mm square
Outputs 15 W, 25 W
Phase / poles Single phase, 4 poles
Duty 30 min. rating
Speed range 90-1700 rpm (60 Hz), 90-1400 rpm (50 Hz)
Permissible torque at 1200 rpm 15 W: 0.115-0.145 N.m; 25 W: 0.200-0.245 N.m
Capacitor 15 W: 6.0/1.5/1.2 uF; 25 W: 10.0/2.5/2.0 uF (110-100 V / 200-220 V / 220-240 V X)
Lead wire length 300 mm
Matching gearheads (sold separately) S8A3 to S8A200; decimal S8GX10B
Source SPG Standard AC Geared Motor catalog, p. 284-288
S8R15GA-ES12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15GA-ES12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15GA-ES12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15GB-ES12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15GB-ES12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15GB-ES12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15GC-ES12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15GC-ES12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15GC-ES12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15GD-ES12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15GD-ES12(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15GD-ES12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15GX-ES12 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15GX-ES12CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15SA-ES12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15SA-ES12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15SA-ES12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15SB-ES12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15SB-ES12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15SB-ES12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15SC-ES12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15SC-ES12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15SC-ES12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15SD-ES12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15SD-ES12(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15SD-ES12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15SX-ES12 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15SX-ES12CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15DA-ES12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15DA-ES12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15DA-ES12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15DB-ES12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15DB-ES12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15DB-ES12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15DC-ES12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15DC-ES12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15DC-ES12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15DD-ES12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15DD-ES12(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15DD-ES12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15DX-ES12 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15DX-ES12CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15KA-ES12 Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15KA-ES12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15KA-ES12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15KB-ES12 Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15KB-ES12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15KB-ES12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15KC-ES12 Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15KC-ES12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15KC-ES12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15KD-ES12 Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15KD-ES12(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15KD-ES12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15KX-ES12 Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15KX-ES12CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15GA-ES24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15GA-ES24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15GA-ES24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15GB-ES24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15GB-ES24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15GB-ES24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15GC-ES24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15GC-ES24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15GC-ES24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15GD-ES24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15GD-ES24(TP) Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15GD-ES24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15GX-ES24 Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15GX-ES24CE Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15SA-ES24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15SA-ES24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15SA-ES24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15SB-ES24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15SB-ES24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15SB-ES24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15SC-ES24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15SC-ES24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15SC-ES24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15SD-ES24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15SD-ES24(TP) Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15SD-ES24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15SX-ES24 Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15SX-ES24CE Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15DA-ES24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15DA-ES24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15DA-ES24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15DB-ES24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15DB-ES24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15DB-ES24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15DC-ES24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15DC-ES24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15DC-ES24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15DD-ES24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15DD-ES24(TP) Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15DD-ES24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15DX-ES24 Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15DX-ES24CE Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15KA-ES24 Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15KA-ES24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15KA-ES24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15KB-ES24 Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15KB-ES24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15KB-ES24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15KC-ES24 Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15KC-ES24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15KC-ES24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15KD-ES24 Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15KD-ES24(TP) Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15KD-ES24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15KX-ES24 Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15KX-ES24CE Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25GA-ES12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25GA-ES12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25GA-ES12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25GB-ES12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25GB-ES12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25GB-ES12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25GC-ES12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25GC-ES12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25GC-ES12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25GD-ES12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25GD-ES12(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25GD-ES12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25GX-ES12 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25GX-ES12CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25SA-ES12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25SA-ES12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25SA-ES12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25SB-ES12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25SB-ES12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25SB-ES12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25SC-ES12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25SC-ES12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25SC-ES12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25SD-ES12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25SD-ES12(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25SD-ES12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25SX-ES12 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25SX-ES12CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25DA-ES12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25DA-ES12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25DA-ES12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25DB-ES12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25DB-ES12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25DB-ES12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25DC-ES12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25DC-ES12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25DC-ES12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25DD-ES12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25DD-ES12(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25DD-ES12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25DX-ES12 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25DX-ES12CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25KA-ES12 Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25KA-ES12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25KA-ES12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25KB-ES12 Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25KB-ES12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25KB-ES12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25KC-ES12 Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25KC-ES12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25KC-ES12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25KD-ES12 Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25KD-ES12(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25KD-ES12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25KX-ES12 Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25KX-ES12CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25GA-ES24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25GA-ES24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25GA-ES24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25GB-ES24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25GB-ES24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25GB-ES24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25GC-ES24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25GC-ES24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25GC-ES24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25GD-ES24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25GD-ES24(TP) Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25GD-ES24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25GX-ES24 Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25GX-ES24CE Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25SA-ES24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25SA-ES24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25SA-ES24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25SB-ES24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25SB-ES24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25SB-ES24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25SC-ES24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25SC-ES24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25SC-ES24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25SD-ES24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25SD-ES24(TP) Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25SD-ES24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25SX-ES24 Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25SX-ES24CE Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25DA-ES24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25DA-ES24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25DA-ES24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25DB-ES24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25DB-ES24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25DB-ES24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25DC-ES24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25DC-ES24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25DC-ES24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25DD-ES24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25DD-ES24(TP) Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25DD-ES24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25DX-ES24 Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25DX-ES24CE Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25KA-ES24 Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25KA-ES24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25KA-ES24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25KB-ES24 Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25KB-ES24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25KB-ES24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25KC-ES24 Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25KC-ES24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25KC-ES24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25KD-ES24 Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25KD-ES24(TP) Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25KD-ES24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25KX-ES24 Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25KX-ES24CE Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
Speed Control MotorsSPG
224 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG 80 mm E-S Speed Control Brake Motors (15–25 W, Lead Wire)

Brand SPG·Speed Control Motors

Available part numbers (224)

S8R15GA-ES12, S8R15GA-ES12(TP), S8R15GA-ES12CE, S8R15GB-ES12, S8R15GB-ES12(TP), S8R15GB-ES12CE, S8R15GC-ES12, S8R15GC-ES12(TP), S8R15GC-ES12CE, S8R15GD-ES12 + 214 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
S8R15GA-ES12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15GA-ES12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15GA-ES12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15GB-ES12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15GB-ES12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15GB-ES12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15GC-ES12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15GC-ES12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15GC-ES12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15GD-ES12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15GD-ES12(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15GD-ES12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15GX-ES12Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15GX-ES12CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15SA-ES12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15SA-ES12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15SA-ES12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15SB-ES12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15SB-ES12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15SB-ES12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15SC-ES12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15SC-ES12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15SC-ES12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15SD-ES12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15SD-ES12(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15SD-ES12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15SX-ES12Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15SX-ES12CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15DA-ES12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15DA-ES12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15DA-ES12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15DB-ES12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15DB-ES12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15DB-ES12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15DC-ES12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15DC-ES12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15DC-ES12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15DD-ES12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15DD-ES12(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15DD-ES12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15DX-ES12Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15DX-ES12CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15KA-ES12Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R15KA-ES12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R15KA-ES12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R15KB-ES12Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R15KB-ES12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R15KB-ES12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R15KC-ES12Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R15KC-ES12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R15KC-ES12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R15KD-ES12Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R15KD-ES12(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R15KD-ES12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R15KX-ES12Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R15KX-ES12CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R15GA-ES24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15GA-ES24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15GA-ES24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15GB-ES24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15GB-ES24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15GB-ES24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15GC-ES24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15GC-ES24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15GC-ES24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15GD-ES24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15GD-ES24(TP)Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15GD-ES24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15GX-ES24Output: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15GX-ES24CEOutput: 15 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15SA-ES24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15SA-ES24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15SA-ES24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15SB-ES24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15SB-ES24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15SB-ES24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15SC-ES24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15SC-ES24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15SC-ES24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15SD-ES24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15SD-ES24(TP)Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15SD-ES24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15SX-ES24Output: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15SX-ES24CEOutput: 15 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15DA-ES24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15DA-ES24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15DA-ES24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15DB-ES24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15DB-ES24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15DB-ES24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15DC-ES24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15DC-ES24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15DC-ES24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15DD-ES24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15DD-ES24(TP)Output: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15DD-ES24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15DX-ES24Output: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15DX-ES24CEOutput: 15 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R15KA-ES24Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R15KA-ES24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R15KA-ES24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R15KB-ES24Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R15KB-ES24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R15KB-ES24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R15KC-ES24Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R15KC-ES24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R15KC-ES24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R15KD-ES24Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R15KD-ES24(TP)Output: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R15KD-ES24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R15KX-ES24Output: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R15KX-ES24CEOutput: 15 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25GA-ES12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25GA-ES12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25GA-ES12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25GB-ES12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25GB-ES12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25GB-ES12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25GC-ES12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25GC-ES12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25GC-ES12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25GD-ES12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25GD-ES12(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25GD-ES12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25GX-ES12Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25GX-ES12CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25SA-ES12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25SA-ES12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25SA-ES12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25SB-ES12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25SB-ES12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25SB-ES12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25SC-ES12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25SC-ES12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25SC-ES12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25SD-ES12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25SD-ES12(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25SD-ES12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25SX-ES12Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25SX-ES12CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25DA-ES12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25DA-ES12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25DA-ES12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25DB-ES12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25DB-ES12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25DB-ES12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25DC-ES12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25DC-ES12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25DC-ES12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25DD-ES12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25DD-ES12(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25DD-ES12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25DX-ES12Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25DX-ES12CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25KA-ES12Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Standard
S8R25KA-ES12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02 | Protection: Thermal protector (TP)
S8R25KA-ES12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SRA02CE | Protection: CE, thermally protected
S8R25KB-ES12Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Standard
S8R25KB-ES12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02 | Protection: Thermal protector (TP)
S8R25KB-ES12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SRB02CE | Protection: CE, thermally protected
S8R25KC-ES12Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Standard
S8R25KC-ES12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02 | Protection: Thermal protector (TP)
S8R25KC-ES12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SRC02CE | Protection: CE, thermally protected
S8R25KD-ES12Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Standard
S8R25KD-ES12(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02 | Protection: Thermal protector (TP)
S8R25KD-ES12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SRD02CE | Protection: CE, thermally protected
S8R25KX-ES12Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02 | Protection: Standard
S8R25KX-ES12CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SRX02CE | Protection: CE, thermally protected
S8R25GA-ES24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25GA-ES24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25GA-ES24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25GB-ES24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25GB-ES24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25GB-ES24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25GC-ES24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25GC-ES24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25GC-ES24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25GD-ES24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25GD-ES24(TP)Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25GD-ES24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25GX-ES24Output: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25GX-ES24CEOutput: 25 W | Shaft: Pinion (gear type) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25SA-ES24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25SA-ES24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25SA-ES24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25SB-ES24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25SB-ES24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25SB-ES24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25SC-ES24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25SC-ES24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25SC-ES24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25SD-ES24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25SD-ES24(TP)Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25SD-ES24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25SX-ES24Output: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25SX-ES24CEOutput: 25 W | Shaft: Round (straight) | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25DA-ES24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25DA-ES24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25DA-ES24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25DB-ES24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25DB-ES24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25DB-ES24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25DC-ES24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25DC-ES24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25DC-ES24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25DD-ES24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25DD-ES24(TP)Output: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25DD-ES24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25DX-ES24Output: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25DX-ES24CEOutput: 25 W | Shaft: D-cut | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected
S8R25KA-ES24Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Standard
S8R25KA-ES24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: Thermal protector (TP)
S8R25KA-ES24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 110 V 60 Hz | Controller: SSA02-SRSS / SSA03-SRSS | Protection: CE, thermally protected
S8R25KB-ES24Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Standard
S8R25KB-ES24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: Thermal protector (TP)
S8R25KB-ES24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220 V 60 Hz | Controller: SSB02-SRSS / SSB03-SRSS | Protection: CE, thermally protected
S8R25KC-ES24Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Standard
S8R25KC-ES24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: Thermal protector (TP)
S8R25KC-ES24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 100 V 50/60 Hz | Controller: SSC02-SRSS / SSC03-SRSS | Protection: CE, thermally protected
S8R25KD-ES24Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Standard
S8R25KD-ES24(TP)Output: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: Thermal protector (TP)
S8R25KD-ES24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 200 V 50/60 Hz | Controller: SSD02-SRSS / SSD03-SRSS | Protection: CE, thermally protected
S8R25KX-ES24Output: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: Standard
S8R25KX-ES24CEOutput: 25 W | Shaft: Key | Voltage: 1-ph 220/240 V 50 Hz | Controller: SSX02-SRSS / SSX03-SRSS | Protection: CE, thermally protected

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
