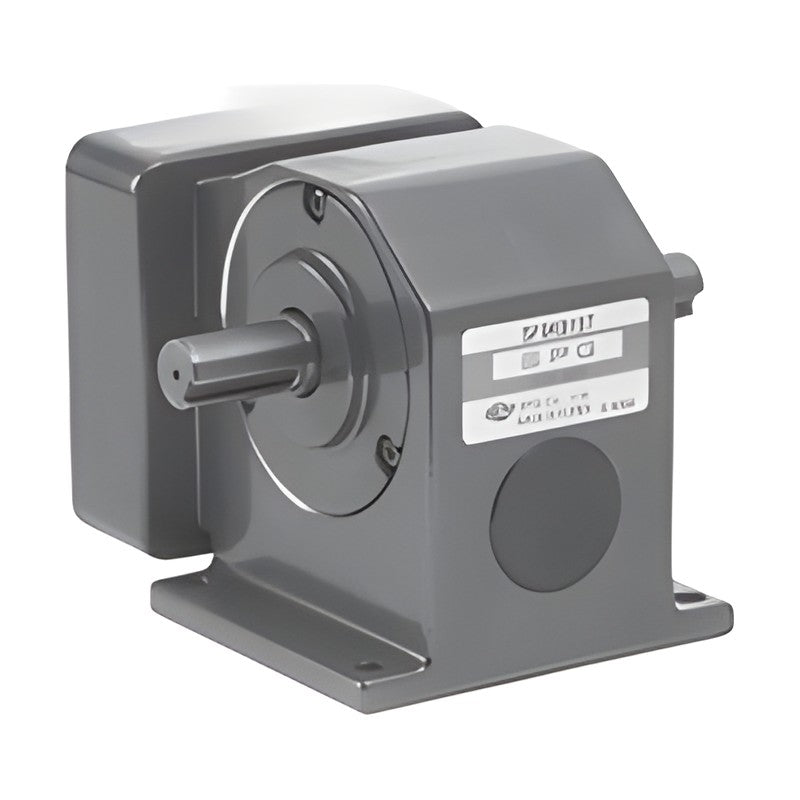

SPG SF9 90 mm Foot-Type Right-Angle Gearheads (40 W)

SPG SF9 90 mm Foot-Type Right-Angle Gearheads (40 W)

SPG SF9KB foot-type right-angle gearhead for 90 mm 40 W motors, keyed output shaft on left, right or both sides, ratios 3:1 to 180:1.

Key features

  • Worm gear and special helical gears give a right-angle output to the motor
  • Foot-mount housing; single (L/R) or double-ended (T) keyed output shaft
  • Saves up to 50% installation space versus conventional square boxes
  • Mounts directly on SPG standard 90 mm 40 W motors
  • Max. permissible torque 100 kgf-cm; not self-locking

Specifications

Frame size 90 mm square
Motor output 40 W
Output shaft Keyed, dia. 15 mm
Max. permissible torque 100 kgf-cm (10 N-m)
Efficiency 68% (3-18), 60% (25-180)
Overhung load 10 mm 250 N (3-18), 300 N (25-180)
Permissible thrust load 200 N (20 kgf)
Source SPG Standard AC Geared Motor catalog, p. 337-338
SF9KB3L Ratio: 3:1 | Shaft direction: Left side | Speed 60 Hz: 600 rpm | Perm. torque 50 Hz: 6.4 kgf-cm | Perm. torque 60 Hz: 5.1 kgf-cm
SF9KB3R Ratio: 3:1 | Shaft direction: Right side | Speed 60 Hz: 600 rpm | Perm. torque 50 Hz: 6.4 kgf-cm | Perm. torque 60 Hz: 5.1 kgf-cm
SF9KB3T Ratio: 3:1 | Shaft direction: Both sides | Speed 60 Hz: 600 rpm | Perm. torque 50 Hz: 6.4 kgf-cm | Perm. torque 60 Hz: 5.1 kgf-cm
SF9KB3.6L Ratio: 3.6:1 | Shaft direction: Left side | Speed 60 Hz: 500 rpm | Perm. torque 50 Hz: 7.7 kgf-cm | Perm. torque 60 Hz: 6.1 kgf-cm
SF9KB3.6R Ratio: 3.6:1 | Shaft direction: Right side | Speed 60 Hz: 500 rpm | Perm. torque 50 Hz: 7.7 kgf-cm | Perm. torque 60 Hz: 6.1 kgf-cm
SF9KB3.6T Ratio: 3.6:1 | Shaft direction: Both sides | Speed 60 Hz: 500 rpm | Perm. torque 50 Hz: 7.7 kgf-cm | Perm. torque 60 Hz: 6.1 kgf-cm
SF9KB5L Ratio: 5:1 | Shaft direction: Left side | Speed 60 Hz: 360 rpm | Perm. torque 50 Hz: 10.7 kgf-cm | Perm. torque 60 Hz: 8.5 kgf-cm
SF9KB5R Ratio: 5:1 | Shaft direction: Right side | Speed 60 Hz: 360 rpm | Perm. torque 50 Hz: 10.7 kgf-cm | Perm. torque 60 Hz: 8.5 kgf-cm
SF9KB5T Ratio: 5:1 | Shaft direction: Both sides | Speed 60 Hz: 360 rpm | Perm. torque 50 Hz: 10.7 kgf-cm | Perm. torque 60 Hz: 8.5 kgf-cm
SF9KB6L Ratio: 6:1 | Shaft direction: Left side | Speed 60 Hz: 300 rpm | Perm. torque 50 Hz: 12.9 kgf-cm | Perm. torque 60 Hz: 10.2 kgf-cm
SF9KB6R Ratio: 6:1 | Shaft direction: Right side | Speed 60 Hz: 300 rpm | Perm. torque 50 Hz: 12.9 kgf-cm | Perm. torque 60 Hz: 10.2 kgf-cm
SF9KB6T Ratio: 6:1 | Shaft direction: Both sides | Speed 60 Hz: 300 rpm | Perm. torque 50 Hz: 12.9 kgf-cm | Perm. torque 60 Hz: 10.2 kgf-cm
SF9KB7.5L Ratio: 7.5:1 | Shaft direction: Left side | Speed 60 Hz: 240 rpm | Perm. torque 50 Hz: 16.1 kgf-cm | Perm. torque 60 Hz: 12.8 kgf-cm
SF9KB7.5R Ratio: 7.5:1 | Shaft direction: Right side | Speed 60 Hz: 240 rpm | Perm. torque 50 Hz: 16.1 kgf-cm | Perm. torque 60 Hz: 12.8 kgf-cm
SF9KB7.5T Ratio: 7.5:1 | Shaft direction: Both sides | Speed 60 Hz: 240 rpm | Perm. torque 50 Hz: 16.1 kgf-cm | Perm. torque 60 Hz: 12.8 kgf-cm
SF9KB9L Ratio: 9:1 | Shaft direction: Left side | Speed 60 Hz: 200 rpm | Perm. torque 50 Hz: 19.3 kgf-cm | Perm. torque 60 Hz: 15.3 kgf-cm
SF9KB9R Ratio: 9:1 | Shaft direction: Right side | Speed 60 Hz: 200 rpm | Perm. torque 50 Hz: 19.3 kgf-cm | Perm. torque 60 Hz: 15.3 kgf-cm
SF9KB9T Ratio: 9:1 | Shaft direction: Both sides | Speed 60 Hz: 200 rpm | Perm. torque 50 Hz: 19.3 kgf-cm | Perm. torque 60 Hz: 15.3 kgf-cm
SF9KB12.5L Ratio: 12.5:1 | Shaft direction: Left side | Speed 60 Hz: 144 rpm | Perm. torque 50 Hz: 26.8 kgf-cm | Perm. torque 60 Hz: 21.3 kgf-cm
SF9KB12.5R Ratio: 12.5:1 | Shaft direction: Right side | Speed 60 Hz: 144 rpm | Perm. torque 50 Hz: 26.8 kgf-cm | Perm. torque 60 Hz: 21.3 kgf-cm
SF9KB12.5T Ratio: 12.5:1 | Shaft direction: Both sides | Speed 60 Hz: 144 rpm | Perm. torque 50 Hz: 26.8 kgf-cm | Perm. torque 60 Hz: 21.3 kgf-cm
SF9KB15L Ratio: 15:1 | Shaft direction: Left side | Speed 60 Hz: 120 rpm | Perm. torque 50 Hz: 32.1 kgf-cm | Perm. torque 60 Hz: 25.5 kgf-cm
SF9KB15R Ratio: 15:1 | Shaft direction: Right side | Speed 60 Hz: 120 rpm | Perm. torque 50 Hz: 32.1 kgf-cm | Perm. torque 60 Hz: 25.5 kgf-cm
SF9KB15T Ratio: 15:1 | Shaft direction: Both sides | Speed 60 Hz: 120 rpm | Perm. torque 50 Hz: 32.1 kgf-cm | Perm. torque 60 Hz: 25.5 kgf-cm
SF9KB18L Ratio: 18:1 | Shaft direction: Left side | Speed 60 Hz: 100 rpm | Perm. torque 50 Hz: 38.6 kgf-cm | Perm. torque 60 Hz: 30.6 kgf-cm
SF9KB18R Ratio: 18:1 | Shaft direction: Right side | Speed 60 Hz: 100 rpm | Perm. torque 50 Hz: 38.6 kgf-cm | Perm. torque 60 Hz: 30.6 kgf-cm
SF9KB18T Ratio: 18:1 | Shaft direction: Both sides | Speed 60 Hz: 100 rpm | Perm. torque 50 Hz: 38.6 kgf-cm | Perm. torque 60 Hz: 30.6 kgf-cm
SF9KB25L Ratio: 25:1 | Shaft direction: Left side | Speed 60 Hz: 72 rpm | Perm. torque 50 Hz: 47.3 kgf-cm | Perm. torque 60 Hz: 37.5 kgf-cm
SF9KB25R Ratio: 25:1 | Shaft direction: Right side | Speed 60 Hz: 72 rpm | Perm. torque 50 Hz: 47.3 kgf-cm | Perm. torque 60 Hz: 37.5 kgf-cm
SF9KB25T Ratio: 25:1 | Shaft direction: Both sides | Speed 60 Hz: 72 rpm | Perm. torque 50 Hz: 47.3 kgf-cm | Perm. torque 60 Hz: 37.5 kgf-cm
SF9KB30L Ratio: 30:1 | Shaft direction: Left side | Speed 60 Hz: 60 rpm | Perm. torque 50 Hz: 56.7 kgf-cm | Perm. torque 60 Hz: 45 kgf-cm
SF9KB30R Ratio: 30:1 | Shaft direction: Right side | Speed 60 Hz: 60 rpm | Perm. torque 50 Hz: 56.7 kgf-cm | Perm. torque 60 Hz: 45 kgf-cm
SF9KB30T Ratio: 30:1 | Shaft direction: Both sides | Speed 60 Hz: 60 rpm | Perm. torque 50 Hz: 56.7 kgf-cm | Perm. torque 60 Hz: 45 kgf-cm
SF9KB36L Ratio: 36:1 | Shaft direction: Left side | Speed 60 Hz: 50 rpm | Perm. torque 50 Hz: 68 kgf-cm | Perm. torque 60 Hz: 54 kgf-cm
SF9KB36R Ratio: 36:1 | Shaft direction: Right side | Speed 60 Hz: 50 rpm | Perm. torque 50 Hz: 68 kgf-cm | Perm. torque 60 Hz: 54 kgf-cm
SF9KB36T Ratio: 36:1 | Shaft direction: Both sides | Speed 60 Hz: 50 rpm | Perm. torque 50 Hz: 68 kgf-cm | Perm. torque 60 Hz: 54 kgf-cm
SF9KB50L Ratio: 50:1 | Shaft direction: Left side | Speed 60 Hz: 36 rpm | Perm. torque 50 Hz: 94.5 kgf-cm | Perm. torque 60 Hz: 75 kgf-cm
SF9KB50R Ratio: 50:1 | Shaft direction: Right side | Speed 60 Hz: 36 rpm | Perm. torque 50 Hz: 94.5 kgf-cm | Perm. torque 60 Hz: 75 kgf-cm
SF9KB50T Ratio: 50:1 | Shaft direction: Both sides | Speed 60 Hz: 36 rpm | Perm. torque 50 Hz: 94.5 kgf-cm | Perm. torque 60 Hz: 75 kgf-cm
SF9KB60L Ratio: 60:1 | Shaft direction: Left side | Speed 60 Hz: 30 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 90 kgf-cm
SF9KB60R Ratio: 60:1 | Shaft direction: Right side | Speed 60 Hz: 30 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 90 kgf-cm
SF9KB60T Ratio: 60:1 | Shaft direction: Both sides | Speed 60 Hz: 30 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 90 kgf-cm
SF9KB75L Ratio: 75:1 | Shaft direction: Left side | Speed 60 Hz: 24 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB75R Ratio: 75:1 | Shaft direction: Right side | Speed 60 Hz: 24 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB75T Ratio: 75:1 | Shaft direction: Both sides | Speed 60 Hz: 24 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB90L Ratio: 90:1 | Shaft direction: Left side | Speed 60 Hz: 20 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB90R Ratio: 90:1 | Shaft direction: Right side | Speed 60 Hz: 20 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB90T Ratio: 90:1 | Shaft direction: Both sides | Speed 60 Hz: 20 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB100L Ratio: 100:1 | Shaft direction: Left side | Speed 60 Hz: 18 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB100R Ratio: 100:1 | Shaft direction: Right side | Speed 60 Hz: 18 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB100T Ratio: 100:1 | Shaft direction: Both sides | Speed 60 Hz: 18 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB120L Ratio: 120:1 | Shaft direction: Left side | Speed 60 Hz: 15 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB120R Ratio: 120:1 | Shaft direction: Right side | Speed 60 Hz: 15 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB120T Ratio: 120:1 | Shaft direction: Both sides | Speed 60 Hz: 15 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB150L Ratio: 150:1 | Shaft direction: Left side | Speed 60 Hz: 12 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB150R Ratio: 150:1 | Shaft direction: Right side | Speed 60 Hz: 12 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB150T Ratio: 150:1 | Shaft direction: Both sides | Speed 60 Hz: 12 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB180L Ratio: 180:1 | Shaft direction: Left side | Speed 60 Hz: 10 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB180R Ratio: 180:1 | Shaft direction: Right side | Speed 60 Hz: 10 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB180T Ratio: 180:1 | Shaft direction: Both sides | Speed 60 Hz: 10 rpm | Perm. torque 50 Hz: 100 kgf-cm | Perm. torque 60 Hz: 100 kgf-cm
SF9KB10L Ratio: 10:1 | Shaft direction: Left side | Speed 60 Hz: 180 rpm | Perm. torque 50 Hz: not listed | Perm. torque 60 Hz: not listed
SF9KB10R Ratio: 10:1 | Shaft direction: Right side | Speed 60 Hz: 180 rpm | Perm. torque 50 Hz: not listed | Perm. torque 60 Hz: not listed
SF9KB10T Ratio: 10:1 | Shaft direction: Both sides | Speed 60 Hz: 180 rpm | Perm. torque 50 Hz: not listed | Perm. torque 60 Hz: not listed
GearheadsSPG
63 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SF9 90 mm Foot-Type Right-Angle Gearheads (40 W)

Brand SPG·Gearheads

Available part numbers (63)

SF9KB3L, SF9KB3R, SF9KB3T, SF9KB3.6L, SF9KB3.6R, SF9KB3.6T, SF9KB5L, SF9KB5R, SF9KB5T, SF9KB6L + 53 more — see full table ↓
