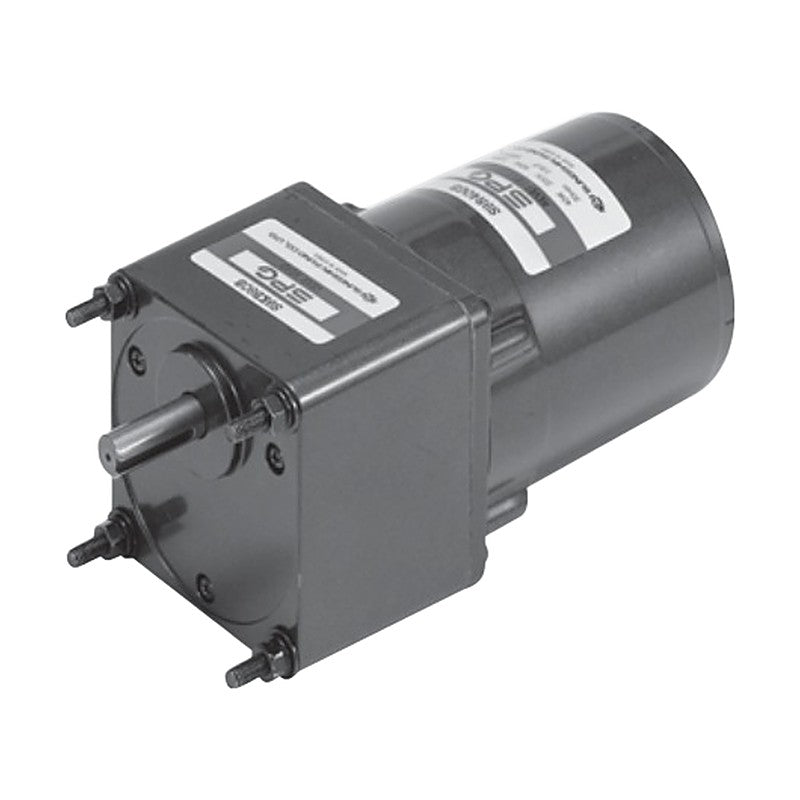

SPG SG 90 mm Reversible Motors (Lead Wire Type, 40-90 W)

SPG SG 90 mm Reversible Motors (Lead Wire Type, 40-90 W)

SPG SG global series 90 mm 40-90 W single-phase reversible motors with lead wires, ordered by output, shaft type and voltage code.

Key features

  • Single-phase reversible motor for instantaneous forward/reverse switching
  • Built-in simple friction brake mechanism limits overrun when stopping
  • Main and auxiliary windings identical for equal characteristics in both directions; high starting torque
  • 90 mm square frame, 40-90 W, 4-pole, 30-minute rating; rear cover adds approx. 4 mm length
  • Shaft options in the code: G pinion, D D-cut, S straight, K key; voltage code A (100-115 V) or B (200-230 V)
  • cUL, TUV and CCC certified; gearheads sold separately

Specifications

Motor type Reversible motor (capacitor-run, single phase), lead wire type
Frame size 90 mm square
Poles 4
Duty 30 min short time (S2)
Degree of protection IP23
Overheat protection Thermally protected (T.P., auto reset)
Insulation class B (130 C)
Certifications cUL, TUV (CE), CCC
Source SPG Standard SG AC Geared Motor catalog, p. 56-61
SG9R40GA Output: 40 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40KA Output: 40 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40DA Output: 40 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40SA Output: 40 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40GB Output: 40 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R40KB Output: 40 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R40DB Output: 40 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R40SB Output: 40 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R60GA Output: 60 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60KA Output: 60 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60DA Output: 60 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60SA Output: 60 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60GB Output: 60 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R60KB Output: 60 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R60DB Output: 60 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R60SB Output: 60 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R90GA Output: 90 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90KA Output: 90 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90DA Output: 90 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90SA Output: 90 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90GB Output: 90 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
SG9R90KB Output: 90 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
SG9R90DB Output: 90 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
SG9R90SB Output: 90 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
Reversible MotorsSPG
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SG 90 mm Reversible Motors (Lead Wire Type, 40-90 W)

Brand SPG·Reversible Motors

Available part numbers (24)

SG9R40GA, SG9R40KA, SG9R40DA, SG9R40SA, SG9R40GB, SG9R40KB, SG9R40DB, SG9R40SB, SG9R60GA, SG9R60KA + 14 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SG9R40GAOutput: 40 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40KAOutput: 40 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40DAOutput: 40 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40SAOutput: 40 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 16.0/12.0 uF (250 V)
SG9R40GBOutput: 40 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R40KBOutput: 40 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R40DBOutput: 40 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R40SBOutput: 40 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 4.0/3.5 uF (450 V)
SG9R60GAOutput: 60 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60KAOutput: 60 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60DAOutput: 60 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60SAOutput: 60 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 25.0/20.0 uF (250 V)
SG9R60GBOutput: 60 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R60KBOutput: 60 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R60DBOutput: 60 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R60SBOutput: 60 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 6.0/5.0 uF (450 V)
SG9R90GAOutput: 90 W | Shaft: Pinion (gear type) | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90KAOutput: 90 W | Shaft: Key | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90DAOutput: 90 W | Shaft: D-cut | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90SAOutput: 90 W | Shaft: Straight (round) | Power supply: 1-ph 100/110/115 V | Capacitor: 35.0/30.0 uF (250 V)
SG9R90GBOutput: 90 W | Shaft: Pinion (gear type) | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
SG9R90KBOutput: 90 W | Shaft: Key | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
SG9R90DBOutput: 90 W | Shaft: D-cut | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
SG9R90SBOutput: 90 W | Shaft: Straight (round) | Power supply: 1-ph 200/220/230 V | Capacitor: 8.0/7.0 uF (450 V)
