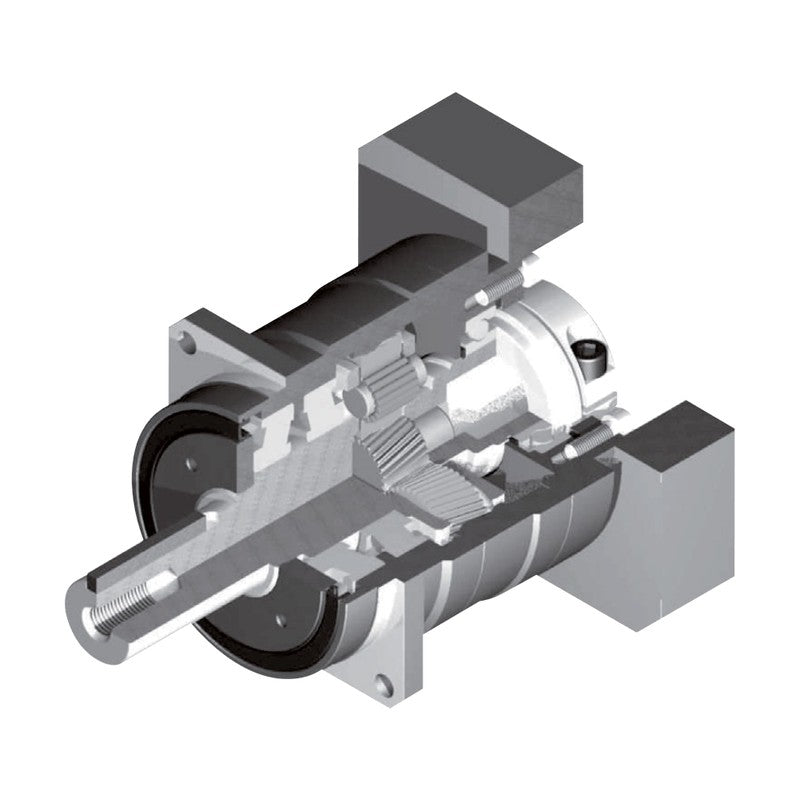

SPG SMS High-Load Planetary Gearheads (Frame 060-240, 1/3-1/100)

SPG SMS series high-load inline precision planetary gearhead for servo motors, frame 060-240, 1- and 2-stage ratios 1/3-1/100 with keyed or smooth output shaft.

Key features

Tapered roller output bearings for high radial (up to 30,000 N) and axial load
Precision class backlash ≤3 arcmin (1-stage) and ≤5 arcmin (2-stage)
Uncaged needle roller bearings for high rigidity and torque
Adapter-bushing input mounts to most servo motors
High-viscosity anti-separation grease: no leakage, maintenance-free, any mounting position
Order code ends with a motor-specific mount code (input bore + adapter code, e.g. -19HB16); select from SPG's motor mount code list

Specifications

Backlash class	P (Precision class)
Rated output torque	30-3,200 Nm
Max. input speed	3,000-6,000 rpm
Max. radial load	3,000-30,000 N
Efficiency	≥95% (1-stage), ≥92% (2-stage)
Noise level	≤58 to ≤73 dB(A)
Accel. / emergency stop torque	1.8x / 3x rated output torque
Operating temperature	-10 to +90 °C (case surface)
Mounting position / protection	All directions / IP65
Mount code	Suffix -<bore><adapter>[motor shaft], e.g. -19HB16
Source	SPG SM Series Precision Planetary Gearhead catalog, p. 43-65

SMS060P003K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P003S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P004K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P004S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P005K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P005S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P006K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P006S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P007K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P007S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P008K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P008S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P009K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P009S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P010K		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
SMS060P010S		Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
SMS060P015K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P015S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P016K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P016S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P020K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P020S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P025K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P025S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P028K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P028S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P030K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P030S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P035K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P035S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P040K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P040S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P045K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P045S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P050K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P050S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P060K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P060S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P070K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P070S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P080K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P080S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P090K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P090S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS060P100K		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
SMS060P100S		Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
SMS075P003K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P003S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P004K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P004S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P005K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P005S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P006K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P006S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P007K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P007S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P008K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P008S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P009K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P009S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P010K		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
SMS075P010S		Frame size: 075 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
SMS075P015K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P015S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P016K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P016S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P020K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P020S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P025K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P025S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P028K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P028S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P030K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P030S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P035K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P035S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P040K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P040S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P045K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P045S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P050K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P050S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P060K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P060S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P070K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P070S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P080K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P080S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P090K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P090S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS075P100K		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
SMS075P100S		Frame size: 075 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
SMS100P003K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P003S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P004K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P004S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P005K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P005S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P006K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P006S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P007K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P007S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P008K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P008S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P009K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P009S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P010K		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
SMS100P010S		Frame size: 100 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
SMS100P015K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P015S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P016K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P016S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P020K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P020S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P025K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P025S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P028K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P028S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P030K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P030S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P035K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P035S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P040K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P040S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P045K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P045S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P050K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P050S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P060K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P060S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P070K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P070S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P080K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P080S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P090K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P090S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS100P100K		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
SMS100P100S		Frame size: 100 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
SMS140P003K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P003S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P004K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P004S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P005K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P005S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P006K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P006S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P007K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P007S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P008K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P008S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P009K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P009S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P010K		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
SMS140P010S		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
SMS140P015K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P015S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P016K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P016S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P020K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P020S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P025K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P025S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P028K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P028S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P030K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P030S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P035K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P035S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P040K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P040S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P045K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P045S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P050K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P050S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P060K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P060S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P070K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P070S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P080K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P080S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P090K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P090S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS140P100K		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
SMS140P100S		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
SMS180P003K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P003S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P004K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P004S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P005K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P005S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P006K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P006S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P007K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P007S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P008K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P008S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P009K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P009S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P010K		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P010S		Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P015K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P015S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P016K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P016S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P020K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P020S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P025K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P025S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P028K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P028S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P030K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P030S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P035K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P035S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P040K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P040S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P045K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P045S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P050K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P050S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P060K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P060S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P070K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P070S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P080K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P080S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P090K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P090S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS180P100K		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
SMS180P100S		Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
SMS210P003K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P003S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P004K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P004S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P005K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P005S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P006K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P006S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P007K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P007S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P008K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P008S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P009K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P009S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P010K		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
SMS210P010S		Frame size: 210 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
SMS210P015K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P015S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P016K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P016S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P020K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P020S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P025K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P025S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P028K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P028S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P030K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P030S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P035K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P035S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P040K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P040S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P045K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P045S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P050K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P050S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P060K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P060S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P070K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P070S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P080K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P080S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P090K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P090S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS210P100K		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
SMS210P100S		Frame size: 210 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
SMS240P003K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P003S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P004K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P004S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P005K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P005S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P006K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P006S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P007K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P007S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P008K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P008S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P009K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P009S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P010K		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
SMS240P010S		Frame size: 240 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
SMS240P015K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P015S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P016K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P016S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P020K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P020S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P025K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P025S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P028K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P028S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P030K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P030S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P035K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P035S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P040K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P040S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P045K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P045S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P050K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P050S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P060K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P060S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P070K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P070S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P080K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P080S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P090K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P090S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
SMS240P100K		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
SMS240P100S		Frame size: 240 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg

Planetary GearboxesSPG

322 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SMS High-Load Planetary Gearheads (Frame 060-240, 1/3-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (322)

SMS060P003K, SMS060P003S, SMS060P004K, SMS060P004S, SMS060P005K, SMS060P005S, SMS060P006K, SMS060P006S, SMS060P007K, SMS060P007S + 312 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SMS060P003K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P003S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P004K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P004S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P005K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P005S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P006K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P006S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P007K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P007S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P008K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P008S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P009K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P009S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P010K	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 1.6 kg
	SMS060P010S	Frame size: 060 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 1.6 kg
	SMS060P015K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P015S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P016K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P016S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P020K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P020S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P025K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P025S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P028K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P028S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P030K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P030S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P035K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P035S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P040K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P040S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P045K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P045S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P050K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P050S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P060K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P060S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P070K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P070S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P080K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P080S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P090K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P090S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS060P100K	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 1.8 kg
	SMS060P100S	Frame size: 060 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 1.8 kg
	SMS075P003K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P003S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P004K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P004S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P005K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P005S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P006K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P006S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P007K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P007S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P008K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P008S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P009K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P009S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P010K	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 3.4 kg
	SMS075P010S	Frame size: 075 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 3.4 kg
	SMS075P015K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P015S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P016K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P016S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P020K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P020S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P025K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P025S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P028K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P028S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P030K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P030S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P035K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P035S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P040K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P040S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P045K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P045S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P050K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P050S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P060K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P060S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P070K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P070S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P080K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P080S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P090K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P090S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS075P100K	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 3.8 kg
	SMS075P100S	Frame size: 075 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 3.8 kg
	SMS100P003K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P003S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P004K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P004S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P005K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P005S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P006K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P006S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P007K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P007S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P008K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P008S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P009K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P009S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P010K	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 8.1 kg
	SMS100P010S	Frame size: 100 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 8.1 kg
	SMS100P015K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P015S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P016K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P016S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P020K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P020S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P025K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P025S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P028K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P028S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P030K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P030S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P035K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P035S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P040K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P040S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P045K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P045S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P050K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P050S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P060K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P060S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P070K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P070S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P080K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P080S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P090K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P090S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS100P100K	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 8.8 kg
	SMS100P100S	Frame size: 100 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 8.8 kg
	SMS140P003K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P003S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P004K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P004S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P005K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P005S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P006K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P006S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P007K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P007S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P008K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P008S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P009K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P009S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P010K	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 17 kg
	SMS140P010S	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 17 kg
	SMS140P015K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P015S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P016K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P016S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P020K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P020S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P025K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P025S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P028K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P028S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P030K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P030S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P035K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P035S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P040K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P040S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P045K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P045S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P050K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P050S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P060K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P060S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P070K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P070S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P080K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P080S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P090K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P090S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS140P100K	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 19 kg
	SMS140P100S	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 19 kg
	SMS180P003K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P003S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P004K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P004S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P005K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P005S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P006K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P006S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P007K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P007S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P008K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P008S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P009K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P009S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P010K	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P010S	Frame size: 180 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P015K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P015S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P016K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P016S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P020K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P020S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P025K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P025S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P028K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P028S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P030K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P030S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P035K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P035S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P040K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P040S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P045K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P045S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P050K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P050S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P060K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P060S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P070K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P070S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P080K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P080S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P090K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P090S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS180P100K	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 39 kg
	SMS180P100S	Frame size: 180 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 39 kg
	SMS210P003K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P003S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P004K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P004S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P005K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P005S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P006K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P006S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P007K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P007S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P008K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P008S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P009K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P009S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P010K	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 59 kg
	SMS210P010S	Frame size: 210 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 59 kg
	SMS210P015K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P015S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P016K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P016S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P020K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P020S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P025K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P025S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P028K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P028S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P030K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P030S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P035K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P035S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P040K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P040S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P045K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P045S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P050K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P050S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P060K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P060S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P070K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P070S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P080K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P080S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P090K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P090S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS210P100K	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 60 kg
	SMS210P100S	Frame size: 210 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 60 kg
	SMS240P003K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P003S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/3 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P004K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P004S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P005K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P005S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P006K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P006S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P007K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P007S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P008K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P008S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P009K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P009S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P010K	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Keyed shaft \| Weight: 85 kg
	SMS240P010S	Frame size: 240 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Output shaft: Smooth shaft \| Weight: 85 kg
	SMS240P015K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P015S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/15 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P016K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P016S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P020K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P020S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P025K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P025S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P028K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P028S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P030K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P030S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/30 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P035K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P035S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P040K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P040S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P045K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P045S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P050K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P050S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P060K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P060S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P070K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P070S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P080K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P080S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P090K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P090S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg
	SMS240P100K	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Keyed shaft \| Weight: 89 kg
	SMS240P100S	Frame size: 240 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Output shaft: Smooth shaft \| Weight: 89 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG SMS High-Load Planetary Gearheads (Frame 060-240, 1/3-1/100)
