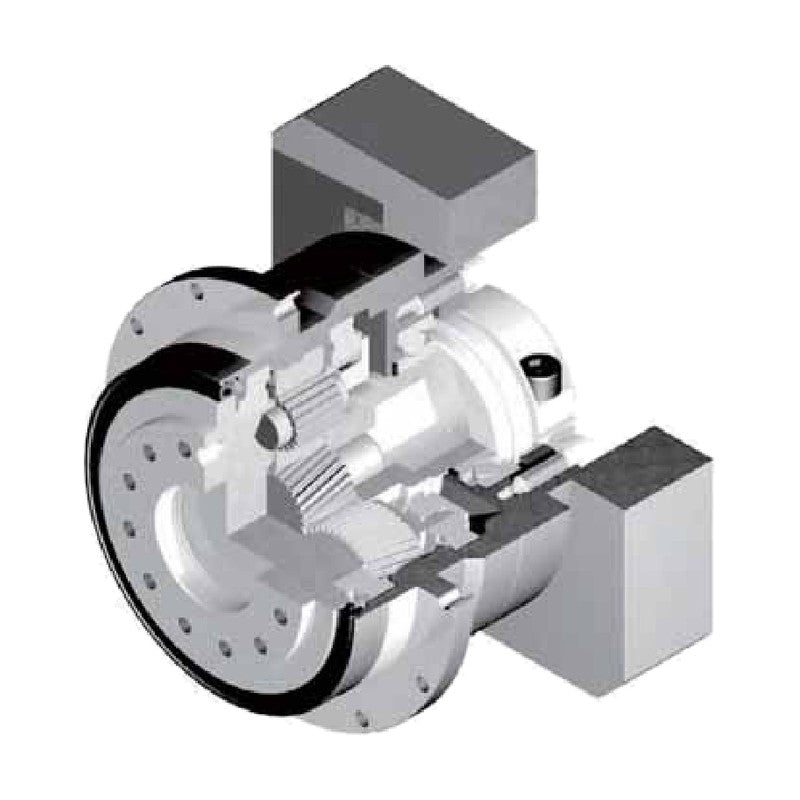

SPG SMT Flange Output Planetary Gearheads (Frame 047-200, 1/4-1/100)

SPG SMT series precision planetary gearhead with flange output for servo motors, frame 047-200, 1- and 2-stage ratios 1/4-1/100.

Key features

Flange (disc) output for direct mounting of pinions, pulleys and rotary loads
Precision class backlash ≤3 arcmin (1-stage) and ≤5 arcmin (2-stage)
Tapered roller output bearings for high radial and axial load (ball bearings on frames 064 and 090)
Uncaged needle roller bearings for high rigidity and torque
Adapter-bushing motor connection; lifetime grease, maintenance-free, any mounting position
Order code ends with a motor-specific mount code (input bore + adapter code, e.g. -19HB16); select from SPG's motor mount code list

Specifications

Output style	F = Flange output
Backlash class	P (Precision class)
Rated output torque	15-1,200 Nm
Max. input speed	4,000-6,000 rpm
Max. radial load	745-22,000 N
Efficiency	≥95% (1-stage), ≥92% (2-stage)
Noise level	≤56 to ≤67 dB(A)
Accel. / emergency stop torque	1.8x / 3x rated output torque
Operating temperature	-10 to +90 °C (case surface)
Mounting position / protection	All directions / IP65
Mount code	Suffix -<bore><adapter>[motor shaft], e.g. -19HB16
Source	SPG SM Series Precision Planetary Gearhead catalog, p. 24-42

SMT047P004F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P005F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P006F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P007F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P008F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P009F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P010F		Frame size: 047 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
SMT047P016F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P020F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P025F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P028F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P035F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P040F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P045F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P050F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P060F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P070F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P080F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P090F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT047P100F		Frame size: 047 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
SMT064P004F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P005F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P006F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P007F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P008F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P009F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P010F		Frame size: 064 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
SMT064P016F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P020F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P025F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P028F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P035F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P040F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P045F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P050F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P060F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P070F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P080F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P090F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT064P100F		Frame size: 064 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
SMT090P004F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P005F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P006F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P007F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P008F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P009F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P010F		Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
SMT090P016F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P020F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P025F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P028F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P035F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P040F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P045F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P050F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P060F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P070F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P080F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P090F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT090P100F		Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 4 kg
SMT110P004F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P005F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P006F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P007F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P008F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P009F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P010F		Frame size: 110 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 7 kg
SMT110P016F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P020F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P025F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P028F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P035F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P040F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P045F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P050F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P060F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P070F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P080F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P090F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT110P100F		Frame size: 110 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
SMT140P004F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P005F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P006F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P007F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P008F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P009F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P010F		Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 15 kg
SMT140P016F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P020F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P025F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P028F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P035F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P040F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P045F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P050F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P060F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P070F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P080F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P090F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT140P100F		Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 17 kg
SMT200P004F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P005F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P006F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P007F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P008F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P009F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P010F		Frame size: 200 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 42 kg
SMT200P016F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P020F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P025F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P028F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P035F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P040F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P045F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P050F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P060F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P070F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P080F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P090F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 43 kg
SMT200P100F		Frame size: 200 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 43 kg

Planetary GearboxesSPG

120 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SPG SMT Flange Output Planetary Gearheads (Frame 047-200, 1/4-1/100)

Brand SPG·Planetary Gearboxes

Available part numbers (120)

SMT047P004F, SMT047P005F, SMT047P006F, SMT047P007F, SMT047P008F, SMT047P009F, SMT047P010F, SMT047P016F, SMT047P020F, SMT047P025F + 110 more — see full table ↓

How to order

Send the SPG part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	SMT047P004F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P005F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P006F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P007F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P008F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P009F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P010F	Frame size: 047 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 0.7 kg
	SMT047P016F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P020F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P025F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P028F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P035F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P040F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P045F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P050F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P060F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P070F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P080F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P090F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT047P100F	Frame size: 047 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 0.8 kg
	SMT064P004F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P005F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P006F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P007F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P008F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P009F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P010F	Frame size: 064 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 1.4 kg
	SMT064P016F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P020F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P025F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P028F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P035F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P040F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P045F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P050F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P060F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P070F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P080F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P090F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT064P100F	Frame size: 064 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 1.6 kg
	SMT090P004F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P005F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P006F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P007F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P008F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P009F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P010F	Frame size: 090 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 3.6 kg
	SMT090P016F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P020F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P025F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P028F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P035F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P040F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P045F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P050F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P060F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P070F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P080F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P090F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT090P100F	Frame size: 090 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 4 kg
	SMT110P004F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P005F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P006F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P007F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P008F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P009F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P010F	Frame size: 110 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 7 kg
	SMT110P016F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P020F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P025F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P028F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P035F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P040F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P045F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P050F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P060F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P070F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P080F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P090F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT110P100F	Frame size: 110 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 7.7 kg
	SMT140P004F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P005F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P006F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P007F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P008F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P009F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P010F	Frame size: 140 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 15 kg
	SMT140P016F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P020F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P025F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P028F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P035F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P040F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P045F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P050F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P060F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P070F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P080F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P090F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT140P100F	Frame size: 140 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 17 kg
	SMT200P004F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/4 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P005F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/5 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P006F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/6 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P007F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/7 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P008F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/8 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P009F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/9 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P010F	Frame size: 200 \| Stage: 1-stage \| Ratio: 1/10 \| Backlash: ≤3 arcmin \| Weight: 42 kg
	SMT200P016F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/16 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P020F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/20 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P025F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/25 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P028F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/28 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P035F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/35 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P040F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/40 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P045F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/45 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P050F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/50 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P060F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/60 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P070F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/70 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P080F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/80 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P090F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/90 \| Backlash: ≤5 arcmin \| Weight: 43 kg
	SMT200P100F	Frame size: 200 \| Stage: 2-stage \| Ratio: 1/100 \| Backlash: ≤5 arcmin \| Weight: 43 kg

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →

Item added to your cart

SPG SMT Flange Output Planetary Gearheads (Frame 047-200, 1/4-1/100)
