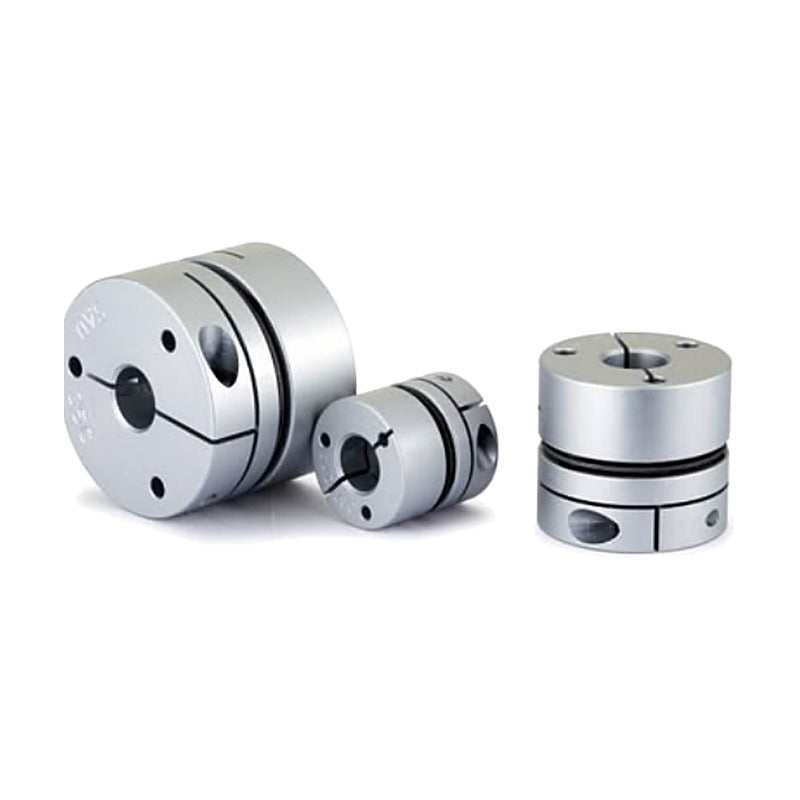

SUNGIL SADS Advanced Single Disk Coupling (OD 19-44 mm)

SUNGIL SADS Advanced Single Disk Coupling (OD 19-44 mm)

Compact single disk side-clamp coupling with an advanced plate spring structure. Stiffer and more durable than a general disk coupling of the same size.

Key features

  • Advanced plate spring design for higher torque and stiffness
  • Backlash-free precision transmission
  • Compact sizes OD 19 to 44 mm
  • Suited to servo and stepping motors
  • Keyway and alternative screw finishes available

Specifications

Hub material High strength aluminum alloy, anodized
Plate spring Stainless steel
Spacer Steel, black oxide
Screws SCM435, black oxide
Clamping Side-clamp (C)
Shaft tolerance h7 recommended
Applications Semiconductor equipment, SMT, Cartesian robots, machine tools
Source SUNGIL Product Catalogue 2026 (SAD series SADS, pp. 49-51)
SADS-19C Clamping: Side-clamp | OD x L: 19 x 18.8 mm | Torque: 1.3 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8
SADS-27C Clamping: Side-clamp | OD x L: 27 x 24.2 mm | Torque: 3 N·m | Max speed: 10,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10,11,12,12.7,14
SADS-32C Clamping: Side-clamp | OD x L: 32 x 26.2 mm | Torque: 4.5 N·m | Max speed: 9,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SADS-35C Clamping: Side-clamp | OD x L: 35 x 27.2 mm | Torque: 6 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SADS-40C Clamping: Side-clamp | OD x L: 40 x 33.2 mm | Torque: 12 N·m | Max speed: 8,500 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19,20
SADS-44C Clamping: Side-clamp | OD x L: 44 x 33.2 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19,20,22
Shaft CouplingSUNGIL
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SADS Advanced Single Disk Coupling (OD 19-44 mm)

Brand SUNGIL·Shaft Coupling

Available part numbers (6)

SADS-19C, SADS-27C, SADS-32C, SADS-35C, SADS-40C, SADS-44C

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SADS-19CClamping: Side-clamp | OD x L: 19 x 18.8 mm | Torque: 1.3 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8
SADS-27CClamping: Side-clamp | OD x L: 27 x 24.2 mm | Torque: 3 N·m | Max speed: 10,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10,11,12,12.7,14
SADS-32CClamping: Side-clamp | OD x L: 32 x 26.2 mm | Torque: 4.5 N·m | Max speed: 9,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SADS-35CClamping: Side-clamp | OD x L: 35 x 27.2 mm | Torque: 6 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SADS-40CClamping: Side-clamp | OD x L: 40 x 33.2 mm | Torque: 12 N·m | Max speed: 8,500 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19,20
SADS-44CClamping: Side-clamp | OD x L: 44 x 33.2 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19,20,22
