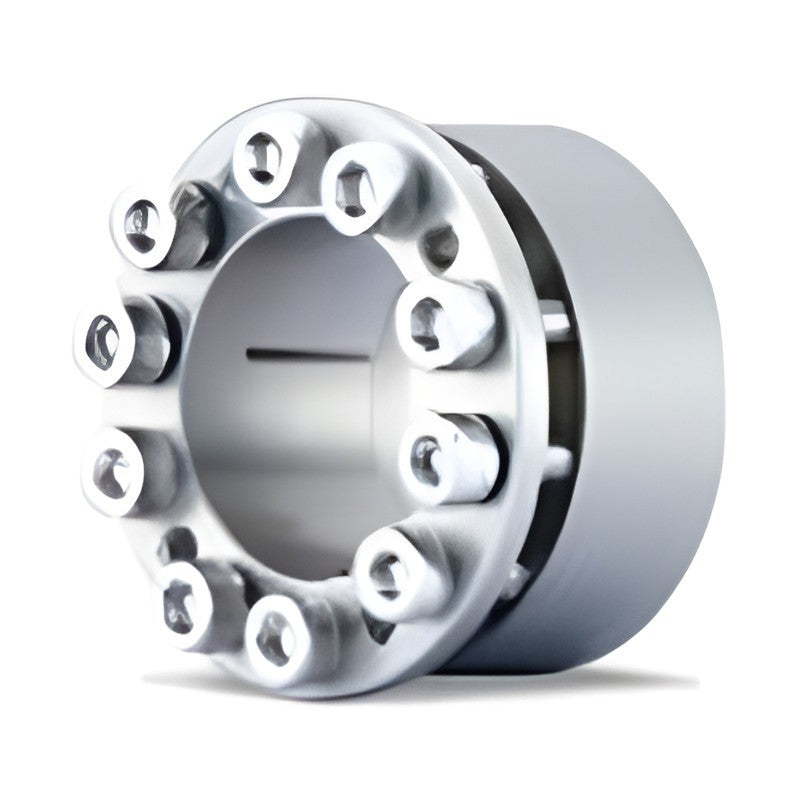

SUNGIL SAPA A.P. Lock Keyless Locking Device (d 5-35 mm)

SUNGIL SAPA A.P. Lock Keyless Locking Device (d 5-35 mm)

Aluminum alloy (AL-7075-T6) keyless locking device with the same dimensions as SAPL-A, offering higher surface pressure than SAPC for both aluminum and steel hubs.

Key features

  • Low inertia aluminum body for high-speed rotation
  • Same dimensions as SAPL-A
  • Suits both aluminum and steel hubs
  • Higher surface pressure than SAPC
  • High corrosion resistance for clean rooms

Specifications

Series SAPA
Product A.P. Lock (keyless bushing)
Material AL-7075-T6 anodized body, SCM435 nickel plated screws
Bore range d 5-35 mm
Code format SAPA-d-D
Tc Max. permissible torque at zero thrust
Pt Max. permissible thrust at zero torque
Size tolerance ±0.3 mm
Source SUNGIL Catalogue (EN), A.P. Lock SAPA p.228
SAPA-5-16 d x D: 5 x 16 mm | Width L: 16 mm | Torque Tc: 6 N·m | Thrust Pt: 2.24 kN | Screw: M3 | Mass: 7 g
SAPA-6-19 d x D: 6 x 19 mm | Width L: 18.3 mm | Torque Tc: 11 N·m | Thrust Pt: 3.74 kN | Screw: M4 | Mass: 10 g
SAPA-8-21 d x D: 8 x 21 mm | Width L: 18.6 mm | Torque Tc: 18 N·m | Thrust Pt: 4.48 kN | Screw: M4 | Mass: 13 g
SAPA-10-23 d x D: 10 x 23 mm | Width L: 18.8 mm | Torque Tc: 20 N·m | Thrust Pt: 4.48 kN | Screw: M4 | Mass: 15 g
SAPA-11-24 d x D: 11 x 24 mm | Width L: 19.8 mm | Torque Tc: 24 N·m | Thrust Pt: 4.48 kN | Screw: M4 | Mass: 17 g
SAPA-12-26 d x D: 12 x 26 mm | Width L: 22 mm | Torque Tc: 40 N·m | Thrust Pt: 6.73 kN | Screw: M4 | Mass: 20 g
SAPA-14-28 d x D: 14 x 28 mm | Width L: 22 mm | Torque Tc: 52 N·m | Thrust Pt: 7.57 kN | Screw: M4 | Mass: 23 g
SAPA-15-29 d x D: 15 x 29 mm | Width L: 23 mm | Torque Tc: 56 N·m | Thrust Pt: 7.57 kN | Screw: M4 | Mass: 25 g
SAPA-16-30 d x D: 16 x 30 mm | Width L: 23.6 mm | Torque Tc: 60 N·m | Thrust Pt: 7.57 kN | Screw: M4 | Mass: 28 g
SAPA-17-31 d x D: 17 x 31 mm | Width L: 24.1 mm | Torque Tc: 88 N·m | Thrust Pt: 10.08 kN | Screw: M4 | Mass: 28 g
SAPA-18-32 d x D: 18 x 32 mm | Width L: 24.1 mm | Torque Tc: 92 N·m | Thrust Pt: 10.08 kN | Screw: M4 | Mass: 30 g
SAPA-19-33 d x D: 19 x 33 mm | Width L: 24.1 mm | Torque Tc: 96 N·m | Thrust Pt: 10.08 kN | Screw: M4 | Mass: 31 g
SAPA-20-38 d x D: 20 x 38 mm | Width L: 29.1 mm | Torque Tc: 176 N·m | Thrust Pt: 17.28 kN | Screw: M5 | Mass: 53 g
SAPA-22-40 d x D: 22 x 40 mm | Width L: 29.1 mm | Torque Tc: 232 N·m | Thrust Pt: 20.8 kN | Screw: M5 | Mass: 60 g
SAPA-24-42 d x D: 24 x 42 mm | Width L: 30.1 mm | Torque Tc: 256 N·m | Thrust Pt: 20.8 kN | Screw: M5 | Mass: 65 g
SAPA-25-43 d x D: 25 x 43 mm | Width L: 31.1 mm | Torque Tc: 270 N·m | Thrust Pt: 21.76 kN | Screw: M5 | Mass: 68 g
SAPA-28-46 d x D: 28 x 46 mm | Width L: 31.6 mm | Torque Tc: 290 N·m | Thrust Pt: 21.6 kN | Screw: M5 | Mass: 71 g
SAPA-30-48 d x D: 30 x 48 mm | Width L: 31.6 mm | Torque Tc: 320 N·m | Thrust Pt: 21.6 kN | Screw: M5 | Mass: 76 g
SAPA-32-50 d x D: 32 x 50 mm | Width L: 32.6 mm | Torque Tc: 352 N·m | Thrust Pt: 21.6 kN | Screw: M5 | Mass: 80 g
SAPA-35-57 d x D: 35 x 57 mm | Width L: 36 mm | Torque Tc: 576 N·m | Thrust Pt: 32.88 kN | Screw: M6 | Mass: 117 g
Keyless Locking DeviceSUNGIL
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SAPA A.P. Lock Keyless Locking Device (d 5-35 mm)

Brand SUNGIL·Keyless Locking Device

Available part numbers (20)

SAPA-5-16, SAPA-6-19, SAPA-8-21, SAPA-10-23, SAPA-11-24, SAPA-12-26, SAPA-14-28, SAPA-15-29, SAPA-16-30, SAPA-17-31 + 10 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAPA-5-16d x D: 5 x 16 mm | Width L: 16 mm | Torque Tc: 6 N·m | Thrust Pt: 2.24 kN | Screw: M3 | Mass: 7 g
SAPA-6-19d x D: 6 x 19 mm | Width L: 18.3 mm | Torque Tc: 11 N·m | Thrust Pt: 3.74 kN | Screw: M4 | Mass: 10 g
SAPA-8-21d x D: 8 x 21 mm | Width L: 18.6 mm | Torque Tc: 18 N·m | Thrust Pt: 4.48 kN | Screw: M4 | Mass: 13 g
SAPA-10-23d x D: 10 x 23 mm | Width L: 18.8 mm | Torque Tc: 20 N·m | Thrust Pt: 4.48 kN | Screw: M4 | Mass: 15 g
SAPA-11-24d x D: 11 x 24 mm | Width L: 19.8 mm | Torque Tc: 24 N·m | Thrust Pt: 4.48 kN | Screw: M4 | Mass: 17 g
SAPA-12-26d x D: 12 x 26 mm | Width L: 22 mm | Torque Tc: 40 N·m | Thrust Pt: 6.73 kN | Screw: M4 | Mass: 20 g
SAPA-14-28d x D: 14 x 28 mm | Width L: 22 mm | Torque Tc: 52 N·m | Thrust Pt: 7.57 kN | Screw: M4 | Mass: 23 g
SAPA-15-29d x D: 15 x 29 mm | Width L: 23 mm | Torque Tc: 56 N·m | Thrust Pt: 7.57 kN | Screw: M4 | Mass: 25 g
SAPA-16-30d x D: 16 x 30 mm | Width L: 23.6 mm | Torque Tc: 60 N·m | Thrust Pt: 7.57 kN | Screw: M4 | Mass: 28 g
SAPA-17-31d x D: 17 x 31 mm | Width L: 24.1 mm | Torque Tc: 88 N·m | Thrust Pt: 10.08 kN | Screw: M4 | Mass: 28 g
SAPA-18-32d x D: 18 x 32 mm | Width L: 24.1 mm | Torque Tc: 92 N·m | Thrust Pt: 10.08 kN | Screw: M4 | Mass: 30 g
SAPA-19-33d x D: 19 x 33 mm | Width L: 24.1 mm | Torque Tc: 96 N·m | Thrust Pt: 10.08 kN | Screw: M4 | Mass: 31 g
SAPA-20-38d x D: 20 x 38 mm | Width L: 29.1 mm | Torque Tc: 176 N·m | Thrust Pt: 17.28 kN | Screw: M5 | Mass: 53 g
SAPA-22-40d x D: 22 x 40 mm | Width L: 29.1 mm | Torque Tc: 232 N·m | Thrust Pt: 20.8 kN | Screw: M5 | Mass: 60 g
SAPA-24-42d x D: 24 x 42 mm | Width L: 30.1 mm | Torque Tc: 256 N·m | Thrust Pt: 20.8 kN | Screw: M5 | Mass: 65 g
SAPA-25-43d x D: 25 x 43 mm | Width L: 31.1 mm | Torque Tc: 270 N·m | Thrust Pt: 21.76 kN | Screw: M5 | Mass: 68 g
SAPA-28-46d x D: 28 x 46 mm | Width L: 31.6 mm | Torque Tc: 290 N·m | Thrust Pt: 21.6 kN | Screw: M5 | Mass: 71 g
SAPA-30-48d x D: 30 x 48 mm | Width L: 31.6 mm | Torque Tc: 320 N·m | Thrust Pt: 21.6 kN | Screw: M5 | Mass: 76 g
SAPA-32-50d x D: 32 x 50 mm | Width L: 32.6 mm | Torque Tc: 352 N·m | Thrust Pt: 21.6 kN | Screw: M5 | Mass: 80 g
SAPA-35-57d x D: 35 x 57 mm | Width L: 36 mm | Torque Tc: 576 N·m | Thrust Pt: 32.88 kN | Screw: M6 | Mass: 117 g
