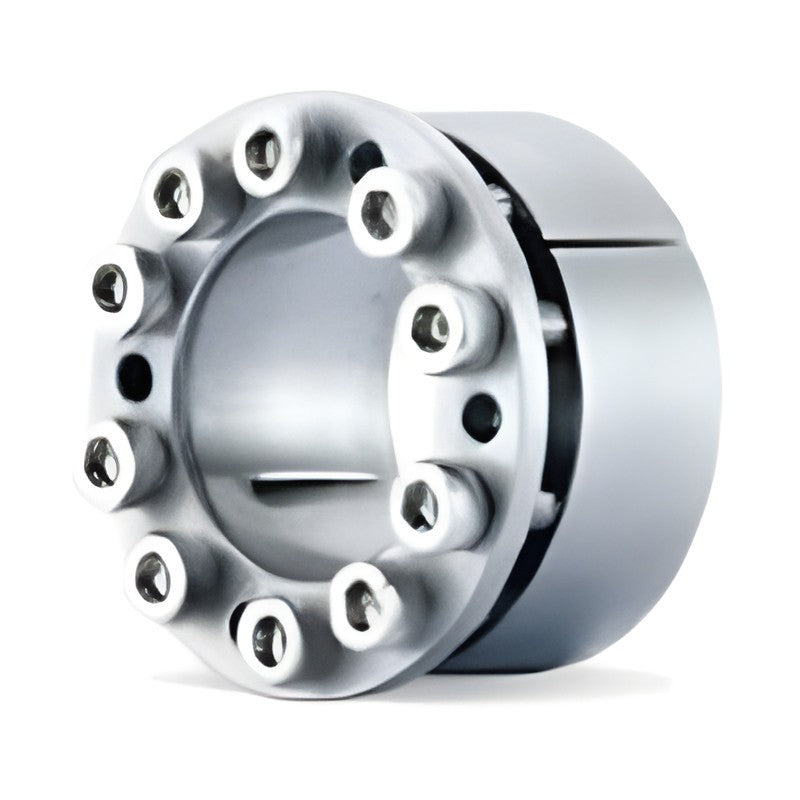

SUNGIL SAPL-AS A.P. Lock Keyless Locking Device (d 5-50 mm)

SUNGIL SAPL-AS A.P. Lock Keyless Locking Device (d 5-50 mm)

All-stainless (STS304) version of the SAPL-A keyless locking device for vacuum, clean or corrosive environments.

Key features

  • STS304 stainless steel body and locking screws
  • Same dimensions as SAPL-A
  • Self-centering clamping
  • Suited to vacuum and clean areas
  • Standard bores from 5 to 50 mm

Specifications

Series SAPL-AS
Product A.P. Lock (keyless bushing)
Material STS304 stainless steel body and screws
Bore range d 5-50 mm
Code format SAPL-AS-d x D
Tc Max. permissible torque at zero thrust
Pt Max. permissible thrust at zero torque
Size tolerance ±0.3 mm
Source SUNGIL Catalogue (EN), A.P. Lock SAPL-AS p.203
SAPL-AS-5x16 d x D: 5 x 16 mm | Width L: 16 mm | Torque Tc: 2.8 N·m | Thrust Pt: 1.1 kN | Screw: M3x12 | Mass: 18 g
SAPL-AS-6x19 d x D: 6 x 19 mm | Width L: 18.3 mm | Torque Tc: 7.8 N·m | Thrust Pt: 2.5 kN | Screw: M4x12 | Mass: 26 g
SAPL-AS-8x21 d x D: 8 x 21 mm | Width L: 18.6 mm | Torque Tc: 10.7 N·m | Thrust Pt: 2.6 kN | Screw: M4x12 | Mass: 35 g
SAPL-AS-10x23 d x D: 10 x 23 mm | Width L: 18.8 mm | Torque Tc: 12.7 N·m | Thrust Pt: 2.6 kN | Screw: M4x12 | Mass: 40 g
SAPL-AS-11x24 d x D: 11 x 24 mm | Width L: 19.8 mm | Torque Tc: 14.7 N·m | Thrust Pt: 2.6 kN | Screw: M4x12 | Mass: 45 g
SAPL-AS-12x26 d x D: 12 x 26 mm | Width L: 22 mm | Torque Tc: 24.5 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 53 g
SAPL-AS-14x28 d x D: 14 x 28 mm | Width L: 22 mm | Torque Tc: 28.4 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 61 g
SAPL-AS-15x29 d x D: 15 x 29 mm | Width L: 23 mm | Torque Tc: 30.4 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 66 g
SAPL-AS-16x30 d x D: 16 x 30 mm | Width L: 23.6 mm | Torque Tc: 32.3 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 75 g
SAPL-AS-17x31 d x D: 17 x 31 mm | Width L: 24.1 mm | Torque Tc: 46.1 N·m | Thrust Pt: 5.4 kN | Screw: M4x15 | Mass: 75 g
SAPL-AS-18x32 d x D: 18 x 32 mm | Width L: 24.1 mm | Torque Tc: 49 N·m | Thrust Pt: 5.4 kN | Screw: M4x15 | Mass: 80 g
SAPL-AS-19x33 d x D: 19 x 33 mm | Width L: 24.1 mm | Torque Tc: 51.9 N·m | Thrust Pt: 5.4 kN | Screw: M4x15 | Mass: 81 g
SAPL-AS-20x38 d x D: 20 x 38 mm | Width L: 29.1 mm | Torque Tc: 121.6 N·m | Thrust Pt: 12.2 kN | Screw: M5x18 | Mass: 144 g
SAPL-AS-22x40 d x D: 22 x 40 mm | Width L: 29.1 mm | Torque Tc: 133.4 N·m | Thrust Pt: 12.1 kN | Screw: M5x18 | Mass: 165 g
SAPL-AS-24x42 d x D: 24 x 42 mm | Width L: 30.1 mm | Torque Tc: 146.1 N·m | Thrust Pt: 12.2 kN | Screw: M5x18 | Mass: 180 g
SAPL-AS-25x43 d x D: 25 x 43 mm | Width L: 31.1 mm | Torque Tc: 153 N·m | Thrust Pt: 12.2 kN | Screw: M5x18 | Mass: 188 g
SAPL-AS-28x46 d x D: 28 x 46 mm | Width L: 31.6 mm | Torque Tc: 213.8 N·m | Thrust Pt: 15.2 kN | Screw: M5x18 | Mass: 195 g
SAPL-AS-30x48 d x D: 30 x 48 mm | Width L: 31.6 mm | Torque Tc: 229.5 N·m | Thrust Pt: 15.3 kN | Screw: M5x18 | Mass: 208 g
SAPL-AS-32x50 d x D: 32 x 50 mm | Width L: 32.6 mm | Torque Tc: 244.2 N·m | Thrust Pt: 15.2 kN | Screw: M5x18 | Mass: 219 g
SAPL-AS-35x57 d x D: 35 x 57 mm | Width L: 36 mm | Torque Tc: 301.1 N·m | Thrust Pt: 17.2 kN | Screw: M6x20 | Mass: 325 g
SAPL-AS-38x60 d x D: 38 x 60 mm | Width L: 36.5 mm | Torque Tc: 403 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 362 g
SAPL-AS-40x62 d x D: 40 x 62 mm | Width L: 37 mm | Torque Tc: 430.6 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 380 g
SAPL-AS-42x64 d x D: 42 x 64 mm | Width L: 37 mm | Torque Tc: 452.2 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 405 g
SAPL-AS-45x67 d x D: 45 x 67 mm | Width L: 37.5 mm | Torque Tc: 484.6 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 435 g
SAPL-AS-48x70 d x D: 48 x 70 mm | Width L: 38 mm | Torque Tc: 620.9 N·m | Thrust Pt: 25.8 kN | Screw: M6x20 | Mass: 460 g
SAPL-AS-50x72 d x D: 50 x 72 mm | Width L: 38.5 mm | Torque Tc: 754.3 N·m | Thrust Pt: 30.1 kN | Screw: M6x20 | Mass: 485 g
Keyless Locking DeviceSUNGIL
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SAPL-AS A.P. Lock Keyless Locking Device (d 5-50 mm)

Brand SUNGIL·Keyless Locking Device

Available part numbers (26)

SAPL-AS-5x16, SAPL-AS-6x19, SAPL-AS-8x21, SAPL-AS-10x23, SAPL-AS-11x24, SAPL-AS-12x26, SAPL-AS-14x28, SAPL-AS-15x29, SAPL-AS-16x30, SAPL-AS-17x31 + 16 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAPL-AS-5x16d x D: 5 x 16 mm | Width L: 16 mm | Torque Tc: 2.8 N·m | Thrust Pt: 1.1 kN | Screw: M3x12 | Mass: 18 g
SAPL-AS-6x19d x D: 6 x 19 mm | Width L: 18.3 mm | Torque Tc: 7.8 N·m | Thrust Pt: 2.5 kN | Screw: M4x12 | Mass: 26 g
SAPL-AS-8x21d x D: 8 x 21 mm | Width L: 18.6 mm | Torque Tc: 10.7 N·m | Thrust Pt: 2.6 kN | Screw: M4x12 | Mass: 35 g
SAPL-AS-10x23d x D: 10 x 23 mm | Width L: 18.8 mm | Torque Tc: 12.7 N·m | Thrust Pt: 2.6 kN | Screw: M4x12 | Mass: 40 g
SAPL-AS-11x24d x D: 11 x 24 mm | Width L: 19.8 mm | Torque Tc: 14.7 N·m | Thrust Pt: 2.6 kN | Screw: M4x12 | Mass: 45 g
SAPL-AS-12x26d x D: 12 x 26 mm | Width L: 22 mm | Torque Tc: 24.5 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 53 g
SAPL-AS-14x28d x D: 14 x 28 mm | Width L: 22 mm | Torque Tc: 28.4 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 61 g
SAPL-AS-15x29d x D: 15 x 29 mm | Width L: 23 mm | Torque Tc: 30.4 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 66 g
SAPL-AS-16x30d x D: 16 x 30 mm | Width L: 23.6 mm | Torque Tc: 32.3 N·m | Thrust Pt: 4 kN | Screw: M4x15 | Mass: 75 g
SAPL-AS-17x31d x D: 17 x 31 mm | Width L: 24.1 mm | Torque Tc: 46.1 N·m | Thrust Pt: 5.4 kN | Screw: M4x15 | Mass: 75 g
SAPL-AS-18x32d x D: 18 x 32 mm | Width L: 24.1 mm | Torque Tc: 49 N·m | Thrust Pt: 5.4 kN | Screw: M4x15 | Mass: 80 g
SAPL-AS-19x33d x D: 19 x 33 mm | Width L: 24.1 mm | Torque Tc: 51.9 N·m | Thrust Pt: 5.4 kN | Screw: M4x15 | Mass: 81 g
SAPL-AS-20x38d x D: 20 x 38 mm | Width L: 29.1 mm | Torque Tc: 121.6 N·m | Thrust Pt: 12.2 kN | Screw: M5x18 | Mass: 144 g
SAPL-AS-22x40d x D: 22 x 40 mm | Width L: 29.1 mm | Torque Tc: 133.4 N·m | Thrust Pt: 12.1 kN | Screw: M5x18 | Mass: 165 g
SAPL-AS-24x42d x D: 24 x 42 mm | Width L: 30.1 mm | Torque Tc: 146.1 N·m | Thrust Pt: 12.2 kN | Screw: M5x18 | Mass: 180 g
SAPL-AS-25x43d x D: 25 x 43 mm | Width L: 31.1 mm | Torque Tc: 153 N·m | Thrust Pt: 12.2 kN | Screw: M5x18 | Mass: 188 g
SAPL-AS-28x46d x D: 28 x 46 mm | Width L: 31.6 mm | Torque Tc: 213.8 N·m | Thrust Pt: 15.2 kN | Screw: M5x18 | Mass: 195 g
SAPL-AS-30x48d x D: 30 x 48 mm | Width L: 31.6 mm | Torque Tc: 229.5 N·m | Thrust Pt: 15.3 kN | Screw: M5x18 | Mass: 208 g
SAPL-AS-32x50d x D: 32 x 50 mm | Width L: 32.6 mm | Torque Tc: 244.2 N·m | Thrust Pt: 15.2 kN | Screw: M5x18 | Mass: 219 g
SAPL-AS-35x57d x D: 35 x 57 mm | Width L: 36 mm | Torque Tc: 301.1 N·m | Thrust Pt: 17.2 kN | Screw: M6x20 | Mass: 325 g
SAPL-AS-38x60d x D: 38 x 60 mm | Width L: 36.5 mm | Torque Tc: 403 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 362 g
SAPL-AS-40x62d x D: 40 x 62 mm | Width L: 37 mm | Torque Tc: 430.6 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 380 g
SAPL-AS-42x64d x D: 42 x 64 mm | Width L: 37 mm | Torque Tc: 452.2 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 405 g
SAPL-AS-45x67d x D: 45 x 67 mm | Width L: 37.5 mm | Torque Tc: 484.6 N·m | Thrust Pt: 21.5 kN | Screw: M6x20 | Mass: 435 g
SAPL-AS-48x70d x D: 48 x 70 mm | Width L: 38 mm | Torque Tc: 620.9 N·m | Thrust Pt: 25.8 kN | Screw: M6x20 | Mass: 460 g
SAPL-AS-50x72d x D: 50 x 72 mm | Width L: 38.5 mm | Torque Tc: 754.3 N·m | Thrust Pt: 30.1 kN | Screw: M6x20 | Mass: 485 g
