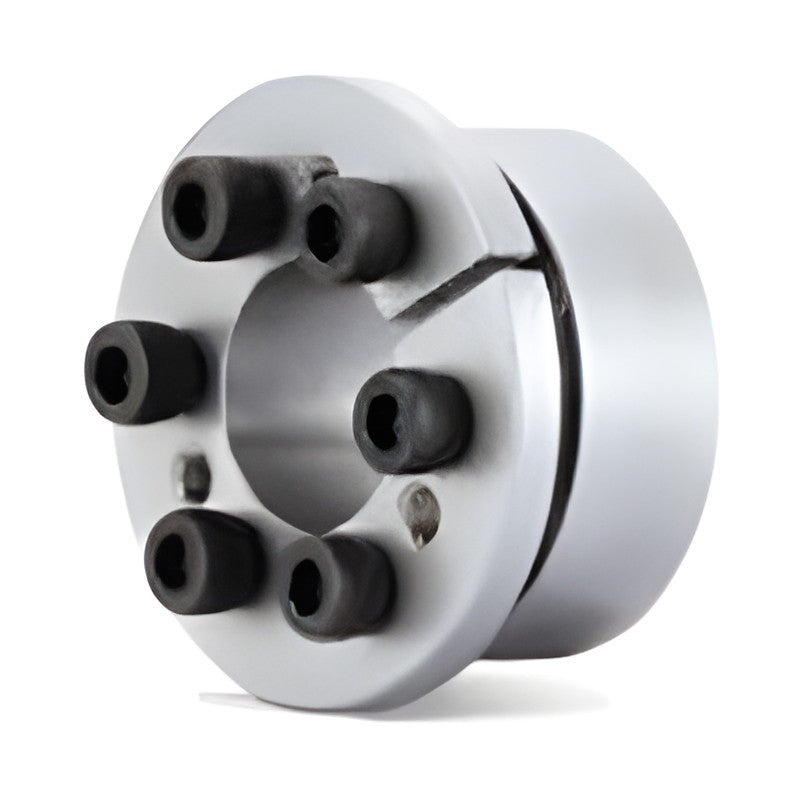

SUNGIL SAPL-D3 A.P. Lock Keyless Locking Device (d 19-60 mm)

SUNGIL SAPL-D3 A.P. Lock Keyless Locking Device (d 19-60 mm)

Flanged keyless locking device equivalent in size to SAPL-D1; the flange bears on the hub face so there is no movement during installation.

Key features

  • Same dimensions as SAPL-D1 with locating flange
  • No movement while installing
  • Fewer fastening screws
  • Self-centering clamping
  • Recommended tolerance shaft h8 / hub H8

Specifications

Series SAPL-D3
Product A.P. Lock (keyless bushing)
Material Steel body, SCM435 black oxide screws
Bore range d 19-60 mm
Code format SAPL-D3-d x D
Tc Max. permissible torque at zero thrust
Pt Max. permissible thrust at zero torque
Size tolerance ±0.3 mm
Source SUNGIL Catalogue (EN), A.P. Lock SAPL-D3 p.215
SAPL-D3-19x47 d x D: 19 x 47 mm | Width L: 34 mm | Torque Tc: 243 N·m | Thrust Pt: 26 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-20x47 d x D: 20 x 47 mm | Width L: 34 mm | Torque Tc: 256 N·m | Thrust Pt: 26 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-22x47 d x D: 22 x 47 mm | Width L: 34 mm | Torque Tc: 282 N·m | Thrust Pt: 26 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-24x50 d x D: 24 x 50 mm | Width L: 34 mm | Torque Tc: 368 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-25x50 d x D: 25 x 50 mm | Width L: 34 mm | Torque Tc: 383 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-28x55 d x D: 28 x 55 mm | Width L: 34 mm | Torque Tc: 429 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-30x55 d x D: 30 x 55 mm | Width L: 34 mm | Torque Tc: 460 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-32x60 d x D: 32 x 60 mm | Width L: 34 mm | Torque Tc: 655 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-35x60 d x D: 35 x 60 mm | Width L: 34 mm | Torque Tc: 716 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-38x65 d x D: 38 x 65 mm | Width L: 34 mm | Torque Tc: 778 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 500 g
SAPL-D3-40x65 d x D: 40 x 65 mm | Width L: 34 mm | Torque Tc: 819 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 500 g
SAPL-D3-42x75 d x D: 42 x 75 mm | Width L: 41 mm | Torque Tc: 1,361 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 800 g
SAPL-D3-45x75 d x D: 45 x 75 mm | Width L: 41 mm | Torque Tc: 1,458 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 700 g
SAPL-D3-48x80 d x D: 48 x 80 mm | Width L: 41 mm | Torque Tc: 1,550 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 800 g
SAPL-D3-50x80 d x D: 50 x 80 mm | Width L: 41 mm | Torque Tc: 1,620 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 800 g
SAPL-D3-55x85 d x D: 55 x 85 mm | Width L: 41 mm | Torque Tc: 2,037 N·m | Thrust Pt: 74 kN | Screw: M8x25 | Mass: 900 g
SAPL-D3-60x90 d x D: 60 x 90 mm | Width L: 41 mm | Torque Tc: 2,223 N·m | Thrust Pt: 74 kN | Screw: M8x25 | Mass: 900 g
Keyless Locking DeviceSUNGIL
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SAPL-D3 A.P. Lock Keyless Locking Device (d 19-60 mm)

Brand SUNGIL·Keyless Locking Device

Available part numbers (17)

SAPL-D3-19x47, SAPL-D3-20x47, SAPL-D3-22x47, SAPL-D3-24x50, SAPL-D3-25x50, SAPL-D3-28x55, SAPL-D3-30x55, SAPL-D3-32x60, SAPL-D3-35x60, SAPL-D3-38x65 + 7 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAPL-D3-19x47d x D: 19 x 47 mm | Width L: 34 mm | Torque Tc: 243 N·m | Thrust Pt: 26 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-20x47d x D: 20 x 47 mm | Width L: 34 mm | Torque Tc: 256 N·m | Thrust Pt: 26 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-22x47d x D: 22 x 47 mm | Width L: 34 mm | Torque Tc: 282 N·m | Thrust Pt: 26 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-24x50d x D: 24 x 50 mm | Width L: 34 mm | Torque Tc: 368 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-25x50d x D: 25 x 50 mm | Width L: 34 mm | Torque Tc: 383 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 300 g
SAPL-D3-28x55d x D: 28 x 55 mm | Width L: 34 mm | Torque Tc: 429 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-30x55d x D: 30 x 55 mm | Width L: 34 mm | Torque Tc: 460 N·m | Thrust Pt: 31 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-32x60d x D: 32 x 60 mm | Width L: 34 mm | Torque Tc: 655 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-35x60d x D: 35 x 60 mm | Width L: 34 mm | Torque Tc: 716 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 400 g
SAPL-D3-38x65d x D: 38 x 65 mm | Width L: 34 mm | Torque Tc: 778 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 500 g
SAPL-D3-40x65d x D: 40 x 65 mm | Width L: 34 mm | Torque Tc: 819 N·m | Thrust Pt: 41 kN | Screw: M6x20 | Mass: 500 g
SAPL-D3-42x75d x D: 42 x 75 mm | Width L: 41 mm | Torque Tc: 1,361 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 800 g
SAPL-D3-45x75d x D: 45 x 75 mm | Width L: 41 mm | Torque Tc: 1,458 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 700 g
SAPL-D3-48x80d x D: 48 x 80 mm | Width L: 41 mm | Torque Tc: 1,550 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 800 g
SAPL-D3-50x80d x D: 50 x 80 mm | Width L: 41 mm | Torque Tc: 1,620 N·m | Thrust Pt: 65 kN | Screw: M8x25 | Mass: 800 g
SAPL-D3-55x85d x D: 55 x 85 mm | Width L: 41 mm | Torque Tc: 2,037 N·m | Thrust Pt: 74 kN | Screw: M8x25 | Mass: 900 g
SAPL-D3-60x90d x D: 60 x 90 mm | Width L: 41 mm | Torque Tc: 2,223 N·m | Thrust Pt: 74 kN | Screw: M8x25 | Mass: 900 g
