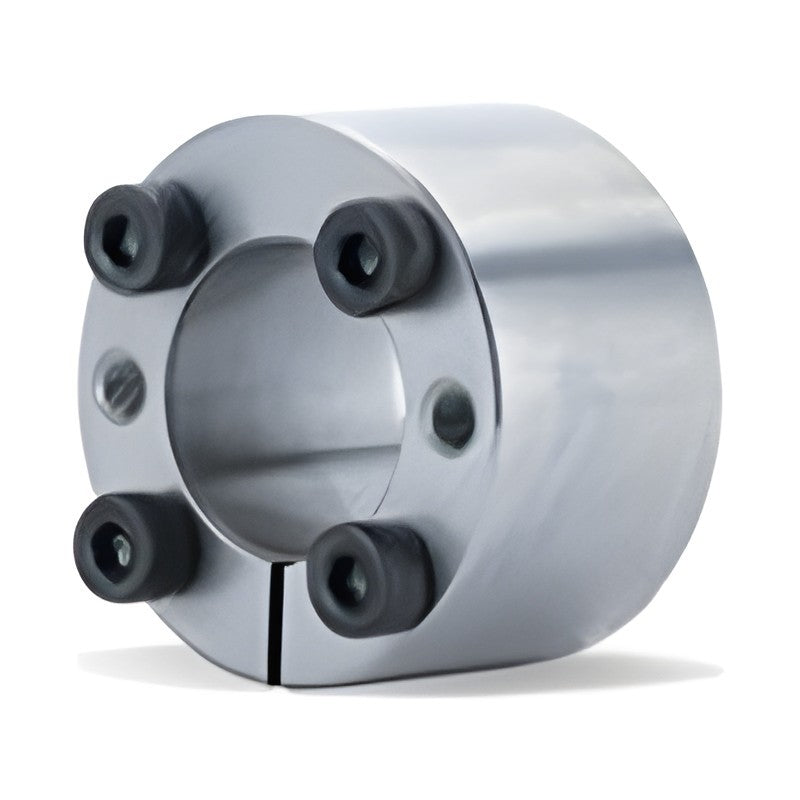

SUNGIL SAPL-E A.P. Lock Keyless Locking Device (d 5-30 mm)

SUNGIL SAPL-E A.P. Lock Keyless Locking Device (d 5-30 mm)

Short, compact self-centering keyless locking device suited to relatively small hubs with low surface pressure.

Key features

  • Relatively short overall length
  • Self-centering clamping
  • Suits relatively small hubs
  • Recommended tolerance shaft h8 / hub H8
  • Electroless nickel plating on request

Specifications

Series SAPL-E
Product A.P. Lock (keyless bushing)
Material Steel body, SCM435 black oxide screws
Bore range d 5-30 mm
Code format SAPL-E-d x D
Tc Max. permissible torque at zero thrust
Pt Max. permissible thrust at zero torque
Size tolerance ±0.3 mm
Source SUNGIL Catalogue (EN), A.P. Lock SAPL-E p.219
SAPL-E-5x16 d x D: 5 x 16 mm | Width L: 13.5 mm | Torque Tc: 5 N·m | Thrust Pt: 1.6 kN | Screw: M2.5x10 | Mass: 11 g
SAPL-E-6x16 d x D: 6 x 16 mm | Width L: 13.5 mm | Torque Tc: 6 N·m | Thrust Pt: 2 kN | Screw: M2.5x10 | Mass: 12 g
SAPL-E-8x18 d x D: 8 x 18 mm | Width L: 13.5 mm | Torque Tc: 10 N·m | Thrust Pt: 2.5 kN | Screw: M2.5x10 | Mass: 15 g
SAPL-E-9x20 d x D: 9 x 20 mm | Width L: 15.5 mm | Torque Tc: 15 N·m | Thrust Pt: 3 kN | Screw: M2.5x12 | Mass: 20 g
SAPL-E-10x20 d x D: 10 x 20 mm | Width L: 15.5 mm | Torque Tc: 19 N·m | Thrust Pt: 3.8 kN | Screw: M2.5x12 | Mass: 19 g
SAPL-E-11x22 d x D: 11 x 22 mm | Width L: 15.5 mm | Torque Tc: 21 N·m | Thrust Pt: 3.8 kN | Screw: M2.5x12 | Mass: 24 g
SAPL-E-12x22 d x D: 12 x 22 mm | Width L: 15.5 mm | Torque Tc: 23 N·m | Thrust Pt: 3.8 kN | Screw: M2.5x12 | Mass: 22 g
SAPL-E-14x26 d x D: 14 x 26 mm | Width L: 20 mm | Torque Tc: 39 N·m | Thrust Pt: 5.5 kN | Screw: M3x16 | Mass: 39 g
SAPL-E-15x28 d x D: 15 x 28 mm | Width L: 20 mm | Torque Tc: 42 N·m | Thrust Pt: 5.5 kN | Screw: M3x16 | Mass: 44 g
SAPL-E-16x32 d x D: 16 x 32 mm | Width L: 21 mm | Torque Tc: 77 N·m | Thrust Pt: 9.6 kN | Screw: M4x16 | Mass: 68 g
SAPL-E-17x35 d x D: 17 x 35 mm | Width L: 25 mm | Torque Tc: 82 N·m | Thrust Pt: 9.6 kN | Screw: M4x20 | Mass: 93 g
SAPL-E-18x35 d x D: 18 x 35 mm | Width L: 25 mm | Torque Tc: 87 N·m | Thrust Pt: 9.6 kN | Screw: M4x20 | Mass: 90 g
SAPL-E-19x35 d x D: 19 x 35 mm | Width L: 25 mm | Torque Tc: 91 N·m | Thrust Pt: 9.6 kN | Screw: M4x20 | Mass: 85 g
SAPL-E-20x38 d x D: 20 x 38 mm | Width L: 26 mm | Torque Tc: 157 N·m | Thrust Pt: 15.7 kN | Screw: M5x20 | Mass: 120 g
SAPL-E-22x40 d x D: 22 x 40 mm | Width L: 26 mm | Torque Tc: 173 N·m | Thrust Pt: 15.7 kN | Screw: M5x20 | Mass: 130 g
SAPL-E-24x47 d x D: 24 x 47 mm | Width L: 32 mm | Torque Tc: 268 N·m | Thrust Pt: 22.3 kN | Screw: M6x24 | Mass: 220 g
SAPL-E-25x47 d x D: 25 x 47 mm | Width L: 32 mm | Torque Tc: 279 N·m | Thrust Pt: 22.3 kN | Screw: M6x24 | Mass: 210 g
SAPL-E-28x50 d x D: 28 x 50 mm | Width L: 32 mm | Torque Tc: 468 N·m | Thrust Pt: 33.5 kN | Screw: M6x24 | Mass: 240 g
SAPL-E-30x55 d x D: 30 x 55 mm | Width L: 32 mm | Torque Tc: 502 N·m | Thrust Pt: 33.5 kN | Screw: M6x24 | Mass: 270 g
