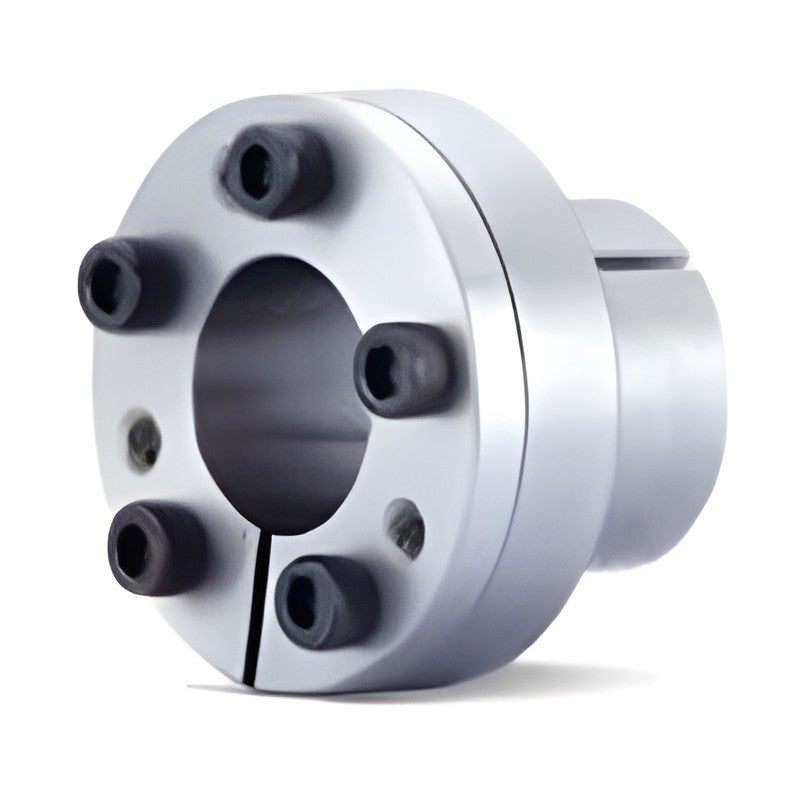

SUNGIL SAPL-T A.P. Lock Keyless Locking Device (d 6-50 mm)

SUNGIL SAPL-T A.P. Lock Keyless Locking Device (d 6-50 mm)

Self-centering keyless locking device designed for smaller and shorter hubs, with no movement during installation.

Key features

  • Suits smaller and shorter hubs
  • No movement while installing
  • Self-centering clamping
  • Simple structure for easy maintenance
  • Recommended tolerance shaft h8 / hub H8

Specifications

Series SAPL-T
Product A.P. Lock (keyless bushing)
Material Steel body, SCM435 black oxide screws
Bore range d 6-50 mm
Code format SAPL-T-d x D
Tc Max. permissible torque at zero thrust
Pt Max. permissible thrust at zero torque
Size tolerance ±0.3 mm
Source SUNGIL Catalogue (EN), A.P. Lock SAPL-T p.221
SAPL-T-6x14 d x D: 6 x 14 mm | Width L: 24 mm | Torque Tc: 12 N·m | Thrust Pt: 4 kN | Screw: M3x8 | Mass: 40 g
SAPL-T-7x15 d x D: 7 x 15 mm | Width L: 28 mm | Torque Tc: 25 N·m | Thrust Pt: 7 kN | Screw: M4x10 | Mass: 60 g
SAPL-T-8x15 d x D: 8 x 15 mm | Width L: 28 mm | Torque Tc: 29 N·m | Thrust Pt: 7 kN | Screw: M4x10 | Mass: 50 g
SAPL-T-9x16 d x D: 9 x 16 mm | Width L: 31 mm | Torque Tc: 44 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 60 g
SAPL-T-10x16 d x D: 10 x 16 mm | Width L: 31 mm | Torque Tc: 49 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 60 g
SAPL-T-11x18 d x D: 11 x 18 mm | Width L: 31 mm | Torque Tc: 53 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 70 g
SAPL-T-12x18 d x D: 12 x 18 mm | Width L: 31 mm | Torque Tc: 58 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 70 g
SAPL-T-13x23 d x D: 13 x 23 mm | Width L: 31 mm | Torque Tc: 63 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 110 g
SAPL-T-14x23 d x D: 14 x 23 mm | Width L: 31 mm | Torque Tc: 68 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 100 g
SAPL-T-15x24 d x D: 15 x 24 mm | Width L: 42 mm | Torque Tc: 127 N·m | Thrust Pt: 17 kN | Screw: M6x18 | Mass: 220 g
SAPL-T-16x24 d x D: 16 x 24 mm | Width L: 42 mm | Torque Tc: 136 N·m | Thrust Pt: 17 kN | Screw: M6x18 | Mass: 220 g
SAPL-T-17x26 d x D: 17 x 26 mm | Width L: 44 mm | Torque Tc: 180 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 250 g
SAPL-T-18x26 d x D: 18 x 26 mm | Width L: 44 mm | Torque Tc: 200 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 240 g
SAPL-T-19x27 d x D: 19 x 27 mm | Width L: 44 mm | Torque Tc: 210 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 260 g
SAPL-T-20x28 d x D: 20 x 28 mm | Width L: 44 mm | Torque Tc: 220 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 270 g
SAPL-T-22x32 d x D: 22 x 32 mm | Width L: 51 mm | Torque Tc: 250 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 340 g
SAPL-T-24x34 d x D: 24 x 34 mm | Width L: 51 mm | Torque Tc: 270 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 360 g
SAPL-T-25x34 d x D: 25 x 34 mm | Width L: 51 mm | Torque Tc: 280 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 350 g
SAPL-T-28x39 d x D: 28 x 39 mm | Width L: 51 mm | Torque Tc: 465 N·m | Thrust Pt: 33 kN | Screw: M6x18 | Mass: 480 g
SAPL-T-30x41 d x D: 30 x 41 mm | Width L: 51 mm | Torque Tc: 510 N·m | Thrust Pt: 33 kN | Screw: M6x18 | Mass: 480 g
SAPL-T-32x43 d x D: 32 x 43 mm | Width L: 56 mm | Torque Tc: 540 N·m | Thrust Pt: 33 kN | Screw: M6x18 | Mass: 470 g
SAPL-T-35x47 d x D: 35 x 47 mm | Width L: 56 mm | Torque Tc: 790 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 580 g
SAPL-T-38x50 d x D: 38 x 50 mm | Width L: 56 mm | Torque Tc: 860 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 610 g
SAPL-T-40x53 d x D: 40 x 53 mm | Width L: 58 mm | Torque Tc: 900 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 680 g
SAPL-T-42x55 d x D: 42 x 55 mm | Width L: 58 mm | Torque Tc: 950 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 760 g
SAPL-T-45x59 d x D: 45 x 59 mm | Width L: 72 mm | Torque Tc: 1,890 N·m | Thrust Pt: 84 kN | Screw: M8x22 | Mass: 1,200 g
SAPL-T-48x62 d x D: 48 x 62 mm | Width L: 72 mm | Torque Tc: 2,010 N·m | Thrust Pt: 84 kN | Screw: M8x22 | Mass: 1,200 g
SAPL-T-50x65 d x D: 50 x 65 mm | Width L: 82 mm | Torque Tc: 2,100 N·m | Thrust Pt: 84 kN | Screw: M8x22 | Mass: 1,400 g
Keyless Locking DeviceSUNGIL
28 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SAPL-T A.P. Lock Keyless Locking Device (d 6-50 mm)

Brand SUNGIL·Keyless Locking Device

Available part numbers (28)

SAPL-T-6x14, SAPL-T-7x15, SAPL-T-8x15, SAPL-T-9x16, SAPL-T-10x16, SAPL-T-11x18, SAPL-T-12x18, SAPL-T-13x23, SAPL-T-14x23, SAPL-T-15x24 + 18 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SAPL-T-6x14d x D: 6 x 14 mm | Width L: 24 mm | Torque Tc: 12 N·m | Thrust Pt: 4 kN | Screw: M3x8 | Mass: 40 g
SAPL-T-7x15d x D: 7 x 15 mm | Width L: 28 mm | Torque Tc: 25 N·m | Thrust Pt: 7 kN | Screw: M4x10 | Mass: 60 g
SAPL-T-8x15d x D: 8 x 15 mm | Width L: 28 mm | Torque Tc: 29 N·m | Thrust Pt: 7 kN | Screw: M4x10 | Mass: 50 g
SAPL-T-9x16d x D: 9 x 16 mm | Width L: 31 mm | Torque Tc: 44 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 60 g
SAPL-T-10x16d x D: 10 x 16 mm | Width L: 31 mm | Torque Tc: 49 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 60 g
SAPL-T-11x18d x D: 11 x 18 mm | Width L: 31 mm | Torque Tc: 53 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 70 g
SAPL-T-12x18d x D: 12 x 18 mm | Width L: 31 mm | Torque Tc: 58 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 70 g
SAPL-T-13x23d x D: 13 x 23 mm | Width L: 31 mm | Torque Tc: 63 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 110 g
SAPL-T-14x23d x D: 14 x 23 mm | Width L: 31 mm | Torque Tc: 68 N·m | Thrust Pt: 10 kN | Screw: M4x12 | Mass: 100 g
SAPL-T-15x24d x D: 15 x 24 mm | Width L: 42 mm | Torque Tc: 127 N·m | Thrust Pt: 17 kN | Screw: M6x18 | Mass: 220 g
SAPL-T-16x24d x D: 16 x 24 mm | Width L: 42 mm | Torque Tc: 136 N·m | Thrust Pt: 17 kN | Screw: M6x18 | Mass: 220 g
SAPL-T-17x26d x D: 17 x 26 mm | Width L: 44 mm | Torque Tc: 180 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 250 g
SAPL-T-18x26d x D: 18 x 26 mm | Width L: 44 mm | Torque Tc: 200 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 240 g
SAPL-T-19x27d x D: 19 x 27 mm | Width L: 44 mm | Torque Tc: 210 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 260 g
SAPL-T-20x28d x D: 20 x 28 mm | Width L: 44 mm | Torque Tc: 220 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 270 g
SAPL-T-22x32d x D: 22 x 32 mm | Width L: 51 mm | Torque Tc: 250 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 340 g
SAPL-T-24x34d x D: 24 x 34 mm | Width L: 51 mm | Torque Tc: 270 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 360 g
SAPL-T-25x34d x D: 25 x 34 mm | Width L: 51 mm | Torque Tc: 280 N·m | Thrust Pt: 22 kN | Screw: M6x18 | Mass: 350 g
SAPL-T-28x39d x D: 28 x 39 mm | Width L: 51 mm | Torque Tc: 465 N·m | Thrust Pt: 33 kN | Screw: M6x18 | Mass: 480 g
SAPL-T-30x41d x D: 30 x 41 mm | Width L: 51 mm | Torque Tc: 510 N·m | Thrust Pt: 33 kN | Screw: M6x18 | Mass: 480 g
SAPL-T-32x43d x D: 32 x 43 mm | Width L: 56 mm | Torque Tc: 540 N·m | Thrust Pt: 33 kN | Screw: M6x18 | Mass: 470 g
SAPL-T-35x47d x D: 35 x 47 mm | Width L: 56 mm | Torque Tc: 790 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 580 g
SAPL-T-38x50d x D: 38 x 50 mm | Width L: 56 mm | Torque Tc: 860 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 610 g
SAPL-T-40x53d x D: 40 x 53 mm | Width L: 58 mm | Torque Tc: 900 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 680 g
SAPL-T-42x55d x D: 42 x 55 mm | Width L: 58 mm | Torque Tc: 950 N·m | Thrust Pt: 45 kN | Screw: M6x18 | Mass: 760 g
SAPL-T-45x59d x D: 45 x 59 mm | Width L: 72 mm | Torque Tc: 1,890 N·m | Thrust Pt: 84 kN | Screw: M8x22 | Mass: 1,200 g
SAPL-T-48x62d x D: 48 x 62 mm | Width L: 72 mm | Torque Tc: 2,010 N·m | Thrust Pt: 84 kN | Screw: M8x22 | Mass: 1,200 g
SAPL-T-50x65d x D: 50 x 65 mm | Width L: 82 mm | Torque Tc: 2,100 N·m | Thrust Pt: 84 kN | Screw: M8x22 | Mass: 1,400 g
