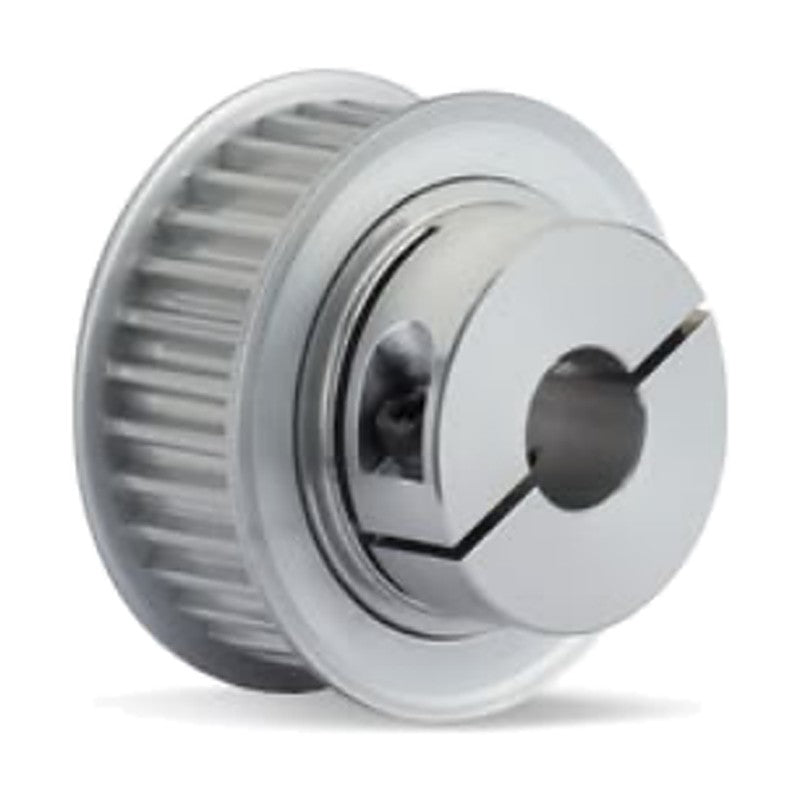

SUNGIL SATP-8YU Timing Pulley (Side Clamp, SC)

SUNGIL SATP-8YU Timing Pulley (Side Clamp, SC)

High-strength aluminum alloy 8YU timing pulleys with an integral slit side-clamp hub, tightened by a single SCM435 fastening screw for quick, keyless shaft mounting.

Key features

  • Side-clamp hub fastened with one SCM435 screw
  • Quick installation and removal without set screws
  • High-strength aluminum alloy body, white anodized
  • Keyway machining available on request (K + b size)
  • Compact hub dimensions for space-limited drives

Specifications

Tooth profile 8YU, pitch 8 mm
Clamping method SC (side clamp)
Body material High strength aluminum alloy
Fastening screw SCM435, black oxide
No. of teeth 20-36
Belt width codes BW150 (15 mm), BW250 (25 mm)
Standard bores (d) 12-25 mm
Surface treatment WA white anodizing
Keyway Available (K + b size)
Ordering code SATP-8YU-NT__-BW___-SC-(d)-(K_)-WA
Source SUNGIL Catalogue (EN), Timing Pulley section
SATP-8YU-NT20-BW150-SC PCD: 50.93 mm | OD: 49.56 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 12 ~ 14 mm
SATP-8YU-NT20-BW250-SC PCD: 50.93 mm | OD: 49.56 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 12 ~ 14 mm
SATP-8YU-NT22-BW150-SC PCD: 56.02 mm | OD: 54.65 mm | Hub D x L: 41x16 mm | Screw: M5X16 | Bore d: 12 ~ 16 mm
SATP-8YU-NT22-BW250-SC PCD: 56.02 mm | OD: 54.65 mm | Hub D x L: 41x16 mm | Screw: M5X16 | Bore d: 12 ~ 16 mm
SATP-8YU-NT24-BW150-SC PCD: 61.12 mm | OD: 59.75 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT24-BW250-SC PCD: 61.12 mm | OD: 59.75 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT25-BW150-SC PCD: 63.66 mm | OD: 62.29 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT25-BW250-SC PCD: 63.66 mm | OD: 62.29 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT28-BW150-SC PCD: 71.3 mm | OD: 69.93 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT28-BW250-SC PCD: 71.3 mm | OD: 69.93 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT30-BW150-SC PCD: 76.39 mm | OD: 75.02 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT30-BW250-SC PCD: 76.39 mm | OD: 75.02 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT32-BW150-SC PCD: 81.49 mm | OD: 80.12 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT32-BW250-SC PCD: 81.49 mm | OD: 80.12 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT34-BW150-SC PCD: 86.58 mm | OD: 85.21 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT34-BW250-SC PCD: 86.58 mm | OD: 85.21 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT36-BW150-SC PCD: 91.67 mm | OD: 90.3 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT36-BW250-SC PCD: 91.67 mm | OD: 90.3 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
Timing PulleySUNGIL
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SATP-8YU Timing Pulley (Side Clamp, SC)

Brand SUNGIL·Timing Pulley

Available part numbers (18)

SATP-8YU-NT20-BW150-SC, SATP-8YU-NT20-BW250-SC, SATP-8YU-NT22-BW150-SC, SATP-8YU-NT22-BW250-SC, SATP-8YU-NT24-BW150-SC, SATP-8YU-NT24-BW250-SC, SATP-8YU-NT25-BW150-SC, SATP-8YU-NT25-BW250-SC, SATP-8YU-NT28-BW150-SC, SATP-8YU-NT28-BW250-SC + 8 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SATP-8YU-NT20-BW150-SCPCD: 50.93 mm | OD: 49.56 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 12 ~ 14 mm
SATP-8YU-NT20-BW250-SCPCD: 50.93 mm | OD: 49.56 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 12 ~ 14 mm
SATP-8YU-NT22-BW150-SCPCD: 56.02 mm | OD: 54.65 mm | Hub D x L: 41x16 mm | Screw: M5X16 | Bore d: 12 ~ 16 mm
SATP-8YU-NT22-BW250-SCPCD: 56.02 mm | OD: 54.65 mm | Hub D x L: 41x16 mm | Screw: M5X16 | Bore d: 12 ~ 16 mm
SATP-8YU-NT24-BW150-SCPCD: 61.12 mm | OD: 59.75 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT24-BW250-SCPCD: 61.12 mm | OD: 59.75 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT25-BW150-SCPCD: 63.66 mm | OD: 62.29 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT25-BW250-SCPCD: 63.66 mm | OD: 62.29 mm | Hub D x L: 46x16 mm | Screw: M5X16 | Bore d: 12 ~ 19 mm
SATP-8YU-NT28-BW150-SCPCD: 71.3 mm | OD: 69.93 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT28-BW250-SCPCD: 71.3 mm | OD: 69.93 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT30-BW150-SCPCD: 76.39 mm | OD: 75.02 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT30-BW250-SCPCD: 76.39 mm | OD: 75.02 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 15 ~ 19 / 20 ~ 25 mm
SATP-8YU-NT32-BW150-SCPCD: 81.49 mm | OD: 80.12 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT32-BW250-SCPCD: 81.49 mm | OD: 80.12 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT34-BW150-SCPCD: 86.58 mm | OD: 85.21 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT34-BW250-SCPCD: 86.58 mm | OD: 85.21 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT36-BW150-SCPCD: 91.67 mm | OD: 90.3 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
SATP-8YU-NT36-BW250-SCPCD: 91.67 mm | OD: 90.3 mm | Hub D x L: 46x16 / 55x17 mm | Screw: M5X16 / M6X20 | Bore d: 18, 19 / 20 ~ 25 mm
