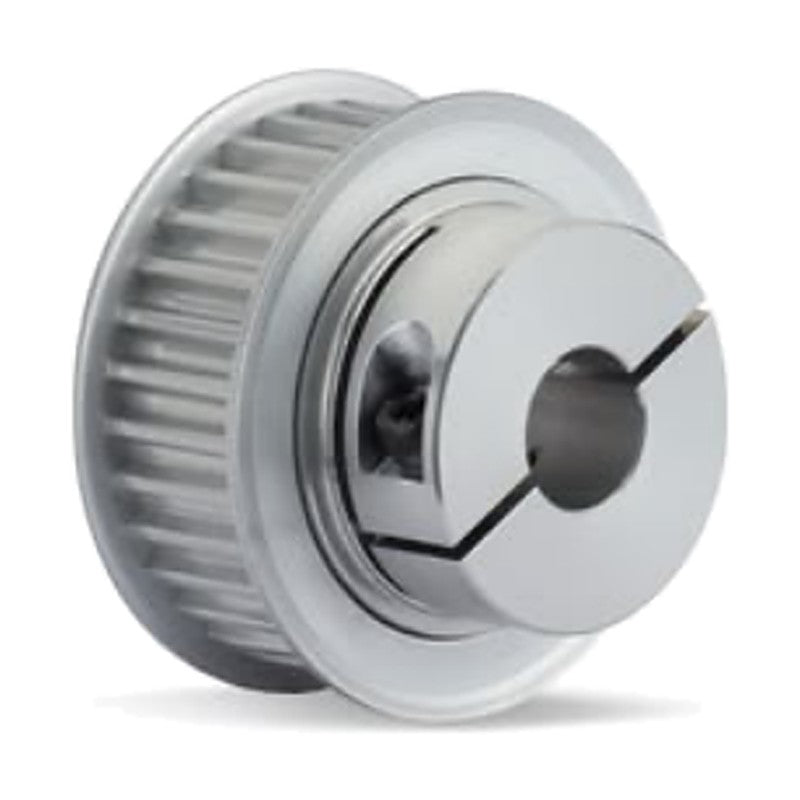

SUNGIL SATP-S3M Timing Pulley (Side Clamp, SC)

SUNGIL SATP-S3M Timing Pulley (Side Clamp, SC)

High-strength aluminum alloy S3M timing pulleys with an integral slit side-clamp hub, tightened by a single SCM435 fastening screw for quick, keyless shaft mounting.

Key features

  • Side-clamp hub fastened with one SCM435 screw
  • Quick installation and removal without set screws
  • High-strength aluminum alloy body, white anodized
  • Keyway machining available on request (K + b size)
  • Compact hub dimensions for space-limited drives

Specifications

Tooth profile S3M, pitch 3 mm
Clamping method SC (side clamp)
Body material High strength aluminum alloy
Fastening screw SCM435, black oxide
No. of teeth 24-60
Belt width codes BW060 (6 mm), BW100 (10 mm)
Standard bores (d) 4, 6, 8, 10-16 mm
Surface treatment WA white anodizing
Keyway Available (K + b size)
Ordering code SATP-S3M-NT__-BW___-SC-(d)-(K_)-WA
Source SUNGIL Catalogue (EN), Timing Pulley section
SATP-S3M-NT24-BW060-SC PCD: 22.92 mm | OD: 22.16 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT24-BW100-SC PCD: 22.92 mm | OD: 22.16 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT26-BW060-SC PCD: 24.83 mm | OD: 24.07 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT26-BW100-SC PCD: 24.83 mm | OD: 24.07 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT28-BW060-SC PCD: 26.74 mm | OD: 25.98 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT28-BW100-SC PCD: 26.74 mm | OD: 25.98 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT30-BW060-SC PCD: 28.65 mm | OD: 27.89 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT30-BW100-SC PCD: 28.65 mm | OD: 27.89 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT32-BW060-SC PCD: 30.56 mm | OD: 29.80 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT32-BW100-SC PCD: 30.56 mm | OD: 29.80 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT36-BW060-SC PCD: 34.38 mm | OD: 33.62 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 6, 8 mm
SATP-S3M-NT36-BW100-SC PCD: 34.38 mm | OD: 33.62 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 6, 8 mm
SATP-S3M-NT40-BW060-SC PCD: 38.20 mm | OD: 37.44 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S3M-NT40-BW100-SC PCD: 38.20 mm | OD: 37.44 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S3M-NT44-BW060-SC PCD: 42.02 mm | OD: 41.25 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S3M-NT44-BW100-SC PCD: 42.02 mm | OD: 41.25 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S3M-NT48-BW060-SC PCD: 45.84 mm | OD: 45.07 mm | Hub D x L: 33x14 mm | Screw: M4X14 | Bore d: 8 ~ 12 mm
SATP-S3M-NT48-BW100-SC PCD: 45.84 mm | OD: 45.07 mm | Hub D x L: 33x14 mm | Screw: M4X14 | Bore d: 8 ~ 12 mm
SATP-S3M-NT50-BW060-SC PCD: 47.75 mm | OD: 46.98 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 8 ~ 14 mm
SATP-S3M-NT50-BW100-SC PCD: 47.75 mm | OD: 46.98 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 8 ~ 14 mm
SATP-S3M-NT60-BW060-SC PCD: 57.30 mm | OD: 56.53 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 8 ~ 16 mm
SATP-S3M-NT60-BW100-SC PCD: 57.30 mm | OD: 56.53 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 8 ~ 16 mm
Timing PulleySUNGIL
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SATP-S3M Timing Pulley (Side Clamp, SC)

Brand SUNGIL·Timing Pulley

Available part numbers (22)

SATP-S3M-NT24-BW060-SC, SATP-S3M-NT24-BW100-SC, SATP-S3M-NT26-BW060-SC, SATP-S3M-NT26-BW100-SC, SATP-S3M-NT28-BW060-SC, SATP-S3M-NT28-BW100-SC, SATP-S3M-NT30-BW060-SC, SATP-S3M-NT30-BW100-SC, SATP-S3M-NT32-BW060-SC, SATP-S3M-NT32-BW100-SC + 12 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SATP-S3M-NT24-BW060-SCPCD: 22.92 mm | OD: 22.16 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT24-BW100-SCPCD: 22.92 mm | OD: 22.16 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT26-BW060-SCPCD: 24.83 mm | OD: 24.07 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT26-BW100-SCPCD: 24.83 mm | OD: 24.07 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT28-BW060-SCPCD: 26.74 mm | OD: 25.98 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT28-BW100-SCPCD: 26.74 mm | OD: 25.98 mm | Hub D x L: 13x9 mm | Screw: M2X8 | Bore d: 4 mm
SATP-S3M-NT30-BW060-SCPCD: 28.65 mm | OD: 27.89 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT30-BW100-SCPCD: 28.65 mm | OD: 27.89 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT32-BW060-SCPCD: 30.56 mm | OD: 29.80 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT32-BW100-SCPCD: 30.56 mm | OD: 29.80 mm | Hub D x L: 20x9 mm | Screw: M2X8 | Bore d: 6, 8 mm
SATP-S3M-NT36-BW060-SCPCD: 34.38 mm | OD: 33.62 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 6, 8 mm
SATP-S3M-NT36-BW100-SCPCD: 34.38 mm | OD: 33.62 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 6, 8 mm
SATP-S3M-NT40-BW060-SCPCD: 38.20 mm | OD: 37.44 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S3M-NT40-BW100-SCPCD: 38.20 mm | OD: 37.44 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S3M-NT44-BW060-SCPCD: 42.02 mm | OD: 41.25 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S3M-NT44-BW100-SCPCD: 42.02 mm | OD: 41.25 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S3M-NT48-BW060-SCPCD: 45.84 mm | OD: 45.07 mm | Hub D x L: 33x14 mm | Screw: M4X14 | Bore d: 8 ~ 12 mm
SATP-S3M-NT48-BW100-SCPCD: 45.84 mm | OD: 45.07 mm | Hub D x L: 33x14 mm | Screw: M4X14 | Bore d: 8 ~ 12 mm
SATP-S3M-NT50-BW060-SCPCD: 47.75 mm | OD: 46.98 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 8 ~ 14 mm
SATP-S3M-NT50-BW100-SCPCD: 47.75 mm | OD: 46.98 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 8 ~ 14 mm
SATP-S3M-NT60-BW060-SCPCD: 57.30 mm | OD: 56.53 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 8 ~ 16 mm
SATP-S3M-NT60-BW100-SCPCD: 57.30 mm | OD: 56.53 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 8 ~ 16 mm
