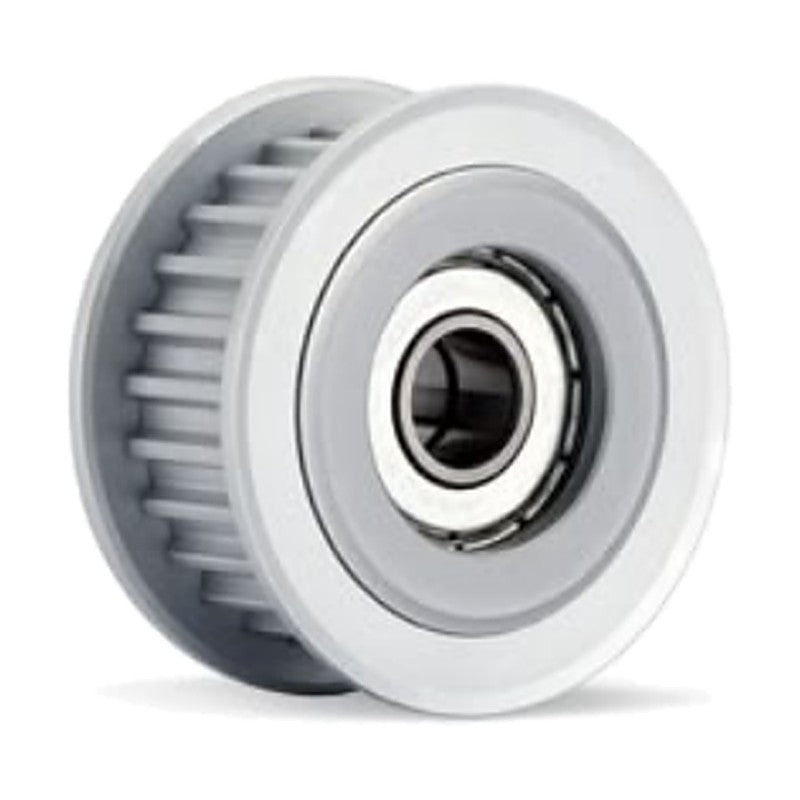

SUNGIL SATP-S5M Idler Timing Pulley (Bearing Mounted, IDOC/IDTC/IDTS)

SUNGIL SATP-S5M Idler Timing Pulley (Bearing Mounted, IDOC/IDTC/IDTS)

High-strength aluminum alloy S5M toothed idler pulleys with pre-installed deep-groove ball bearings, used for belt tensioning and guiding. Available with one centre bearing (IDOC), two centre bearings (IDTC) or bearings on both sides (IDTS).

Key features

  • Pre-mounted shielded (ZZ) deep-groove ball bearings
  • IDOC, IDTC and IDTS bearing arrangements
  • Bore (d) defined by the fitted bearing
  • High-strength aluminum alloy body and flanges
  • Hard anodizing (HA) or white anodizing (WA) finish

Specifications

Tooth profile S5M, pitch 5 mm
Type Idler, bearing mounted
Bearing arrangement IDOC 1 pc center; IDTC 2 pcs center; IDTS 2 pcs both sides
Body material High strength aluminum alloy
No. of teeth 20-44
Belt width codes BW100 (10 mm), BW150 (15 mm), BW250 (25 mm)
Surface treatment HA hard anodizing / WA white anodizing
Ordering code SATP-S5M-NT__-BW___-ID__-(d)-(HA/WA)
Source SUNGIL Catalogue (EN), Timing Pulley section
SATP-S5M-NT20-BW100-IDOC-8 Arrangement: 1 brg, center | PCD: 31.83 mm | OD: 30.87 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT20-BW150-IDTC-8 Arrangement: 2 brg, center | PCD: 31.83 mm | OD: 30.87 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT22-BW100-IDOC-8 Arrangement: 1 brg, center | PCD: 35.01 mm | OD: 34.05 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-S5M-NT22-BW150-IDTC-8 Arrangement: 2 brg, center | PCD: 35.01 mm | OD: 34.05 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-S5M-NT24-BW150-IDTC-8 Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 628ZZ | Bore d: 8 mm
SATP-S5M-NT24-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT24-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT24-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT25-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT25-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT25-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT26-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT26-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT26-BW100-IDOC-12 Arrangement: 1 brg, center | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT26-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT26-BW100-IDOC-15 Arrangement: 1 brg, center | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT26-BW150-IDTC-15 Arrangement: 2 brg, center | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT28-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT28-BW150-IDOC-10 Arrangement: 1 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT28-BW250-IDTC-10 Arrangement: 2 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT28-BW100-IDOC-12 Arrangement: 1 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT28-BW250-IDTC-12 Arrangement: 2 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT28-BW250-IDTC-15 Arrangement: 2 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT28-BW100-IDOC-15 Arrangement: 1 brg, center | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT30-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT30-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT30-BW100-IDOC-12 Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT30-BW150-IDOC-12 Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT30-BW250-IDTC-12 Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT30-BW100-IDOC-15 Arrangement: 1 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT30-BW250-IDTC-15 Arrangement: 2 brg, center | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT32-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT32-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT32-BW100-IDOC-12 Arrangement: 1 brg, center | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT32-BW250-IDTC-12 Arrangement: 2 brg, center | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT32-BW100-IDOC-15 Arrangement: 1 brg, center | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT36-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT36-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT36-BW100-IDOC-12 Arrangement: 1 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT36-BW250-IDTC-12 Arrangement: 2 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT36-BW100-IDOC-15 Arrangement: 1 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT36-BW150-IDOC-15 Arrangement: 1 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6202ZZ | Bore d: 15 mm
SATP-S5M-NT36-BW250-IDTC-15 Arrangement: 2 brg, center | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6202ZZ | Bore d: 15 mm
SATP-S5M-NT40-BW150-IDTC-10 Arrangement: 2 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6000ZZ | Bore d: 10 mm
SATP-S5M-NT40-BW100-IDOC-10 Arrangement: 1 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT40-BW150-IDTC-12 Arrangement: 2 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT40-BW100-IDOC-12 Arrangement: 1 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT40-BW250-IDTC-12 Arrangement: 2 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT40-BW100-IDOC-15 Arrangement: 1 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT40-BW250-IDTC-15 Arrangement: 2 brg, center | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6202ZZ | Bore d: 15 mm
SATP-S5M-NT44-BW250-IDTC-20 Arrangement: 2 brg, center | PCD: 70.03 mm | OD: 69.07 mm | Bearing: 6004ZZ | Bore d: 20 mm
SATP-S5M-NT44-BW150-IDOC-20 Arrangement: 1 brg, center | PCD: 70.03 mm | OD: 69.07 mm | Bearing: 6204ZZ | Bore d: 20 mm
SATP-S5M-NT20-BW100-IDTS-8 Arrangement: 2 brg, both sides | PCD: 31.83 mm | OD: 30.87 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT20-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 31.83 mm | OD: 30.87 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT20-BW250-IDTS-8 Arrangement: 2 brg, both sides | PCD: 31.83 mm | OD: 30.87 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT22-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 35.01 mm | OD: 34.05 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-S5M-NT22-BW250-IDTS-8 Arrangement: 2 brg, both sides | PCD: 35.01 mm | OD: 34.05 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-S5M-NT22-BW100-IDTS-8 Arrangement: 2 brg, both sides | PCD: 35.01 mm | OD: 34.05 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT22-BW100-IDTS-10 Arrangement: 2 brg, both sides | PCD: 35.01 mm | OD: 34.05 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT24-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-S5M-NT24-BW250-IDTS-8 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-S5M-NT24-BW100-IDTS-10 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT24-BW100-IDTS-12 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT24-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 38.20 mm | OD: 37.24 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT25-BW250-IDTS-6 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 606ZZ | Bore d: 6 mm
SATP-S5M-NT25-BW100-IDTS-6 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 696ZZ | Bore d: 6 mm
SATP-S5M-NT25-BW150-IDTS-6 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 696ZZ | Bore d: 6 mm
SATP-S5M-NT25-BW250-IDTS-8 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 608ZZ | Bore d: 8 mm
SATP-S5M-NT25-BW100-IDTS-8 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT25-BW150-IDTS-8 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 698ZZ | Bore d: 8 mm
SATP-S5M-NT25-BW100-IDTS-10 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT25-BW100-IDTS-12 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT25-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 39.79 mm | OD: 38.83 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT26-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT26-BW250-IDTS-10 Arrangement: 2 brg, both sides | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT26-BW100-IDTS-10 Arrangement: 2 brg, both sides | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT26-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT26-BW100-IDTS-12 Arrangement: 2 brg, both sides | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT26-BW250-IDTS-15 Arrangement: 2 brg, both sides | PCD: 41.38 mm | OD: 40.42 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT28-BW250-IDTS-10 Arrangement: 2 brg, both sides | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT28-BW100-IDTS-10 Arrangement: 2 brg, both sides | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT28-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT28-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT28-BW100-IDTS-12 Arrangement: 2 brg, both sides | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT28-BW150-IDTS-15 Arrangement: 2 brg, both sides | PCD: 44.56 mm | OD: 43.60 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT30-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT30-BW100-IDTS-10 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6900ZZ | Bore d: 10 mm
SATP-S5M-NT30-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT30-BW250-IDTS-12 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT30-BW100-IDTS-12 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6901ZZ | Bore d: 12 mm
SATP-S5M-NT30-BW150-IDTS-15 Arrangement: 2 brg, both sides | PCD: 47.75 mm | OD: 46.79 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT32-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT32-BW150-IDTS-12 Arrangement: 2 brg, both sides | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6001ZZ | Bore d: 12 mm
SATP-S5M-NT32-BW250-IDTS-12 Arrangement: 2 brg, both sides | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6201ZZ | Bore d: 12 mm
SATP-S5M-NT32-BW150-IDTS-15 Arrangement: 2 brg, both sides | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6902ZZ | Bore d: 15 mm
SATP-S5M-NT32-BW150-IDTS-20 Arrangement: 2 brg, both sides | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6804ZZ | Bore d: 20 mm
SATP-S5M-NT32-BW250-IDTS-20 Arrangement: 2 brg, both sides | PCD: 50.93 mm | OD: 49.97 mm | Bearing: 6804ZZ | Bore d: 20 mm
SATP-S5M-NT36-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT36-BW150-IDTS-15 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT36-BW250-IDTS-15 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6202ZZ | Bore d: 15 mm
SATP-S5M-NT36-BW150-IDTS-20 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6904ZZ | Bore d: 20 mm
SATP-S5M-NT36-BW250-IDTS-20 Arrangement: 2 brg, both sides | PCD: 57.30 mm | OD: 56.34 mm | Bearing: 6904ZZ | Bore d: 20 mm
SATP-S5M-NT40-BW150-IDTS-10 Arrangement: 2 brg, both sides | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6200ZZ | Bore d: 10 mm
SATP-S5M-NT40-BW150-IDTS-15 Arrangement: 2 brg, both sides | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6002ZZ | Bore d: 15 mm
SATP-S5M-NT40-BW250-IDTS-15 Arrangement: 2 brg, both sides | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6202ZZ | Bore d: 15 mm
SATP-S5M-NT40-BW150-IDTS-20 Arrangement: 2 brg, both sides | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6904ZZ | Bore d: 20 mm
SATP-S5M-NT40-BW250-IDTS-20 Arrangement: 2 brg, both sides | PCD: 63.66 mm | OD: 62.70 mm | Bearing: 6904ZZ | Bore d: 20 mm
SATP-S5M-NT44-BW150-IDTS-20 Arrangement: 2 brg, both sides | PCD: 70.03 mm | OD: 69.07 mm | Bearing: 6904ZZ | Bore d: 20 mm
SATP-S5M-NT44-BW250-IDTS-20 Arrangement: 2 brg, both sides | PCD: 70.03 mm | OD: 69.07 mm | Bearing: 6904ZZ | Bore d: 20 mm
