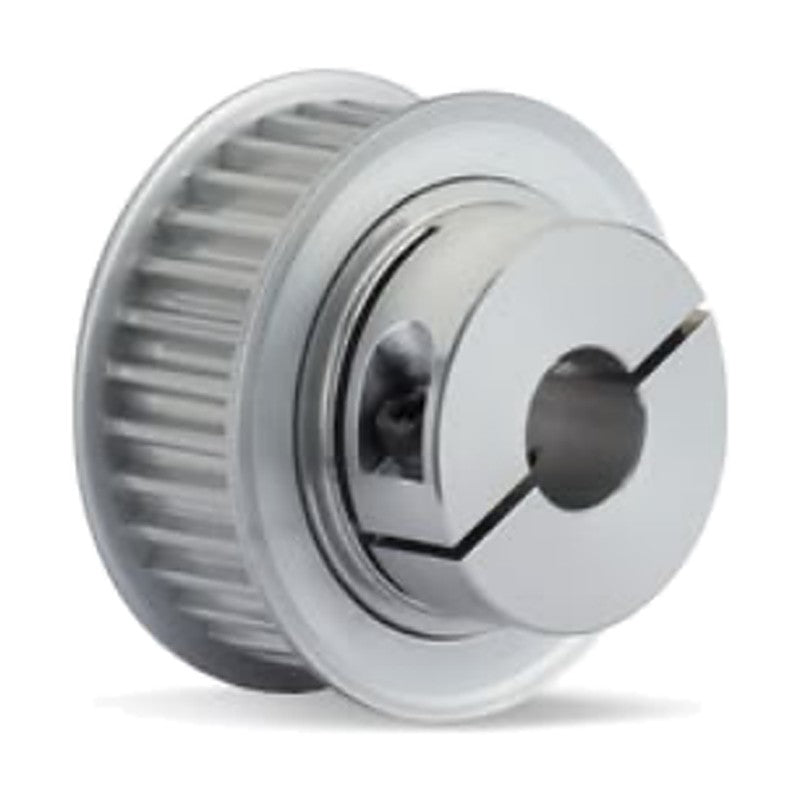

SUNGIL SATP-S5M Timing Pulley (Side Clamp, SC)

SUNGIL SATP-S5M Timing Pulley (Side Clamp, SC)

High-strength aluminum alloy S5M timing pulleys with an integral slit side-clamp hub, tightened by a single SCM435 fastening screw for quick, keyless shaft mounting.

Key features

  • Side-clamp hub fastened with one SCM435 screw
  • Quick installation and removal without set screws
  • High-strength aluminum alloy body, white anodized
  • Keyway machining available on request (K + b size)
  • Compact hub dimensions for space-limited drives

Specifications

Tooth profile S5M, pitch 5 mm
Clamping method SC (side clamp)
Body material High strength aluminum alloy
Fastening screw SCM435, black oxide
No. of teeth 24-60
Belt width codes BW100 (10 mm), BW150 (15 mm)
Standard bores (d) 8, 10-25 mm
Surface treatment WA white anodizing
Keyway Available (K + b size)
Ordering code SATP-S5M-NT__-BW___-SC-(d)-(K_)-WA
Source SUNGIL Catalogue (EN), Timing Pulley section
SATP-S5M-NT24-BW100-SC PCD: 38.20 mm | OD: 37.24 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT24-BW150-SC PCD: 38.20 mm | OD: 37.24 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT25-BW100-SC PCD: 39.79 mm | OD: 38.83 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT25-BW150-SC PCD: 39.79 mm | OD: 38.83 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT26-BW100-SC PCD: 41.38 mm | OD: 40.42 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT26-BW150-SC PCD: 41.38 mm | OD: 40.42 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT28-BW100-SC PCD: 44.56 mm | OD: 43.60 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT28-BW150-SC PCD: 44.56 mm | OD: 43.60 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT30-BW100-SC PCD: 47.75 mm | OD: 46.79 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 10 mm
SATP-S5M-NT30-BW150-SC PCD: 47.75 mm | OD: 46.79 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 10 mm
SATP-S5M-NT32-BW100-SC PCD: 50.93 mm | OD: 49.97 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 10 ~ 14 mm
SATP-S5M-NT32-BW150-SC PCD: 50.93 mm | OD: 49.97 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 10 ~ 14 mm
SATP-S5M-NT34-BW100-SC PCD: 54.11 mm | OD: 53.15 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT34-BW150-SC PCD: 54.11 mm | OD: 53.15 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT36-BW100-SC PCD: 57.30 mm | OD: 56.34 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT36-BW150-SC PCD: 57.30 mm | OD: 56.34 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT40-BW100-SC PCD: 63.66 mm | OD: 62.70 mm | Hub D x L: 46x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 19 mm
SATP-S5M-NT40-BW150-SC PCD: 63.66 mm | OD: 62.70 mm | Hub D x L: 46x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 19 mm
SATP-S5M-NT44-BW100-SC PCD: 70.03 mm | OD: 69.07 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 24 mm
SATP-S5M-NT44-BW150-SC PCD: 70.03 mm | OD: 69.07 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 24 mm
SATP-S5M-NT48-BW100-SC PCD: 76.39 mm | OD: 75.43 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT48-BW150-SC PCD: 76.39 mm | OD: 75.43 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT50-BW100-SC PCD: 79.58 mm | OD: 78.62 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT50-BW150-SC PCD: 79.58 mm | OD: 78.62 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT60-BW100-SC PCD: 95.49 mm | OD: 94.53 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT60-BW150-SC PCD: 95.49 mm | OD: 94.53 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
Timing PulleySUNGIL
26 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SATP-S5M Timing Pulley (Side Clamp, SC)

Brand SUNGIL·Timing Pulley

Available part numbers (26)

SATP-S5M-NT24-BW100-SC, SATP-S5M-NT24-BW150-SC, SATP-S5M-NT25-BW100-SC, SATP-S5M-NT25-BW150-SC, SATP-S5M-NT26-BW100-SC, SATP-S5M-NT26-BW150-SC, SATP-S5M-NT28-BW100-SC, SATP-S5M-NT28-BW150-SC, SATP-S5M-NT30-BW100-SC, SATP-S5M-NT30-BW150-SC + 16 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SATP-S5M-NT24-BW100-SCPCD: 38.20 mm | OD: 37.24 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT24-BW150-SCPCD: 38.20 mm | OD: 37.24 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT25-BW100-SCPCD: 39.79 mm | OD: 38.83 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT25-BW150-SCPCD: 39.79 mm | OD: 38.83 mm | Hub D x L: 26x12.5 mm | Screw: M3X10 | Bore d: 8, 10 mm
SATP-S5M-NT26-BW100-SCPCD: 41.38 mm | OD: 40.42 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT26-BW150-SCPCD: 41.38 mm | OD: 40.42 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT28-BW100-SCPCD: 44.56 mm | OD: 43.60 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT28-BW150-SCPCD: 44.56 mm | OD: 43.60 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 8, 10 mm
SATP-S5M-NT30-BW100-SCPCD: 47.75 mm | OD: 46.79 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 10 mm
SATP-S5M-NT30-BW150-SCPCD: 47.75 mm | OD: 46.79 mm | Hub D x L: 31x14 mm | Screw: M4X14 | Bore d: 10 mm
SATP-S5M-NT32-BW100-SCPCD: 50.93 mm | OD: 49.97 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 10 ~ 14 mm
SATP-S5M-NT32-BW150-SCPCD: 50.93 mm | OD: 49.97 mm | Hub D x L: 36x14 mm | Screw: M4X14 | Bore d: 10 ~ 14 mm
SATP-S5M-NT34-BW100-SCPCD: 54.11 mm | OD: 53.15 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT34-BW150-SCPCD: 54.11 mm | OD: 53.15 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT36-BW100-SCPCD: 57.30 mm | OD: 56.34 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT36-BW150-SCPCD: 57.30 mm | OD: 56.34 mm | Hub D x L: 41x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 16 mm
SATP-S5M-NT40-BW100-SCPCD: 63.66 mm | OD: 62.70 mm | Hub D x L: 46x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 19 mm
SATP-S5M-NT40-BW150-SCPCD: 63.66 mm | OD: 62.70 mm | Hub D x L: 46x15.5 mm | Screw: M5X16 | Bore d: 10 ~ 19 mm
SATP-S5M-NT44-BW100-SCPCD: 70.03 mm | OD: 69.07 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 24 mm
SATP-S5M-NT44-BW150-SCPCD: 70.03 mm | OD: 69.07 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 24 mm
SATP-S5M-NT48-BW100-SCPCD: 76.39 mm | OD: 75.43 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT48-BW150-SCPCD: 76.39 mm | OD: 75.43 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT50-BW100-SCPCD: 79.58 mm | OD: 78.62 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT50-BW150-SCPCD: 79.58 mm | OD: 78.62 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT60-BW100-SCPCD: 95.49 mm | OD: 94.53 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
SATP-S5M-NT60-BW150-SCPCD: 95.49 mm | OD: 94.53 mm | Hub D x L: 46x15.5 / 55x16.5 mm | Screw: M5X16 / M6X20 | Bore d: 12 ~ 19 / 20 ~ 25 mm
