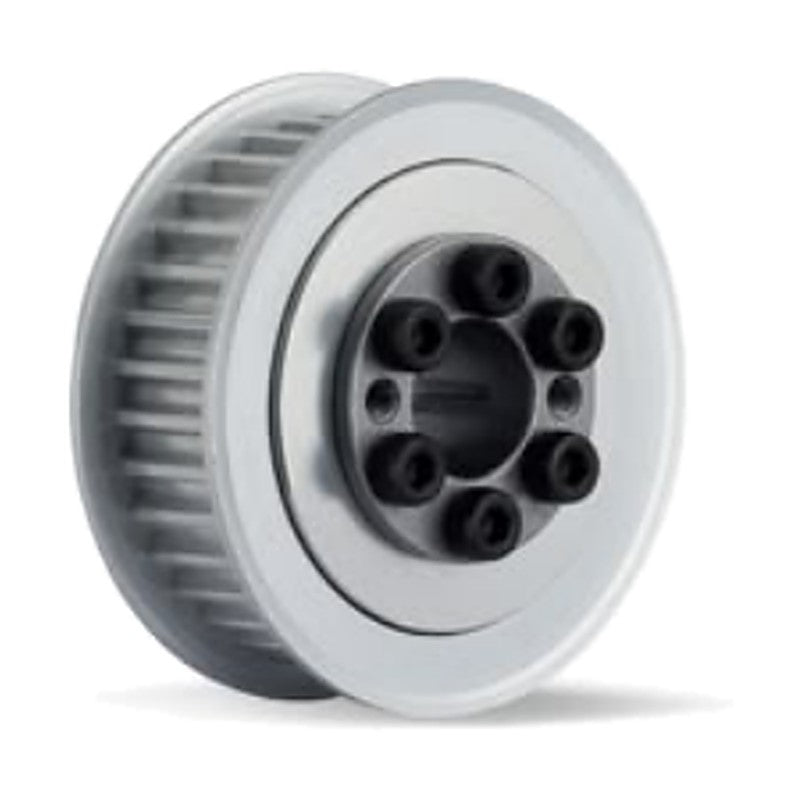

SUNGIL SATP-S8M Timing Pulley (A.P. Lock Mount, SPAS)

SUNGIL SATP-S8M Timing Pulley (A.P. Lock Mount, SPAS)

High-strength aluminum alloy S8M timing pulleys with an integrated A.P. Lock keyless clamping element, for backlash-free shaft mounting without keyways or additional machining. Offered with the A.P. Lock flange inside (I type) or outside (O type) the pulley body.

Key features

  • Keyless A.P. Lock clamping for zero-backlash shaft connection
  • SPAS: steel A.P. Lock with SCM435 locking screws
  • I type (lock flange inside) and O type (lock flange outside) shapes
  • High-strength aluminum alloy body and flanges for low inertia
  • Hard anodizing (HA) or white anodizing (WA) surface treatment
  • Bore (d) selected from the standard A.P. Lock size list

Specifications

Tooth profile S8M, pitch 8 mm
Clamping method SPAS (A.P. Lock)
Body material High strength aluminum alloy
No. of teeth 19-72
Belt width codes BW150 (15 mm), BW250 (25 mm), BW300 (30 mm), BW400 (40 mm)
Standard bores (d) SPAS: 12, 14-20, 22, 24, 25, 28, 30, 32, 35, 40, 45, 50 mm
Surface treatment HA hard anodizing / WA white anodizing
Locking screws SCM435
Ordering code SATP-S8M-NT__-BW___-SPAS-(I/O)-(d)-(HA/WA)
Source SUNGIL Catalogue (EN), Timing Pulley section
SATP-S8M-NT19-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT21-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT24-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT25-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT26-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT30-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT30-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT32-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT34-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 22 mm
SATP-S8M-NT34-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 22 mm
SATP-S8M-NT36-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 22 mm
SATP-S8M-NT38-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT40-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT40-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20, 22 mm
SATP-S8M-NT40-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT44-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20, 22 mm
SATP-S8M-NT44-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT48-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT48-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20, 22 mm
SATP-S8M-NT48-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT50-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT50-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT50-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT50-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20, 22 mm
SATP-S8M-NT50-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT50-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT50-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT60-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT60-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20, 22 mm
SATP-S8M-NT60-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW250-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT72-BW300-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT72-BW400-SPAS-I Lock: Steel A.P. Lock, I type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW150-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20, 22 mm
SATP-S8M-NT72-BW250-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW300-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW400-SPAS-O Lock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
Timing PulleySUNGIL
133 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SATP-S8M Timing Pulley (A.P. Lock Mount, SPAS)

Brand SUNGIL·Timing Pulley

Available part numbers (133)

SATP-S8M-NT19-BW250-SPAS-I, SATP-S8M-NT19-BW300-SPAS-I, SATP-S8M-NT19-BW400-SPAS-I, SATP-S8M-NT19-BW150-SPAS-O, SATP-S8M-NT19-BW250-SPAS-O, SATP-S8M-NT19-BW300-SPAS-O, SATP-S8M-NT19-BW400-SPAS-O, SATP-S8M-NT20-BW250-SPAS-I, SATP-S8M-NT20-BW300-SPAS-I, SATP-S8M-NT20-BW400-SPAS-I + 123 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SATP-S8M-NT19-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT19-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 48.38 mm | OD: 47.01 mm | Flange C: 55 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT20-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 50.93 mm | OD: 49.56 mm | Flange C: 58 mm | Bore d: 12, 14 mm
SATP-S8M-NT21-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT21-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 53.48 mm | OD: 52.10 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT22-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 56.02 mm | OD: 54.65 mm | Flange C: 61 mm | Bore d: 12 ~ 16 mm
SATP-S8M-NT24-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT24-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 61.12 mm | OD: 59.74 mm | Flange C: 67 mm | Bore d: 12 ~ 19 mm
SATP-S8M-NT25-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT25-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 63.66 mm | OD: 62.29 mm | Flange C: 70 mm | Bore d: 12 ~ 20 mm
SATP-S8M-NT26-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT26-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 66.21 mm | OD: 64.84 mm | Flange C: 74 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT28-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 71.30 mm | OD: 69.93 mm | Flange C: 80 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT30-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT30-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT30-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 76.39 mm | OD: 75.02 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 22 mm
SATP-S8M-NT32-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT32-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 81.49 mm | OD: 80.12 mm | Flange C: 87 mm | Bore d: 14 ~ 28 mm
SATP-S8M-NT34-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 22 mm
SATP-S8M-NT34-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT34-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 86.58 mm | OD: 85.21 mm | Flange C: 95 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 22 mm
SATP-S8M-NT36-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT36-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 91.67 mm | OD: 90.30 mm | Flange C: 99 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 22 mm
SATP-S8M-NT38-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT38-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 96.77 mm | OD: 95.39 mm | Flange C: 104 mm | Bore d: 16 ~ 32 mm
SATP-S8M-NT40-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT40-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20, 22 mm
SATP-S8M-NT40-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT40-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 101.86 mm | OD: 100.49 mm | Flange C: 111 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT44-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20, 22 mm
SATP-S8M-NT44-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT44-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 112.05 mm | OD: 110.67 mm | Flange C: 119 mm | Bore d: 20 ~ 35 mm
SATP-S8M-NT48-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT48-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20, 22 mm
SATP-S8M-NT48-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT48-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 122.23 mm | OD: 120.86 mm | Flange C: 127 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT50-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT50-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT50-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT50-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20, 22 mm
SATP-S8M-NT50-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT50-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT50-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 127.32 mm | OD: 125.95 mm | Flange C: 135 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT60-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT60-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20, 22 mm
SATP-S8M-NT60-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT60-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 152.79 mm | OD: 151.42 mm | Flange C: 160 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW250-SPAS-ILock: Steel A.P. Lock, I type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 32 mm
SATP-S8M-NT72-BW300-SPAS-ILock: Steel A.P. Lock, I type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 45 mm
SATP-S8M-NT72-BW400-SPAS-ILock: Steel A.P. Lock, I type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW150-SPAS-OLock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20, 22 mm
SATP-S8M-NT72-BW250-SPAS-OLock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW300-SPAS-OLock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm
SATP-S8M-NT72-BW400-SPAS-OLock: Steel A.P. Lock, O type | PCD: 183.35 mm | OD: 181.97 mm | Flange C: 190 mm | Bore d: 20 ~ 50 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Power Transmission →
