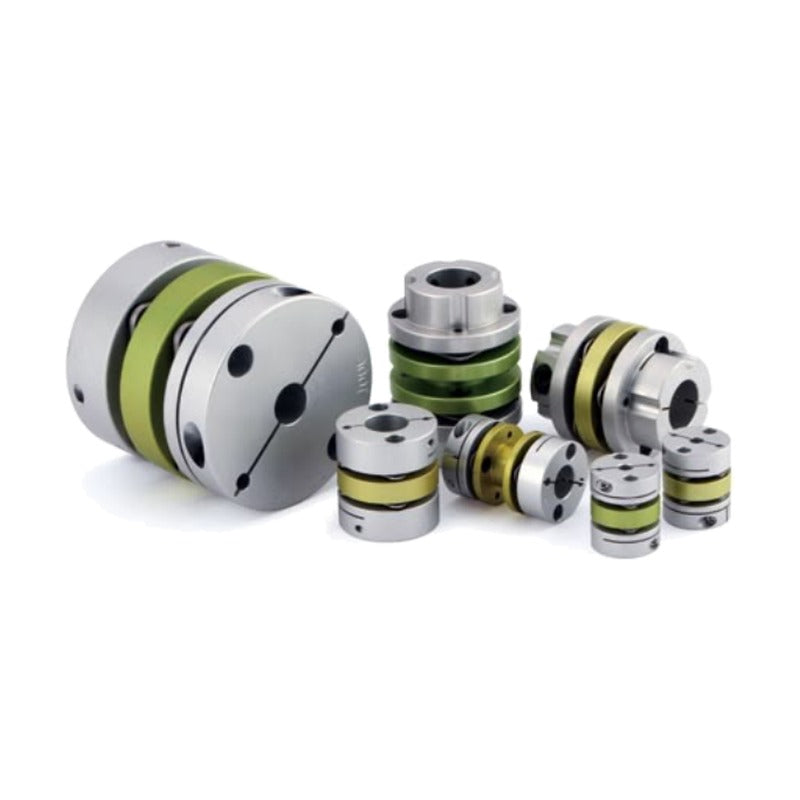

SUNGIL SDW Double Disk Coupling, Aluminum (OD 12-104.5 mm)

SUNGIL SDW Double Disk Coupling, Aluminum (OD 12-104.5 mm)

Double disk coupling with two stainless steel plate spring modules and an aluminum middle hub. Absorbs more misalignment than the single disk type while remaining backlash-free; general (SDW) and lengthy middle body (SDA) types are offered.

Key features

  • Two plate spring modules for higher misalignment absorption
  • Backlash-free full metal construction with high torsional stiffness
  • General type (SDWA/SDWB/SDWC) and lengthy middle body type (SDA)
  • Set-screw, side-clamp, flange-shaped low-inertia and hub-split versions
  • Non-standard middle body lengths can be customized

Specifications

Hub / middle hub High strength aluminum alloy, anodized
Plate spring Stainless steel
Spacer Steel, black oxide
Screws SCM435, black oxide
Clamping Set-screw / side-clamp (C) / hub split (CW)
Shaft tolerance h7 recommended
Options Keyway, NI/ASS or SUS/ASS screws
Applications Semiconductor equipment, SMT, Cartesian robots, machine tools, index tables
Source SUNGIL Product Catalogue 2026 (SD series SDW, pp. 35-42)
SDWA-16 Clamping: Set-screw | OD x L: 16 x 15.8 mm | Torque: 0.6 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,4.5,5
SDWB-16 Clamping: Set-screw | OD x L: 16 x 17.8 mm | Torque: 0.6 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,4.5,5
SDWA-19 Clamping: Set-screw | OD x L: 19 x 18.1 mm | Torque: 0.9 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,4.5,5,6
SDWB-19 Clamping: Set-screw | OD x L: 19 x 21.1 mm | Torque: 0.9 N·m | Max speed: 16,000 rpm | Std bores (mm): 3,4,4.5,5,6
SDWA-22 Clamping: Set-screw | OD x L: 22.2 x 20.1 mm | Torque: 1.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDWB-22 Clamping: Set-screw | OD x L: 22.2 x 22.3 mm | Torque: 1.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDWA-26 Clamping: Set-screw | OD x L: 26.6 x 26 mm | Torque: 2.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10
SDWA-31 Clamping: Set-screw | OD x L: 31.8 x 24.7 mm | Torque: 4 N·m | Max speed: 10,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWB-31 Clamping: Set-screw | OD x L: 31.8 x 29.7 mm | Torque: 4 N·m | Max speed: 10,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWA-42 Clamping: Set-screw | OD x L: 42.5 x 39.7 / 40.3 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWA-42(3) Clamping: Set-screw | OD x L: 42.5 x 40.3 / 40.9 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWB-42 Clamping: Set-screw | OD x L: 42.5 x 44.2 / 44.8 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWB-42(3) Clamping: Set-screw | OD x L: 42.5 x 44.8 / 45.4 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWA-47 Clamping: Set-screw | OD x L: 47 x 39.9 / 44.2 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDWB-47 Clamping: Set-screw | OD x L: 47 x 45.7 / 50 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDWA-54 Clamping: Set-screw | OD x L: 54 x 55.8 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDWA-64 Clamping: Set-screw | OD x L: 64 x 74.4 mm | Torque: 40 N·m | Max speed: 7,000 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,21,22,24,25,26,28,30
SDA-22 Clamping: Set-screw | OD x L: 22.2 x 28.3 mm | Torque: 1.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDA-26 Clamping: Set-screw | OD x L: 26.6 x 31.7 mm | Torque: 2.2 N·m | Max speed: 12,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10
SDA-31 Clamping: Set-screw | OD x L: 31.8 x 36.1 mm | Torque: 4 N·m | Max speed: 10,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAA-42 Clamping: Set-screw | OD x L: 42.5 x 50 / 50.6 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAA-42(3) Clamping: Set-screw | OD x L: 42.5 x 50.6 / 51.2 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAB-42 Clamping: Set-screw | OD x L: 42.5 x 57.9 / 58.5 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAB-42(3) Clamping: Set-screw | OD x L: 42.5 x 58.5 / 59.1 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAC-42 Clamping: Set-screw | OD x L: 42.5 x 67.3 / 67.9 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAC-42(3) Clamping: Set-screw | OD x L: 42.5 x 67.9 / 68.5 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAA-47 Clamping: Set-screw | OD x L: 47 x 58.1 / 62.4 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDAB-47 Clamping: Set-screw | OD x L: 47 x 85 / 89.3 mm | Torque: 14 N·m | Max speed: 8,000 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDAA-54 Clamping: Set-screw | OD x L: 54 x 71.2 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDAB-54 Clamping: Set-screw | OD x L: 54 x 85.1 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDA-64 Clamping: Set-screw | OD x L: 64 x 89.9 mm | Torque: 40 N·m | Max speed: 7,000 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,21,22,24,25,26,28,30
SDWA-12C Clamping: Side-clamp | OD x L: 12 x 15.7 mm | Torque: 0.2 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,5
SDWA-16C Clamping: Side-clamp | OD x L: 16 x 21.2 mm | Torque: 0.6 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5
SDWB-16C Clamping: Side-clamp | OD x L: 16 x 23.2 mm | Torque: 0.6 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5
SDWA-19C Clamping: Side-clamp | OD x L: 19 x 23.3 mm | Torque: 0.9 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5,6
SDWB-19C Clamping: Side-clamp | OD x L: 19 x 26.3 mm | Torque: 0.9 N·m | Max speed: 14,000 rpm | Std bores (mm): 3,4,4.5,5,6
SDWA-22C Clamping: Side-clamp | OD x L: 22.2 x 25 mm | Torque: 1.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDWB-22C Clamping: Side-clamp | OD x L: 22.2 x 27.2 mm | Torque: 1.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDWA-26C Clamping: Side-clamp | OD x L: 26.6 x 32.5 mm | Torque: 2.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10
SDWA-31C Clamping: Side-clamp | OD x L: 31.8 x 33.5 mm | Torque: 4 N·m | Max speed: 9,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWB-31C Clamping: Side-clamp | OD x L: 31.8 x 38.5 mm | Torque: 4 N·m | Max speed: 9,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWA-35C Clamping: Side-clamp | OD x L: 35 x 34.6 mm | Torque: 5 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWC-35C Clamping: Side-clamp | OD x L: 35 x 38.1 mm | Torque: 5 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWA-39C Clamping: Side-clamp | OD x L: 39 x 39.5 mm | Torque: 6 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWA-39C(3) Clamping: Side-clamp | OD x L: 39 x 40.1 mm | Torque: 9 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWC-39C Clamping: Side-clamp | OD x L: 39 x 45 mm | Torque: 6 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWC-39C(3) Clamping: Side-clamp | OD x L: 39 x 45.6 mm | Torque: 9 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWC-42C Clamping: Side-clamp | OD x L: 42.5 x 46.2 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDWC-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 46.8 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDWC-47C Clamping: Side-clamp | OD x L: 47 x 50 mm | Torque: 14 N·m | Max speed: 7,500 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDWB-54C Clamping: Side-clamp | OD x L: 54 x 52.6 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDWB-54CW Clamping: Side-clamp, hub split | OD x L: 54 x 52.6 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDWC-54C Clamping: Side-clamp | OD x L: 54 x 58.6 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDWC-54CW Clamping: Side-clamp, hub split | OD x L: 54 x 58.6 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDWB-64C Clamping: Side-clamp | OD x L: 64 x 74.4 mm | Torque: 40 N·m | Max speed: 6,500 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25,26,28,30,32
SDWB-64CW Clamping: Side-clamp, hub split | OD x L: 64 x 74.4 mm | Torque: 40 N·m | Max speed: 6,500 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25,26,28,30,32
SDWC-64C Clamping: Side-clamp | OD x L: 64 x 84.4 mm | Torque: 40 N·m | Max speed: 6,500 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25,26,28,30,32
SDWC-64CW Clamping: Side-clamp, hub split | OD x L: 64 x 84.4 mm | Torque: 40 N·m | Max speed: 6,500 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25,26,28,30,32
SDW-80C Clamping: Side-clamp | OD x L: 80 x 81.8 mm | Torque: 85 N·m | Max speed: 6,000 rpm | Std bores (mm): 15,15.875,16,17,18,19,20,22,24,25,26,28,30,32,35
SDW-80CW Clamping: Side-clamp, hub split | OD x L: 80 x 81.8 mm | Torque: 85 N·m | Max speed: 6,000 rpm | Std bores (mm): 15,15.875,16,17,18,19,20,22,24,25,26,28,30,32,35
SDWC-80C Clamping: Side-clamp | OD x L: 80 x 98.3 mm | Torque: 85 N·m | Max speed: 6,000 rpm | Std bores (mm): 15,15.875,16,17,18,19,20,22,24,25,26,28,30,32,35
SDWC-80CW Clamping: Side-clamp, hub split | OD x L: 80 x 98.3 mm | Torque: 85 N·m | Max speed: 6,000 rpm | Std bores (mm): 15,15.875,16,17,18,19,20,22,24,25,26,28,30,32,35
SDW-90C Clamping: Side-clamp | OD x L: 94.5 x 98.9 mm | Torque: 180 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45
SDW-90CW Clamping: Side-clamp, hub split | OD x L: 94.5 x 98.9 mm | Torque: 180 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45
SDW-100C Clamping: Side-clamp | OD x L: 104.5 x 103.8 mm | Torque: 250 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50
SDW-100CW Clamping: Side-clamp, hub split | OD x L: 104.5 x 103.8 mm | Torque: 250 N·m | Max speed: 6,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50
SDA-22C Clamping: Side-clamp | OD x L: 22.2 x 33.2 mm | Torque: 1.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 3,4,4.5,5,6,6.35,7,8,9,9.525
SDA-26C Clamping: Side-clamp | OD x L: 26.6 x 38.2 mm | Torque: 2.2 N·m | Max speed: 10,000 rpm | Std bores (mm): 4,4.5,5,6,6.35,7,8,9,9.525,10
SDA-31C Clamping: Side-clamp | OD x L: 31.8 x 44.9 mm | Torque: 4 N·m | Max speed: 9,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDA-39C Clamping: Side-clamp | OD x L: 39 x 56.5 mm | Torque: 6 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDA-39C(3) Clamping: Side-clamp | OD x L: 39 x 57.1 mm | Torque: 9 N·m | Max speed: 8,000 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10,11,12,12.7,14,15,15.875,16
SDWB-35C Clamping: Side-clamp | OD x L: 35 x 34.6 mm | Torque: 5 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10
SDWD-35C Clamping: Side-clamp | OD x L: 35 x 38.1 mm | Torque: 5 N·m | Max speed: 8,500 rpm | Std bores (mm): 5,6,6.35,7,8,9,9.525,10
SDWA-42C Clamping: Side-clamp | OD x L: 42.5 x 39.7 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWA-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 40.3 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWB-42C Clamping: Side-clamp | OD x L: 42.5 x 44.2 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWB-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 44.8 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDWA-47C Clamping: Side-clamp | OD x L: 47 x 45.6 mm | Torque: 14 N·m | Max speed: 7,500 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDWB-47C Clamping: Side-clamp | OD x L: 47 x 51.4 mm | Torque: 14 N·m | Max speed: 7,500 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDWA-54C Clamping: Side-clamp | OD x L: 54 x 60.6 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDWA-64C Clamping: Side-clamp | OD x L: 64 x 74.4 mm | Torque: 40 N·m | Max speed: 6,500 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
SDAA-42C Clamping: Side-clamp | OD x L: 42.5 x 50 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAA-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 50.6 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAB-42C Clamping: Side-clamp | OD x L: 42.5 x 57.9 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAB-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 58.5 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAC-42C Clamping: Side-clamp | OD x L: 42.5 x 67.3 mm | Torque: 8 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAC-42C(3) Clamping: Side-clamp | OD x L: 42.5 x 67.9 mm | Torque: 10 N·m | Max speed: 8,000 rpm | Std bores (mm): 6,6.35,7,8,9,9.525,10,11,12,12.7,14,15
SDAA-47C Clamping: Side-clamp | OD x L: 47 x 63.8 mm | Torque: 14 N·m | Max speed: 7,500 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDAB-47C Clamping: Side-clamp | OD x L: 47 x 90.7 mm | Torque: 14 N·m | Max speed: 7,500 rpm | Std bores (mm): 8,9,9.525,10,11,12,12.7,14,15,15.875,16,17,18,19
SDAA-54C Clamping: Side-clamp | OD x L: 54 x 76 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDAB-54C Clamping: Side-clamp | OD x L: 54 x 89.9 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,12.7,14,15,15.875,16,17,18,19,20
SDA-64C Clamping: Side-clamp | OD x L: 64 x 89.9 mm | Torque: 40 N·m | Max speed: 6,500 rpm | Std bores (mm): 12,12.7,14,15,15.875,16,17,18,19,20,22,24,25
