SUNGIL SHDS High Torque Single Disk Coupling (OD 50-144 mm)

SUNGIL SHDS High Torque Single Disk Coupling (OD 50-144 mm)

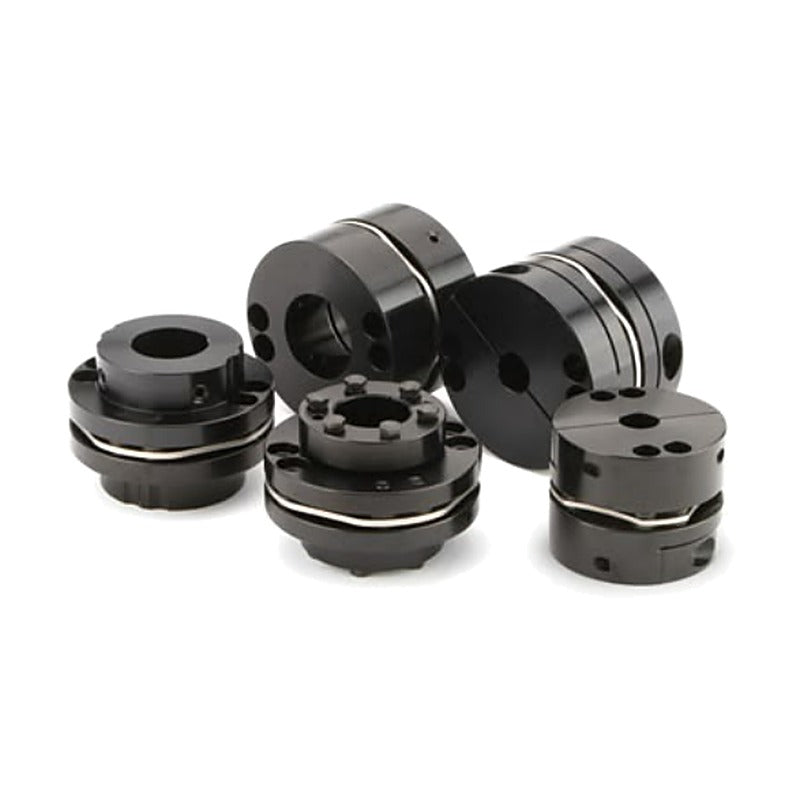

High torque single disk coupling for mid to large sizes, with an Al-7075-T6 or steel body and reinforced plate springs. Offered in set-screw, side-clamp, hub-split and taper-ring versions.

Key features

  • Reinforced plate springs transmit high torque without backlash
  • Ultra high strength Al-7075-T6 hubs; steel hubs on large sizes
  • Set-screw, side-clamp, hub split (CW) and taper-ring (T) clamping
  • Taper-ring type rated up to 24,000 rpm
  • For robots, belt drives, machine tools and servo presses

Specifications

Hub material Al-7075-T6 (anodized) / steel (black oxide)
Plate spring Stainless steel
Screws SCM435, black oxide
Clamping Set-screw / side-clamp (C) / hub split (CW) / taper-ring (T)
Shaft tolerance h7 recommended
Applications Cartesian robots, belt drives, machine tools, index tables, servo presses
Source SUNGIL Product Catalogue 2026 (SHD series SHDS, pp. 54-59)
SHDS-56 Clamping: Set-screw | OD x L: 56 x 44.2 mm | Torque: 35 N·m | Max speed: 7,700 rpm | Std bores (mm): 10,11,12,14,15,16,18,19,20,22,24,25
SHDS-66 Clamping: Set-screw | OD x L: 66 x 56.5 mm | Torque: 60 N·m | Max speed: 7,000 rpm | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32
SHDS-88 Clamping: Set-screw | OD x L: 88 x 69.9 mm | Torque: 180 N·m | Max speed: 5,500 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,38,40,42,45
SHDS-110 Clamping: Set-screw | OD x L: 108 x 77.7 mm | Torque: 280 N·m | Max speed: 4,000 rpm | Std bores (mm): 30,32,35,38,40,42,45,48,50,55,60
SHDS-126 Clamping: Set-screw | OD x L: 126 x 91.2 mm | Torque: 450 N·m | Max speed: 3,500 rpm | Std bores (mm): 19,20,22,24,25,26,28,30,32,35,38,40,42,45,48,50,55,60
SHDS-144 Clamping: Set-screw | OD x L: 144 x 101.7 mm | Torque: 600 N·m | Max speed: 3,000 rpm | Std bores (mm): 22,24,25,26,28,30,32,35,38,40,42,45,48,50,55,60,65,70
SHDS-50C Clamping: Side-clamp | OD x L: 50 x 35.9 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,14,15,16,18,19,20,22
SHDS-50CW Clamping: Side-clamp, hub split | OD x L: 50 x 35.9 mm | Torque: 25 N·m | Max speed: 7,500 rpm | Std bores (mm): 10,11,12,14,15,16,18,19,20,22
SHDS-56C Clamping: Side-clamp | OD x L: 56 x 44.2 mm | Torque: 35 N·m | Max speed: 7,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,19,20,22,24,25
SHDS-56CW Clamping: Side-clamp, hub split | OD x L: 56 x 44.2 mm | Torque: 35 N·m | Max speed: 7,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,19,20,22,24,25
SHDS-66C Clamping: Side-clamp | OD x L: 66 x 56.5 mm | Torque: 60 N·m | Max speed: 6,500 rpm | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32
SHDS-66CW Clamping: Side-clamp, hub split | OD x L: 66 x 56.5 mm | Torque: 60 N·m | Max speed: 6,500 rpm | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32
SHDS-78C Clamping: Side-clamp | OD x L: 78 x 60.5 mm | Torque: 120 N·m | Max speed: 6,000 rpm | Std bores (mm): 18,19,20,22,24,25,26,28,30,32,35,38,40
SHDS-78CW Clamping: Side-clamp, hub split | OD x L: 78 x 60.5 mm | Torque: 120 N·m | Max speed: 6,000 rpm | Std bores (mm): 18,19,20,22,24,25,26,28,30,32,35,38,40
SHDS-88C Clamping: Side-clamp | OD x L: 88 x 69.9 mm | Torque: 180 N·m | Max speed: 5,500 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,38,40,42,45
SHDS-88CW Clamping: Side-clamp, hub split | OD x L: 88 x 69.9 mm | Torque: 180 N·m | Max speed: 5,500 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,38,40,42,45
SHDS-110C Clamping: Side-clamp | OD x L: 108 x 77.7 mm | Torque: 280 N·m | Max speed: 4,000 rpm | Std bores (mm): 30,32,35,38,40,42,45,48,50,55,60
SHDS-110CW Clamping: Side-clamp, hub split | OD x L: 108 x 77.7 mm | Torque: 280 N·m | Max speed: 4,000 rpm | Std bores (mm): 30,32,35,38,40,42,45,48,50,55,60
SHDS-126C Clamping: Side-clamp | OD x L: 126 x 91.2 mm | Torque: 450 N·m | Max speed: 3,500 rpm | Std bores (mm): 30,32,35,38,40,42,45,48,50,55,60
SHDS-126CW Clamping: Side-clamp, hub split | OD x L: 126 x 91.2 mm | Torque: 450 N·m | Max speed: 3,500 rpm | Std bores (mm): 30,32,35,38,40,42,45,48,50,55,60
SHDS-144C Clamping: Side-clamp | OD x L: 144 x 101.7 mm | Torque: 600 N·m | Max speed: 3,000 rpm | Std bores (mm): 35,38,40,42,45,48,50,55,60,65,70
SHDS-144CW Clamping: Side-clamp, hub split | OD x L: 144 x 101.7 mm | Torque: 600 N·m | Max speed: 3,000 rpm | Std bores (mm): 35,38,40,42,45,48,50,55,60,65,70
SHDS-56T Clamping: Taper-ring | OD x L: 56 x 45.6 mm | Torque: 35 N·m | Max speed: 24,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,19,20,22,24,25
SHDS-66T Clamping: Taper-ring | OD x L: 66 x 57.5 mm | Torque: 60 N·m | Max speed: 20,000 rpm | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32
SHDS-88T Clamping: Taper-ring | OD x L: 88 x 69.9 mm | Torque: 180 N·m | Max speed: 15,000 rpm | Std bores (mm): 20,22,24,25,26,28,30,32,35,38,40,42,45
SHDS-110T Clamping: Taper-ring | OD x L: 108 x 70.1 mm | Torque: 280 N·m | Max speed: 12,000 rpm | Std bores (mm): 30,32,35,38,40,42,45,48,50,55,60
