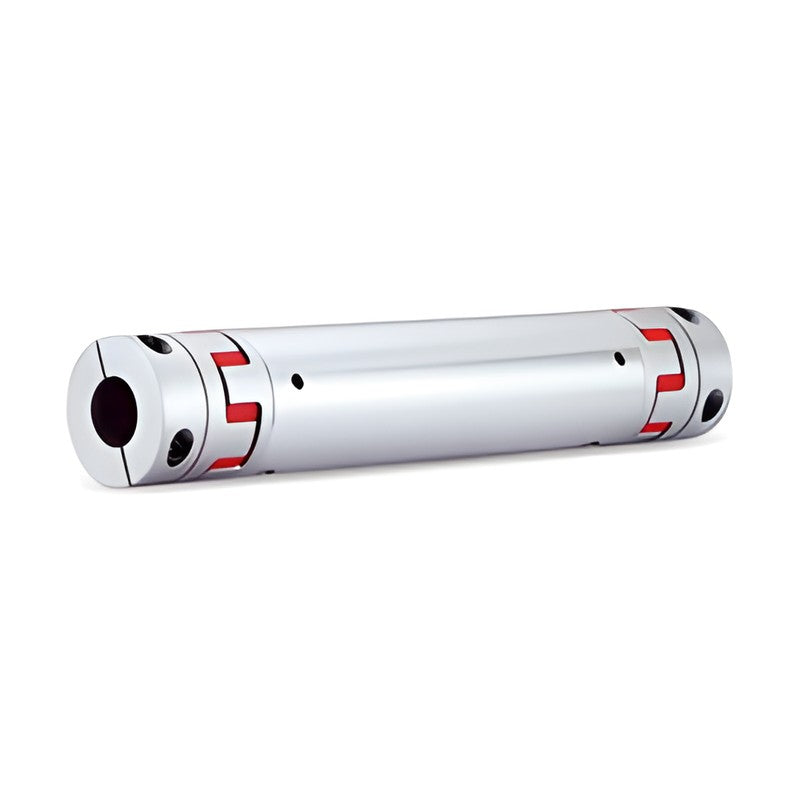

SUNGIL SJCL Jaw Type Connecting Shaft (OD 30-104 mm)

SUNGIL SJCL Jaw Type Connecting Shaft (OD 30-104 mm)

One-piece connecting shaft with jaw couplings on both ends of an aluminum hollow shaft, for transmitting motion across long shaft distances. Total length L is specified at order.

Key features

  • Jaw couplings and hollow shaft in one assembly
  • Precise concentricity and straightness
  • Low inertia aluminum hollow shaft
  • Side-clamp (C) or hub split (CW) hubs; BL/DG/GR/RD sleeves
  • Length specified per order; special lengths on request

Specifications

Hub material High strength aluminum alloy, anodized
Hollow shaft High strength aluminum alloy, anodized
Sleeve Hytrel (RD/GR) or TPU (DG/BL)
Screws SCM435, black oxide
Clamping Side-clamp (C) / hub split (CW)
Ordering Add total length, e.g. -1000L
Source SUNGIL Product Catalogue 2026 (SJCL series, pp. 126-130)
SJCBL-30C-GR Clamping: Side-clamp | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 12 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-30CW-GR Clamping: Side-clamp, hub split | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 12 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-30C-RD Clamping: Side-clamp | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 16 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-30CW-RD Clamping: Side-clamp, hub split | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 16 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-40C-GR Clamping: Side-clamp | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 17 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCBL-40CW-GR Clamping: Side-clamp, hub split | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 17 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCBL-40C-RD Clamping: Side-clamp | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 21 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCBL-40CW-RD Clamping: Side-clamp, hub split | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 21 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCL-55C-BL Clamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-BL Clamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55C-DG Clamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-DG Clamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55C-GR Clamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-GR Clamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55C-RD Clamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 75 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-RD Clamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 75 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-65C-BL Clamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-BL Clamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65C-DG Clamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-DG Clamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65C-GR Clamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-GR Clamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65C-RD Clamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 180 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-RD Clamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 180 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-80C-BL Clamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-BL Clamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80C-DG Clamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-DG Clamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80C-GR Clamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-GR Clamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80C-RD Clamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 380 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-RD Clamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 380 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-100C-BL Clamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-BL Clamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100C-DG Clamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-DG Clamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100C-GR Clamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-GR Clamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100C-RD Clamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 600 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-RD Clamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 600 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
Connecting ShaftSUNGIL
40 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

SUNGIL SJCL Jaw Type Connecting Shaft (OD 30-104 mm)

Brand SUNGIL·Connecting Shaft

Available part numbers (40)

SJCBL-30C-GR, SJCBL-30CW-GR, SJCBL-30C-RD, SJCBL-30CW-RD, SJCBL-40C-GR, SJCBL-40CW-GR, SJCBL-40C-RD, SJCBL-40CW-RD, SJCL-55C-BL, SJCL-55CW-BL + 30 more — see full table ↓

How to order

Send the SUNGIL part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SJCBL-30C-GRClamping: Side-clamp | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 12 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-30CW-GRClamping: Side-clamp, hub split | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 12 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-30C-RDClamping: Side-clamp | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 16 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-30CW-RDClamping: Side-clamp, hub split | OD: 30 mm | Length L: 95-3,000 mm | Rated torque: 16 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 7,8,9,10,11,12,14
SJCBL-40C-GRClamping: Side-clamp | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 17 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCBL-40CW-GRClamping: Side-clamp, hub split | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 17 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCBL-40C-RDClamping: Side-clamp | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 21 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCBL-40CW-RDClamping: Side-clamp, hub split | OD: 40 mm | Length L: 130-3,000 mm | Rated torque: 21 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 8,9,10,11,12,14,15,16,18
SJCL-55C-BLClamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-BLClamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55C-DGClamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-DGClamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55C-GRClamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-GRClamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 60 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55C-RDClamping: Side-clamp | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 75 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-55CW-RDClamping: Side-clamp, hub split | OD: 55 mm | Length L: 175-3,000 mm | Rated torque: 75 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 12,14,15,16,18,19,20,22,24,25,26,28
SJCL-65C-BLClamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-BLClamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65C-DGClamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-DGClamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65C-GRClamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-GRClamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 150 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65C-RDClamping: Side-clamp | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 180 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-65CW-RDClamping: Side-clamp, hub split | OD: 65 mm | Length L: 200-3,000 mm | Rated torque: 180 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35
SJCL-80C-BLClamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-BLClamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80C-DGClamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-DGClamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80C-GRClamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-GRClamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 300 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80C-RDClamping: Side-clamp | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 380 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-80CW-RDClamping: Side-clamp, hub split | OD: 80 mm | Length L: 245-3,000 mm | Rated torque: 380 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 15,16,18,19,20,22,24,25,26,28,30,32,35,40,45
SJCL-100C-BLClamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-BLClamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: BL (TPU, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100C-DGClamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-DGClamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: DG (TPU, Shore 57D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100C-GRClamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-GRClamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 500 N·m | Sleeve: GR (Hytrel, Shore 98A) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100C-RDClamping: Side-clamp | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 600 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
SJCL-100CW-RDClamping: Side-clamp, hub split | OD: 104 mm | Length L: 300-3,000 mm | Rated torque: 600 N·m | Sleeve: RD (Hytrel, Shore 63D) | Std bores (mm): 20,22,24,25,26,28,30,32,35,40,45,50,55,60
