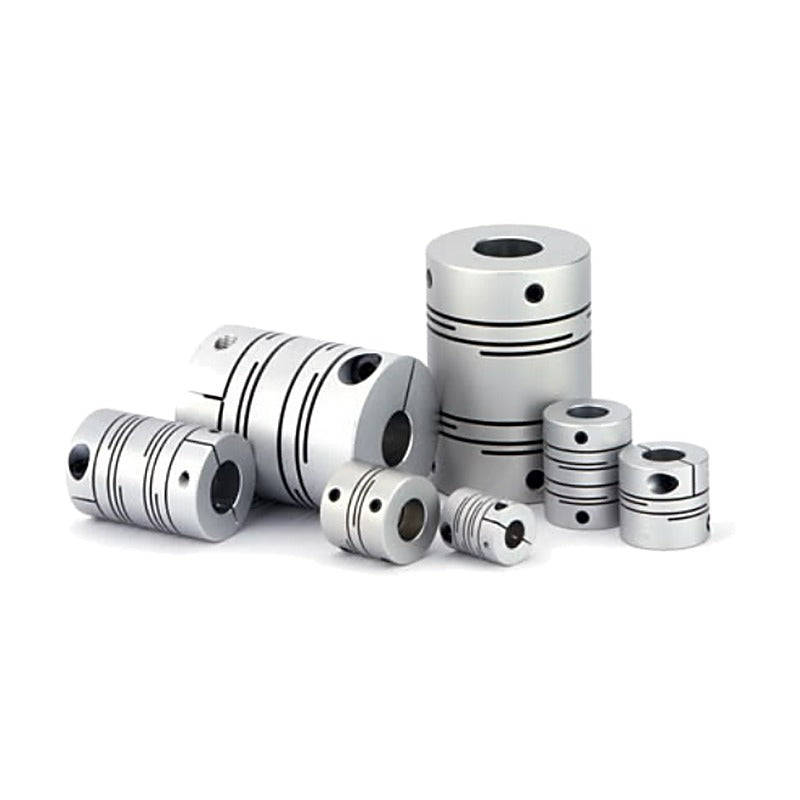

SUNGIL SRB Radial Beam Coupling, Al-7075 (OD 7.9-60 mm)

SUNGIL SRB Radial Beam Coupling, Al-7075 (OD 7.9-60 mm)

One-piece radial beam (slit) coupling machined from ultra high strength Al-7075-T6. Absorbs angular and parallel misalignment through its slits with zero backlash.

Key features

  • One-piece metal body with no backlash
  • Round-shaped slits disperse stress concentration
  • Inner relief area prevents shaft interference
  • Set-screw and side-clamp versions; A/B lengths on larger sizes
  • For encoders, stages and part feeders

Specifications

Body material Al-7075-T6, anodized
Screws SCM435, black oxide
Clamping Set-screw / side-clamp (C)
Shaft tolerance h7 recommended
Options Keyway
Applications UVW stages, XY stages, part feeders, encoders
Source SUNGIL Product Catalogue 2026 (SRB series, pp. 98-100)
SRB-8 Clamping: Set-screw | OD x L: 7.9 x 14 mm | Torque: 0.1 N·m | Max speed: 50,000 rpm | Std bores (mm): 2,3
SRB-12 Clamping: Set-screw | OD x L: 12.7 x 18 mm | Torque: 0.2 N·m | Max speed: 40,000 rpm | Std bores (mm): 3,4,5
SRB-16 Clamping: Set-screw | OD x L: 16 x 18.5 mm | Torque: 0.4 N·m | Max speed: 30,000 rpm | Std bores (mm): 3,4,5,6
SRB-19 Clamping: Set-screw | OD x L: 19.1 x 22 mm | Torque: 0.6 N·m | Max speed: 24,000 rpm | Std bores (mm): 4,5,6,6.35,8
SRB-22 Clamping: Set-screw | OD x L: 22.2 x 25 mm | Torque: 1 N·m | Max speed: 20,000 rpm | Std bores (mm): 5,6,6.35,8,9.525,10
SRB-26 Clamping: Set-screw | OD x L: 26.2 x 30 mm | Torque: 2 N·m | Max speed: 18,000 rpm | Std bores (mm): 5,6,6.35,8,9.525,10,11,12
SRB-32 Clamping: Set-screw | OD x L: 31.8 x 39 mm | Torque: 3.8 N·m | Max speed: 18,000 rpm | Std bores (mm): 8,9.525,10,11,12,14,15
SRB-39 Clamping: Set-screw | OD x L: 39 x 56 mm | Torque: 7 N·m | Max speed: 12,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,19
SRB-49 Clamping: Set-screw | OD x L: 49 x 70 mm | Torque: 15 N·m | Max speed: 10,000 rpm | Std bores (mm): 12,14,15,16,18,19,20
SRB-60 Clamping: Set-screw | OD x L: 60 x 88 mm | Torque: 30 N·m | Max speed: 8,500 rpm | Std bores (mm): 15,16,18,19,20,22,24,25
SRB-12C Clamping: Side-clamp | OD x L: 12.7 x 19 mm | Torque: 0.2 N·m | Max speed: 35,000 rpm | Std bores (mm): 3,4,5
SRB-16C Clamping: Side-clamp | OD x L: 16 x 21.5 mm | Torque: 0.4 N·m | Max speed: 27,000 rpm | Std bores (mm): 3,4,5,6
SRB-19C Clamping: Side-clamp | OD x L: 19.1 x 23 mm | Torque: 0.6 N·m | Max speed: 20,000 rpm | Std bores (mm): 4,5,6,6.35,8
SRB-22C Clamping: Side-clamp | OD x L: 22.2 x 26.5 mm | Torque: 1 N·m | Max speed: 18,000 rpm | Std bores (mm): 5,6,6.35,8,9.525,10
SRB-26C Clamping: Side-clamp | OD x L: 26.2 x 31.5 mm | Torque: 2 N·m | Max speed: 17,000 rpm | Std bores (mm): 5,6,6.35,8,9.525,10,11,12
SRBA-32C Clamping: Side-clamp | OD x L: 31.8 x 39 mm | Torque: 3.8 N·m | Max speed: 14,000 rpm | Std bores (mm): 8,9.525,10,11,12,14,15
SRBB-32C Clamping: Side-clamp | OD x L: 31.8 x 44 mm | Torque: 3.8 N·m | Max speed: 14,000 rpm | Std bores (mm): 8,9.525,10,11,12,14,15
SRBA-39C Clamping: Side-clamp | OD x L: 39 x 43 mm | Torque: 7 N·m | Max speed: 10,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,19
SRBB-39C Clamping: Side-clamp | OD x L: 39 x 56 mm | Torque: 7 N·m | Max speed: 10,000 rpm | Std bores (mm): 10,11,12,14,15,16,18,19
SRBA-49C Clamping: Side-clamp | OD x L: 49 x 63.5 mm | Torque: 15 N·m | Max speed: 10,000 rpm | Std bores (mm): 12,14,15,16,18,19,20
SRBB-49C Clamping: Side-clamp | OD x L: 49 x 70 mm | Torque: 15 N·m | Max speed: 8,400 rpm | Std bores (mm): 12,14,15,16,18,19,20
SRBA-60C Clamping: Side-clamp | OD x L: 60 x 76.2 mm | Torque: 30 N·m | Max speed: 7,000 rpm | Std bores (mm): 15,16,18,19,20,22,24,25
SRBB-60C Clamping: Side-clamp | OD x L: 60 x 88 mm | Torque: 30 N·m | Max speed: 7,000 rpm | Std bores (mm): 15,16,18,19,20,22,24,25
