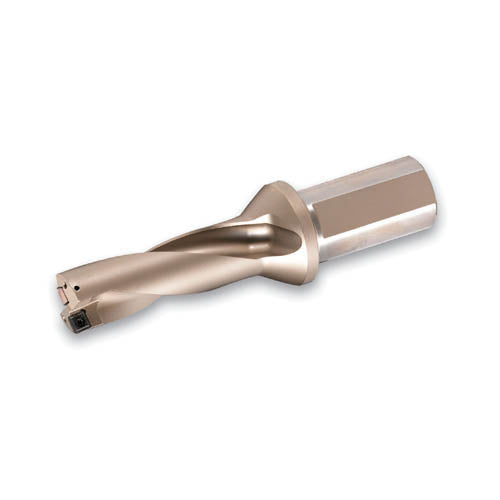

TaeguTec 3200566 General Insert Drill (TDR)

TaeguTec General Insert Drill (TDR) 3200566 is an indexable drilling tool designed for efficient hole-making in a range of workpiece materials, sourced direct from Korea.

Key features

Insert drills of this type are widely used in CNC machining centers and turning applications where replaceable carbide inserts reduce tooling downtime and maintain consistent bore quality across production runs

374-5821		3200566 \| TDR 2160-25T2-06 \| Spec: TDR2160-25T2-06 \| L: 108 \| Insert: SPMG 060204 DG \| D: 16 \| L1: 32 \| L2: 52 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7 \| Screw: TS 22052 I
374-5849		3200567 \| TDR 2170-25T2-06 \| Spec: TDR2170-25T2-06 \| L: 110 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 17 \| L1: 34 \| L2: 54 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-5858		3200568 \| TDR 2180-25T2-06 \| Spec: TDR2180-25T2-06 \| L: 113 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 36 \| L2: 57 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-5876		3200569 \| TDR 2190-25T2-06 \| Spec: TDR2190-25T2-06 \| L: 115 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 19 \| L1: 38 \| L2: 59 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-5894		3200570 \| TDR 2200-25T2-06 \| Spec: TDR2200-25T2-06 \| L: 119 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 20 \| L1: 40 \| L2: 63 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-5919		3200571 \| TDR 2210-25T2-06 \| Spec: TDR2210-25T2-06 \| L: 121 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 21 \| L1: 42 \| L2: 65 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-5937		3201190 \| TDR 2220-25T2-07 \| Spec: TDR2220-25T2-07 \| L: 123 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 22 \| L1: 44 \| L2: 67 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
374-5964		3200573 \| TDR 2230-32T2-07 \| Spec: TDR2230-32T2-07 \| L: 131 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 23 \| L1: 46 \| L2: 71 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-5982		3200574 \| TDR 2240-32T2-07 \| Spec: TDR2240-32T2-07 \| L: 134 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 24 \| L1: 48 \| L2: 74 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-6015		3200575 \| TDR 2250-32T2-07 \| Spec: TDR2250-32T2-07 \| L: 137 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 25 \| L1: 50 \| L2: 77 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-6042		3200576 \| TDR 2260-32T2-07 \| Spec: TDR2260-32T2-07 \| L: 139 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 26 \| L1: 52 \| L2: 79 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-6097		6180807 \| TDR 2280-32T2-09 \| Spec: TDR2280-32T2-09 \| L: 144 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 28 \| L1: 56 \| L2: 84 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
374-6112		3201193 \| TDR 2290-32T2-09 \| Spec: TDR2290-32T2-09 \| L: 146 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 29 \| L1: 58 \| L2: 86 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
374-6130		6180663 \| TDR 2300-40T2-09 \| Spec: TDR2300-40T2-09 \| L: 161 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 30 \| L1: 60 \| L2: 91 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-6167		6180594 \| TDR 2320-40T2-09 \| Spec: TDR2320-40T2-09 \| L: 166 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 32 \| L1: 64 \| L2: 96 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-6176		3200209 \| TDR 2330-40T2-09 \| Spec: TDR2330-40T2-09 \| L: 169 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 33 \| L1: 66 \| L2: 99 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-6194		6180808 \| TDR 2340-40T2-11 \| Spec: TDR2340-40T2-11 \| L: 171 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 34 \| L1: 68 \| L2: 101 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-6200		6180809 \| TDR 2350-40T2-11 \| Spec: TDR2350-40T2-11 \| L: 174 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 35 \| L1: 70 \| L2: 104 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-6219		6180810 \| TDR 2360-40T2-11 \| Spec: TDR2360-40T2-11 \| L: 177 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 36 \| L1: 72 \| L2: 107 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-6228		3200221 \| TDR 2370-40T2-11 \| Spec: TDR2370-40T2-11 \| L: 180 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 37 \| L1: 74 \| L2: 110 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-6246		3200194 \| TDR 2380-40T2-11 \| Spec: TDR2380-40T2-11 \| L: 183 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 38 \| L1: 76 \| L2: 113 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-6255		3200224 \| TDR 2390-40T2-11 \| Spec: TDR2390-40T2-11 \| L: 185 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 39 \| L1: 78 \| L2: 115 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-6273		6180599 \| TDR 2400-40T2-11 \| Spec: TDR2400-40T2-11 \| L: 188 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 40 \| L1: 80 \| L2: 118 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 15
374-6291		6180811 \| TDR 2420-40T2-14 \| Spec: TDR2420-40T2-14 \| L: 193 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 42 \| L1: 84 \| L2: 123 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-6307		6180812 \| TDR 2430-40T2-14 \| Spec: TDR2430-40T2-14 \| L: 196 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 43 \| L1: 86 \| L2: 126 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-6316		3200233 \| TDR 2440-40T2-14 \| Spec: TDR2440-40T2-14 \| L: 198 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 44 \| L1: 88 \| L2: 128 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-6343		3200242 \| TDR 2470-40T2-14 \| Spec: TDR2470-40T2-14 \| L: 207 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 47 \| L1: 94 \| L2: 137 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-6352		3200245 \| TDR 2480-40T2-14 \| Spec: TDR2480-40T2-14 \| L: 210 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 48 \| L1: 96 \| L2: 140 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD20
374-6361		3200248 \| TDR 2490-40T2-14 \| Spec: TDR2490-40T2-14 \| L: 212 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 49 \| L1: 98 \| L2: 142 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-6370		3200251 \| TDR 2500-40T2-14 \| Spec: TDR2500-40T2-14 \| L: 215 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 50 \| L1: 100 \| L2: 145 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20

GeneralTaeguTec

30 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TaeguTec 3200566 General Insert Drill (TDR)

Brand TaeguTec·General

Available part numbers (30)

374-5821, 374-5849, 374-5858, 374-5876, 374-5894, 374-5919, 374-5937, 374-5964, 374-5982, 374-6015 + 20 more — see full table ↓

How to order

Send the TaeguTec part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	374-5821	3200566 \| TDR 2160-25T2-06 \| Spec: TDR2160-25T2-06 \| L: 108 \| Insert: SPMG 060204 DG \| D: 16 \| L1: 32 \| L2: 52 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7 \| Screw: TS 22052 I
	374-5849	3200567 \| TDR 2170-25T2-06 \| Spec: TDR2170-25T2-06 \| L: 110 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 17 \| L1: 34 \| L2: 54 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-5858	3200568 \| TDR 2180-25T2-06 \| Spec: TDR2180-25T2-06 \| L: 113 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 36 \| L2: 57 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-5876	3200569 \| TDR 2190-25T2-06 \| Spec: TDR2190-25T2-06 \| L: 115 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 19 \| L1: 38 \| L2: 59 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-5894	3200570 \| TDR 2200-25T2-06 \| Spec: TDR2200-25T2-06 \| L: 119 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 20 \| L1: 40 \| L2: 63 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-5919	3200571 \| TDR 2210-25T2-06 \| Spec: TDR2210-25T2-06 \| L: 121 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 21 \| L1: 42 \| L2: 65 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-5937	3201190 \| TDR 2220-25T2-07 \| Spec: TDR2220-25T2-07 \| L: 123 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 22 \| L1: 44 \| L2: 67 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
	374-5964	3200573 \| TDR 2230-32T2-07 \| Spec: TDR2230-32T2-07 \| L: 131 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 23 \| L1: 46 \| L2: 71 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-5982	3200574 \| TDR 2240-32T2-07 \| Spec: TDR2240-32T2-07 \| L: 134 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 24 \| L1: 48 \| L2: 74 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-6015	3200575 \| TDR 2250-32T2-07 \| Spec: TDR2250-32T2-07 \| L: 137 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 25 \| L1: 50 \| L2: 77 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-6042	3200576 \| TDR 2260-32T2-07 \| Spec: TDR2260-32T2-07 \| L: 139 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 26 \| L1: 52 \| L2: 79 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-6097	6180807 \| TDR 2280-32T2-09 \| Spec: TDR2280-32T2-09 \| L: 144 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 28 \| L1: 56 \| L2: 84 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
	374-6112	3201193 \| TDR 2290-32T2-09 \| Spec: TDR2290-32T2-09 \| L: 146 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 29 \| L1: 58 \| L2: 86 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
	374-6130	6180663 \| TDR 2300-40T2-09 \| Spec: TDR2300-40T2-09 \| L: 161 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 30 \| L1: 60 \| L2: 91 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-6167	6180594 \| TDR 2320-40T2-09 \| Spec: TDR2320-40T2-09 \| L: 166 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 32 \| L1: 64 \| L2: 96 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-6176	3200209 \| TDR 2330-40T2-09 \| Spec: TDR2330-40T2-09 \| L: 169 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 33 \| L1: 66 \| L2: 99 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-6194	6180808 \| TDR 2340-40T2-11 \| Spec: TDR2340-40T2-11 \| L: 171 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 34 \| L1: 68 \| L2: 101 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-6200	6180809 \| TDR 2350-40T2-11 \| Spec: TDR2350-40T2-11 \| L: 174 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 35 \| L1: 70 \| L2: 104 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-6219	6180810 \| TDR 2360-40T2-11 \| Spec: TDR2360-40T2-11 \| L: 177 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 36 \| L1: 72 \| L2: 107 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-6228	3200221 \| TDR 2370-40T2-11 \| Spec: TDR2370-40T2-11 \| L: 180 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 37 \| L1: 74 \| L2: 110 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-6246	3200194 \| TDR 2380-40T2-11 \| Spec: TDR2380-40T2-11 \| L: 183 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 38 \| L1: 76 \| L2: 113 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-6255	3200224 \| TDR 2390-40T2-11 \| Spec: TDR2390-40T2-11 \| L: 185 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 39 \| L1: 78 \| L2: 115 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-6273	6180599 \| TDR 2400-40T2-11 \| Spec: TDR2400-40T2-11 \| L: 188 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 40 \| L1: 80 \| L2: 118 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 15
	374-6291	6180811 \| TDR 2420-40T2-14 \| Spec: TDR2420-40T2-14 \| L: 193 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 42 \| L1: 84 \| L2: 123 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-6307	6180812 \| TDR 2430-40T2-14 \| Spec: TDR2430-40T2-14 \| L: 196 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 43 \| L1: 86 \| L2: 126 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-6316	3200233 \| TDR 2440-40T2-14 \| Spec: TDR2440-40T2-14 \| L: 198 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 44 \| L1: 88 \| L2: 128 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-6343	3200242 \| TDR 2470-40T2-14 \| Spec: TDR2470-40T2-14 \| L: 207 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 47 \| L1: 94 \| L2: 137 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-6352	3200245 \| TDR 2480-40T2-14 \| Spec: TDR2480-40T2-14 \| L: 210 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 48 \| L1: 96 \| L2: 140 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD20
	374-6361	3200248 \| TDR 2490-40T2-14 \| Spec: TDR2490-40T2-14 \| L: 212 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 49 \| L1: 98 \| L2: 142 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-6370	3200251 \| TDR 2500-40T2-14 \| Spec: TDR2500-40T2-14 \| L: 215 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 50 \| L1: 100 \| L2: 145 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
