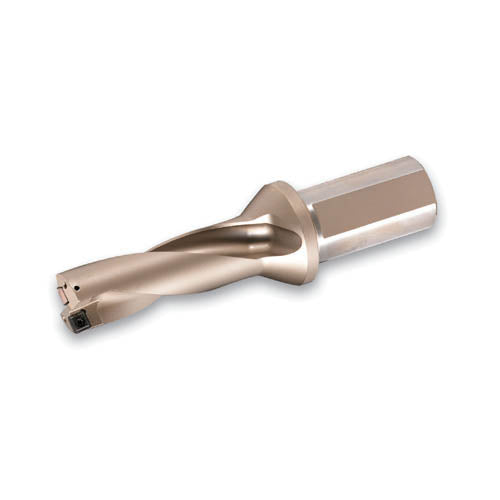

TaeguTec 3201691 General Insert Drill (TDR)

TaeguTec's General Insert Drill (TDR), model 3201691, is an indexable drilling tool designed for efficient hole-making in a range of workpiece materials, sourced direct from Korea.

Key features

Insert drills of this type are commonly used in CNC machining centers and turning applications where replaceable carbide inserts reduce tooling downtime and lower cost-per-hole compared to solid drills

374-7917		3201691 \| TDR 5150-20T2-05 \| Spec: TDR5150-20T2-05 \| L: 144 \| Screw: TS20043I/HG-P \| Insert: SPMG 050204 DG \| D: 15 \| L1: 75 \| L2: 94 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
374-7926		3201418 \| TDR 5160-25T2-06 \| Spec: TDR5160-25T2-06 \| L: 156 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 16 \| L1: 80 \| L2: 100 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7935		3201523 \| TDR 5170-25T2-06 \| Spec: TDR5170-25T2-06 \| L: 161 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 17 \| L1: 85 \| L2: 105 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7953		6180901 \| TDR 5180-25T2-06 \| Spec: TDR5180-25T2-06 \| L: 167 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 90 \| L2: 111 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7962		3201524 \| TDR 5190-25T2-06 \| Spec: TDR5190-25T2-06 \| L: 175 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 19 \| L1: 95 \| L2: 116 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7971		6180802 \| TDR 5200-25T2-06 \| Spec: TDR5200-25T2-06 \| L: 179 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 20 \| L1: 100 \| L2: 123 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7980		3201525 \| TDR 5210-25T2-06 \| Spec: TDR5210-25T2-06 \| L: 184 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 21 \| L1: 105 \| L2: 128 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7999		3201526 \| TDR 5220-25T2-07 \| Spec: TDR5220-25T2-07 \| L: 189 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 22 \| L1: 110 \| L2: 133 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
374-8004		3201527 \| TDR 5230-32T2-07 \| Spec: TDR5230-32T2-07 \| L: 200 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 23 \| L1: 115 \| L2: 140 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8013		6180860 \| TDR 5240-32T2-07 \| Spec: TDR5240-32T2-07 \| L: 206 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 24 \| L1: 120 \| L2: 146 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8022		6180949 \| TDR 5250-32T2-07 \| Spec: TDR5250-32T2-07 \| L: 212 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 25 \| L1: 125 \| L2: 152 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8031		3201528 \| TDR 5260-32T2-07 \| Spec: TDR5260-32T2-07 \| L: 217 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 26 \| L1: 130 \| L2: 157 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-8059		3201441 \| TDR 5270-32T2-07 \| Spec: TDR5270-32T2-07 \| L: 222 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 27 \| L1: 135 \| L2: 162 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
376-5959		6181398 \| TDR 5140-20T2-05 \| Spec: TDR5140-20T2-05 \| L: 138 \| Screw: TS 20043I/HG-P \| Insert: SPMG 050204 DG \| D: 14 \| L1: 70 \| L2: 88 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6

GeneralTaeguTec

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TaeguTec 3201691 General Insert Drill (TDR)

Brand TaeguTec·General

Available part numbers (14)

374-7917, 374-7926, 374-7935, 374-7953, 374-7962, 374-7971, 374-7980, 374-7999, 374-8004, 374-8013 + 4 more — see full table ↓

How to order

Send the TaeguTec part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	374-7917	3201691 \| TDR 5150-20T2-05 \| Spec: TDR5150-20T2-05 \| L: 144 \| Screw: TS20043I/HG-P \| Insert: SPMG 050204 DG \| D: 15 \| L1: 75 \| L2: 94 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
	374-7926	3201418 \| TDR 5160-25T2-06 \| Spec: TDR5160-25T2-06 \| L: 156 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 16 \| L1: 80 \| L2: 100 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7935	3201523 \| TDR 5170-25T2-06 \| Spec: TDR5170-25T2-06 \| L: 161 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 17 \| L1: 85 \| L2: 105 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7953	6180901 \| TDR 5180-25T2-06 \| Spec: TDR5180-25T2-06 \| L: 167 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 90 \| L2: 111 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7962	3201524 \| TDR 5190-25T2-06 \| Spec: TDR5190-25T2-06 \| L: 175 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 19 \| L1: 95 \| L2: 116 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7971	6180802 \| TDR 5200-25T2-06 \| Spec: TDR5200-25T2-06 \| L: 179 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 20 \| L1: 100 \| L2: 123 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7980	3201525 \| TDR 5210-25T2-06 \| Spec: TDR5210-25T2-06 \| L: 184 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 21 \| L1: 105 \| L2: 128 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7999	3201526 \| TDR 5220-25T2-07 \| Spec: TDR5220-25T2-07 \| L: 189 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 22 \| L1: 110 \| L2: 133 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
	374-8004	3201527 \| TDR 5230-32T2-07 \| Spec: TDR5230-32T2-07 \| L: 200 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 23 \| L1: 115 \| L2: 140 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-8013	6180860 \| TDR 5240-32T2-07 \| Spec: TDR5240-32T2-07 \| L: 206 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 24 \| L1: 120 \| L2: 146 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-8022	6180949 \| TDR 5250-32T2-07 \| Spec: TDR5250-32T2-07 \| L: 212 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 25 \| L1: 125 \| L2: 152 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-8031	3201528 \| TDR 5260-32T2-07 \| Spec: TDR5260-32T2-07 \| L: 217 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 26 \| L1: 130 \| L2: 157 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-8059	3201441 \| TDR 5270-32T2-07 \| Spec: TDR5270-32T2-07 \| L: 222 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 27 \| L1: 135 \| L2: 162 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	376-5959	6181398 \| TDR 5140-20T2-05 \| Spec: TDR5140-20T2-05 \| L: 138 \| Screw: TS 20043I/HG-P \| Insert: SPMG 050204 DG \| D: 14 \| L1: 70 \| L2: 88 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6

Need a different model, or a part not listed here? Send us your parts list →
