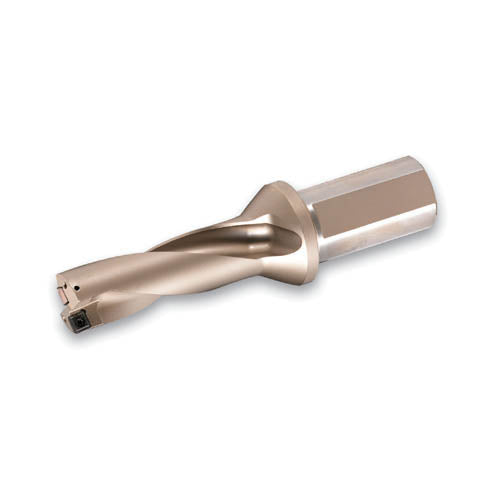

TaeguTec 6180708 General Insert Drill (TDR)

TaeguTec's General Insert Drill (TDR), model 6180708, is an indexable drilling tool designed for efficient hole-making in a range of workpiece materials, sourced direct from Korea.

Key features

Insert drills of this type are widely used in CNC machining centers and turning operations where replaceable carbide inserts reduce tooling costs and maintain consistent bore quality across production runs

374-7166		6180708 \| TDR 4140-20T2-05 \| Spec: TDR4140-20T2-05 \| L: 124 \| Screw: TS 20043I/HG-P \| Insert: SPMG 050204 DG \| D: 14 \| L1: 56 \| L2: 74 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
374-7184		6180709 \| TDR 4150-20T2-05 \| Spec: TDR4150-20T2-05 \| L: 129 \| Screw: TS20043I/HG-P \| Insert: SPMG 050204 DG \| D: 15 \| L1: 60 \| L2: 79 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
374-7209		6180657 \| TDR 4160-25T2-06 \| Spec: TDR4160-25T2-06 \| L: 140 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 16 \| L1: 64 \| L2: 84 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7227		3200595 \| TDR 4170-25T2-06 \| Spec: TDR4170-25T2-06 \| L: 144 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 17 \| L1: 68 \| L2: 88 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7245		3200596 \| TDR 4180-25T2-06 \| Spec: TDR4180-25T2-06 \| L: 149 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 72 \| L2: 93 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7263		3200597 \| TDR 4190-25T2-06 \| Spec: TDR4190-25T2-06 \| L: 153 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 19 \| L1: 76 \| L2: 97 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7281		3200598 \| TDR 4200-25T2-06 \| Spec: TDR4200-25T2-06 \| L: 159 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 20 \| L1: 80 \| L2: 103 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7306		3200599 \| TDR 4210-25T2-06 \| Spec: TDR4210-25T2-06 \| L: 163 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 21 \| L1: 84 \| L2: 107 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
374-7315		6180799 \| TDR 4220-25T2-07 \| Spec: TDR4220-25T2-07 \| L: 167 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 22 \| L1: 88 \| L2: 111 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
374-7342		3200601 \| TDR 4230-32T2-07 \| Spec: TDR4230-32T2-07 \| L: 177 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 23 \| L1: 92 \| L2: 117 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-7379		3200602 \| TDR 4240-32T2-07 \| Spec: TDR4240-32T2-07 \| L: 182 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 24 \| L1: 96 \| L2: 122 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-7397		6180658 \| TDR 4250-32T2-07 \| Spec: TDR4250-32T2-07 \| L: 187 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 25 \| L1: 100 \| L2: 127 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-7430		3200604 \| TDR 4260-32T2-07 \| Spec: TDR4260-32T2-07 \| L: 191 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 26 \| L1: 104 \| L2: 131 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-7458		3200605 \| TDR 4270-32T2-07 \| Spec: TDR4270-32T2-07 \| L: 195 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 27 \| L1: 108 \| L2: 135 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
374-7467		6180698 \| TDR 4280-32T2-09 \| Spec: TDR4280-32T2-09 \| L: 200 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 28 \| L1: 112 \| L2: 140 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
374-7476		3200814 \| TDR 4290-32T2-09 \| Spec: TDR4290-32T2-09 \| L: 204 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 29 \| L1: 116 \| L2: 144 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
374-7519		6180664 \| TDR 4300-40T2-09 \| Spec: TDR4300-40T2-09 \| L: 221 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 30 \| L1: 120 \| L2: 151 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-7537		6180622 \| TDR 4310-40T2-09 \| Spec: TDR4310-40T2-09 \| L: 226 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 31 \| L1: 124 \| L2: 156 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-7555		3200195 \| TDR 4320-40T2-09 \| Spec: TDR4320-40T2-09 \| L: 230 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 32 \| L1: 128 \| L2: 160 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-7573		6180602 \| TDR 4330-40T2-09 \| Spec: TDR4330-40T2-09 \| L: 235 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 33 \| L1: 132 \| L2: 165 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
374-7634		3201239 \| TDR 4340-40T2-11 \| Spec: TDR4340-40T2-11 \| L: 239 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 34 \| L1: 136 \| L2: 169 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-7698		3201241 \| TDR 4360-40T2-11 \| Spec: TDR4360-40T2-11 \| L: 249 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 36 \| L1: 144 \| L2: 179 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-7713		3200219 \| TDR 4370-40T2-11 \| Spec: TDR4370-40T2-11 \| L: 254 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 37 \| L1: 148 \| L2: 184 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-7722		3200192 \| TDR 4380-40T2-11 \| Spec: TDR4380-40T2-11 \| L: 259 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 38 \| L1: 152 \| L2: 189 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-7740		3200222 \| TDR 4390-40T2-11 \| Spec: TDR4390-40T2-11 \| L: 263 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 39 \| L1: 156 \| L2: 193 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
374-7786		6180597 \| TDR 4400-40T2-11 \| Spec: TDR4400-40T2-11 \| L: 268 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 40 \| L1: 160 \| L2: 198 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 15
374-7795		3200225 \| TDR 4410-40T2-11 \| Spec: TDR4410-40T2-11 \| L: 273 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 41 \| L1: 164 \| L2: 203 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 15
374-7801		3200231 \| TDR 4440-40T2-14 \| Spec: TDR4420-40T2-14 \| L: 277 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 42 \| L1: 168 \| L2: 207 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-7829		3201243 \| TDR 4430-40T2-14 \| Spec: TDR4430-40T2-14 \| L: 282 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 43 \| L1: 172 \| L2: 212 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-7847		3200234 \| TDR 4450-40T2-14 \| Spec: TDR4450-40T2-14 \| L: 292 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 45 \| L1: 180 \| L2: 222 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-7865		3200240 \| TDR 4470-40T2-14 \| Spec: TDR4470-40T2-14 \| L: 301 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 47 \| L1: 188 \| L2: 231 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
374-7892		3200249 \| TDR 4500-40T2-14 \| Spec: TDR4500-40T2-14 \| L: 315 \| Screw: SO50090 I \| Insert: SPMG 140512 DG \| D: 50 \| L1: 200 \| L2: 245 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20

GeneralTaeguTec

32 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TaeguTec 6180708 General Insert Drill (TDR)

Brand TaeguTec·General

Available part numbers (32)

374-7166, 374-7184, 374-7209, 374-7227, 374-7245, 374-7263, 374-7281, 374-7306, 374-7315, 374-7342 + 22 more — see full table ↓

How to order

Send the TaeguTec part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	374-7166	6180708 \| TDR 4140-20T2-05 \| Spec: TDR4140-20T2-05 \| L: 124 \| Screw: TS 20043I/HG-P \| Insert: SPMG 050204 DG \| D: 14 \| L1: 56 \| L2: 74 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
	374-7184	6180709 \| TDR 4150-20T2-05 \| Spec: TDR4150-20T2-05 \| L: 129 \| Screw: TS20043I/HG-P \| Insert: SPMG 050204 DG \| D: 15 \| L1: 60 \| L2: 79 \| D1: 20 \| D2: 25 \| L3: 50 \| Torxkey: TD 6
	374-7209	6180657 \| TDR 4160-25T2-06 \| Spec: TDR4160-25T2-06 \| L: 140 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 16 \| L1: 64 \| L2: 84 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7227	3200595 \| TDR 4170-25T2-06 \| Spec: TDR4170-25T2-06 \| L: 144 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 17 \| L1: 68 \| L2: 88 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7245	3200596 \| TDR 4180-25T2-06 \| Spec: TDR4180-25T2-06 \| L: 149 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 18 \| L1: 72 \| L2: 93 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7263	3200597 \| TDR 4190-25T2-06 \| Spec: TDR4190-25T2-06 \| L: 153 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 19 \| L1: 76 \| L2: 97 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7281	3200598 \| TDR 4200-25T2-06 \| Spec: TDR4200-25T2-06 \| L: 159 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 20 \| L1: 80 \| L2: 103 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7306	3200599 \| TDR 4210-25T2-06 \| Spec: TDR4210-25T2-06 \| L: 163 \| Screw: TS 22052 I \| Insert: SPMG 060204 DG \| D: 21 \| L1: 84 \| L2: 107 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 7
	374-7315	6180799 \| TDR 4220-25T2-07 \| Spec: TDR4220-25T2-07 \| L: 167 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 22 \| L1: 88 \| L2: 111 \| D1: 25 \| D2: 32 \| L3: 56 \| Torxkey: TD 8
	374-7342	3200601 \| TDR 4230-32T2-07 \| Spec: TDR4230-32T2-07 \| L: 177 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 23 \| L1: 92 \| L2: 117 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-7379	3200602 \| TDR 4240-32T2-07 \| Spec: TDR4240-32T2-07 \| L: 182 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 24 \| L1: 96 \| L2: 122 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-7397	6180658 \| TDR 4250-32T2-07 \| Spec: TDR4250-32T2-07 \| L: 187 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 25 \| L1: 100 \| L2: 127 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-7430	3200604 \| TDR 4260-32T2-07 \| Spec: TDR4260-32T2-07 \| L: 191 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 26 \| L1: 104 \| L2: 131 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-7458	3200605 \| TDR 4270-32T2-07 \| Spec: TDR4270-32T2-07 \| L: 195 \| Screw: TS 25064 I \| Insert: SPMG 07T308 DG \| D: 27 \| L1: 108 \| L2: 135 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 8
	374-7467	6180698 \| TDR 4280-32T2-09 \| Spec: TDR4280-32T2-09 \| L: 200 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 28 \| L1: 112 \| L2: 140 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
	374-7476	3200814 \| TDR 4290-32T2-09 \| Spec: TDR4290-32T2-09 \| L: 204 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 29 \| L1: 116 \| L2: 144 \| D1: 32 \| D2: 45 \| L3: 60 \| Torxkey: TD 10
	374-7519	6180664 \| TDR 4300-40T2-09 \| Spec: TDR4300-40T2-09 \| L: 221 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 30 \| L1: 120 \| L2: 151 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-7537	6180622 \| TDR 4310-40T2-09 \| Spec: TDR4310-40T2-09 \| L: 226 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 31 \| L1: 124 \| L2: 156 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-7555	3200195 \| TDR 4320-40T2-09 \| Spec: TDR4320-40T2-09 \| L: 230 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 32 \| L1: 128 \| L2: 160 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-7573	6180602 \| TDR 4330-40T2-09 \| Spec: TDR4330-40T2-09 \| L: 235 \| Screw: TS 35088 I \| Insert: SPMG 090408 DG \| D: 33 \| L1: 132 \| L2: 165 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 10
	374-7634	3201239 \| TDR 4340-40T2-11 \| Spec: TDR4340-40T2-11 \| L: 239 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 34 \| L1: 136 \| L2: 169 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-7698	3201241 \| TDR 4360-40T2-11 \| Spec: TDR4360-40T2-11 \| L: 249 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 36 \| L1: 144 \| L2: 179 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-7713	3200219 \| TDR 4370-40T2-11 \| Spec: TDR4370-40T2-11 \| L: 254 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 37 \| L1: 148 \| L2: 184 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-7722	3200192 \| TDR 4380-40T2-11 \| Spec: TDR4380-40T2-11 \| L: 259 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 38 \| L1: 152 \| L2: 189 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-7740	3200222 \| TDR 4390-40T2-11 \| Spec: TDR4390-40T2-11 \| L: 263 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 39 \| L1: 156 \| L2: 193 \| D1: 40 \| D2: 55 \| L3: 70 \| Torxkey: TD 15
	374-7786	6180597 \| TDR 4400-40T2-11 \| Spec: TDR4400-40T2-11 \| L: 268 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 40 \| L1: 160 \| L2: 198 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 15
	374-7795	3200225 \| TDR 4410-40T2-11 \| Spec: TDR4410-40T2-11 \| L: 273 \| Screw: TS 40093 I \| Insert: SPMG 110408 DG \| D: 41 \| L1: 164 \| L2: 203 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 15
	374-7801	3200231 \| TDR 4440-40T2-14 \| Spec: TDR4420-40T2-14 \| L: 277 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 42 \| L1: 168 \| L2: 207 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-7829	3201243 \| TDR 4430-40T2-14 \| Spec: TDR4430-40T2-14 \| L: 282 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 43 \| L1: 172 \| L2: 212 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-7847	3200234 \| TDR 4450-40T2-14 \| Spec: TDR4450-40T2-14 \| L: 292 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 45 \| L1: 180 \| L2: 222 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-7865	3200240 \| TDR 4470-40T2-14 \| Spec: TDR4470-40T2-14 \| L: 301 \| Screw: SO 50090 I \| Insert: SPMG 140512 DG \| D: 47 \| L1: 188 \| L2: 231 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
	374-7892	3200249 \| TDR 4500-40T2-14 \| Spec: TDR4500-40T2-14 \| L: 315 \| Screw: SO50090 I \| Insert: SPMG 140512 DG \| D: 50 \| L1: 200 \| L2: 245 \| D1: 40 \| D2: 60 \| L3: 70 \| Torxkey: TD 20
