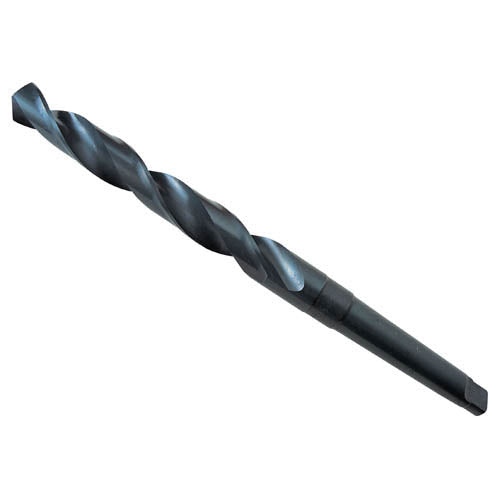

Taehwa 315-1262 Taper Drill

Taehwa 315-1262 Taper Drill

Taehwa 315-1262 Taper Drill is a precision cutting tool designed for taper hole drilling applications, sourced direct from Korea.

Key features

  • Taper drills are commonly used in metalworking and machining operations where a gradually widening bore is needed to seat tapered pins, reamers, or fasteners with accuracy
315-1262 13.0MM | Spec: MT1 13.0 | Cutting Length: 115 | Overall Length: 198
315-1271 13.5MM | Spec: MT1 13.5 | Cutting Length: 118 | Overall Length: 202
315-1280 14.0MM | Spec: MT1 14.0 | Cutting Length: 122 | Overall Length: 205
315-1299 14.5MM | Spec: MT2 14.5 | Cutting Length: 122 | Overall Length: 222
315-1305 15.0MM | Spec: MT2 15.0 | Cutting Length: 125 | Overall Length: 225
315-1314 15.5MM | Spec: MT2 15.5 | Cutting Length: 128 | Overall Length: 228
315-1323 16.0MM | Spec: MT2 16.0 | Cutting Length: 130 | Overall Length: 230
315-1332 16.5MM | Spec: MT2 16.5 | Cutting Length: 132 | Overall Length: 232
315-1341 17.0MM | Spec: MT2 17.0 | Cutting Length: 135 | Overall Length: 235
315-1350 17.5MM | Spec: MT2 17.5 | Cutting Length: 140 | Overall Length: 240
315-1369 18.0MM | Spec: MT2 18.0 | Cutting Length: 140 | Overall Length: 240
315-1378 18.5MM | Spec: MT2 18.5 | Cutting Length: 145 | Overall Length: 245
315-1387 19.0MM | Spec: MT2 19.0 | Cutting Length: 145 | Overall Length: 245
315-1396 19.5MM | Spec: MT2 19.5 | Cutting Length: 150 | Overall Length: 250
315-1402 20.0MM | Spec: MT2 20.0 | Cutting Length: 150 | Overall Length: 250
315-1411 20.5MM | Spec: MT2 20.5 | Cutting Length: 155 | Overall Length: 255
315-1420 21.0MM | Spec: MT2 21.0 | Cutting Length: 155 | Overall Length: 255
315-1439 21.5MM | Spec: MT2 21.5 | Cutting Length: 160 | Overall Length: 260
315-1448 22.0MM | Spec: MT2 22.0 | Cutting Length: 160 | Overall Length: 260
315-1457 22.5MM | Spec: MT2 22.5 | Cutting Length: 165 | Overall Length: 265
315-1466 23.0MM | Spec: MT2 23.0 | Cutting Length: 165 | Overall Length: 265
315-1475 23.5MM | Spec: MT3 23.5 | Cutting Length: 165 | Overall Length: 285
315-1484 24.0MM | Spec: MT3 24.0 | Cutting Length: 165 | Overall Length: 285
315-1493 24.5MM | Spec: MT3 24.5 | Cutting Length: 165 | Overall Length: 285
315-1509 25.0MM | Spec: MT3 25.0 | Cutting Length: 165 | Overall Length: 285
315-1518 25.5MM | Spec: MT3 25.5 | Cutting Length: 165 | Overall Length: 285
315-1527 26.0MM | Spec: MT3 26.0 | Cutting Length: 165 | Overall Length: 285
315-1536 26.5MM | Spec: MT3 26.5 | Cutting Length: 170 | Overall Length: 290
315-1545 27.0MM | Spec: MT3 27.0 | Cutting Length: 170 | Overall Length: 290
315-1554 27.5MM | Spec: MT3 27.5 | Cutting Length: 175 | Overall Length: 295
315-1563 28.0MM | Spec: MT3 28.0 | Cutting Length: 175 | Overall Length: 295
315-1572 28.5MM | Spec: MT3 28.5 | Cutting Length: 180 | Overall Length: 300
315-1581 29.0MM | Spec: MT3 29.0 | Cutting Length: 180 | Overall Length: 300
315-1590 29.5MM | Spec: MT3 29.5 | Cutting Length: 185 | Overall Length: 305
Drills & Drill SetsTaehwa
34 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Taehwa 315-1262 Taper Drill

Brand Taehwa·Drills & Drill Sets

Available part numbers (34)

315-1262, 315-1271, 315-1280, 315-1299, 315-1305, 315-1314, 315-1323, 315-1332, 315-1341, 315-1350 + 24 more — see full table ↓

How to order

Send the Taehwa part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
315-126213.0MM | Spec: MT1 13.0 | Cutting Length: 115 | Overall Length: 198
315-127113.5MM | Spec: MT1 13.5 | Cutting Length: 118 | Overall Length: 202
315-128014.0MM | Spec: MT1 14.0 | Cutting Length: 122 | Overall Length: 205
315-129914.5MM | Spec: MT2 14.5 | Cutting Length: 122 | Overall Length: 222
315-130515.0MM | Spec: MT2 15.0 | Cutting Length: 125 | Overall Length: 225
315-131415.5MM | Spec: MT2 15.5 | Cutting Length: 128 | Overall Length: 228
315-132316.0MM | Spec: MT2 16.0 | Cutting Length: 130 | Overall Length: 230
315-133216.5MM | Spec: MT2 16.5 | Cutting Length: 132 | Overall Length: 232
315-134117.0MM | Spec: MT2 17.0 | Cutting Length: 135 | Overall Length: 235
315-135017.5MM | Spec: MT2 17.5 | Cutting Length: 140 | Overall Length: 240
315-136918.0MM | Spec: MT2 18.0 | Cutting Length: 140 | Overall Length: 240
315-137818.5MM | Spec: MT2 18.5 | Cutting Length: 145 | Overall Length: 245
315-138719.0MM | Spec: MT2 19.0 | Cutting Length: 145 | Overall Length: 245
315-139619.5MM | Spec: MT2 19.5 | Cutting Length: 150 | Overall Length: 250
315-140220.0MM | Spec: MT2 20.0 | Cutting Length: 150 | Overall Length: 250
315-141120.5MM | Spec: MT2 20.5 | Cutting Length: 155 | Overall Length: 255
315-142021.0MM | Spec: MT2 21.0 | Cutting Length: 155 | Overall Length: 255
315-143921.5MM | Spec: MT2 21.5 | Cutting Length: 160 | Overall Length: 260
315-144822.0MM | Spec: MT2 22.0 | Cutting Length: 160 | Overall Length: 260
315-145722.5MM | Spec: MT2 22.5 | Cutting Length: 165 | Overall Length: 265
315-146623.0MM | Spec: MT2 23.0 | Cutting Length: 165 | Overall Length: 265
315-147523.5MM | Spec: MT3 23.5 | Cutting Length: 165 | Overall Length: 285
315-148424.0MM | Spec: MT3 24.0 | Cutting Length: 165 | Overall Length: 285
315-149324.5MM | Spec: MT3 24.5 | Cutting Length: 165 | Overall Length: 285
315-150925.0MM | Spec: MT3 25.0 | Cutting Length: 165 | Overall Length: 285
315-151825.5MM | Spec: MT3 25.5 | Cutting Length: 165 | Overall Length: 285
315-152726.0MM | Spec: MT3 26.0 | Cutting Length: 165 | Overall Length: 285
315-153626.5MM | Spec: MT3 26.5 | Cutting Length: 170 | Overall Length: 290
315-154527.0MM | Spec: MT3 27.0 | Cutting Length: 170 | Overall Length: 290
315-155427.5MM | Spec: MT3 27.5 | Cutting Length: 175 | Overall Length: 295
315-156328.0MM | Spec: MT3 28.0 | Cutting Length: 175 | Overall Length: 295
315-157228.5MM | Spec: MT3 28.5 | Cutting Length: 180 | Overall Length: 300
315-158129.0MM | Spec: MT3 29.0 | Cutting Length: 180 | Overall Length: 300
315-159029.5MM | Spec: MT3 29.5 | Cutting Length: 185 | Overall Length: 305
