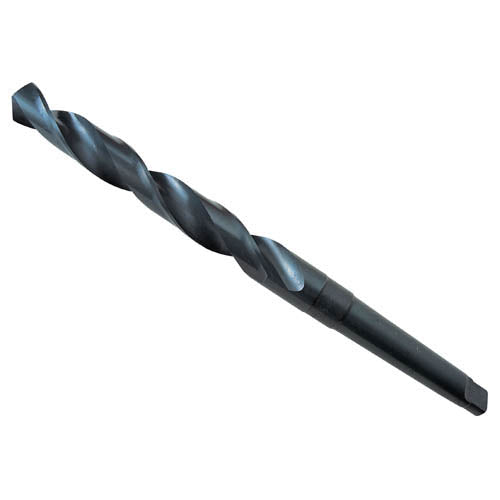

Taehwa 315-1606 Taper Drill

Taehwa 315-1606 Taper Drill

Taehwa 315-1606 Taper Drill is a precision taper drill designed for creating tapered holes and reamed fits in metal workpieces, sourced direct from Korea.

Key features

  • Taper drills are commonly used in metalworking and machining operations where a conical bore profile is required for tapered pins, fittings, or mating components
315-1606 30.0MM | Spec: MT3 30.0 | Cutting Length: 185 | Overall Length: 305
315-1615 30.5MM | Spec: MT3 30.5 | Cutting Length: 190 | Overall Length: 310
315-1624 31.0MM | Spec: MT3 31.0 | Cutting Length: 190 | Overall Length: 310
315-1633 31.5MM | Spec: MT3 31.5 | Cutting Length: 195 | Overall Length: 315
315-1642 32.0MM | Spec: MT3 32.0 | Cutting Length: 195 | Overall Length: 315
315-1651 32.5MM | Spec: MT4 32.5 | Cutting Length: 200 | Overall Length: 345
315-1660 33.0MM | Spec: MT4 33.0 | Cutting Length: 200 | Overall Length: 345
315-1688 34.0MM | Spec: MT4 34.0 | Cutting Length: 205 | Overall Length: 350
315-1697 34.5MM | Spec: MT4 34.5 | Cutting Length: 205 | Overall Length: 350
315-1703 35.0MM | Spec: MT4 35.0 | Cutting Length: 205 | Overall Length: 350
315-1721 36.0MM | Spec: MT4 36.0 | Cutting Length: 210 | Overall Length: 355
315-1749 37.0MM | Spec: MT4 37.0 | Cutting Length: 210 | Overall Length: 355
315-1767 38.0MM | Spec: MT4 38.0 | Cutting Length: 215 | Overall Length: 360
315-1785 39.0MM | Spec: MT4 39.0 | Cutting Length: 215 | Overall Length: 360
315-1800 40.0MM | Spec: MT4 40.0 | Cutting Length: 220 | Overall Length: 365
315-1828 41.0MM | Spec: MT4 41.0 | Cutting Length: 220 | Overall Length: 365
315-1837 42.0MM | Spec: MT4 42.0 | Cutting Length: 225 | Overall Length: 370
315-1855 43.0MM | Spec: MT4 43.0 | Cutting Length: 225 | Overall Length: 370
315-1873 44.0MM | Spec: MT4 44.0 | Cutting Length: 230 | Overall Length: 375
315-1891 45.0MM | Spec: MT4 45.0 | Cutting Length: 230 | Overall Length: 375
315-1916 46.0MM | Spec: MT4 46.0 | Cutting Length: 235 | Overall Length: 380
315-1925 47.0MM | Spec: MT4 47.0 | Cutting Length: 235 | Overall Length: 380
315-1943 48.0MM | Spec: MT4 48.0 | Cutting Length: 240 | Overall Length: 385
315-1952 49.0MM | Spec: MT4 49.0 | Cutting Length: 240 | Overall Length: 385
315-1961 50.0MM | Spec: MT4 50.0 | Cutting Length: 245 | Overall Length: 390
315-1970 51.0MM | Spec: MT5 51.0 | Cutting Length: 245 | Overall Length: 425
315-1989 52.0MM | Spec: MT5 52.0 | Cutting Length: 250 | Overall Length: 430
315-2003 54.0MM | Spec: MT5 54.0 | Cutting Length: 255 | Overall Length: 435
315-2021 55.0MM | Spec: MT5 55.0 | Cutting Length: 255 | Overall Length: 435
315-2030 56.0MM | Spec: MT5 56.0 | Cutting Length: 260 | Overall Length: 440
315-2049 57.0MM | Spec: MT5 57.0 | Cutting Length: 260 | Overall Length: 440
315-2058 58.0MM | Spec: MT5 58.0 | Cutting Length: 265 | Overall Length: 445
315-2076 60.0MM | Spec: MT5 60.0 | Cutting Length: 270 | Overall Length: 450
Drills & Drill SetsTaehwa
33 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Taehwa 315-1606 Taper Drill

Brand Taehwa·Drills & Drill Sets

Available part numbers (33)

315-1606, 315-1615, 315-1624, 315-1633, 315-1642, 315-1651, 315-1660, 315-1688, 315-1697, 315-1703 + 23 more — see full table ↓

How to order

Send the Taehwa part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
315-160630.0MM | Spec: MT3 30.0 | Cutting Length: 185 | Overall Length: 305
315-161530.5MM | Spec: MT3 30.5 | Cutting Length: 190 | Overall Length: 310
315-162431.0MM | Spec: MT3 31.0 | Cutting Length: 190 | Overall Length: 310
315-163331.5MM | Spec: MT3 31.5 | Cutting Length: 195 | Overall Length: 315
315-164232.0MM | Spec: MT3 32.0 | Cutting Length: 195 | Overall Length: 315
315-165132.5MM | Spec: MT4 32.5 | Cutting Length: 200 | Overall Length: 345
315-166033.0MM | Spec: MT4 33.0 | Cutting Length: 200 | Overall Length: 345
315-168834.0MM | Spec: MT4 34.0 | Cutting Length: 205 | Overall Length: 350
315-169734.5MM | Spec: MT4 34.5 | Cutting Length: 205 | Overall Length: 350
315-170335.0MM | Spec: MT4 35.0 | Cutting Length: 205 | Overall Length: 350
315-172136.0MM | Spec: MT4 36.0 | Cutting Length: 210 | Overall Length: 355
315-174937.0MM | Spec: MT4 37.0 | Cutting Length: 210 | Overall Length: 355
315-176738.0MM | Spec: MT4 38.0 | Cutting Length: 215 | Overall Length: 360
315-178539.0MM | Spec: MT4 39.0 | Cutting Length: 215 | Overall Length: 360
315-180040.0MM | Spec: MT4 40.0 | Cutting Length: 220 | Overall Length: 365
315-182841.0MM | Spec: MT4 41.0 | Cutting Length: 220 | Overall Length: 365
315-183742.0MM | Spec: MT4 42.0 | Cutting Length: 225 | Overall Length: 370
315-185543.0MM | Spec: MT4 43.0 | Cutting Length: 225 | Overall Length: 370
315-187344.0MM | Spec: MT4 44.0 | Cutting Length: 230 | Overall Length: 375
315-189145.0MM | Spec: MT4 45.0 | Cutting Length: 230 | Overall Length: 375
315-191646.0MM | Spec: MT4 46.0 | Cutting Length: 235 | Overall Length: 380
315-192547.0MM | Spec: MT4 47.0 | Cutting Length: 235 | Overall Length: 380
315-194348.0MM | Spec: MT4 48.0 | Cutting Length: 240 | Overall Length: 385
315-195249.0MM | Spec: MT4 49.0 | Cutting Length: 240 | Overall Length: 385
315-196150.0MM | Spec: MT4 50.0 | Cutting Length: 245 | Overall Length: 390
315-197051.0MM | Spec: MT5 51.0 | Cutting Length: 245 | Overall Length: 425
315-198952.0MM | Spec: MT5 52.0 | Cutting Length: 250 | Overall Length: 430
315-200354.0MM | Spec: MT5 54.0 | Cutting Length: 255 | Overall Length: 435
315-202155.0MM | Spec: MT5 55.0 | Cutting Length: 255 | Overall Length: 435
315-203056.0MM | Spec: MT5 56.0 | Cutting Length: 260 | Overall Length: 440
315-204957.0MM | Spec: MT5 57.0 | Cutting Length: 260 | Overall Length: 440
315-205858.0MM | Spec: MT5 58.0 | Cutting Length: 265 | Overall Length: 445
315-207660.0MM | Spec: MT5 60.0 | Cutting Length: 270 | Overall Length: 450
